WiiM Ultra - The Digital Hub for Audiophiles

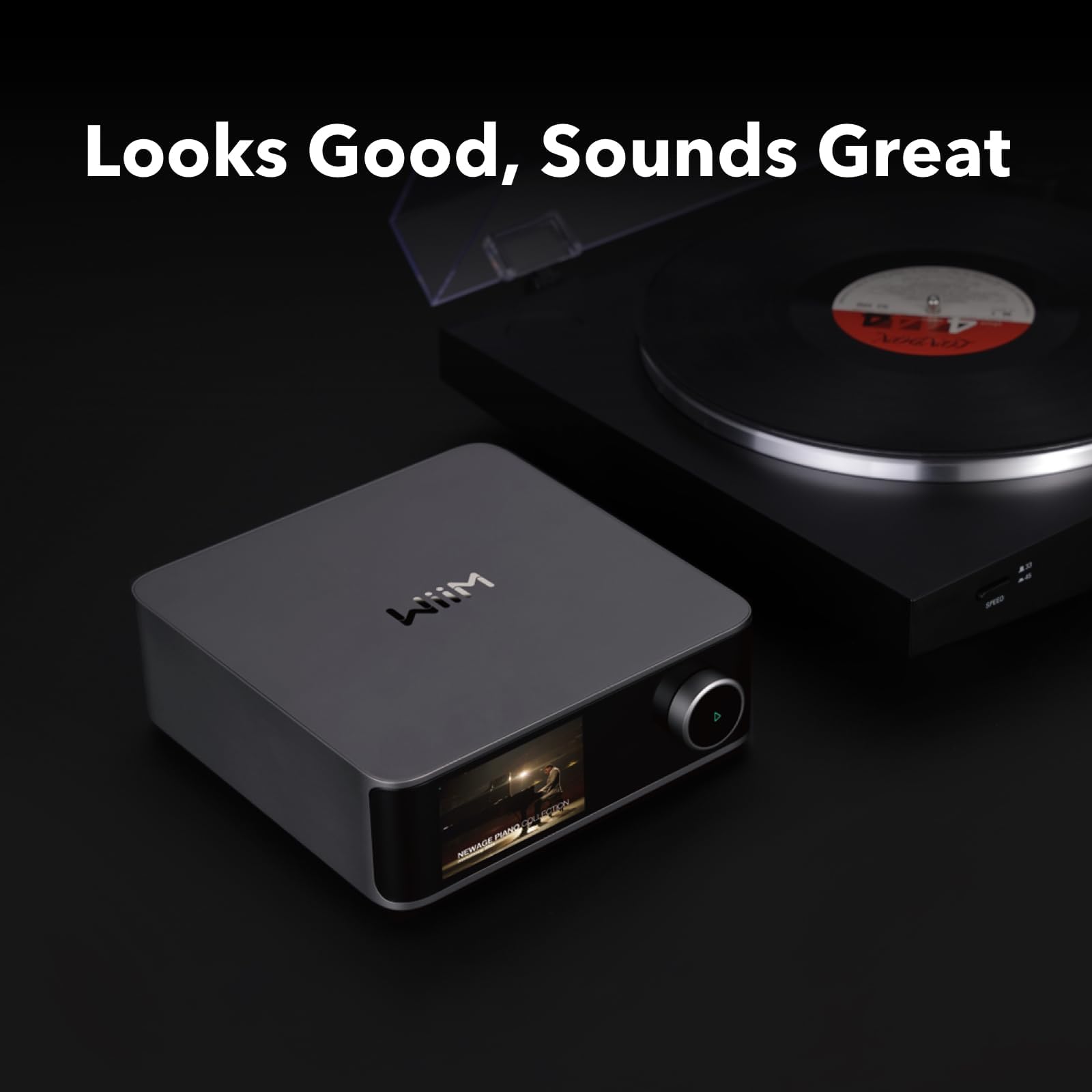

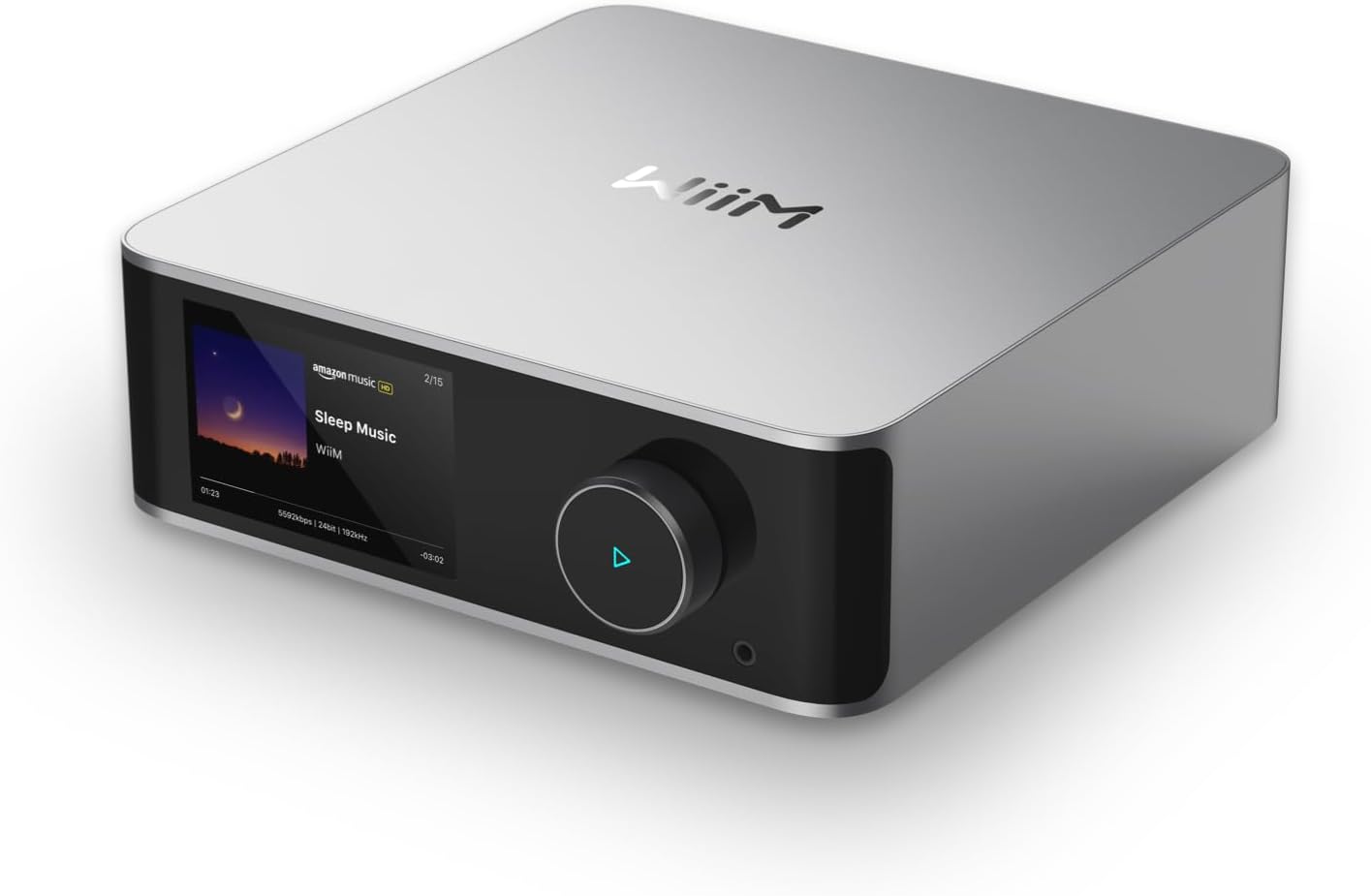

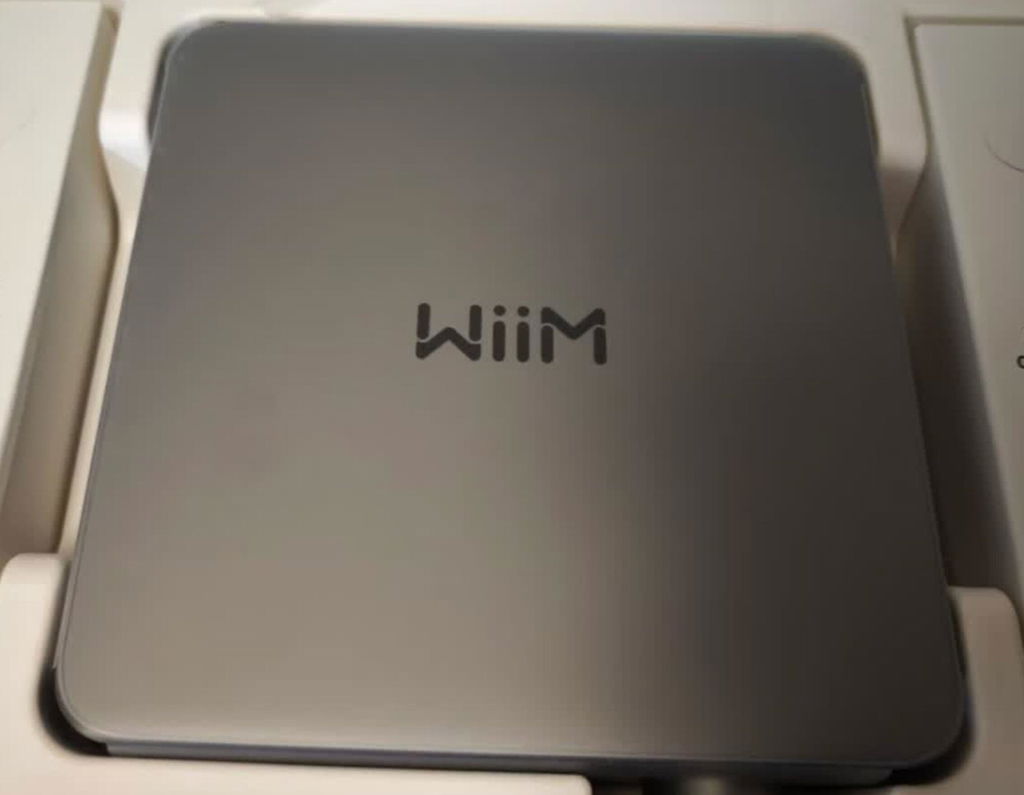

Your music, visualized. The WiiM Ultra sets a new benchmark for music streamers. It combines the bit-perfect streaming capabilities WiiM is famous for with a stunning 3.5-inch full-color glass touchscreen and a premium aluminum unibody. It is not just a streamer; it is a comprehensive digital pre-amplifier designed to connect your turntable, TV, and digital sources to your audio system.
A Visual and Tactile Experience

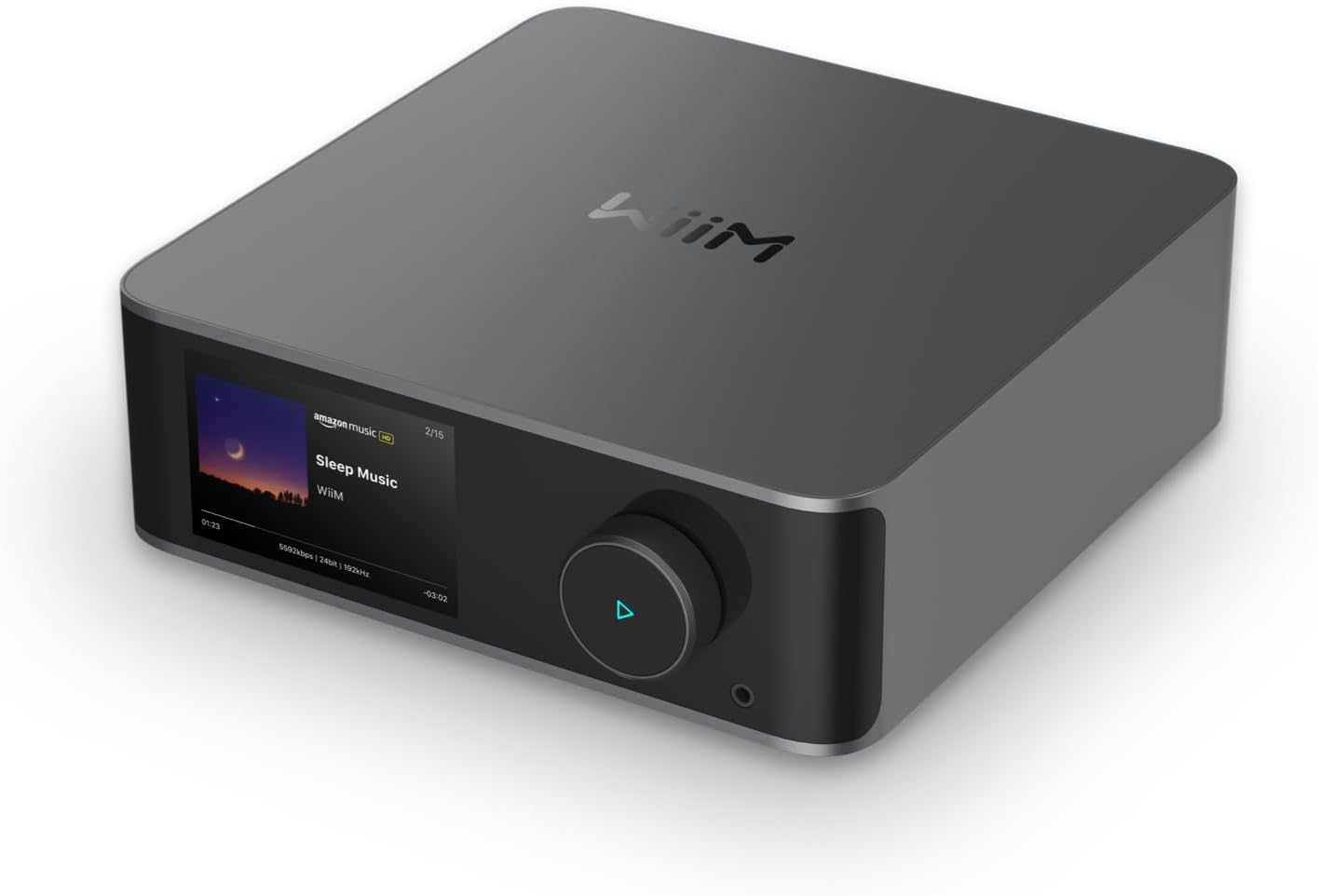

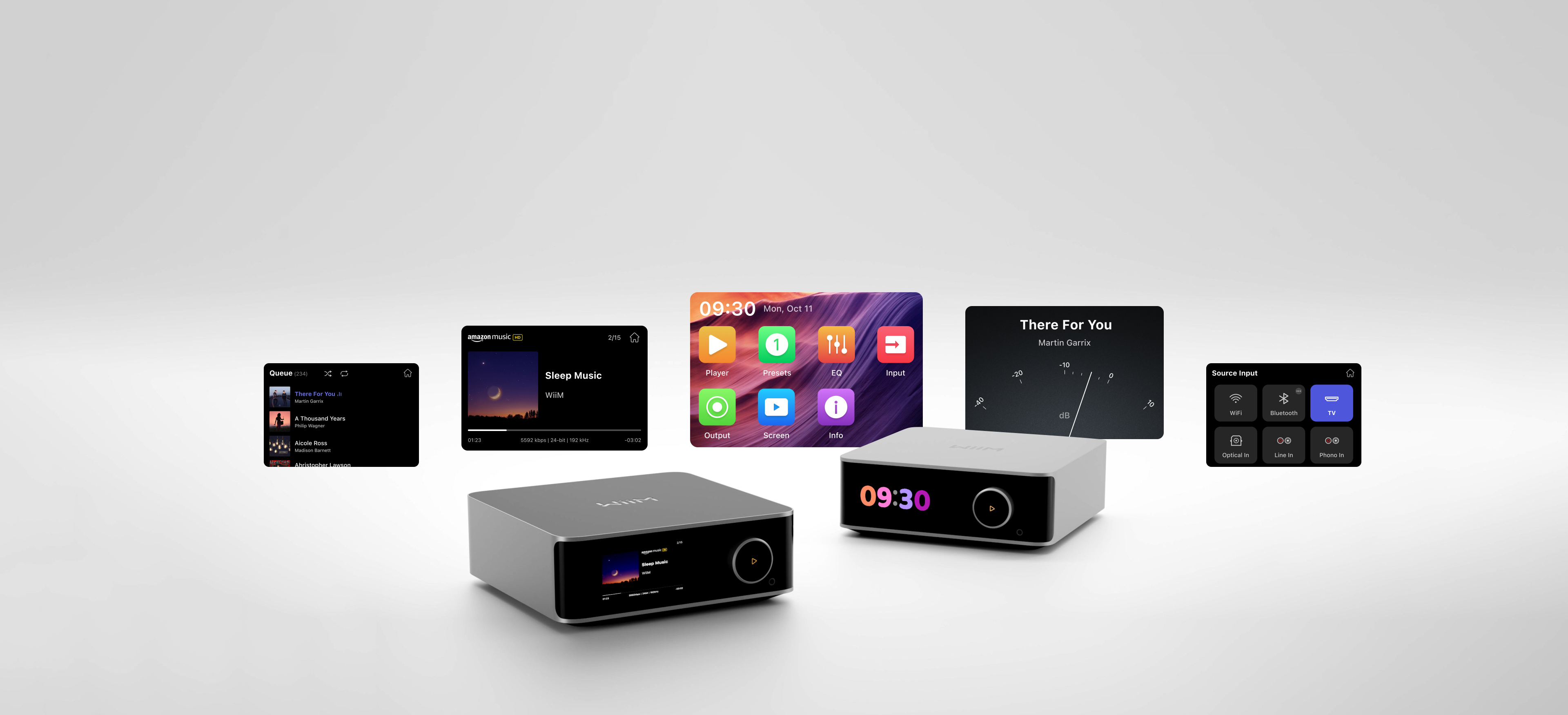

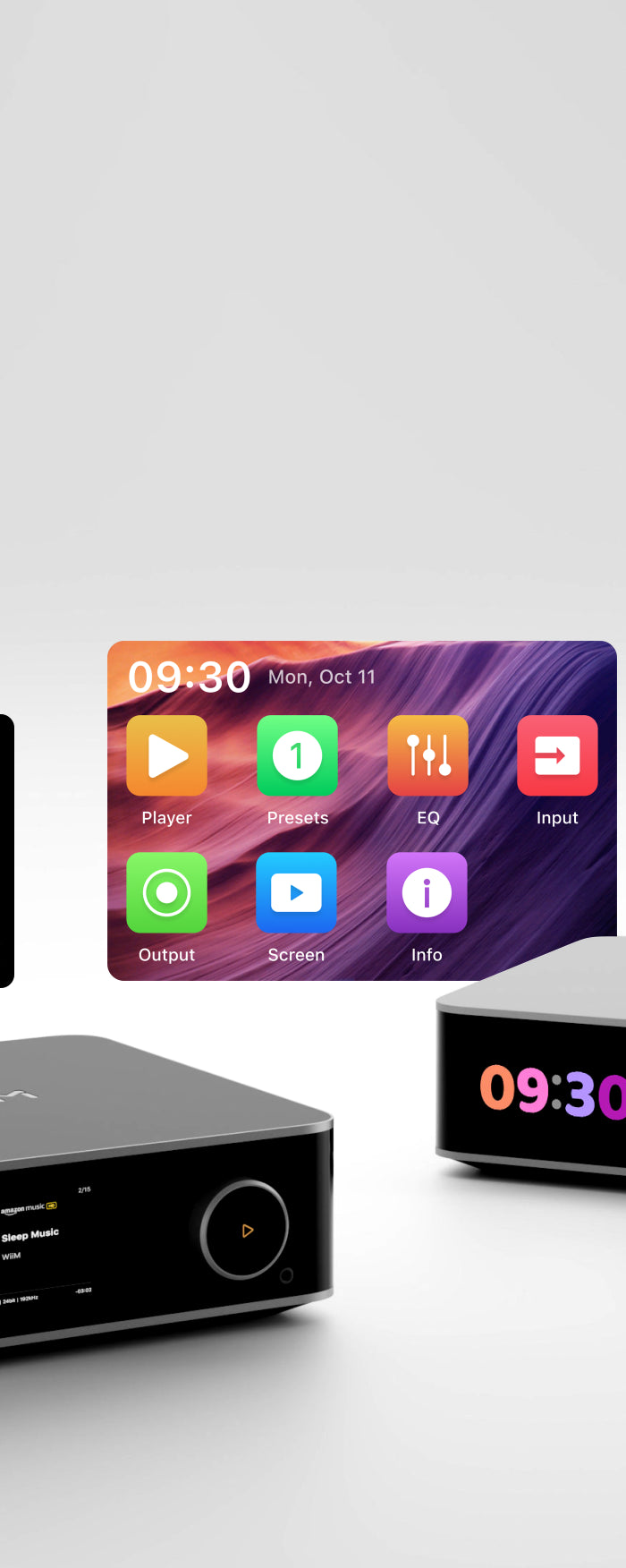

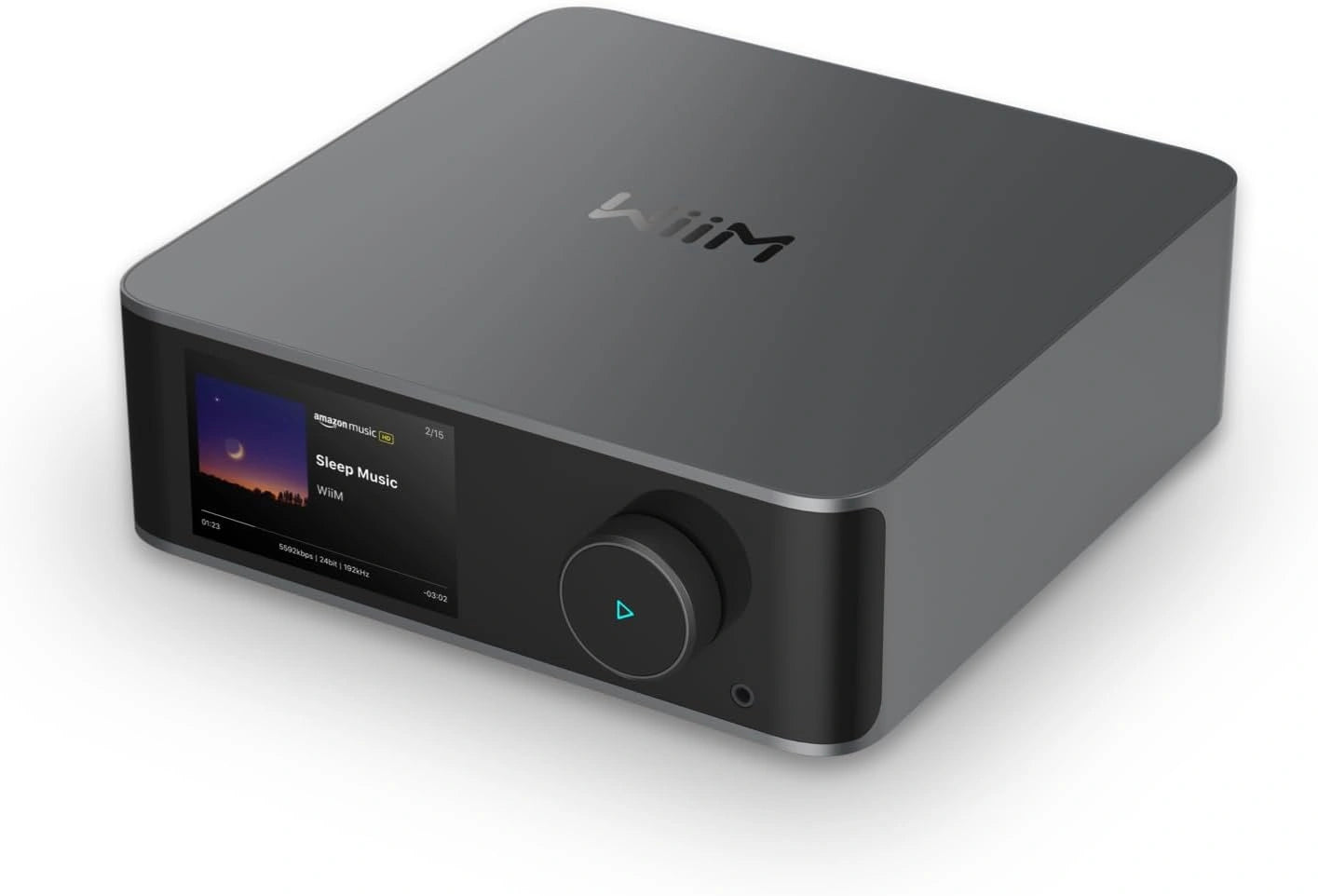

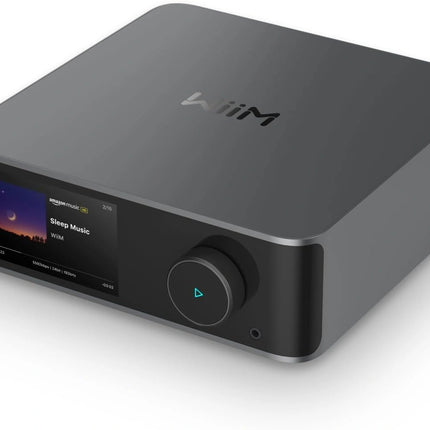

3.5-Inch Glass Touchscreen
Navigate your music like never before. The high-resolution display allows you to browse recent playlists, view crisp Album Art, check playback status, and adjust settings without needing your phone. Combined with the smooth physical volume knob, it offers a satisfying tactile control experience.
Unrivaled Connectivity

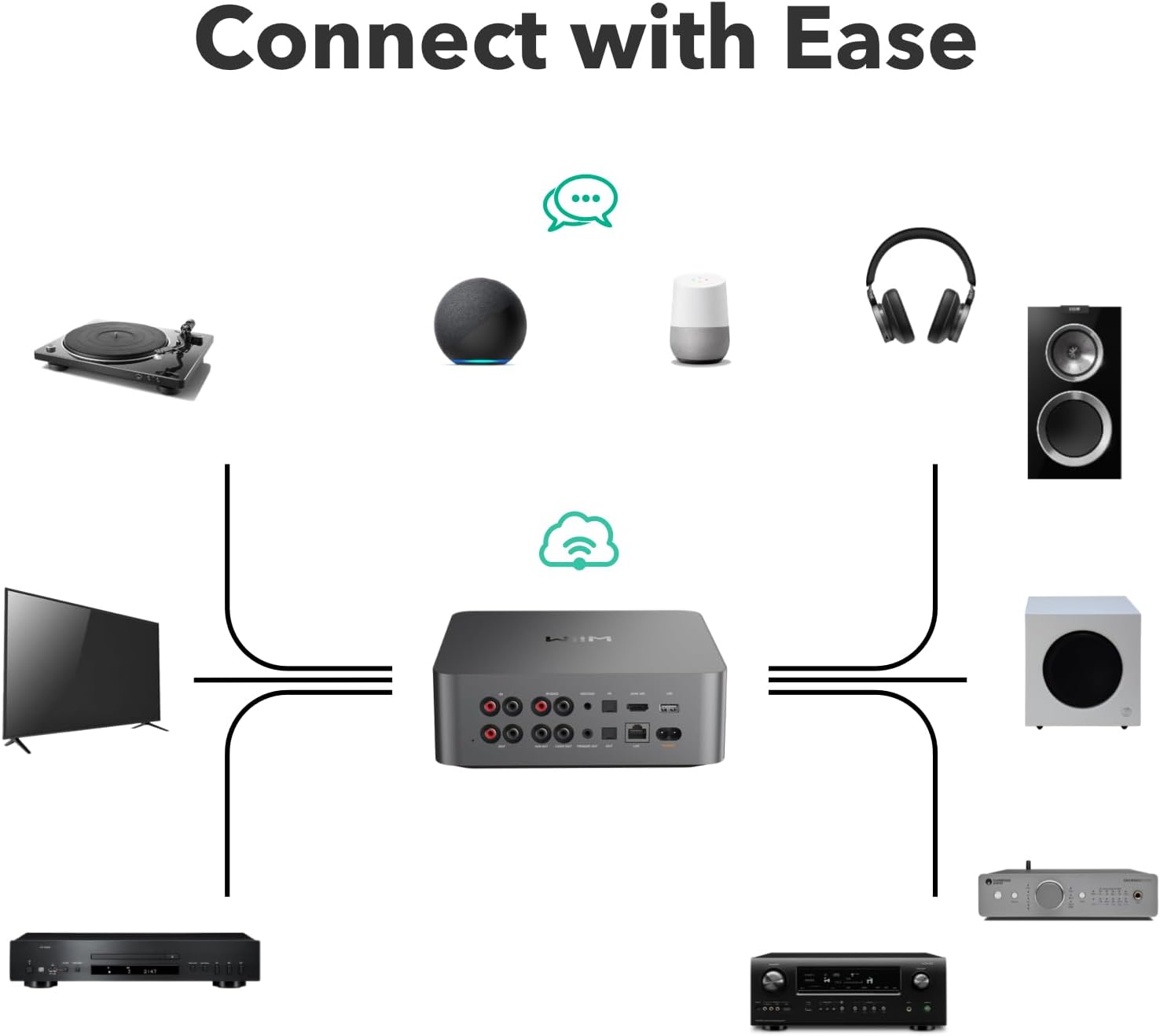

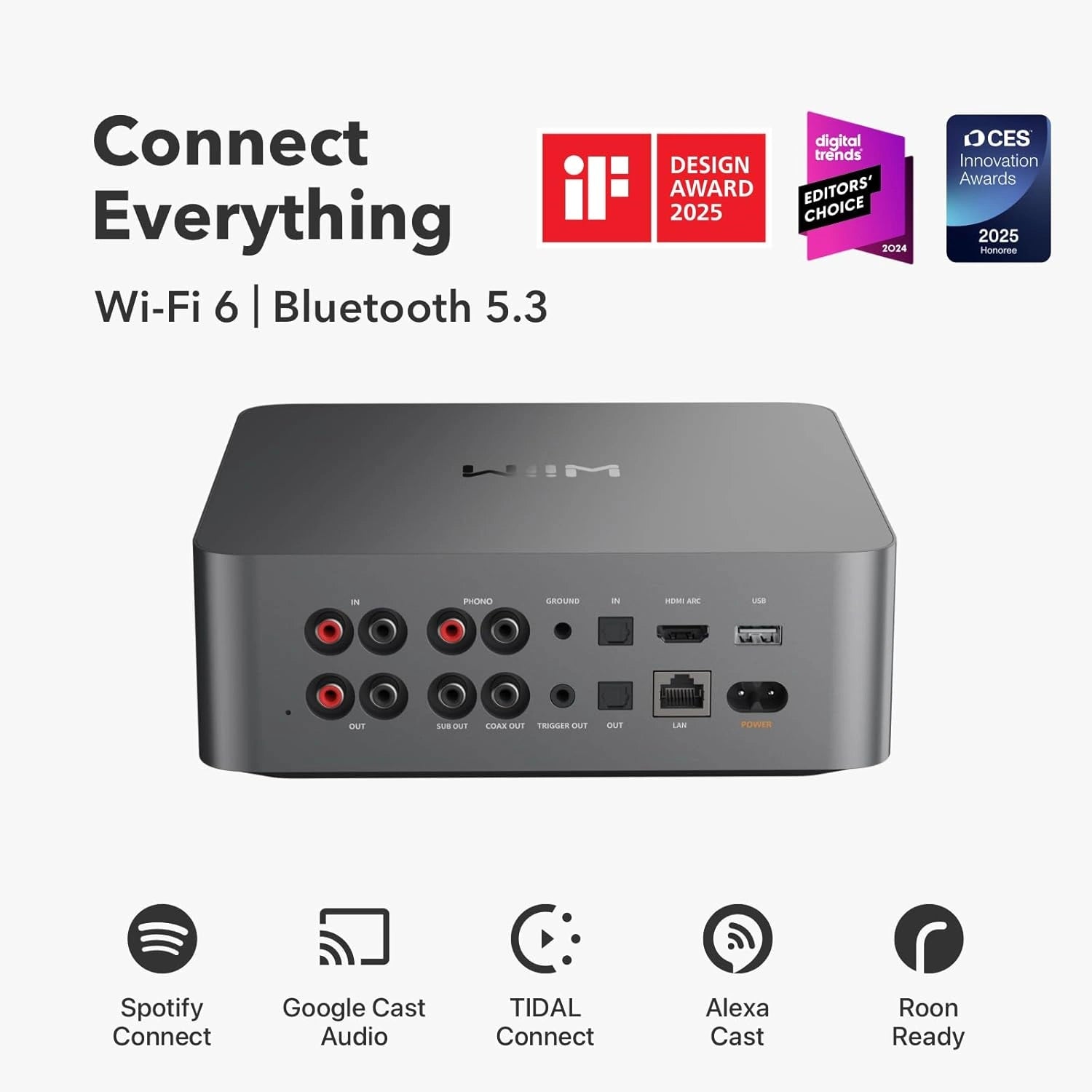

Connect Everything
The WiiM Ultra is the most versatile device in its class:
-
HDMI ARC: Connect your TV for high-fidelity stereo sound and control volume with your TV remote.
-
Phono Input (MM): Connect your turntable directly without an external preamp.
-
Headphone Amplifier: Features a dedicated front-panel headphone jack utilizing the TPA6120A2 chip for private listening.
-
Subwoofer Out: Includes advanced bass management to integrate a powered subwoofer seamlessly.
Flagship Audio Performance
Premium ESS Sabre DAC
Powered by the renowned ESS ES9038Q2M DAC chip, the Ultra delivers ultra-low distortion and high dynamic range. It supports up to 24-bit/192kHz gapless playback, ensuring you hear every detail of your Hi-Res files.

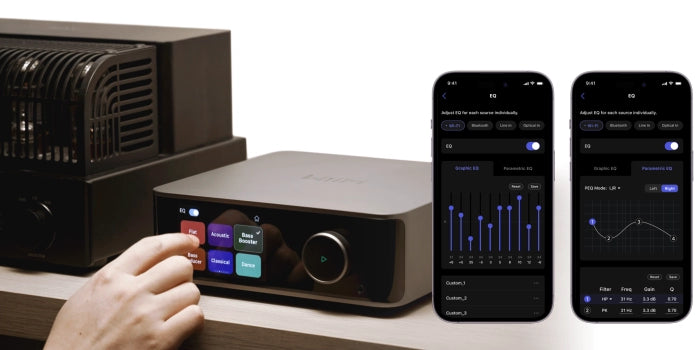

Room Correction & Smart EQ

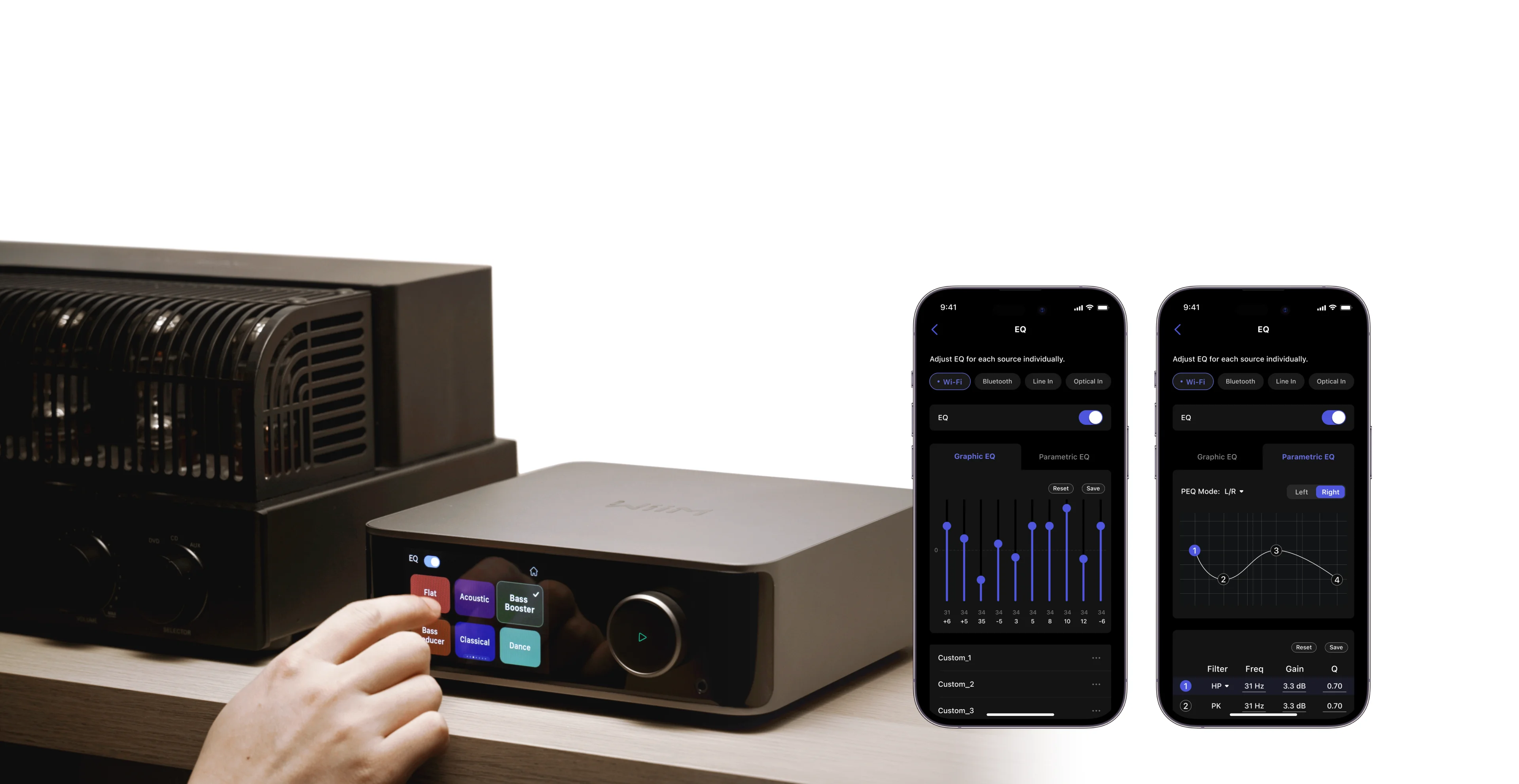

Bad acoustics? No problem. The Ultra features built-in Room Correction technology (using your phone's mic) to automatically adjust the EQ for your specific room.
📊 Comparison: Which WiiM is Right for You?
To help you choose, here is a detailed comparison between the WiiM Ultra and other popular WiiM models.
| Feature |
WiiM Ultra (Flagship) |
WiiM Pro Plus (Best Value) |
WiiM Amp (All-in-One) |
| Device Type |
Streamer / Preamp |
Streamer / DAC |
Amplifier + Streamer |
| Screen |
3.5" Touchscreen |
No Screen |
No Screen |
| Built-in Amp |
No (Requires Ext. Amp) |
No (Requires Ext. Amp) |
Yes (60W x2) |
| DAC Chip |
ESS ES9038Q2M |
AKM AK4493SEQ |
ESS ES9018K2M |
| Phono Input |
Yes (MM) |
No |
No |
| HDMI ARC |
Yes |
No |
Yes |
| Headphone Out |
Yes (Front) |
No |
No |
| Chassis |
Aluminum Alloy |
Plastic |
Aluminum Alloy |
| Sub Out |
Yes |
Yes (via Line Out) |
Yes |
| Wi-Fi |
Wi-Fi 6E |
Wi-Fi 5 |
Wi-Fi 5 |
-
Choose WiiM Ultra if: You want a screen, have a turntable/TV, or use high-end active speakers/power amps.
-
Choose WiiM Amp if: You have passive speakers and want a simple "just add speakers" solution.
-
Choose WiiM Pro Plus if: You just want to add excellent streaming to an existing amplifier without a screen.
Technical Specifications
-
DAC: ESS Sabre ES9038Q2M
-
Processor: Quad-core A53
-

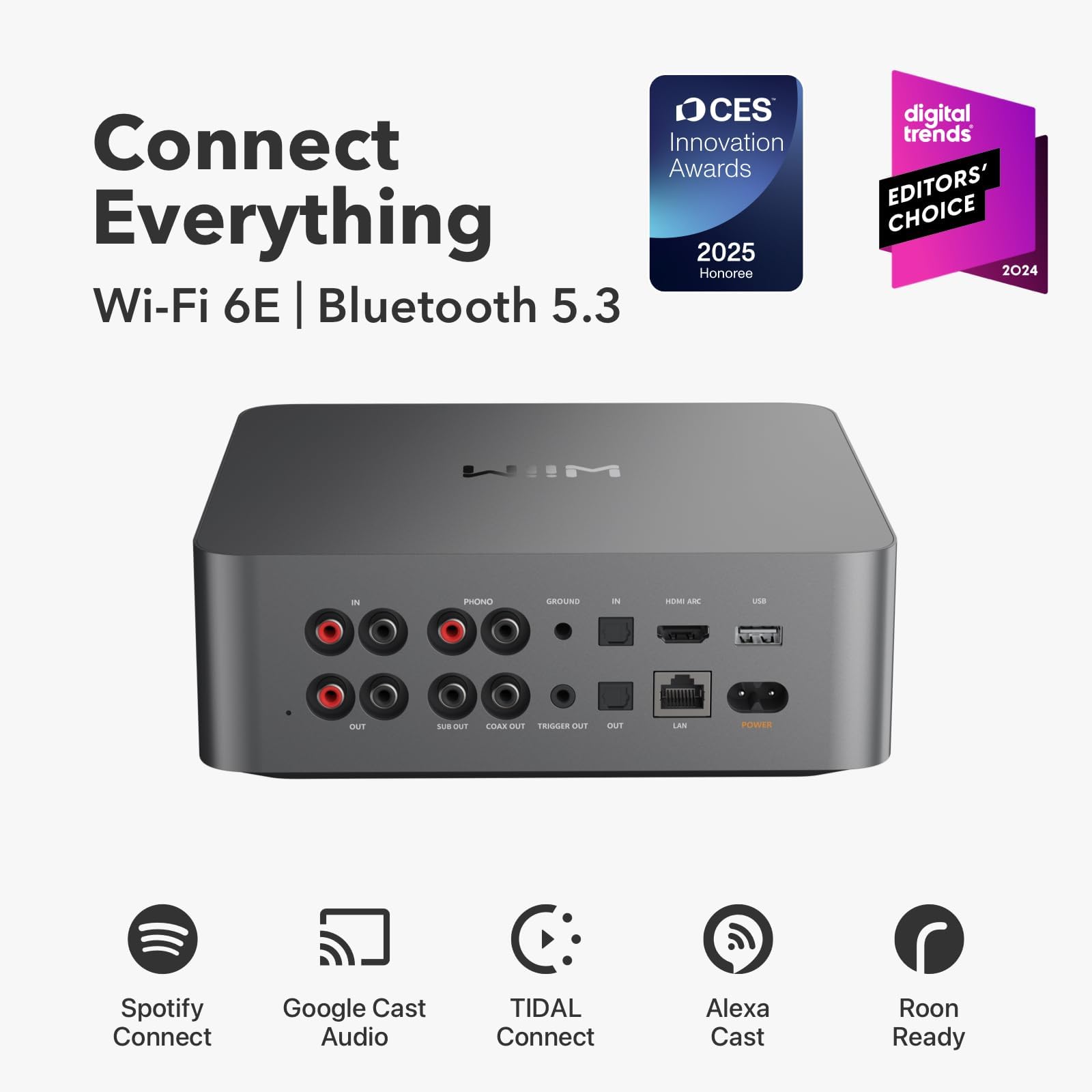

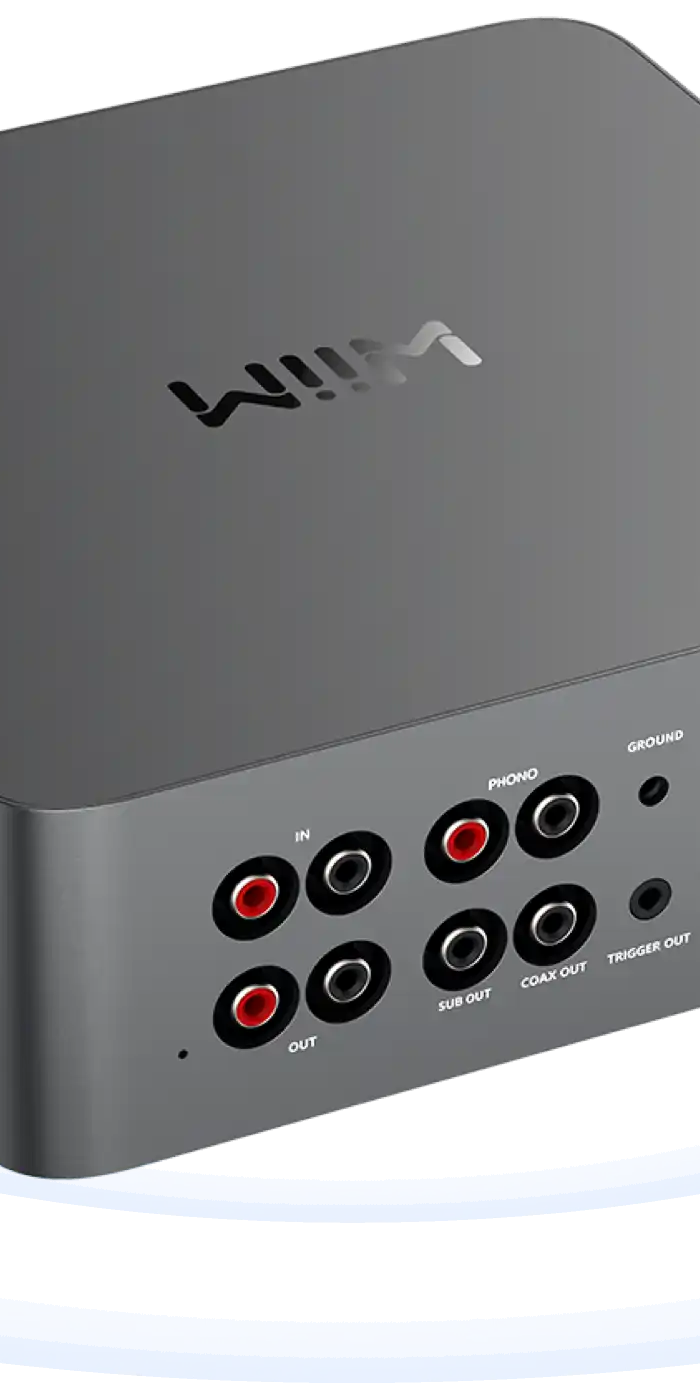

Inputs: HDMI ARC, Optical, Line In (RCA), Phono (RCA), USB-A (Media)
-
Outputs: Line Out (RCA), Optical, Coaxial, Sub Out, Headphone (3.5mm)
-

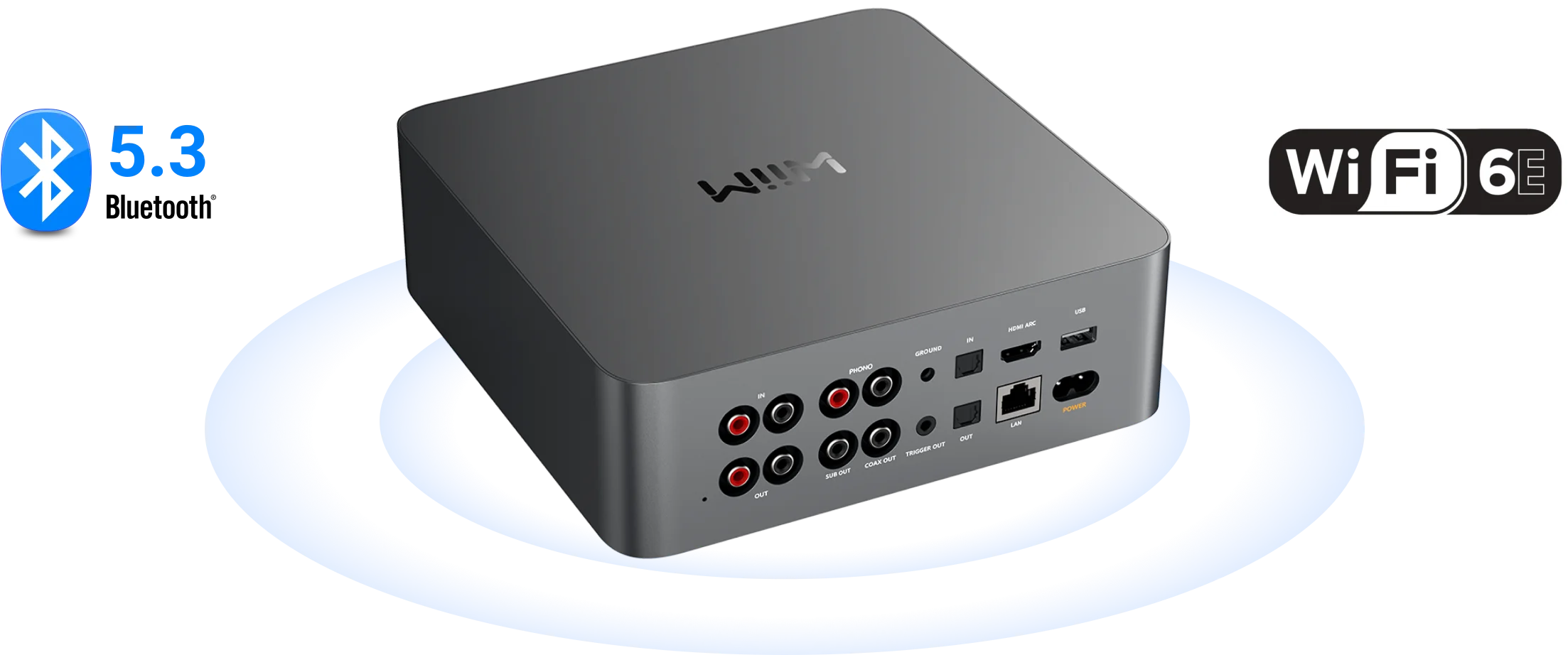

Network: Wi-Fi 6E, Bluetooth 5.3, Ethernet (10/100)
-
Dimensions: 205 x 205 x 73 mm
-
Build: Aluminum Case
▷Add Power to your Streamer: Connect the WiiM Ultra to the WiiM Vibelink Amp to drive your passive speakers with 100W of pure power.
▷Complete the Soundstage: Use the Ultra's advanced bass management to perfectly integrate the WiiM Sub Pro for deep, cinematic bass.
