    Description

    Overview

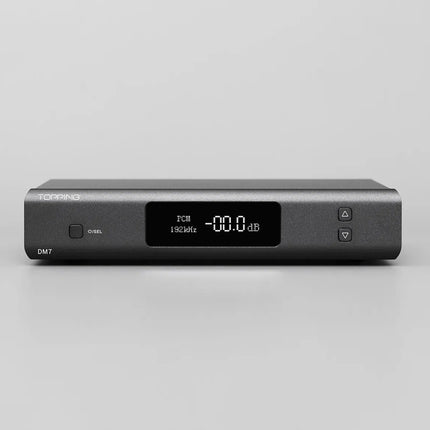

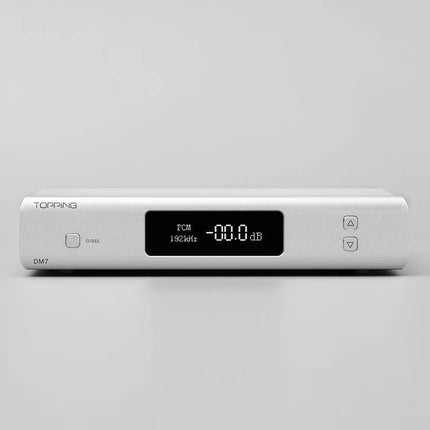

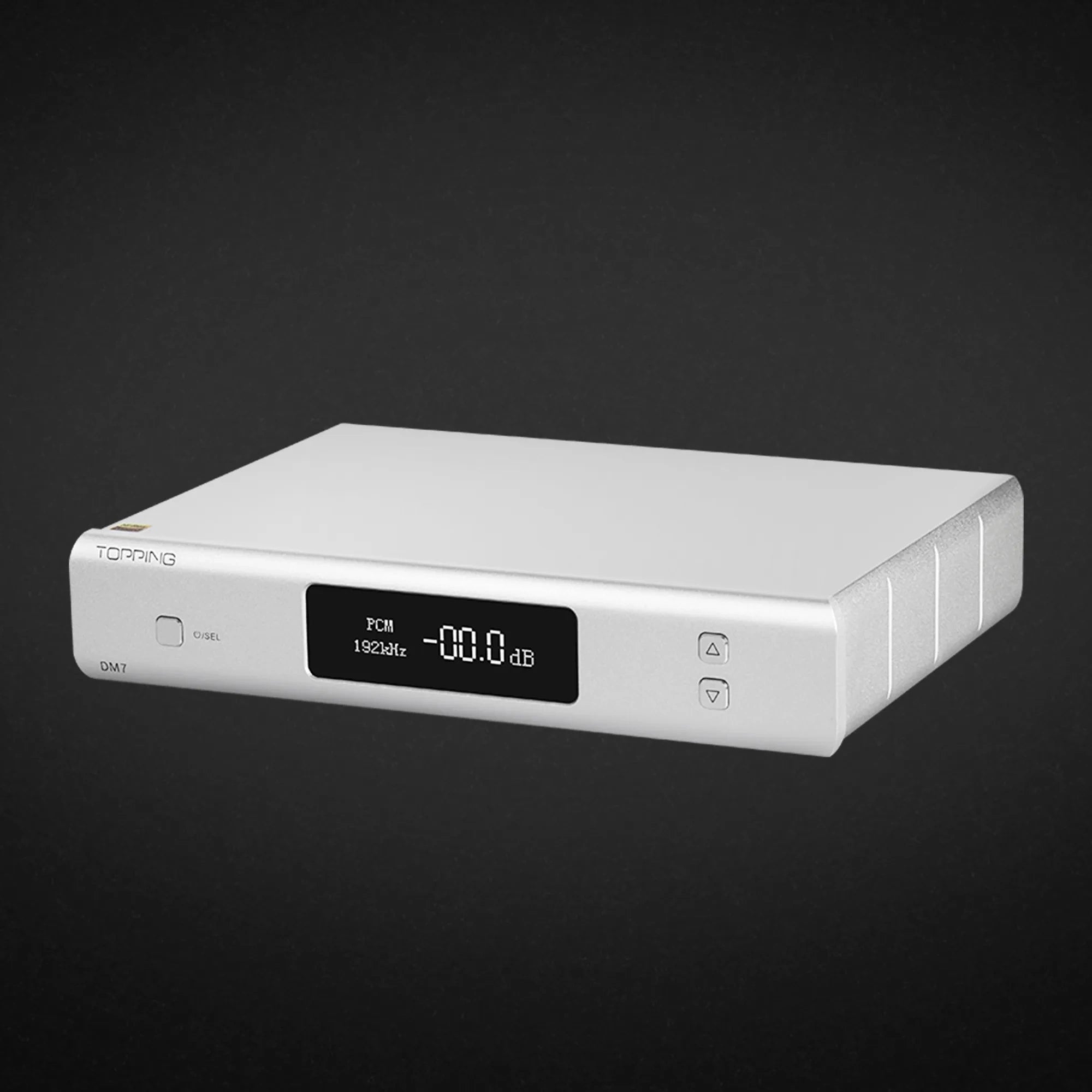

    The TOPPING DM7 is a high-resolution, multi-channel USB DAC designed for serious audio systems, delivering eight fully balanced analog outputs for immersive stereo and surround applications. It uses the flagship ESS ES9038PRO DAC chip and impresses with ultra-low distortion, wide dynamic range and flexibility for 2.0, 5.1, 7.1 or other multi-channel setups.

    Key Features

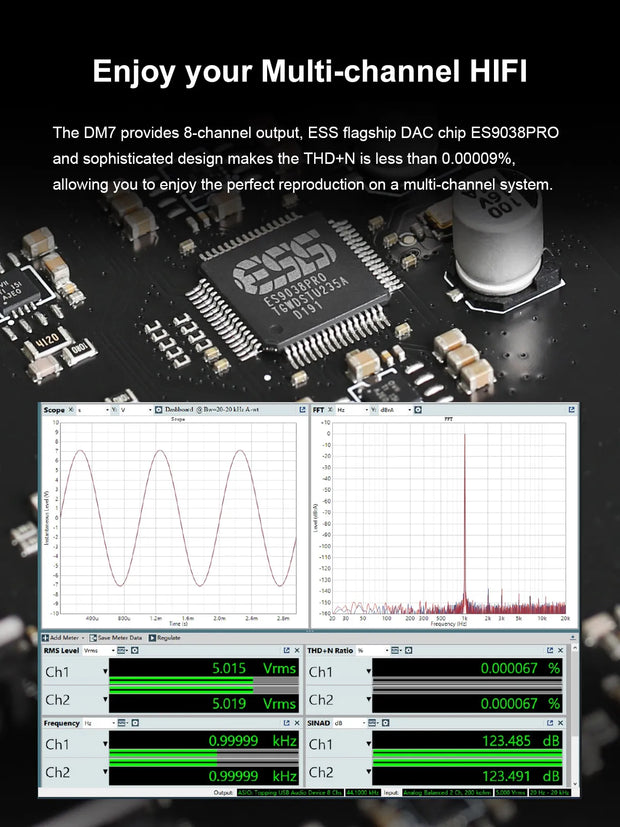

    • Flagship ES9038PRO DAC: Utilises ESS’s top-tier DAC technology for exceptional performance.

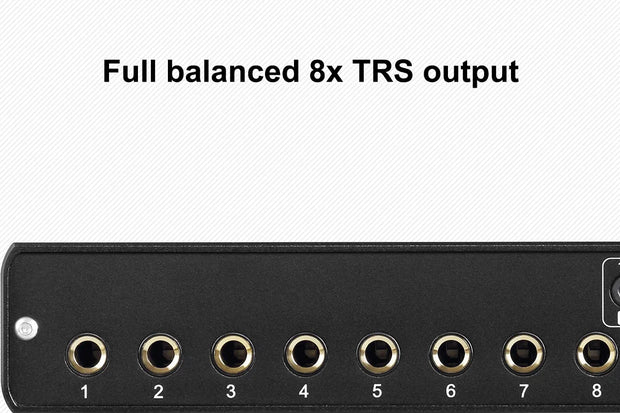

    • 8 Fully Balanced Analog Outputs: Eight TRS (¼″) balanced outputs, making it ideal for multi-channel speaker systems or high-end audio setups.

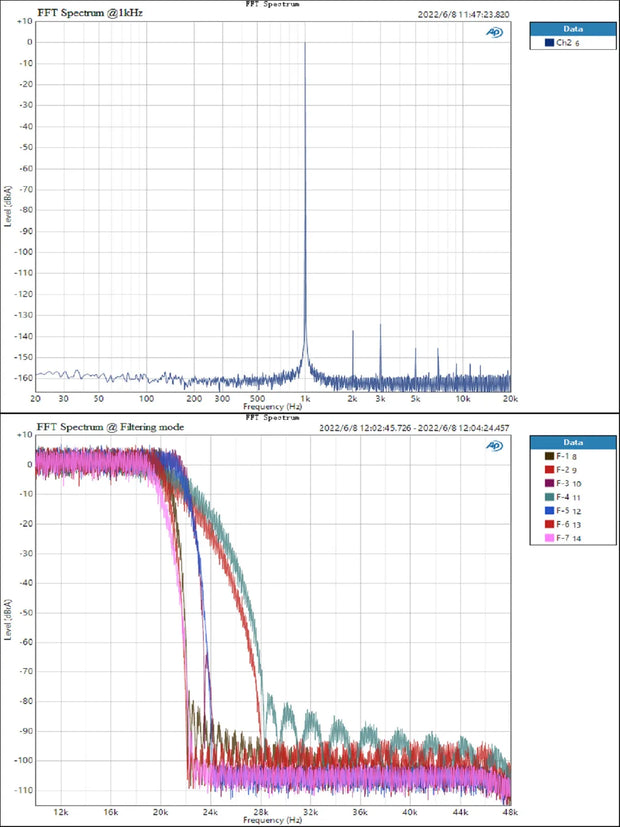

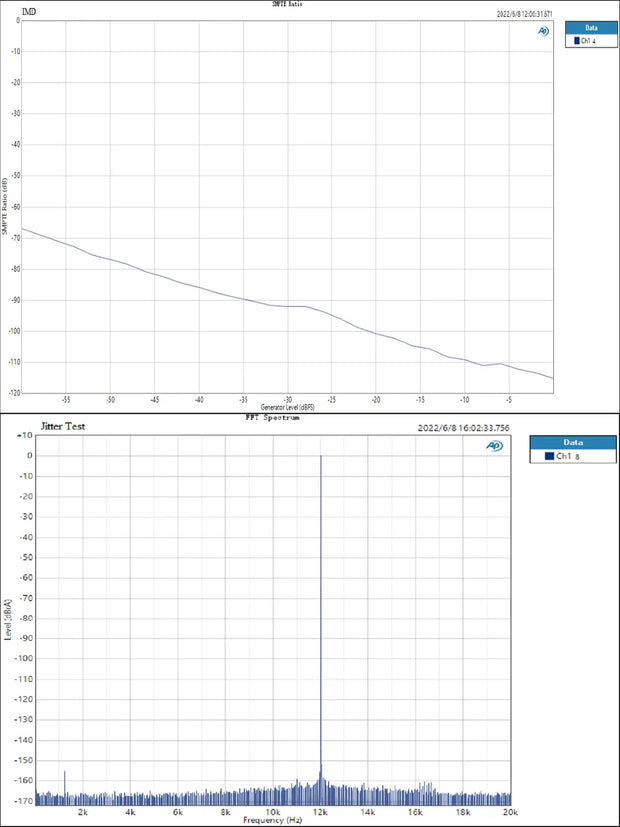

    • Ultra-Low Distortion & Noise: THD+N (A-weighted) <0.00009% at 1 kHz; dynamic range up to 130 dB.

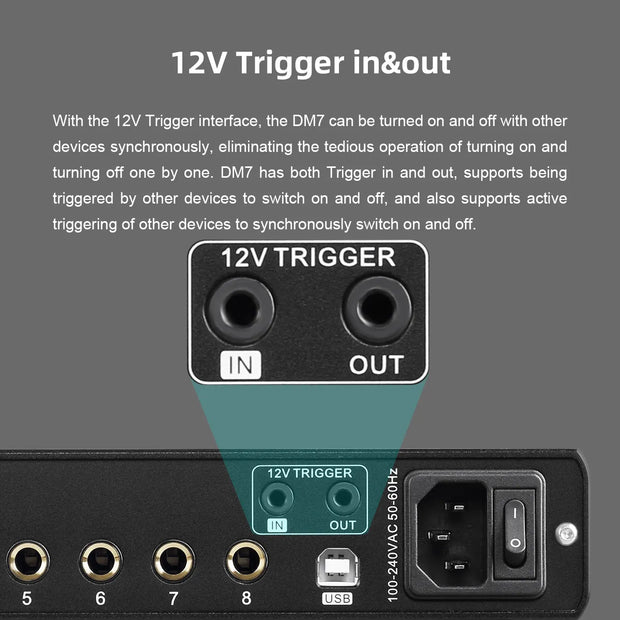

    • Trigger In/Out (12 V): Enables integration with other gear for synchronized power control in home theatre or audio racks.

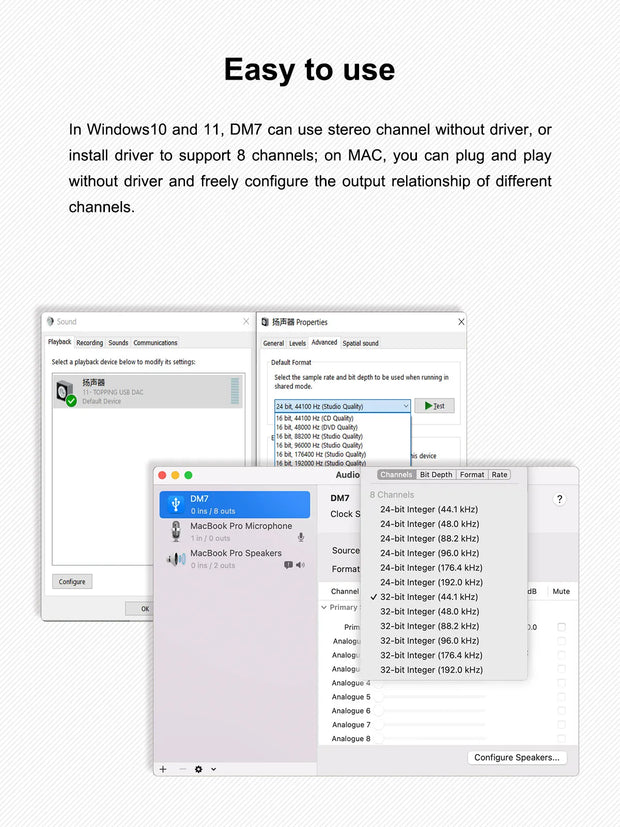

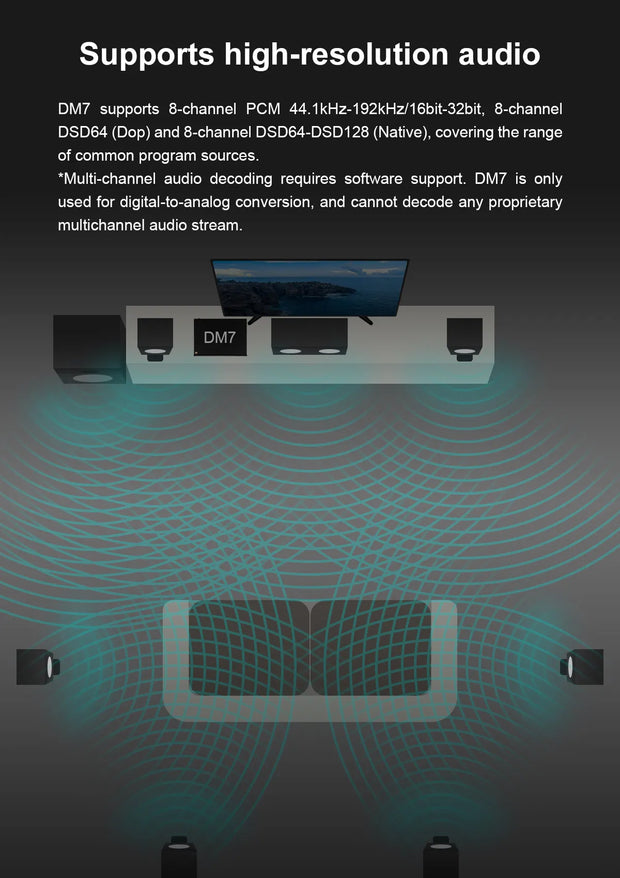

    • High-Resolution Support: PCM up to 32-bit/192 kHz and native DSD up to DSD128 (for 8 channels) with appropriate driver support.

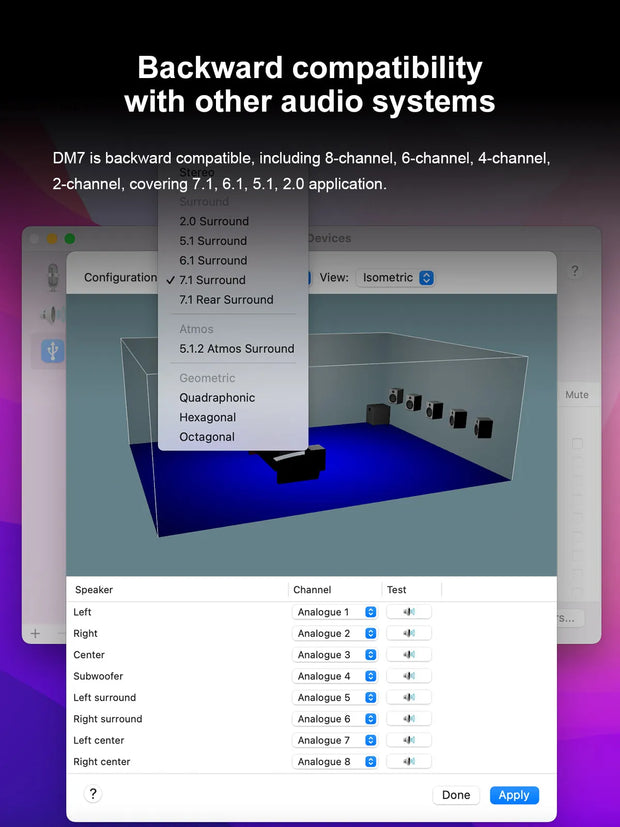

    • Stereo Compatibility & Expandability: Although built for multichannel, it works as a high-end stereo USB DAC and is backwards compatible with 2-channel setups.

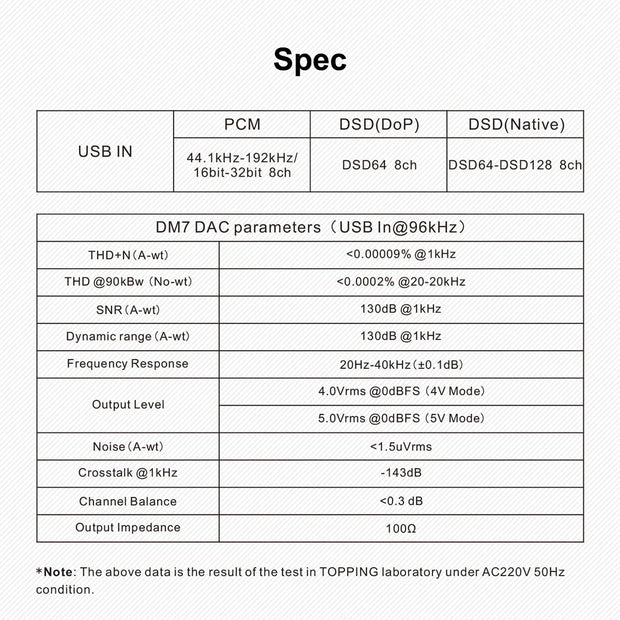

    Specifications (selected)

    Parameter Specification
    Input USB-B (single USB input)
    Supported Formats PCM 16-32 bit / 44.1-192 kHz, DSD64 via DoP, DSD64/DSD128 native (8 ch)
    DAC Chip ESS ES9038PRO
    THD+N (A-weighted) < 0.00009% @ 1 kHz
    Dynamic Range ~130 dB

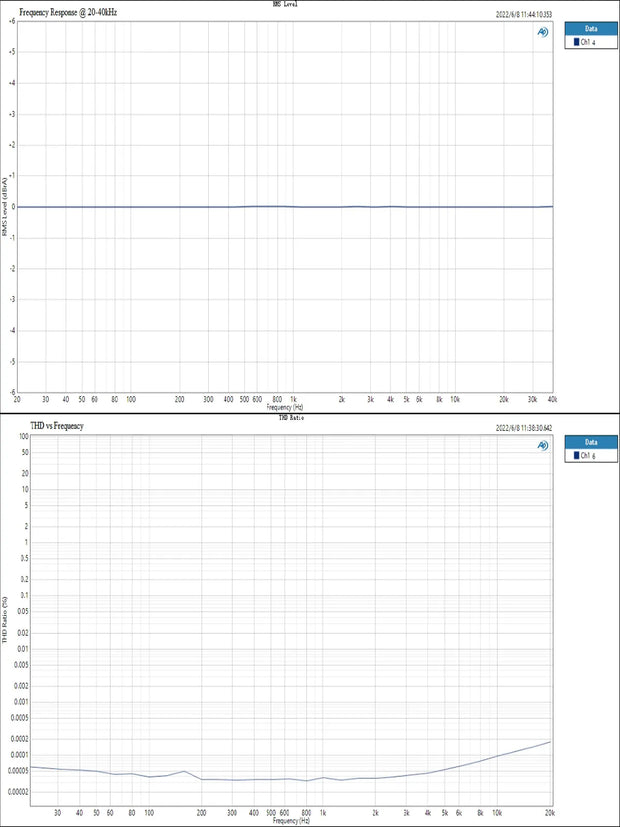

    Frequency Response 20 Hz - 40 kHz ±0.1 dB

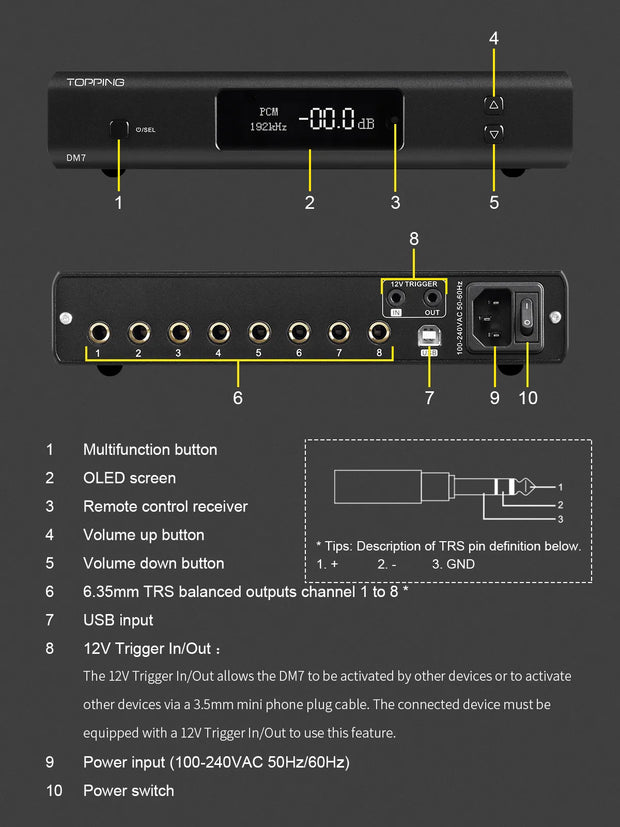

    Outputs 8 × ¼″ TRS balanced analog outputs
    Max Output Level 4.0 Vrms (4 V mode) / 5.0 Vrms (5 V mode)
    Trigger In/Out 12 V trigger in/out

    Why Choose the DM7

    • Comprehensive multi-channel capability: Ideal for users who run 5.1/7.1 surround systems, multi-way active speakers, or high-end desktop audio with multiple amplifiers.

    • Audiophile-grade performance: With distortion and noise numbers rivaling much more expensive DACs, the DM7 delivers exceptional transparency and detail.

    • Future-proof and flexible: Balanced outputs, trigger support, high-resolution decoding — whether you’re building a serious rig now or upgrading later, this DAC fits the bill.

    • Established brand and value: TOPPING has earned a strong reputation among hi-fi enthusiasts; the DM7 offers flagship-level performance at a compelling price point.

    • Reference-level stereo use: Even if you're only using 2 channels today, the DM7 gives you stereo performance at a level that many full-size DACs only reach.

    Specifications

    • Weight: 200gr
    • Usage: Indoor & outdoor

    Pros and cons

    • Sustainably produced
    • Ideal for everyday use
    • May discolor in direct sunlight

    FAQ

    Error Code:DFU MODE

    Cause Analysis:DFU mode may be accidently entered

    Troubleshooting / Solution:Unplug the power supply and reboot.

    Error Code:PROTECT

    Cause Analysis:Unit may be defective

    Troubleshooting / Solution:Disconnect all the inputs and outputs of DM7 and reboot. If that still not works, unit is considered defective.

    Error Code:DAC ERR

    Cause Analysis:Unit may be defective

    Troubleshooting / Solution:Disconnect all the inputs and outputs of DM7 and reboot. If that still not works, unit is considered defective.
