Description

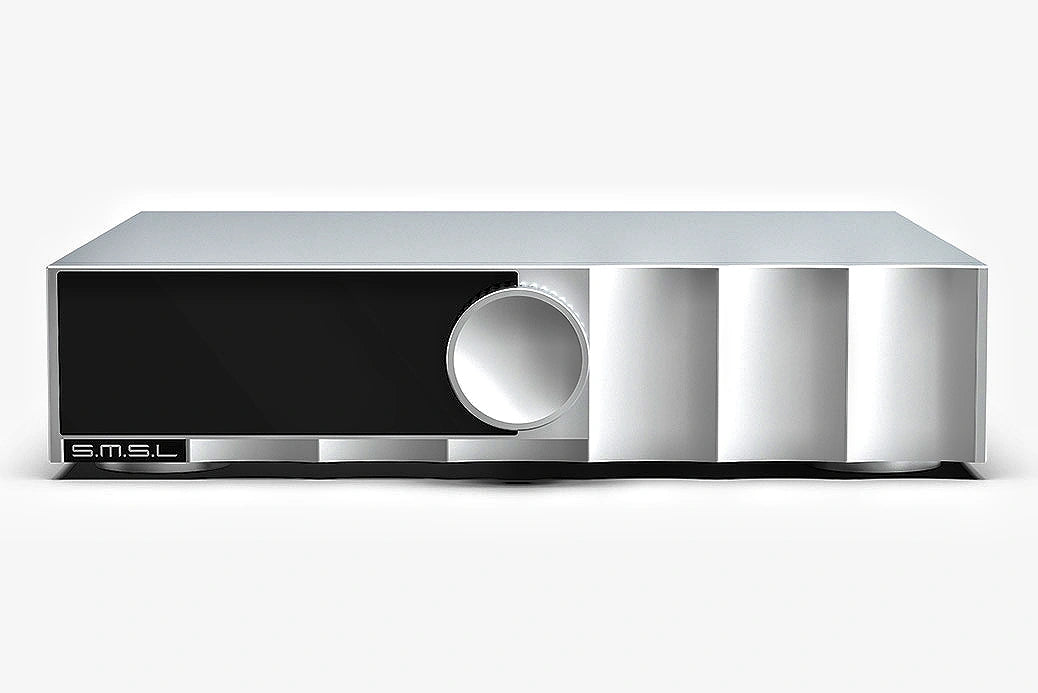

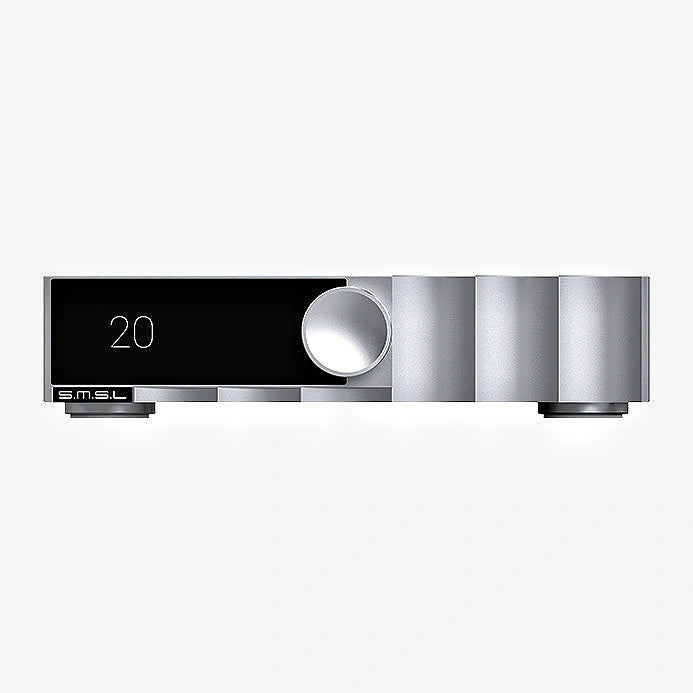

MSL PA200 – 400W GaN Power Amplifier for True Audiophile Performance
Experience the future of high-fidelity amplification with the SMSL PA200, a next-generation GaN (Gallium Nitride) power amplifier that combines advanced technology, precision engineering, and audiophile craftsmanship.
Equipped with Infineon’s latest GaN FET, TI’s PGA2311 volume chip, and a high-quality switching power supply, the PA200 delivers stunning sound clarity, smooth tonality, and powerful dynamics — all in a refined compact chassis.
⚙️ Key Features
⚡ Infineon GaN FET Technology (Up to 1 MHz Switching Frequency)
Utilizes Infineon’s latest GaN FET with a switching frequency of up to 1 MHz, making the full-band sound more delicate, detailed, and dynamic, while improving efficiency and reducing distortion.
🎚️ TI PGA2311 Precision Volume Control
Built with Texas Instruments’ advanced volume control chip (PGA2311), providing fine volume steps and ultra-low distortion for smooth, transparent, and highly accurate sound control.
🎧 Stereo Pure Amplifier Mode with SMSL D200
In Stereo Pure Pass-Through Mode, pairing the PA200 with the SMSL D200 DAC & Preamp offers a more direct, pure, and transparent sound, ensuring absolute fidelity to the source.
🔀 XLR Mono Mode (Volume Not Adjustable)
Supports XLR input mono mode.
Using two PA200 units to form a stereo setup increases the output power by four times, easily driving high-power and low-sensitivity speakers with precision and control.
🎵 Audiophile-Grade Components
A large number of high-end audio components are carefully selected to enhance subjective listening quality, producing refined, natural sound across the entire frequency range.

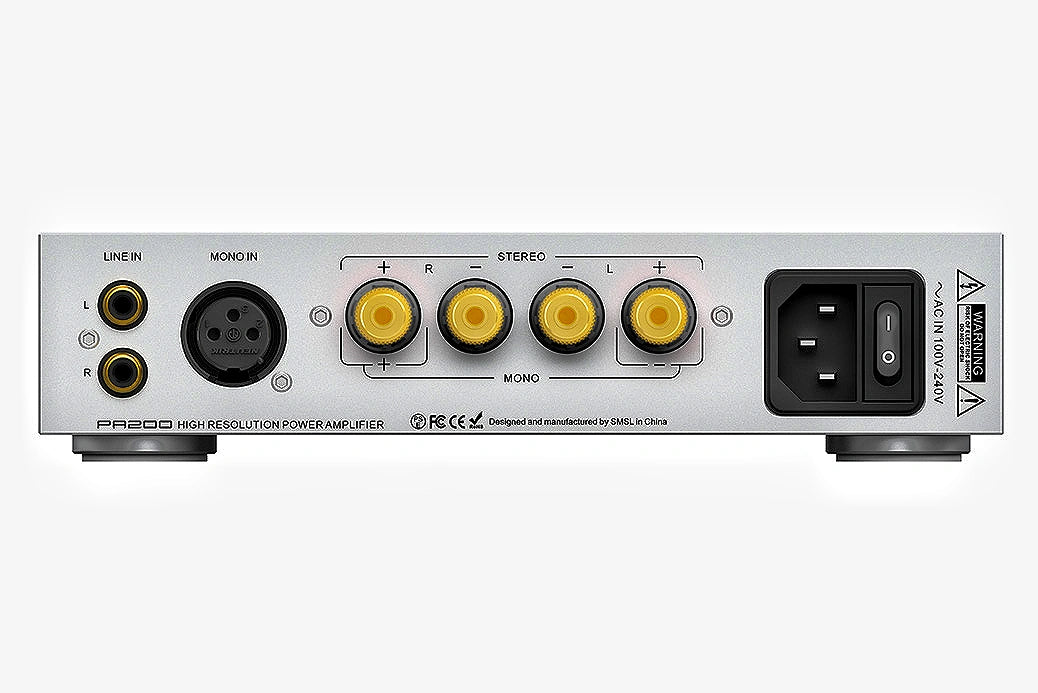

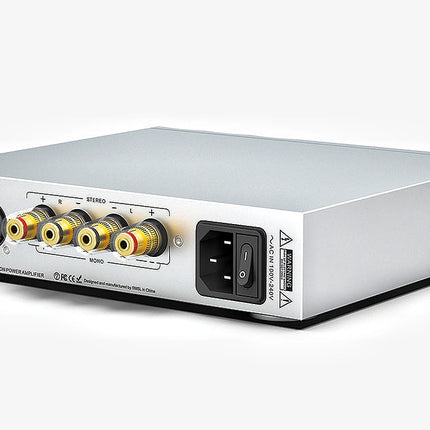

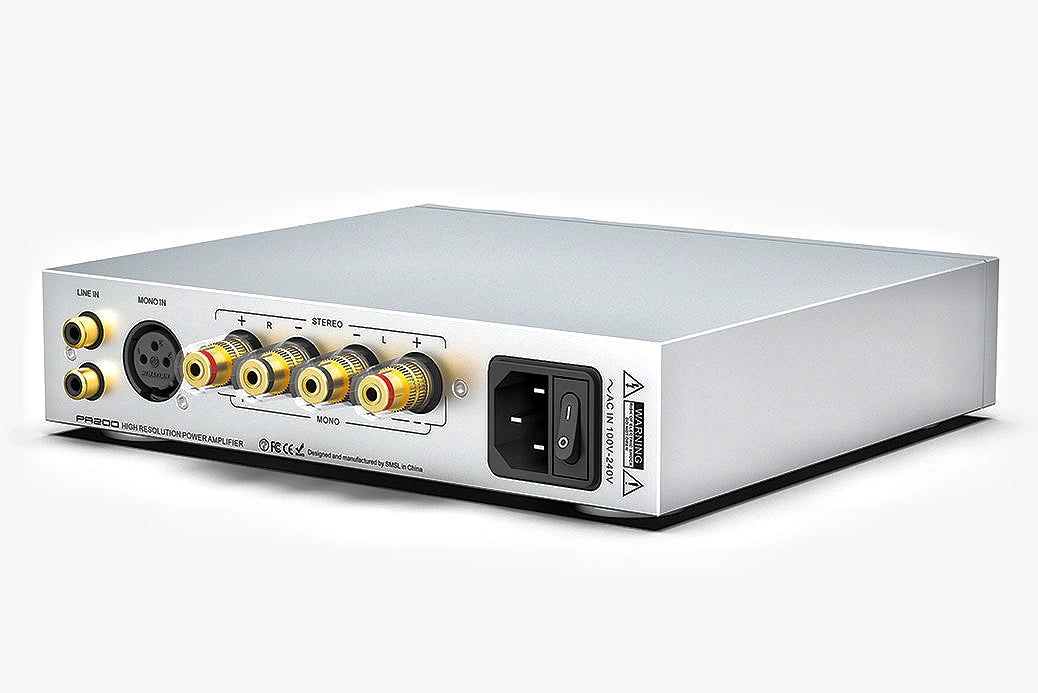

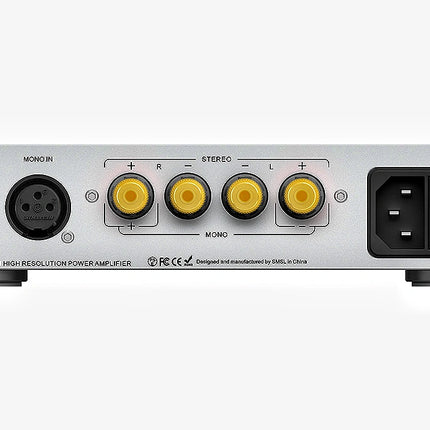

🔌 Gold-Plated Input & Output Connectors
Features high-quality gold-plated RCA, XLR, and speaker terminals for excellent conductivity, durability, and stable long-term signal transmission.
🛡️ Comprehensive Protection System
Equipped with complete overheating, overcurrent, and DC protection circuits, ensuring reliable operation and safeguarding your amplifier and connected equipment.
🔋 Built-In High-Power Audio-Grade Switching Power Supply
The integrated high-quality switching PSU provides strong and clean power delivery, ensuring stable performance and dynamic headroom for demanding music playback.

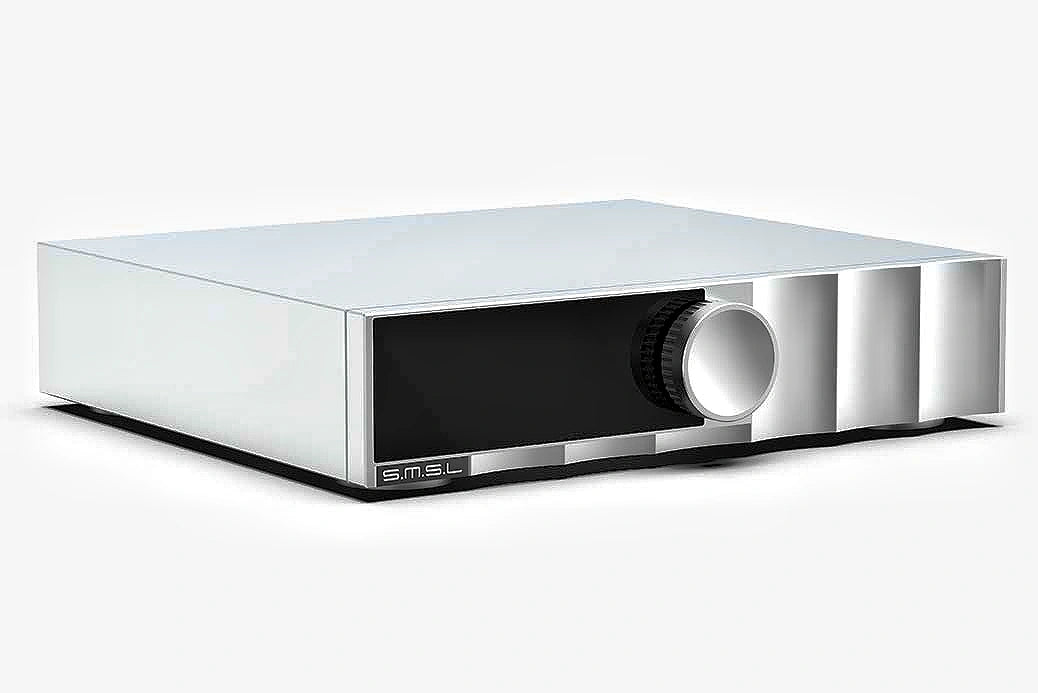

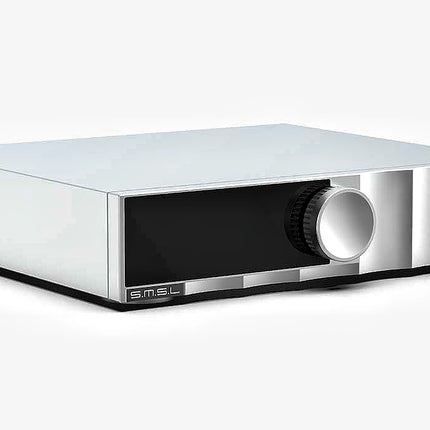

💎 Precision CNC Aluminum Alloy Design
The all-aluminum CNC-machined chassis enhances heat dissipation while maintaining an elegant, minimalist design suitable for any Hi-Fi environment.
📊 Specifications
-
Amplifier Type: GaN Class D Power Amplifier
-
Output Power: 400 W × 1 @ 4 Ω / 200 W × 1 @ 8 Ω (Mono)
160 W × 2 @ 4 Ω / 85 W × 2 @ 8 Ω (Stereo) -
Switching Frequency: Up to 1 MHz
-
THD + N: ≤ 0.003 %
-
SNR: ≥ 110 dB
-
Inputs: RCA (Stereo), XLR (Mono)
-
Outputs: Speaker Binding Posts (L/R or Mono)
-
Power Supply: Built-In High-Power Audio-Grade Switching PSU
-
Protection: Overheating / Overcurrent / DC / Short-Circuit
-
Dimensions: 210 × 201.6 × 47.6 mm
-
Weight: ≈ 1.6 kg
📦 What’s Included
-
SMSL PA200 Power Amplifier
-
Power Cable
-
User Manual
🌟 Why Choose the SMSL PA200?
Combining Infineon’s GaN FET innovation, TI’s precision control, and premium audiophile construction, the SMSL PA200 achieves breathtaking performance and reliability.
Whether used as a standalone stereo amplifier or paired in mono mode for maximum output, it delivers crystal-clear detail, deep dynamics, and natural musical expression.
SMSL PA200 – Advanced GaN Power. Pure Sound. Ultimate Control.
