    Description

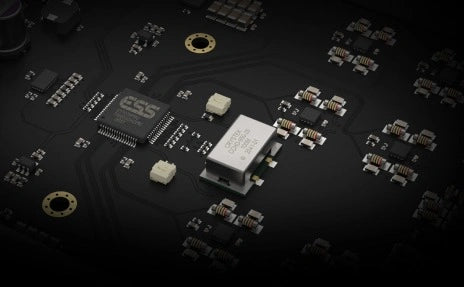

    The Matrix Audio X-SABRE 3 is the flagship digital-to-analog converter and network streamer designed for audiophiles seeking unmatched fidelity and streaming capability. At its core sits the ESS ES9038PRO DAC chipset and a precision Crystek CCHD-950 femtosecond clock source — delivering extremely low jitter and ultra-accurate timing for cleaner, more dynamic sound.

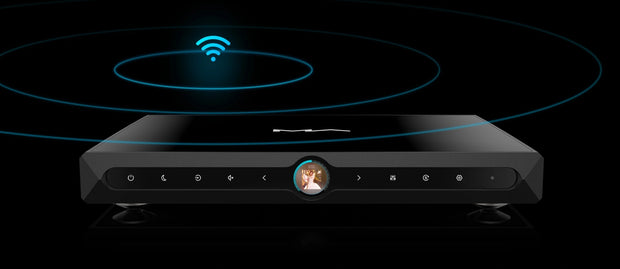

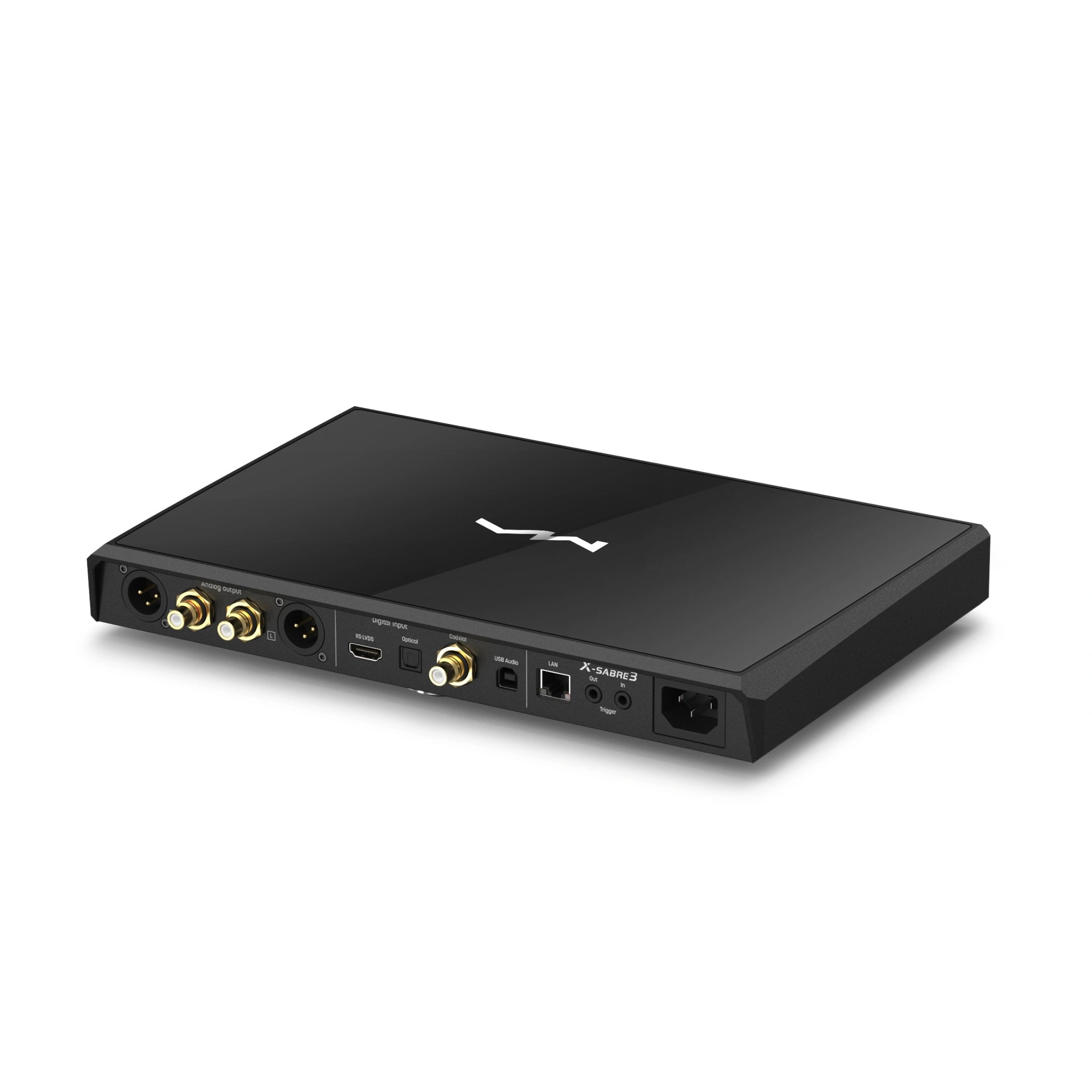

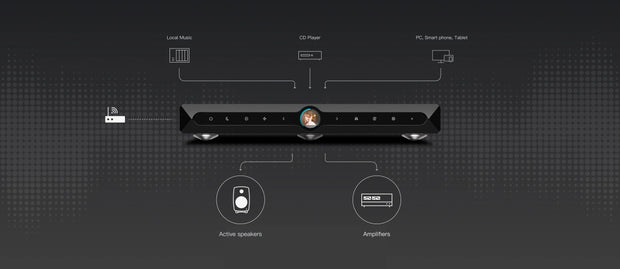

    Digital inputs include USB-Audio (supporting up to PCM 32-bit/768 kHz, native DSD up to 22.4 MHz), IIS-LVDS, coaxial/optical S/PDIF, and network streaming via dual-band WiFi (2.4GHz & 5GHz) or Gigabit Ethernet. The DAC features analog outputs in XLR and RCA, offering studio-grade SNRs (134dB XLR, 128dB RCA) and distortion less than 0.00010% THD+N at 1kHz on XLR output.

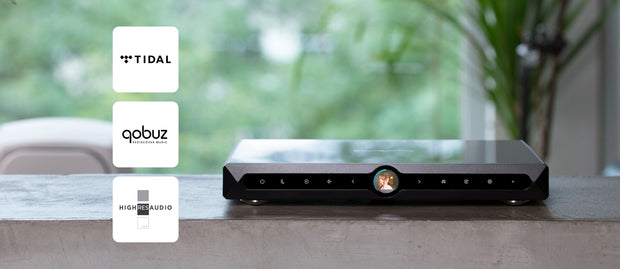

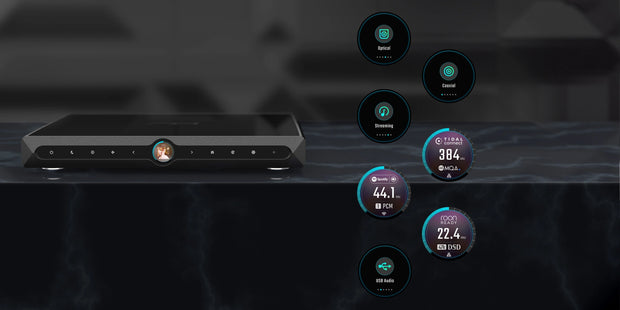

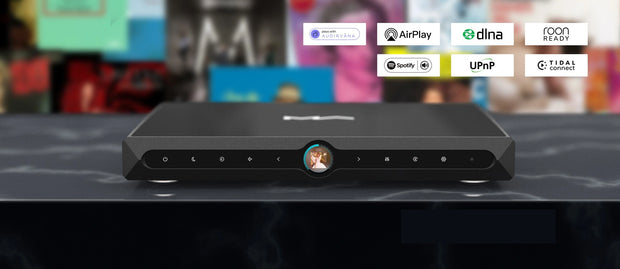

    With built-in streaming, the X-SABRE 3 supports Roon Ready, TIDAL Connect, Spotify Connect and AirPlay 2, bringing modern multi-room capability and high resolution playback together. Its elegant yet rigid aluminum chassis ensures minimal interference and maximum aesthetic integration into high-end systems. This device is ideal for discerning listeners who demand both cutting-edge technology and refined sound performance.

    Specifications

    • Weight: 200gr
    • Usage: Indoor & outdoor

    Pros and cons

    • Sustainably produced
    • Ideal for everyday use
    • May discolor in direct sunlight

    Specifications

    Hardware Platform

    CPU

    NXP i.MX 6Quad 4x Cortex-A9 @1.2 GHz

    D/A Chip

    ES9038PRO

    Clock Source

    Crystek CCHD-950

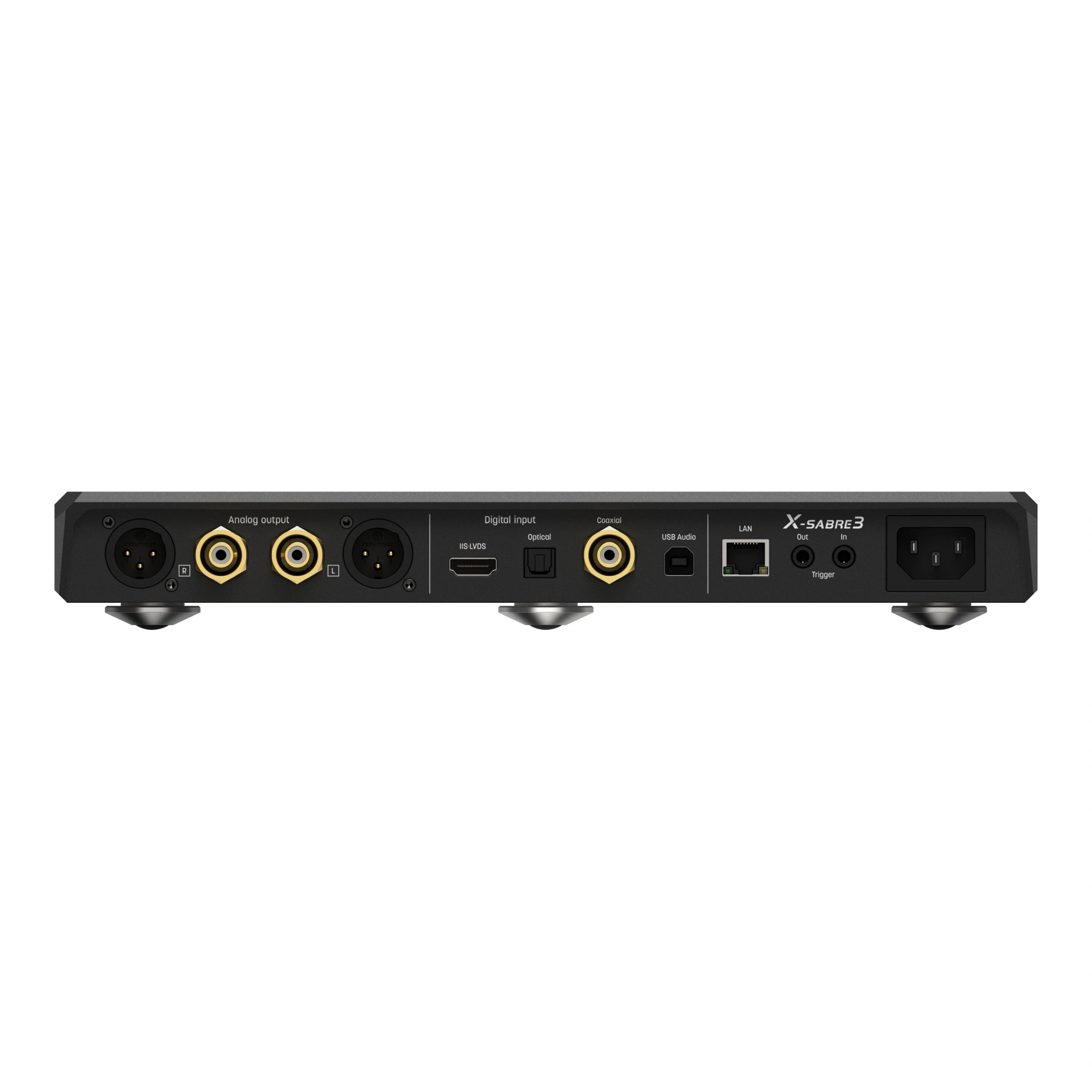

    Digital Input

    Coaxial & OpticalPCM 16-24 Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

    DSD 2.8 MHz (DoP)

    IIS LVDS

    PCM 16-32 Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz,

    352.8kHz, 384kHz, 705.6kHz, 768kHz

    DSD 2.8MHz, 5.6MHz, 11.2MHz (DoP)

    DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz (Native)

    USB Audio

    PCM 16-24 Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz,

    352.8kHz, 384kHz, 705.6kHz, 768kHz

    MQA 16-24 Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz,

    352.8kHz, 384kHz MQA or MQA Studio stream

    DSD 2.8MHz, 5.6MHz, 11.2MHz (DoP)

    DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz (Native)

    Line Output

    XLR

    SNR: 134dB A-weighting

    THD+N:<0.00010%@1k, <0.00025%@20Hz-20 kHz

    Frequency Response: 20 Hz-20 kHz ±0.05 -3dB@86 kHz

    Channel Crosstalk: >-151dB

    Output Level: 4.8 VRMS@0dB

    RCA

    SNR: 128dB A-weighting

    THD+N:<0.00015%@1k, <0.00025%@20Hz-20 kHz

    Frequency Response: 20 Hz-20 kHz ±0.05 -3dB@86 kHz

    Channel Crosstalk: >-138dB

    Output Level: 2.4 VRMS@0dB

    Network

    LAN

    10/100/1000 Mbps

    WLAN

    2.4 GHz / 5 GHz

    MA player

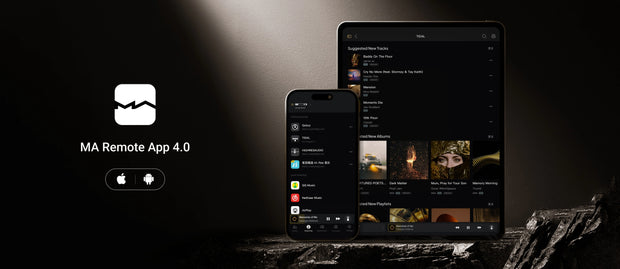

    Controller AppMA Remote AppPCM Sampling Rate:

    PCM 16-24Bit 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz,

    352.8kHz, 384kHz, 705.6kHz, 768kHz

    MQA 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz MQA or MQA Studio stream

    DSD Sampling Rate:

    DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz

    Roon ReadyPCM Sampling Rate: PCM 16-24 Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz,

    352.8kHz, 384kHz, 705.6kHz, 768kHz

    MQA 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz MQA or MQA Studio stream

    DSD Sampling Rate: DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHzAirPlay 2The audio specs depend on the service providerDLNA/UPnPThe audio specs depend on the service providerTIDAL ConnectThe audio specs depend on the service providerSpotify ConnectThe audio specs depend on the service providervTunerThe audio specs depend on the service provider

    Radio Paradise

    The audio specs depend on the service provider

    HIGHRESAUDIO

    The audio specs depend on the service provider

    Weight and size

    Weight3.4 kg (7.49 pounds)Size

    Width: 310 mm (12.20 inches)

    Depth: 218 mm (8.58 inches)

    Height: 43 mm (1.69 inches)

    Power Specs

    Power Voltage230V position is fit for AC 220V-240V 50/60Hz

    115V position is fit for AC 100V-120V 50/60Hz

    Standby Power Consumption

    < 4W

    Maximum Power Consumption< 33W

    Accessory

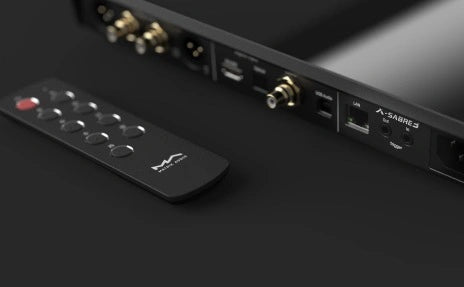

    RM3 remote control

    x1

    Power cable

    x1

    Quick start guide

    x1Warranty card x1
