    Description

    The Matrix Audio MS-1 is a compact andversatile network audio streamerdesigned to bring high-resolution musicto any desktop or small-space audio system.lt focuses on providing a pure high-quality digital audio source by connecting to various online streamingservices and local network storage.
    Key Features:
    .High-Resolution Audio Support: TheMS-1 is built to handle high-resolutionaudio files, supporting formats up to32-bit/768kHz PCM and DSD512.Thisensures exceptional sound quality fromcompatible sources.
    Comprehensive Streaming Services: ltis a certified Roon Ready endpoint, offering seamless integration with the Roon ecosystem. Additionally, it supports other popular services like
    Tidal Connect,Spotify Connect, and Qobuz,allowing for easy control directlyfrom their respective apps.Multiple Connectivity Options: Forinput, it features both wired Ethernetand dual-band Wi-Fi for stable networkconnections.For output, it provides ahigh-precision S/PDlF coaxial output toconnect to an external DAC, a highquality amplifier, or active speakers.
    Compact and Sleek Design: lts smalaluminum aloy chassis makes it ideafor space-constrained setups like a desk or bookshelf without sacrificing build quality or aesthetics.
    User-Friendly Control: Beyond appbased control (Roon, Tidal, Spotify,etc.), it can also be managed via its front-panel display and navigation wheel, or through the Matrix Audio app Dedicated Linear Power Supply (Optional): For audiophiles seeking the ultimate performance, Matrix Audio offers an optional external linear powel supply (X-PSU), which can further reduce noise and improve sound clarity.

    Specifications

    • Weight: 200gr
    • Usage: Indoor & outdoor

    Pros and cons

    • Sustainably produced
    • Ideal for everyday use
    • May discolor in direct sunlight

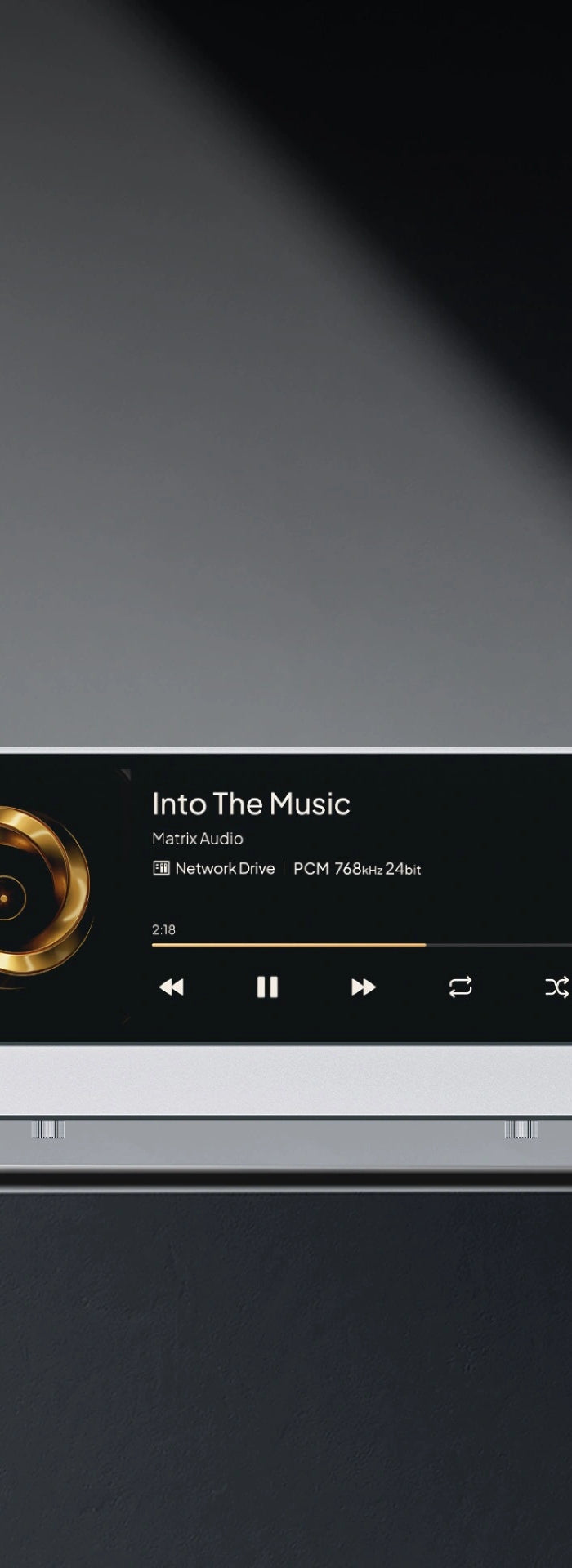

    <h1>MS-1</h1><h3>Music Streamer</h3>

    MS-1

    Music Streamer

    • Banner image for:

    • Matrix Design

    • Evaluating audio products from the dimensions of "listening" and "looking" has always been our consistent philosophy. From concept to design, every step contains the love for music and the pursuit of beauty. MS-1 is Matrix Audio's brand-new flagship music streamer. Its industrial design showcases our concept of simplicity. With hundreds of circular perforations of varying sizes and depths arranged in an array on the simple hexahedron, resembling rhythmic beats dancing and emerging on the surface.

    • Banner image for:

    • Focus On Software Experience

    • The source device is the soul of an audio system. Hardwares contribute the body of MS-1, while software is the soul. We not only prioritize audio quality but also focus on the user experience. We simplify the human-maschine interaction and emphosize music info display on the device screen. We insist on allowing you to comfortably control your entire audio system from your listening position, picking up your phone or tablet to operate it through the MA Remote App, rather than frequently getting up to touch the device. Even from the basic functions like volume change, track selection and playback to configurations such as filters, operating modes and display brightness, everything can be done on the app. This is all supported by our meticulously developed MA Player software system.

    • Banner image for:

    • MA Player

    • This is a streamlined and optimized software system based on Linux. It is specially designed for Hi-Fi audio playback. Which is exclusively available for Matrix Audio's products. Today, MA Player has evolved to a new level, not only enhancing its playback performance but also introducing numerous new features, improving the interactive experience.

    • Banner image for:

    • MA Remote App

    • It serves as the core tool for controlling your music streamers. By installing the MA Remote App on your iPhone, iPad or Android phone, they become the most convenient control centers, allowing you to browse and play your local music, enjoy high-resolution music from streaming platforms like SONY Select, TIDAL, Qobuz and HIGHRESAUDIO, Baidu Cloud,QQ Music,listen to exciting online radio stations. Even when music is streaming from Roon or other apps, you also can view the track information through the MA Remote App. Furthermore, the MA Remote App allows you to set every hardware configuration, completely changing the operation of an audio device.

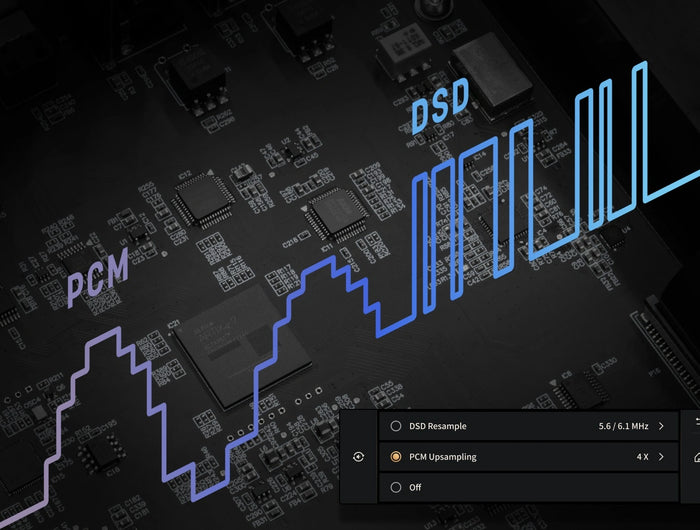

    <h2>PCM Resampling & DSD Conversion</h2>

      PCM Resampling & DSD Conversion

      You can let the built-in asynchronous upsampling and DSD conversion engine process all the audio data in digital stage. With asynchronous resampling and interpolation operations, jitters will be isolated and details will be improved. The DSD converter transforms all playing audio into DSD, enhancing sound density. The processing engine features adjustable PCM or DSD conversion configurations, allowing you to experience the sound differences under different settings.

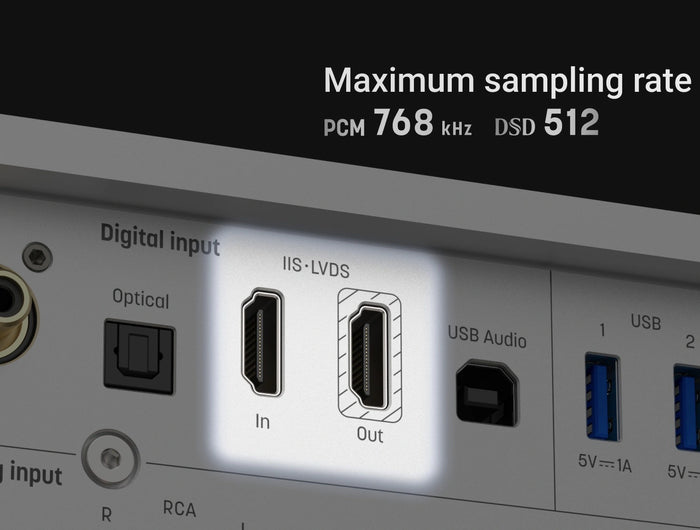

      <h2>IIS-LVDS Digital Output</h2>

        IIS-LVDS Digital Output

        MS-1 also works as a high-level audio transport that can output all playing audio as high-resolution signals through IIS-LVDS port. Including audio signals from analog input and phono input. Which enables you to connect to other DACs to achieve different listening experiences.

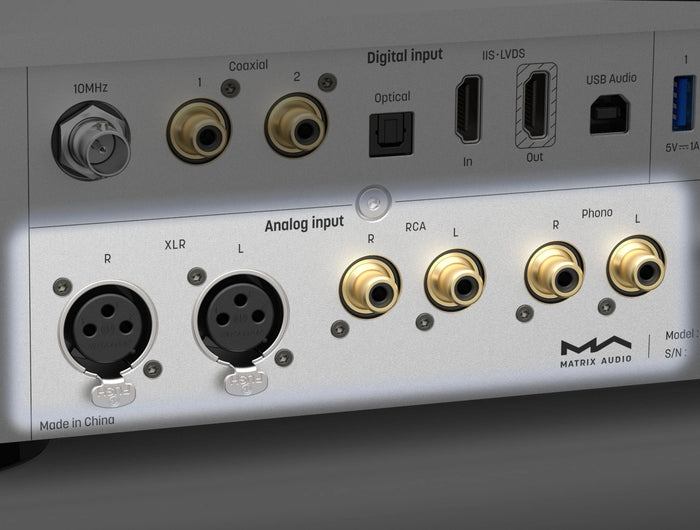

        <h2>Analog Input & Phono Input</h2>

          Analog Input & Phono Input

          MS-1 has two pairs of line inputs and one pair of phono input. With XLR and RCA line inputs allowing you to integrate any device with analog output into the digital audio system. The built-in phono preamplifier supports both MM and MC modes, enabling direct connection to a vinyl turntable. All analog audio inputs are converted to digital audio through high-precision ADC, aggregated into the digital processing unit and applied PCM filters. These signals are also allowed to output from the IIS-LVDS port.

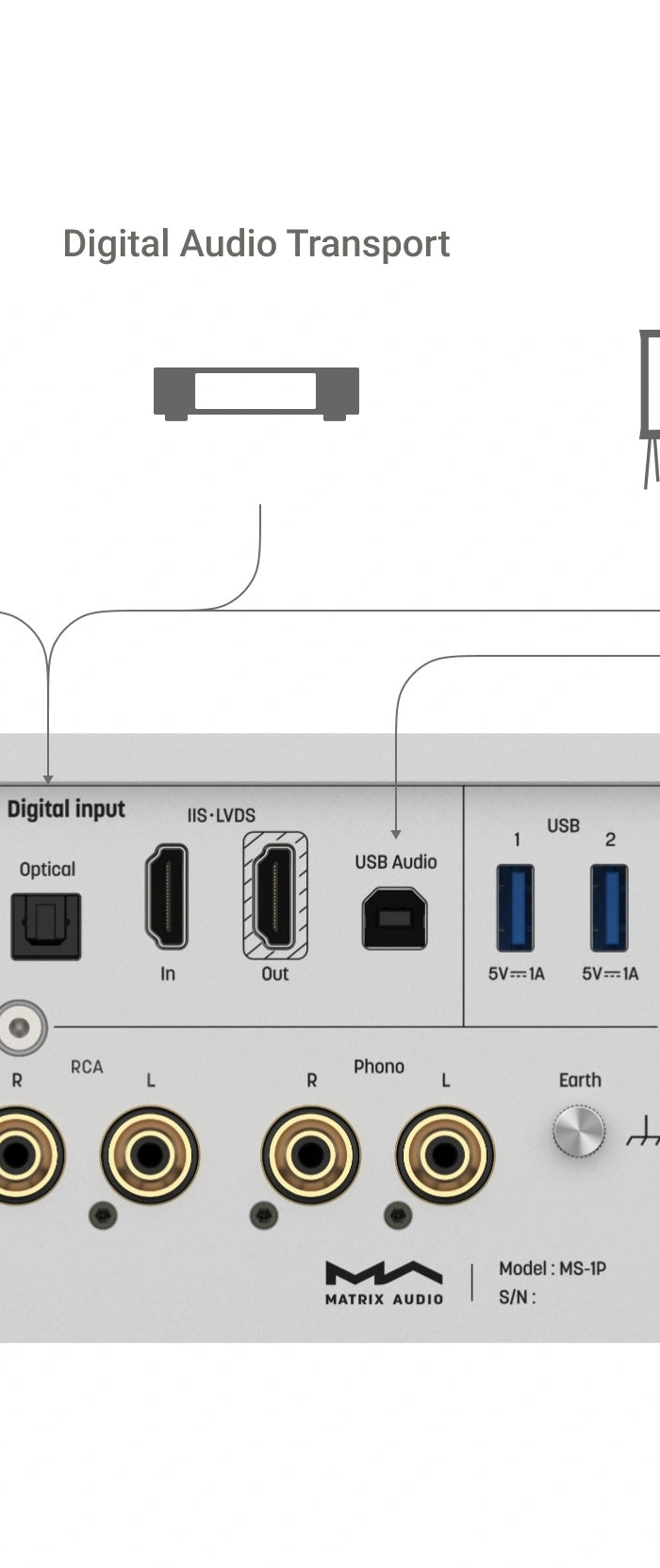

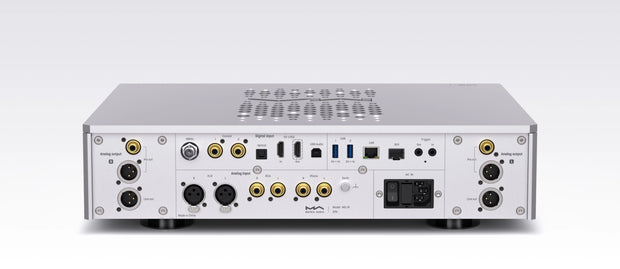

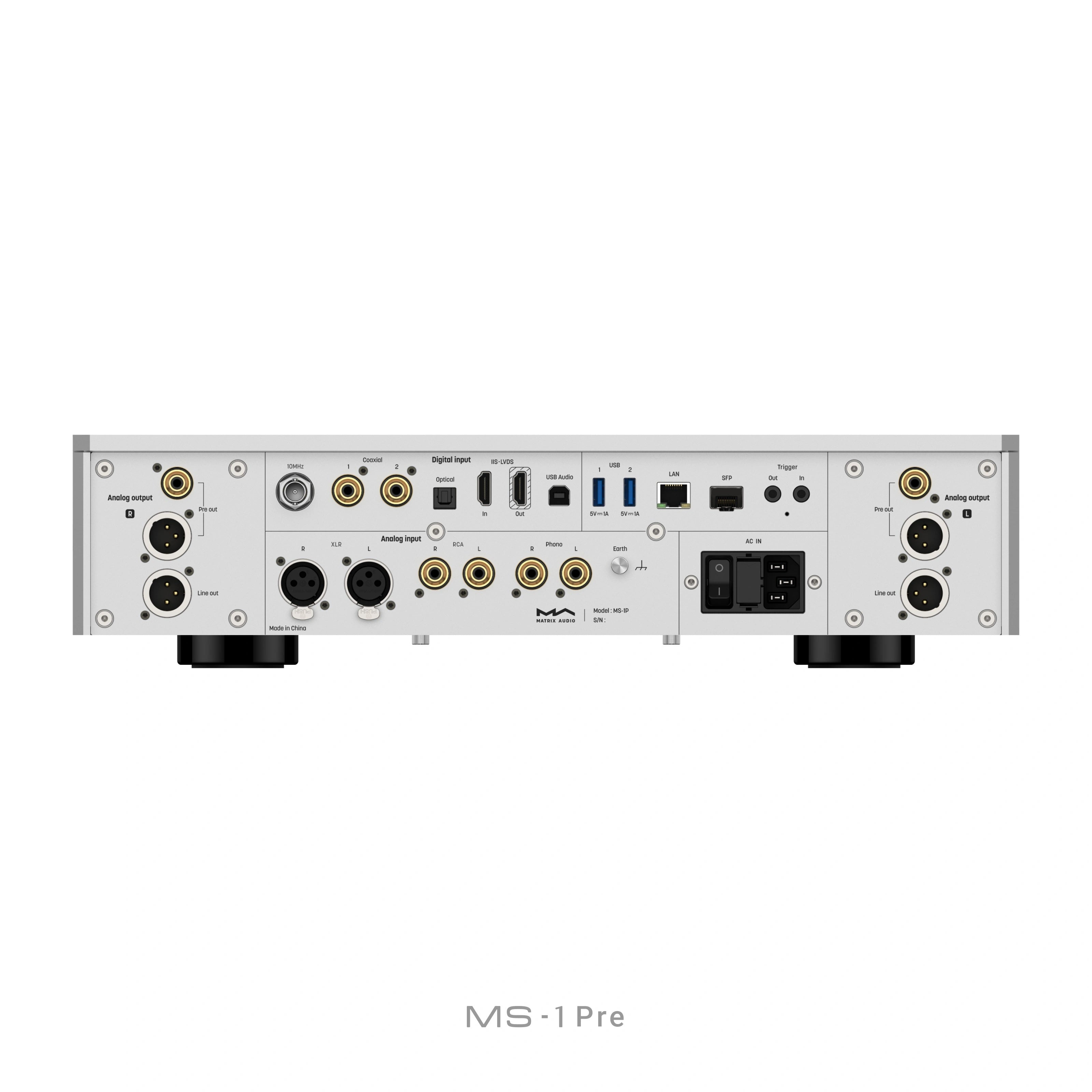

          • Digital Audio Input

          • Equipped with comprehensive digital input ports, MS-1 can be used as a high-end DAC. With USB, optical, coaxial or IIS-LVDS digital inputs, it can be connected to computers, CD transports, set-top boxes, game consoles and other devices, allowing the audio from these devices to be output through high-quality DAC in MS-1, creating a high-quality audio experience at every aspects.

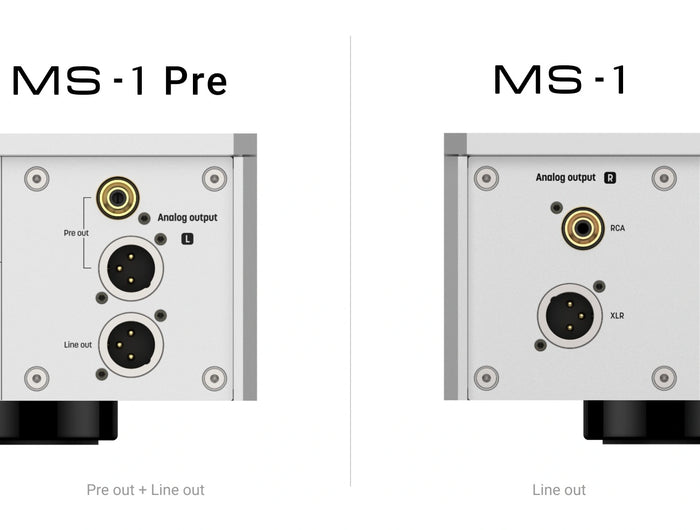

          <h2>Preamplifier & Dual Balanced Output</h2>

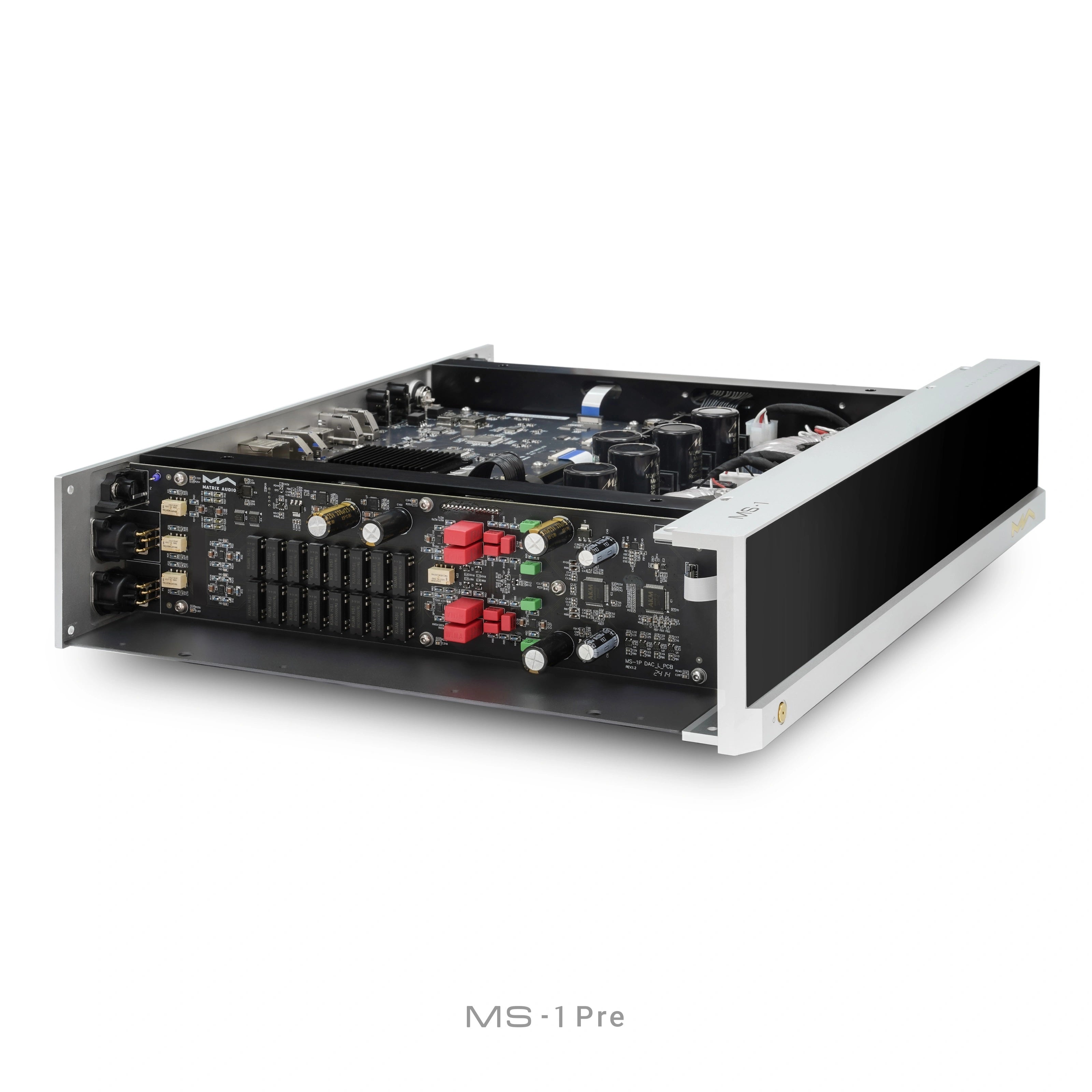

            Preamplifier & Dual Balanced Output

            MS-1 Pre features a built-in preamplifier and a precision resistor array volume control. The preamplifier is composed of multi-stage op-amps, which has a +10dB gain and can output audio signals up to 16VRMS. It compatible with power amplifiers or active speakers directly. Providing excellent channel consistency and distortion characteristics even at low volumes. Additionally, MS-1 Pre offers a pair of fixed-level XLR line outputs, which can be used simultaneously with the pre-out. Enables you to connect it to other recording and monitoring devices.

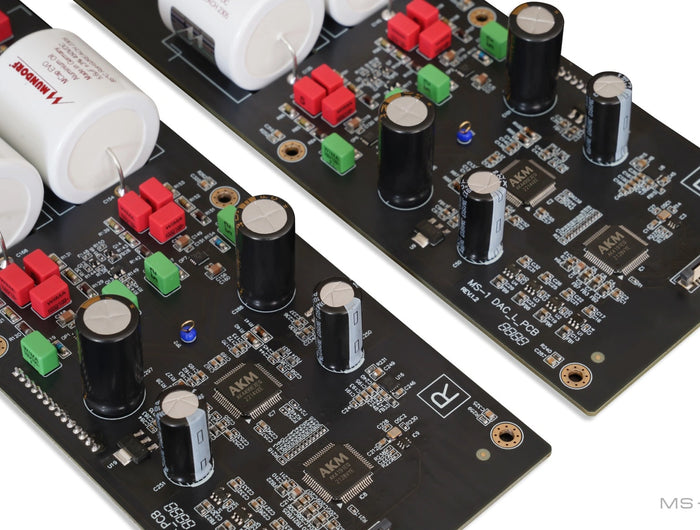

            <h2>Dual D/A Chip Independent Channel Design</h2><p>Matrix Audio's first product based on AKM D/A solution, featuring dual AK4191 and AK4499 flagship D/A chipsets. Each chipset works in parallel in mono mode. The left and right channel PCB assemblies are mounted at two sides of the device separately, to form a completely dual mono design. Aiming to a precise signal reproduction and outstanding dynamic range, you can catch every micro details of sound, deeply restoring the essence of music.</p>

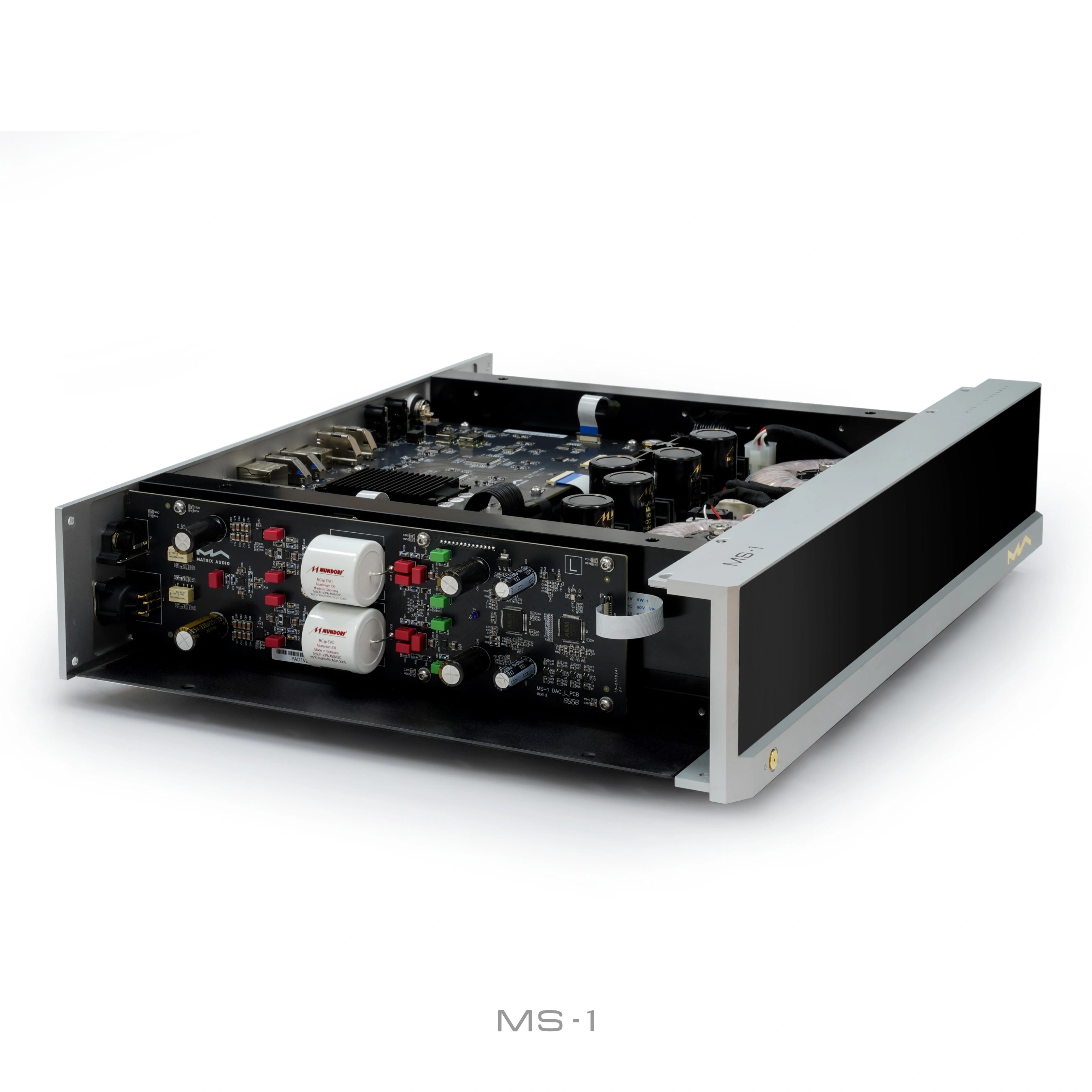

              Dual D/A Chip Independent Channel Design

              Matrix Audio's first product based on AKM D/A solution, featuring dual AK4191 and AK4499 flagship D/A chipsets. Each chipset works in parallel in mono mode. The left and right channel PCB assemblies are mounted at two sides of the device separately, to form a completely dual mono design. Aiming to a precise signal reproduction and outstanding dynamic range, you can catch every micro details of sound, deeply restoring the essence of music.

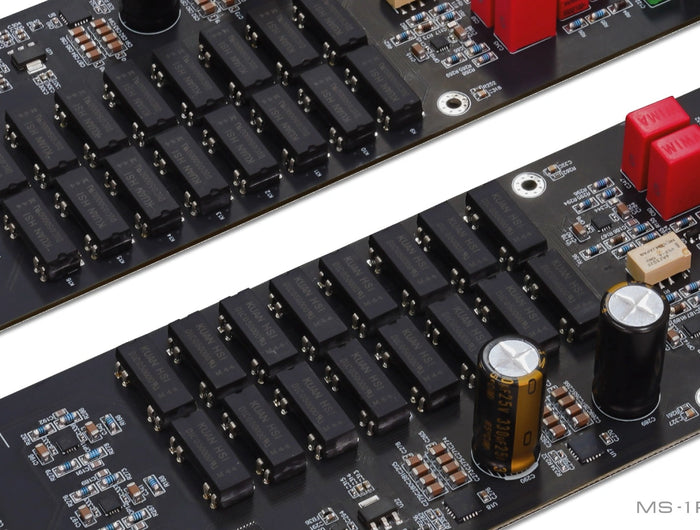

              <h2>Precision Resistor Volume Control</h2><p>The volume control is a critical factor affecting audio quality, ensuring lossless attenuation and consistent volume levels between channels is the prerequisite for good sound. MS-1 Pre has a built-in preamplifier which uses voltage-divider volume control by resistor array. Four high-quality volume control units composed of 64 precision resistors with 1‰ accuracy and 32 fully sealed reed relays which are switched rapidly by the MCU. This control method not only minimizes any impact on sound quality but also ensures excellent consistency between the two channels. The operation noise of the reed relays is almost inaudible even when changing volume continuously.</p>

                Precision Resistor Volume Control

                The volume control is a critical factor affecting audio quality, ensuring lossless attenuation and consistent volume levels between channels is the prerequisite for good sound. MS-1 Pre has a built-in preamplifier which uses voltage-divider volume control by resistor array. Four high-quality volume control units composed of 64 precision resistors with 1‰ accuracy and 32 fully sealed reed relays which are switched rapidly by the MCU. This control method not only minimizes any impact on sound quality but also ensures excellent consistency between the two channels. The operation noise of the reed relays is almost inaudible even when changing volume continuously.

                Specifications

                Digital Input
                • COAXIAL & OPTICAL
                • PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz MQA or MQA Studio stream
                • DSD 2.82MHz, 3.07MHz(DoP)
                • IIS LVDS
                • PCM 16-32Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz
                • DSD 2.82MHz, 3.07MHz, 5.64MHz, 6.14MHz, 11.29MHz, 12.29MHz (DoP)
                • DSD 2.82MHz, 3.07MHz, 5.64MHz, 6.14MHz, 11.29MHz, 12.29MHz, 22.58MHz, 24.58MHz, 45.16MHz，49.15MHz (Native)
                • USB Audio
                • PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz
                • MQA 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz MQA or MQA Studio stream
                • DSD 2.82MHz, 5.64MHz, 11.29MHz (DoP)
                • DSD 2.82MHz, 3.07MHz, 5.64MHz, 6.14MHz, 11.29MHz, 12.29MHz, 22.58MHz, 24.58MHz (Native)
                Digital Output
                • IIS LVDS
                • PCM 16-32Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz
                • DSD 2.82MHz, 3.07MHz, 5.64MHz, 6.14MHz, 11.29MHz, 12.29MHz, 22.58MHz, 24.58MHz, 45.16MHz，49.15MHz (Native)
                Aux Input

                XLR

                Input Impedance: 40kΩ

                SNR: 118dB A-weighting

                THD+N:<0.00026%@1k, <0.00030%@20Hz-20kHz

                Frequency Response: 20Hz-20kHz ±0.3 -3dB@46kHz

                Crosstalk: >-135dB

                Max Input Level: 4.9VRMS


                RCA

                Input Impedance: 20kΩ

                SNR: 110dB A-weighting

                THD+N:<0.00060%@1k, <0.00100%@20Hz-20kHz

                Frequency Response: 20Hz-20kHz ±0.3 -3dB@46kHz

                Crosstalk: >-125dB

                Max Input Level: 2.35VRMS


                Phono

                MM Mode

                Frequency Response: RIAA

                Input Impedance: 47kΩ/100pF

                GAIN: +45dB


                MC Mode

                Frequency Response: RIAA

                Input Impedance: 100Ω

                GAIN: +65dB

                Line Output

                XLR

                Output Impedance ：20Ω

                Output Level: 5VRMS Fixed

                SNR: 131dB A-weighting

                THD+N:<0.000068%@1k, <0.000075%@20Hz-20kHz

                Frequency Response: 20Hz-20kHz ±0.05 -3dB@85kHz

                Crosstalk : >-150dB

                Pre Output

                XLR

                Output Impedance ：40Ω

                Output Level: 0~16VRMS Adjustable

                GAIN：+10dB

                SNR: 131dB A-weighting

                THD+N:<0.000068%@1k, <0.000075%@20Hz-20kHz

                Frequency Response: 20Hz-20kHz ±0.05 -3dB@85kHz

                Crosstalk : >-150dB


                RCA

                Output Impedance ：16Ω

                Output Level:0~8VRMS Adjustable

                GAIN：+10dB

                SNR: 127dB A-weighting

                THD+N:<0.000076%@1k, <0.000085%@20Hz-20kHz

                Frequency Response: 20Hz-20kHz ±0.08 -3dB@83kHz

                Channel Crosstalk : >-139dB

                Network

                LAN

                10/100/1000 Mbps

                SFP

                10/100/1000 Mbps

                USB

                USB 3.0 *2

                The USB port provides a maximum power of 5V/1.5A.

                The USB port works with devices which conform to the USB mass storage standard and supports FAT, FAT32, exFAT, and NTFS file formats, but is not guaranteed to be compatible with all storage devices.

                External Clock Input
                • 10MHz / 50Ω / Sine wave or square wave input
                Trigger

                Trigger in

                DC 6-12V <10mA

                Trigger out

                DC 12V/50mA MAX

                Storage Extension

                M.2 2280 NVMe PCIe SSD slot x1

                The maximum power specification provided by the SSD slot is DC 3.3V 3A.

                MA Player

                Controller app

                MA Remote App

                Local Playback

                Format Supported：MP3 , WMA , WAV , AIF, AIFC, AIFF, AAC, FLAC, OGG, APE, ALAC, M4A, DSF, DFF, CUE

                PCM 16-24Bit/44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz

                MQA 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz MQA or MQA Studio stream

                DSD 2.82MHz, 3.07MHz, 5.64MHz, 6.14MHz, 11.29MHz, 12.29MHz, 22.58MHz, 24.58MHz

                Roon Ready

                PCM 16-24Bit/44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz

                MQA 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz MQA or MQA Studio stream

                DSD 2.82MHz, 3.07MHz, 5.64MHz, 6.14MHz, 11.29MHz, 12.29MHz, 22.58MHz

                AirPlay 2

                DLNA/UPnP

                TIDAL Connect

                Qobuz Connect

                Spotify Connect

                vTuner

                Radio Paradise

                The audio specs depend on the service provider

                The audio specs depend on the service provider

                The audio specs depend on the service provider

                The audio specs depend on the service provider

                The audio specs depend on the service provider

                The audio specs depend on the service provider

                The audio specs depend on the service provider

                Power Specs

                Power Voltage

                AC 100V-120V 50/60Hz or AC 220V-240V 50/60Hz Factory fixed

                Standby Power Consumption

                < 5W

                Maximum Power Consumption

                < 60W

                Weight & size

                Weight

                14.6kg (32.2 pounds)

                Dimensions

                Width: 430 mm (16.93 inches)

                Depth: 353 mm (13.90 inches)

                Height: 106 mm (4.17 inches)

                Accessory

                RM4B remote control x 1

                Power cable x 1

                User manual x 1

                Warranty card x 1
