    Description

    MATRIX AUDIO element S Product Introduction

    1. Core Features

    High-Fidelity Audio：Delivers studio-grade sound with low distortion and wide frequency response.
    Dual-DAC Design：Equipped with premium ESS Sabre DACs for balanced stereo output and enhanced dynamic range.
    Hybrid Connectivity：Supports USB, optical, coaxial inputs, and Bluetooth 5.0 for seamless multi-source integration.
    Low-Noise Power Supply：Isolated power architecture minimizes interference for crystal-clear audio.

    2. Key Specifications

    DAC Chipset：ESS ES9038PRO (32-bit/768kHz)
    Output Power：2 x 150W (8Ω)
    SNR：≥120dB
    Compatibility：Tidal, Qobuz, Roon Ready, AirPlay 2, MQA Full Decoding

    3. Design Philosophy
    Engineered for audiophiles, the element S combines minimalist aesthetics with industrial-grade components. Its all-aluminum chassis ensures heat dissipation and vibration isolation, while the intuitive touch interface simplifies operation.

    4. Target Audience
    Ideal for discerning listeners seeking an upgrade from entry-level systems, offering bridge-level performance at an accessible price point.

    5. Unique Selling Points

    Cross-Platform Optimization：Supports Windows/macOS/Android/iOS with native drivers.
    Future-Proof Firmware：Regular updates via OTA (Over-the-Air) technology.
    Eco-Friendly Design：Energy-efficient standby mode (<0.5W).

    6. Optional Accessories

    element S Signature Edition：Includes a remote control and premium interconnect cables.
    element S Pro：Adds balanced XLR outputs and a dedicated headphone amplifier.

    7. Warranty & Support

    3-Year Global Warranty
    24/7 Technical Support via live chat and email.

    8. Call to Action
    Experience the element S in your home audio setup today—where precision engineering meets effortless streaming.

    Specifications

    • Weight: 200gr
    • Usage: Indoor & outdoor

    Pros and cons

    • Sustainably produced
    • Ideal for everyday use
    • May discolor in direct sunlight

    element S
    Music Streamer

    • Enable streaming for your audio system

      element S is the first music streamer from 「Matrix Audio」 with USB DAC outputs. It easily enables streaming audio functionality for your current audio system. element S has rich digital output ports, not limited to USB ports, which are suitable for various outdated DACs. It is an indispensable streaming audio upgrade device in your system, and helps you to embrace the streaming audio world.

    • MA player

      MA Player is a high-quality digital audio/streaming audio playback control system which is independently developed by 「Matrix Audio」 for its music streamers. With MA player, users can control audio devices in the network through mobile devices such as smart phones and tablets, browse and play music from network drives or USB storage devices. In addition, MA Player has integrated streaming technologies such as Roon Ready, DLNA/UPnP, QPlay,AirPlay 2, QQ Music,NetEase Cloud Music,Spotify Connect,TIDAL Connect and Audirvāna, allowing you to experience high-resolution streaming audio on the local area network.

    <h2>Local Music Playback</h2>

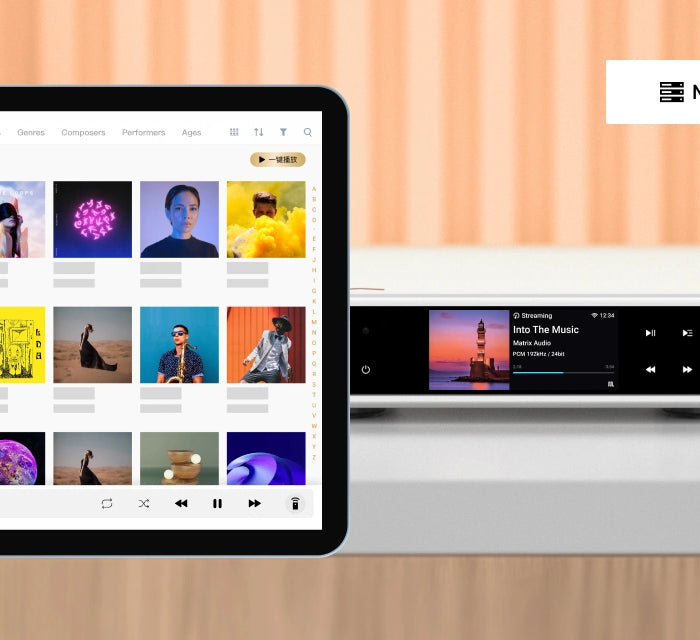

    Local Music Playback

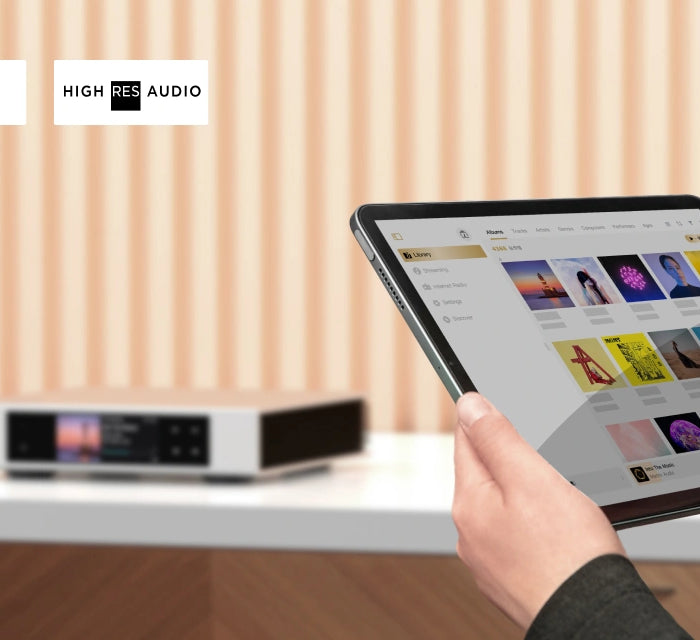

    <h2>Online Streaming</h2>

    Online Streaming

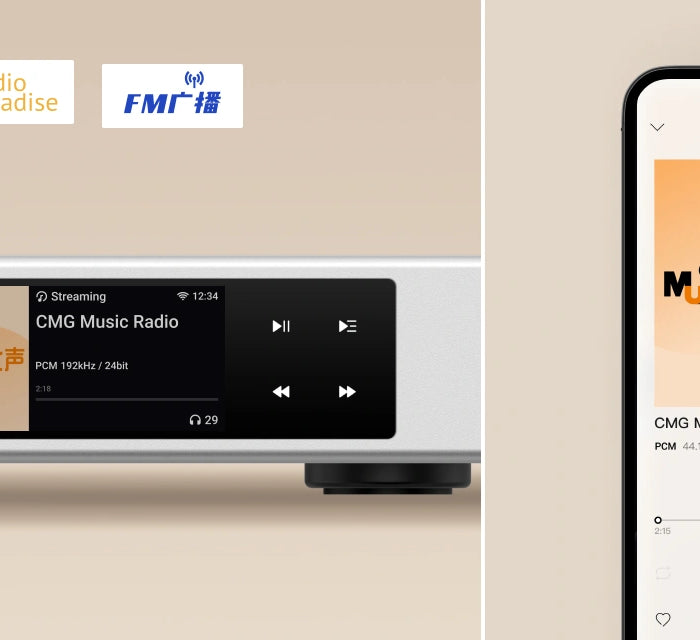

    <h2>Internet Radio</h2>

    Internet Radio

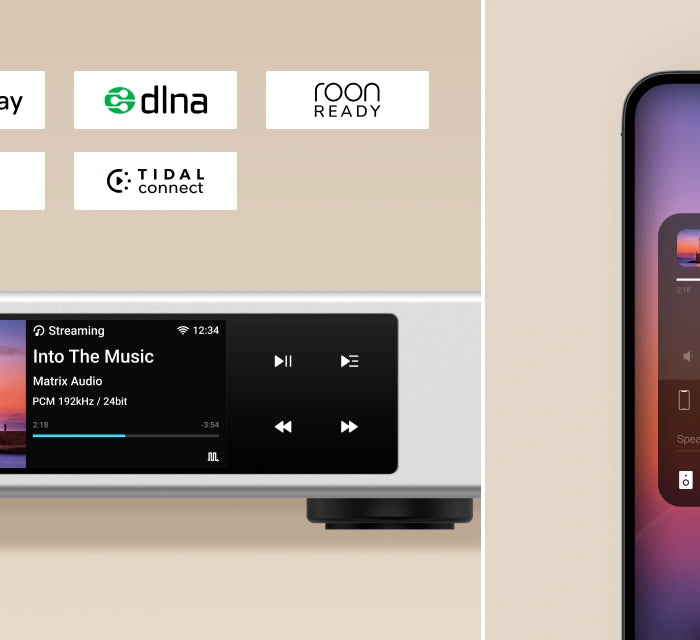

    <h2>Local Network Streaming</h2>

    Local Network Streaming

    <h2>Image banner</h2>

    Image banner

    Highlight a new collection and share details about products related to this image

    Button

    • MA Remote App

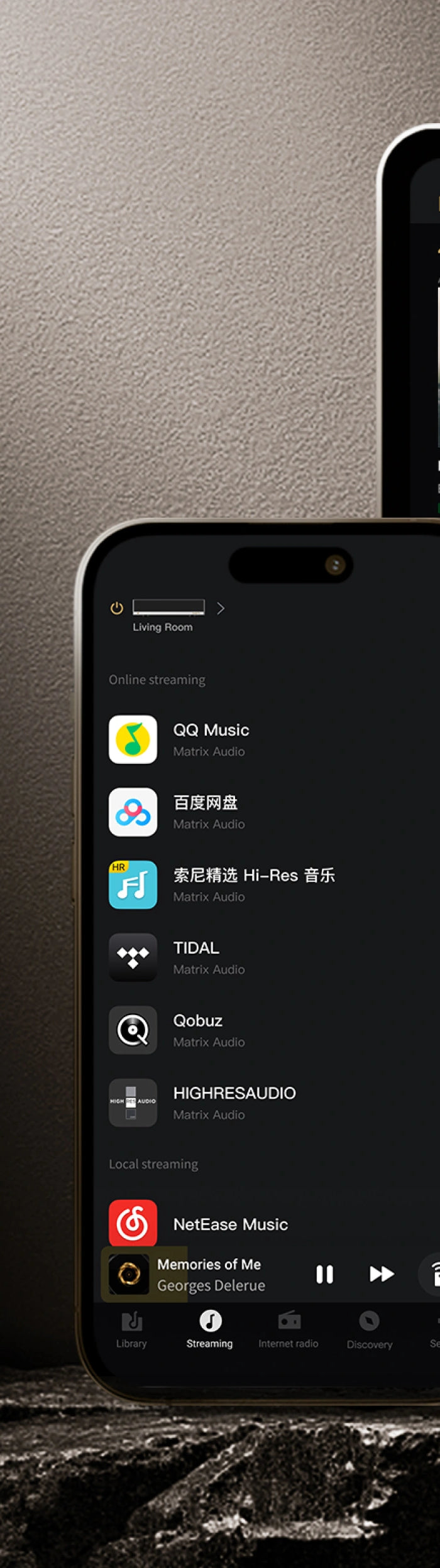

      MA Remote App is available for iPhone, iPad and Android phones. Through this app, you can browse and play music from your local music library, enjoy music from TIDAL, Qobuz and HIGHRESAUDIO, and listen to Internet radio from 「Matrix Audio」 devices. The configurations and firmware updates of the music streamer can also be done through the app.

    • Featured UI and interaction from 「Matrix Audio」

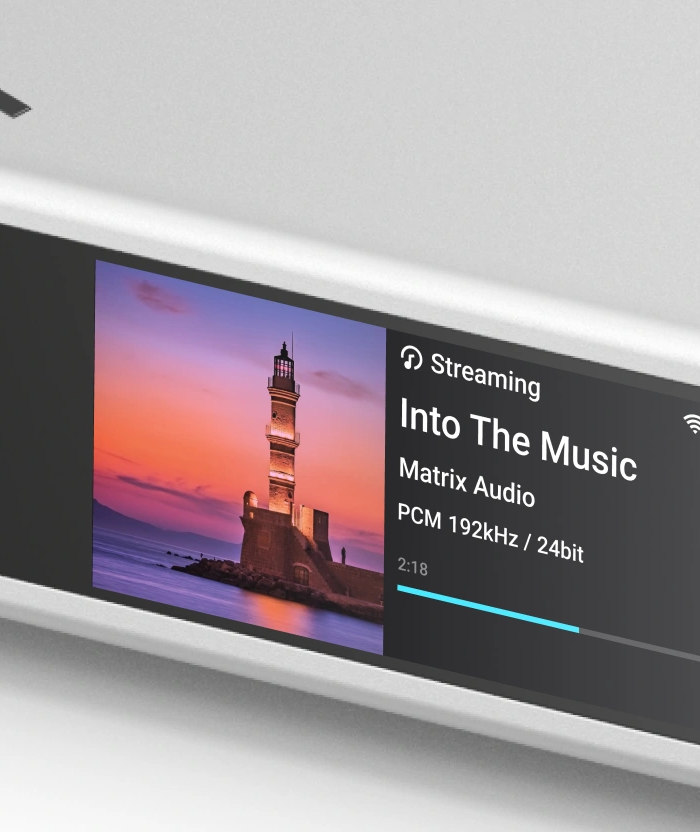

      element S is embedded with a 3.46" high resolution touch screen which presents a featured UI and interaction from 「Matrix Audio」, allowing you to easily operate the device and accurately understand device status. When the streaming music is playing, the metadata including album art, album name, track title and artist etc., will also be displayed. It enables you to more comprehensively master music information and enjoy a better music listening experience.

    • USB DAC interface

      The USB DAC interface is a digital audio interface that surpasses traditional ports such as optical and coaxial, it feeds high resolution PCM or DSD audio data to audio devices bit-perfectly. With this interface, DACs with USB input can be connected to element S, simply and quickly enable online and local streaming audio for your existing audio system. The USB DAC interface has a 5V/1A ultra-low noise power output. The power supply is processed by a multi-stage ultra-low noise linear regulator and a power filter circuit before feeding to the USB device, to ensure a better performance of the device.

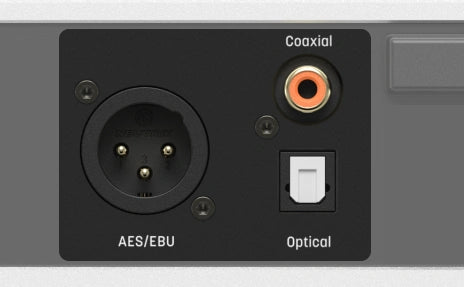

    • S/PDIF outputs

      S/PDIF outputs

      element S has premium S/PDIF signal output abilities to work with various DACs. Through optical, coaxial and AES/EBU ports, it supports up to 24Bit/192kHz PCM audio output or 1Bit/DSD64 audio output in DoP method.

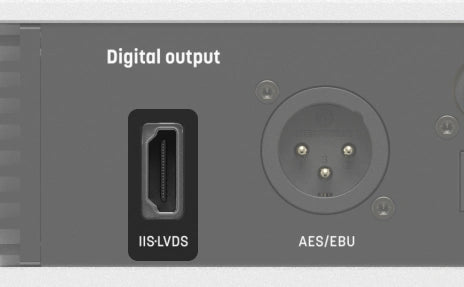

    • IIS-LVDS output

      IIS-LVDS output

      The IIS-LVDS output of element S supports up to 32Bit/768kHz PCM and 1Bit/DSD512 digital audio. In order to be compatible with more DACs, we provided 4 kinds of IIS-LVDS pin definition and 2 MCLK modes on this port, which can be configured through MA Remote App. Furthermore, the IIS-LVDS is applied electrical isolation design, the ground wire of the front and back end devices are separated, to avoid the noises to transport via the ground wire.

    • USB Audio port

      USB Audio port

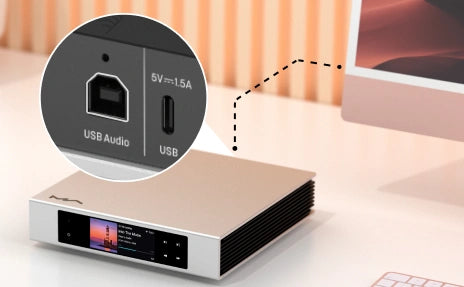

      When a computer, smart phone or tablet is connected via USB Audio input, element S turns these devices into digital turntables. High quality digital audio signals will be sent to back end devices through this port. The digital audio output supports up to 32Bit/768kHz PCM and 1Bit/DSD512. HID is supported through USB Audio connection as well, which allows you to control the playback of the player software through the touch key on the device.

    <h2>Dual-frequency <br/>femtosecond clock<br/><br/></h2>

      Dual-frequency
      femtosecond clock

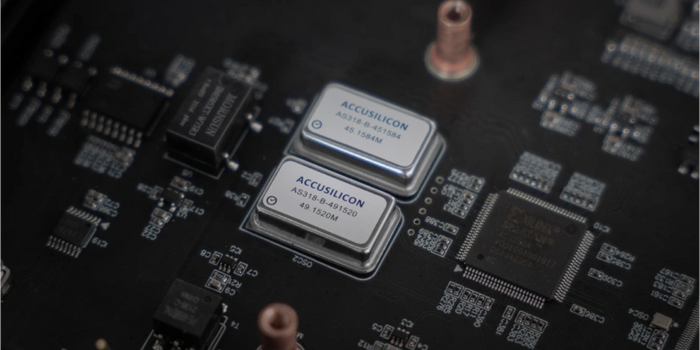

      element S is equipped with 2 ultra low phase noise femtosecond clocks from Accusilicon, which works for 44.1kHz and 48kHz and their multiples of sampling rate as reference clock source respectively. An FPGA coordinates the clocks and manages the frequencies. To ensure high quality digital audio with low jitter and present more fantastic details of the music.

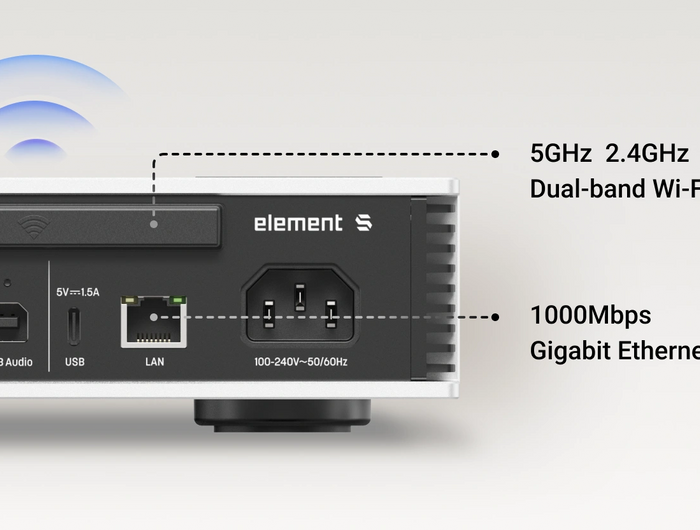

      <h2>Gigabit Ethernet and <br/>Dual-band Wi-Fi<br/><br/></h2>

        Gigabit Ethernet and
        Dual-band Wi-Fi

        Both Ethernet and Wi-Fi connections are available for element S. Gigabit Ethernet guarantees the stability and speed of high-resolution audio transmission in the network. If you have good Wi-Fi coverage, 2.4GHz and 5GHz Wi-Fi connections are good options as well. Get rid of the network cable, the embedded antenna makes element S look more simple and tidy.

        Specifications

        Hardware Platform

        CPU：NXP i.MX 6Quad Cortex-A9

        Digital Intput

        USB Audio：
        PCM 16-32Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz,
        352.8kHz, 384kHz, 705.6kHz, 768kHz
        DSD 2.8MHz, 5.6MHz, 11.2MHz (DoP)
        DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz (Native)

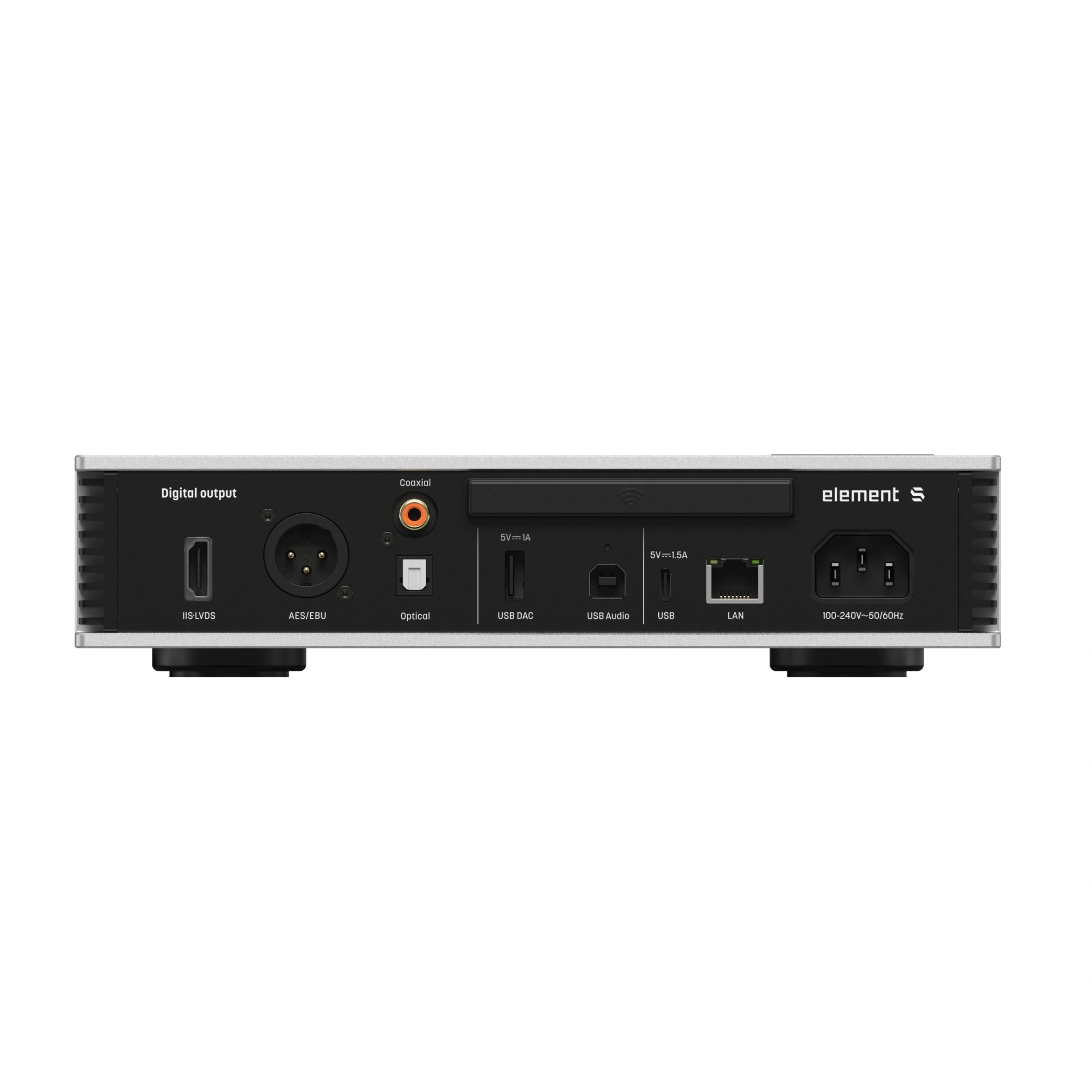

        Digital Output

        COAXIAL、OPTICAL & AES/EBU：
        PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
        DSD 2.8MHz (DoP)

        IIS LVDS:
        PCM 16-32Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz,
        192kHz, 352.8kHz,384kHz, 705.6kHz, 768kHz
        DSD 2.8MHz, 5.6MHz, 11.2MHz (DoP)
        DSD 2.8MHz, 5.6 MHz, 11.2 MHz, 22.4MHz (Native)

        USB DAC:
        The audio specs depend on the external DAC.
        This port provides up to 5V/1A low noise power to the external USB DACs.

        Network

        LAN:10/100/1000 Mbps
        WLAN:2.4 GHz / 5 GHz

        USB Type C

        The USB Type C port provides a maximum power of 5V/1.5A.
        The USB port works with devices which conform to the USB mass storage standard and supports FAT, FAT32, exFAT and NTFS file formats, but is not guaranteed to be compatible with all storage devices.

        MA Player

        Controller app: MA Remote App
        Local Playback Format Supported：MP3 , WMA , WAV , AIF, AIFC, AIFF, AAC, FLAC, OGG, APE, ALAC, M4A, DSF, DFF, CUE
        PCM Sampling Rate: PCM 16-24Bit 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz
        DSD Sampling Rate: 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz
        Roon Ready PCM Sampling Rate:PCM 16-24 Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz
        DSD Sampling Rate: DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz

        AirPlay 2
        The audio specs depend on the service provider

        DLNA/UPnP
        The audio specs depend on the service provider

        TIDAL Connect
        The audio specs depend on the service provider

        Spotify Connect
        The audio specs depend on the service provider

        vTuner
        The audio specs depend on the service provider

        Radio Paradise
        The audio specs depend on the service provider

        HIGHRESAUDIO
        The audio specs depend on the service provider

        Power

        Power Voltage: AC 100V-240V 50/60Hz
        Standby Power Consumption:< 5W
        Maximum Power Consumption:< 30W

        Weight & Size

        Weight:2.4kg (5.29 pounds)
        Size:
        Width: 240 mm (9.45inches)
        Depth: 245 mm (9.65inches)
        Height: 58 mm (2.28 inches)

        Accessory

        Power cable x1
        Quick start guide x1
        Warranty card x1
