Description

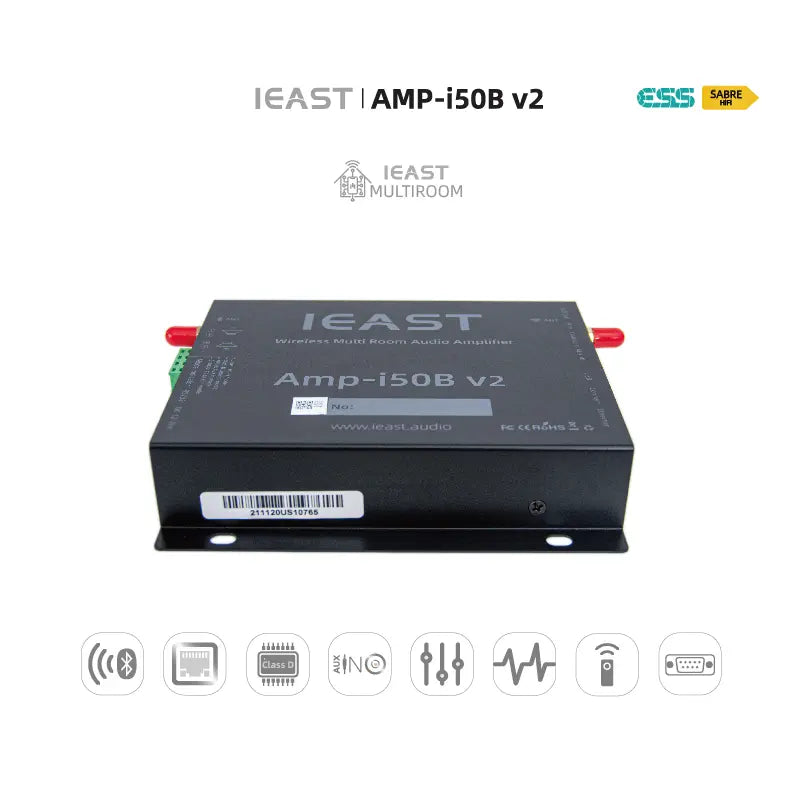

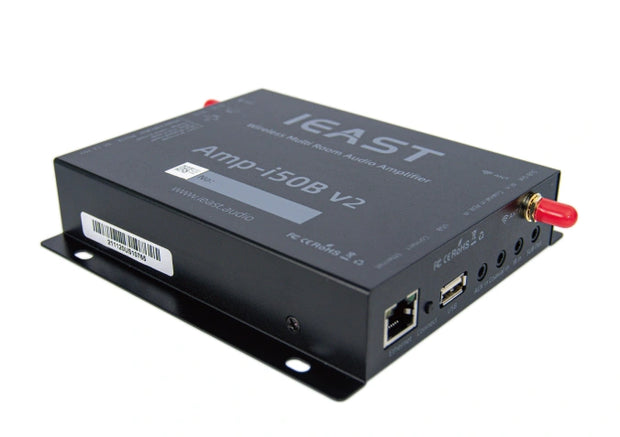

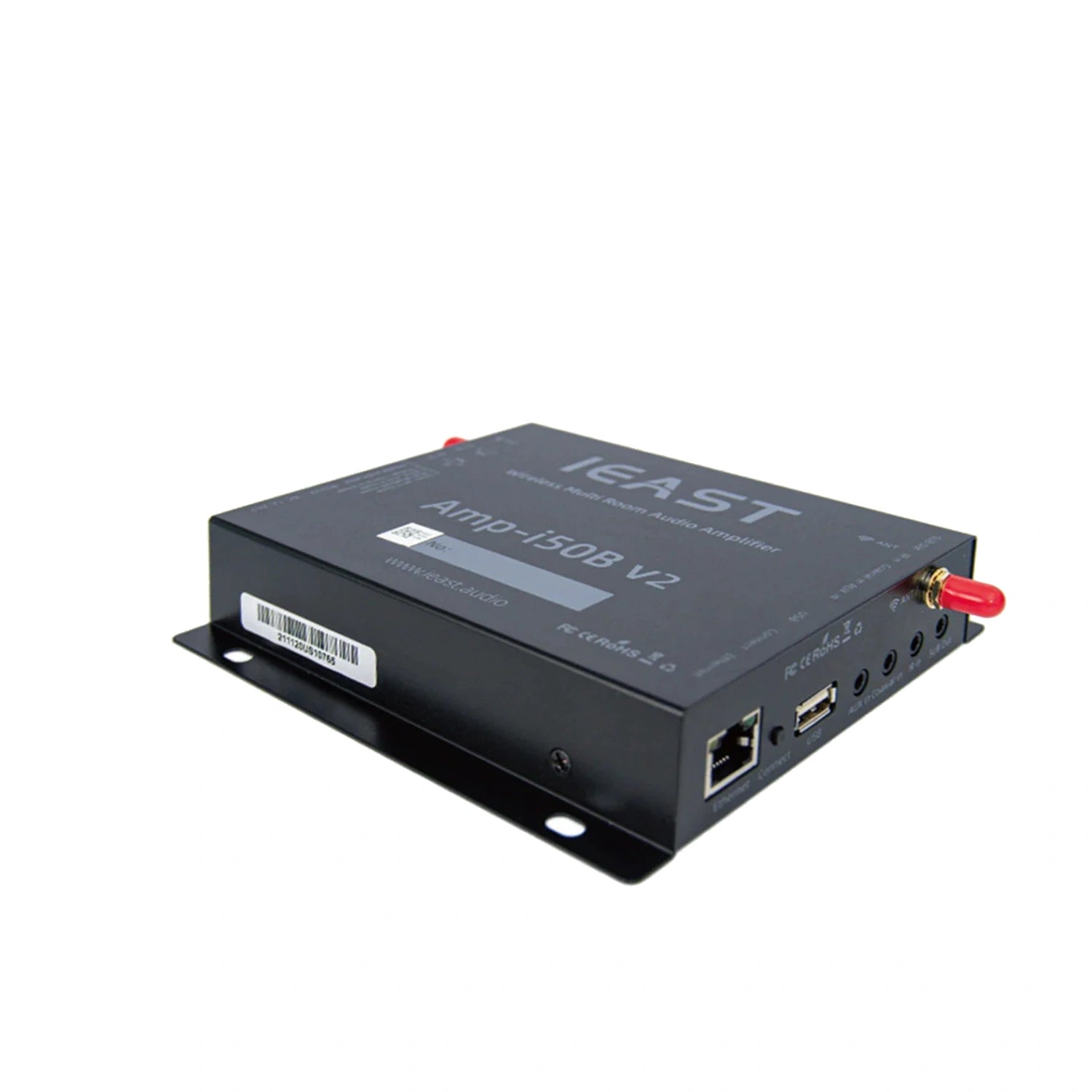

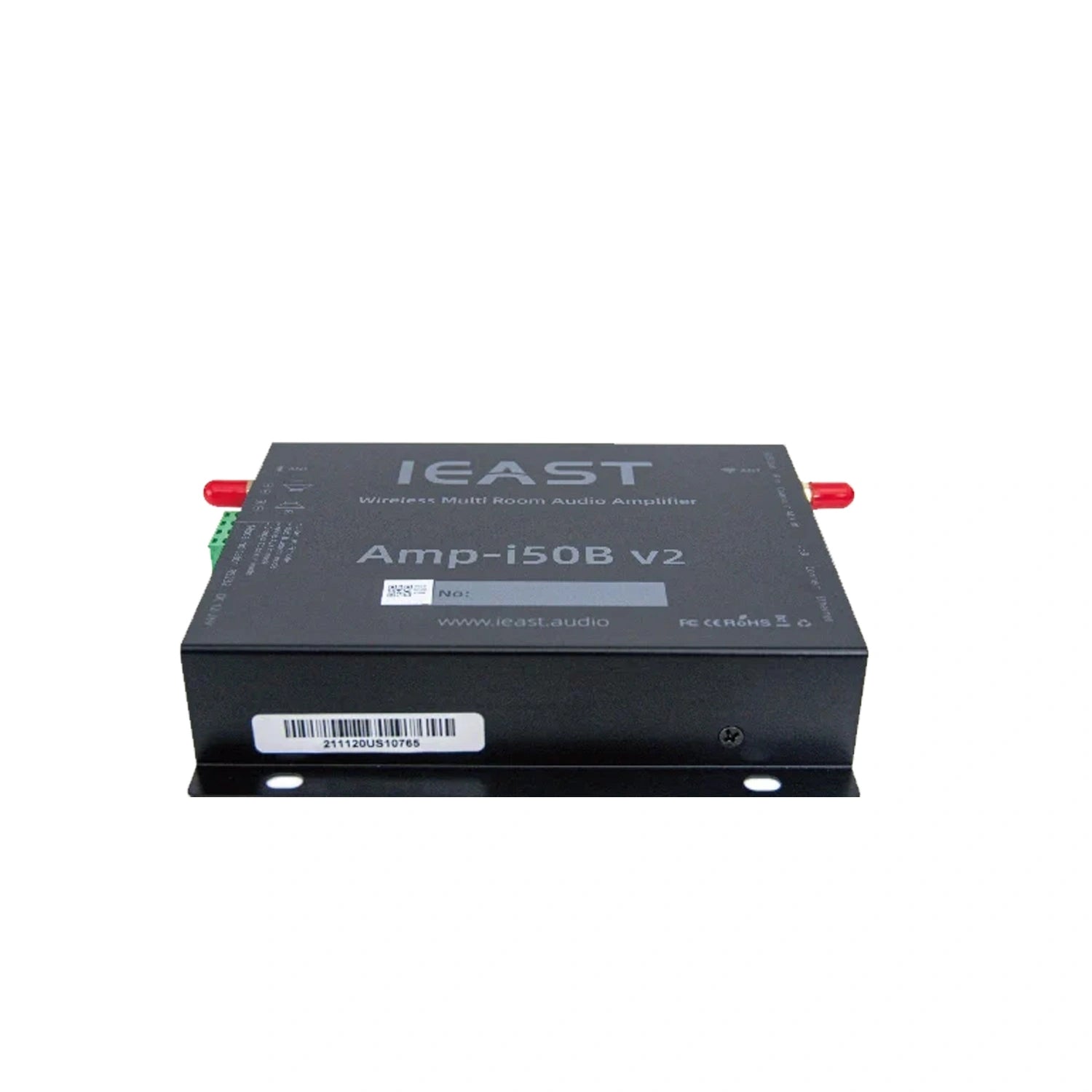

IEAST AMP-i50Bv2 High-Power Wall-Mount Streaming Amplifier
The iEAST AMP-i50Bv2 is a robust and discreet wireless streaming amplifier designed for permanent, hidden installation. Its powerful 2x50W output, driven by a highly efficient Class D architecture, provides ample volume and clarity to drive a pair of medium to large-sized passive speakers, making it perfect for custom residential or light commercial audio systems.
Advanced Streaming and Integration
This unit is built to support the latest in wireless audio technology. It features both stable, long-range Wi-Fi (802.11 b/g/n) and high-quality Bluetooth 5.0 connectivity. Furthermore, the AMP-i50Bv2 is fully compatible with advanced protocols:
-
AirPlay 2: Seamlessly stream from Apple devices and integrate with other AirPlay 2 devices for multi-room synchronization.
-
Spotify Connect: Direct streaming from the Spotify app for the best experience.
-
Hi-Res Audio: Supports high-fidelity audio streams up to 24-Bit/192 kHz, allowing users to enjoy lossless and high-definition music formats.
Key Features for Custom Install:
-
Compact Design: The slim profile is specifically engineered for wall-mounting, easy concealment in cabinets, or installation in custom spaces.
-
Multi-Room Functionality: As part of the iEAST ecosystem, the amplifier supports synchronized or independent streaming zones, managed entirely through the dedicated control app.
-
Wired Reliability: An integrated 10/100M Ethernet port is included to ensure the most stable connection possible, essential for high-resolution audio streaming.
-
Versatile Inputs: The unit includes a Line-in (3.5mm) input, allowing you to connect local audio sources such as a TV, CD player, or turntable (with a pre-amp).
-
Control API: Features a TCP protocol API for simple integration and control by professional smart home systems (e.g., Control4, Savant, Crestron).
The iEAST AMP-i50Bv2 provides a high-performance, all-in-one solution for powerful and discreet wireless audio in any modern space.
Specifications
- Weight: 200gr
- Usage: Indoor & outdoor
Pros and cons
- Sustainably produced
- Ideal for everyday use
-
IEAST | AMP-i50Bv2
Wall-Mount Wireless Multi-Room
Stereo Amplifier
IEAST® AMP-i50Bv2Wall-Mount Wireless Multi-Room Stereo Amplifier
Multi-room music system Available anywhere, enjoy the music you want to listen to with one click.
-
What is AMP-i50Bv2?
AMP-i50Bv2 is a built-in 50Wx2 Wall-Mount Wireless Multi-Room
Stereo Amplifier that can directly drive 4Ω/8Ω speakers and stream
music via WiFi and Bluetooth. Once set up, just use your iPhone®,
iPad®, Android, Hongmeng® mobile phone and tablet, Mac® and
Windows® laptop to stream your favorite music to every room in
your home. At the same time, it also has analog and coaxial digital
inputs, which can synchronize and stream other audio sources
(such as DVDs, televisions) to other speakers to play together.

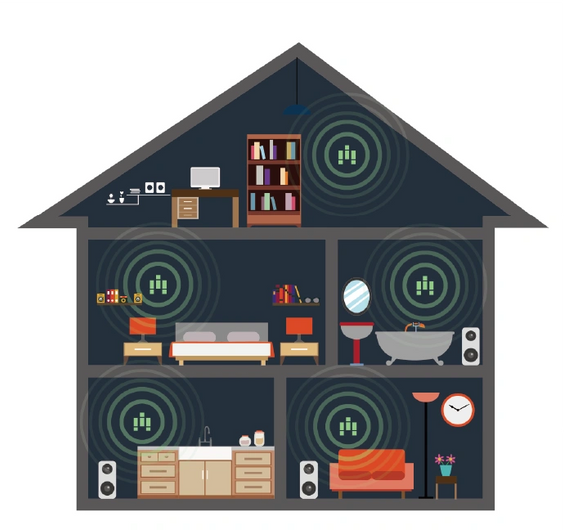

Multi-room listening with better sound
Add more IEAST streaming devices in your home, connect your best speakers, place it in different rooms, and you'll be able to: -Stand-alone mode: Stream different music in different rooms without interfering with each other; -Partition mode: Partition or all speakers play songs synchronously, and enjoy them together.
ESS9023+TDA7492
Classic ESS9023 DAC audio decoding chip from ESS and TDA7498E high performance analog CLASS D audio amplifier chip from ST are adopted. The combination of the two has the characteristics of strong parsing ability, pure tone color and high power and low distortion output.
WiFi/Ethernet/Bluetooth three connections method
-Supports 802.11b/g/n /Wi-Fi and 10/100M Ethernet, providing a more stable and fast network connection rate. After networking, you can easily listen to online high-quality music, network radio and your local music collection. -Bluetooth connection supported.
Enjoy tons of music

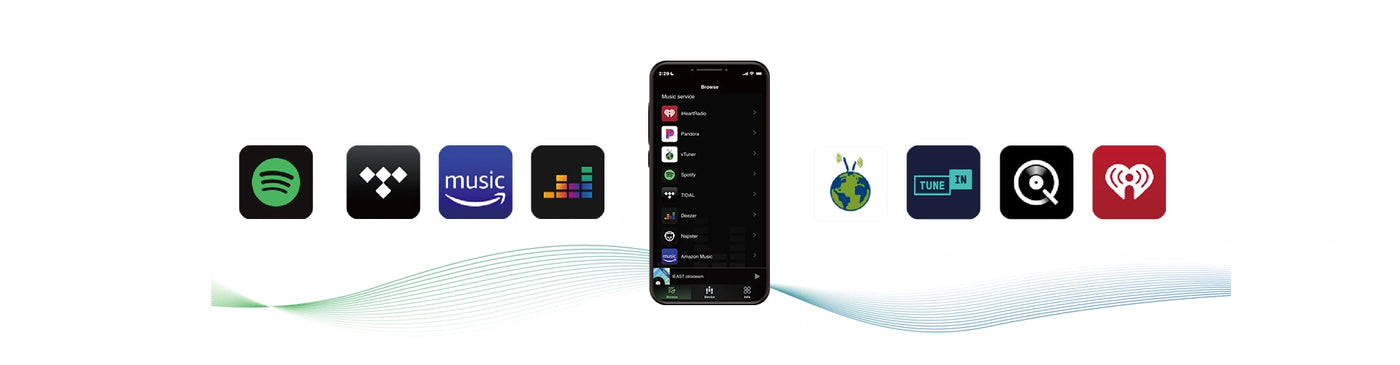

Supports various music services
Support Spotify Connect
With Spotify Connect, you can use one device to remotely control listening on another. You're no longer restricted to listening to the catalogue solely through your phone or desktop. Spotify Connect is a godsend for house parties – so long as you trust your friends with the controls! – but it's really for anyone who wants to easily access Spotify's 60-million-song-catalogue and curated playlists on hi-fi and AV kit and smart speakers without the hassle of Bluetooth pairing.
IEAST controller apps
With the IEAST controller application, you can quickly set up your IEAST wireless audio products. easily achieve multi-room music synchronization, product free combination, playback control, EQ adjustment and many more features.
Technical Specifications
| Category | Details |
|---|---|
| Type | Wall-Mount Wireless Multi-Room Stereo Amplifier |
| Inputs | 2.4GHz WiFi Bluetooth 5.0 Stereo (3.5mm) Coaxial input (3.5mm) USB 2.0 |
| Outputs | Number of output channels | 2 |
| Power (W / channel) | 4 ohms | 1 kHz | >50 W @ 1% THD+N | |
| Power (W / channel) | 8 ohms | 1 kHz | ＞30 W @ 1% THD+N | |
| Input Sensitivity | ~650 mV – full power | |
| Maximum input voltage (RMS) | 1 V | |
| Signal to noise ratio (SNR) at THD+N < 1%, f = 1 kHz, Gain = 26 dB | 90 dB | |
| Total Harmonic Distortion THD + N@1 KHz | < 0.1% | |
| Wireless network compatibility | IEEE802.11 b/g/n 2.4GHz |
| 以太网 | 10/100M |
| Ethernet | Bluetooth 5.0 Bluetooth Audio codec:SBC |
| Supported audio formats | APE/FLAC/MP3/WAV/AAC/AAC+/WMA/ALAC/AIFF |
| Streaming Protocol | DLNA Airplay Spotify connect Qplay |
| Smart home | TCP/IP RS232 Infrared IR |
| DAC | ESS9023 |
| Resolution< | 44.1kHz/24bit |
| Supply voltage | DC:24V/3.3A AC:100-240V ~50/60Hz 2.5A |
| Host weight | 0.5kg |
| Amplifier size (H x D x W) | 223x189x32mm（External antenna） |
| Power supply size (H x D x W) | 129x57x32mm |
| Accessories | 24V 3.3A power adapter External antenna * 2 Infrared remote controller Speaker interface RCA audio signal cable (100cm) user's manual |
| Color | Black |
| Certification | CE-RED FCC ID RoHS |
| SKU | AMPi50Bv2 |
| EAN | 6970504260160 |
| Packing | - |
| Gift box packing | 1pc/gift box |
| Measure(L x W x H) | 223x189x32mm（External antenna） |
| Unit Packing (G.W.) | 0.5kg |
| Export Carton packing | 5PCS |
| Measure(L x W x H) | 390*365*255mm |
| Weight (N.W) | 6.4kg |
| Weight (G.W) | 7.2kg |
FAQ
What is the main benefit of adding an IEAST AMP-i50Bv2 to my home audio setup?
The IEAST AMP-i50Bv2 is a powerful wireless streaming amplifier that breathes new life into your traditional passive speakers. By connecting your wired speakers to the AMP-i50Bv2, you instantly transform them into a high-end smart audio system. It eliminates the need for a separate bulky receiver, allowing you to stream high-resolution music directly via Wi-Fi, AirPlay 2, or Bluetooth 5.0 with audiophile-grade clarity.
Can the AMP-i50Bv2 be used for a multi-room music experience?
Absolutely. The AMP-i50Bv2 is a core component of the IEAST multi-room ecosystem. Through the IEAST Controller App, you can link multiple AMP-i50Bv2 units (or other IEAST devices) to play the same track in every room in perfect synchronization—often called "Party Mode"—or play different music in different zones. It’s a scalable solution that grows with your smart home needs.
Which streaming services and control methods are supported?
The AMP-i50Bv2 offers comprehensive support for the world's most popular music platforms. You can stream directly from Spotify Connect, Tidal Connect, Qobuz, and Amazon Music. For Apple users, AirPlay 2 support allows for seamless integration with iOS devices and Siri. Additionally, it features a web interface and specialized app control, ensuring you have total command over your library and internet radio stations.
How does the AMP-i50Bv2 handle external audio sources like a TV or Turntable?
Beyond its wireless capabilities, the AMP-i50Bv2 is equipped with versatile physical inputs. It includes RCA line inputs and often optical/digital inputs (depending on your specific configuration), allowing you to connect external sources such as a TV, CD player, or a pre-amplified turntable. This makes it the central hub for all your home entertainment, blending classic analog sound with modern wireless convenience.
Why is Wi-Fi streaming preferred over Bluetooth on the AMP-i50Bv2?
While the AMP-i50Bv2 includes Bluetooth for quick guest pairing, Wi-Fi streaming is the superior choice for home audio. Wi-Fi provides much higher bandwidth, supporting lossless and High-Res audio formats without compression. It also offers a significantly greater range, ensuring your music doesn't drop out when you move your phone to another room. Most importantly, Wi-Fi allows the amplifier to stream directly from the cloud, so your music won't be interrupted by phone calls or notifications.
