HiFiMuse

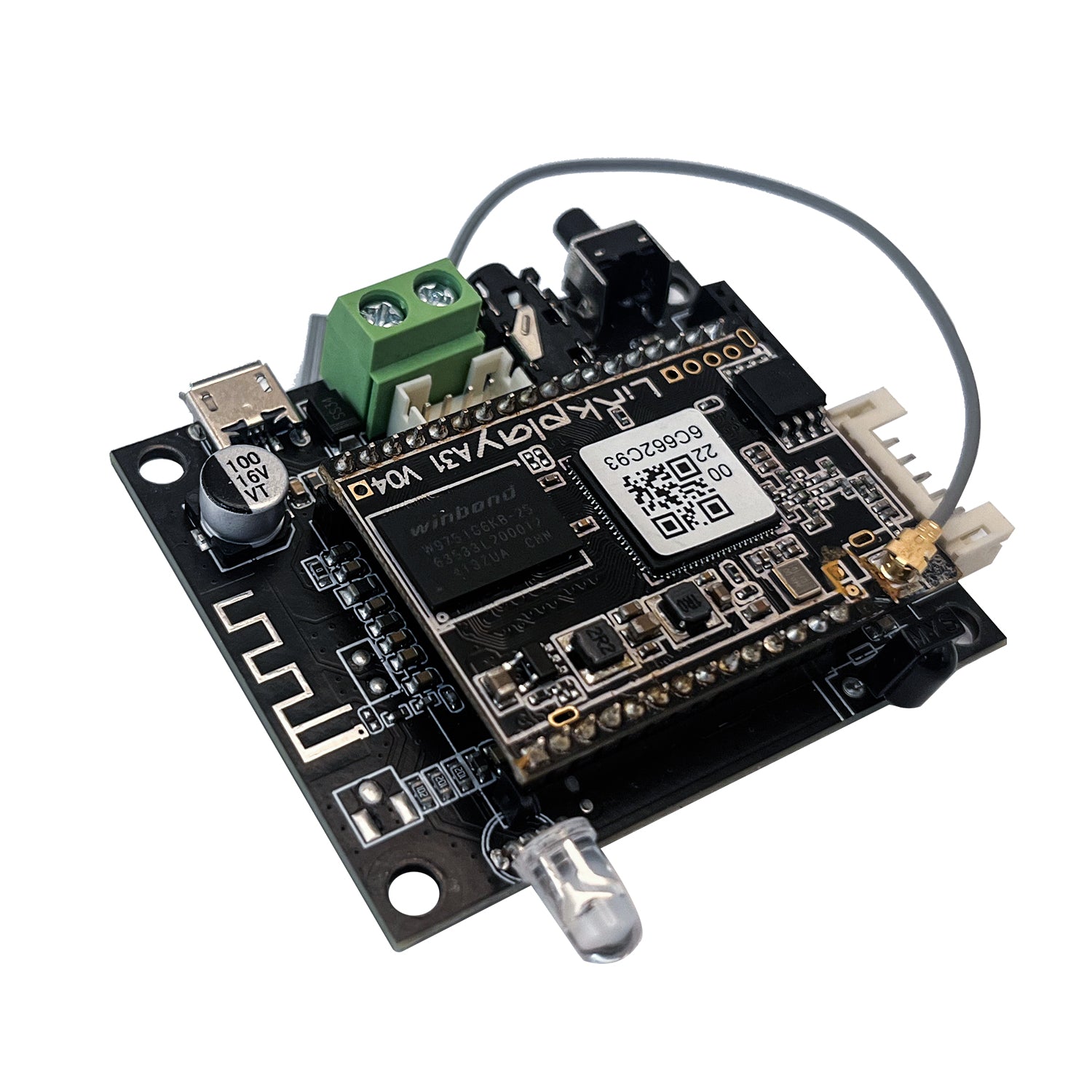

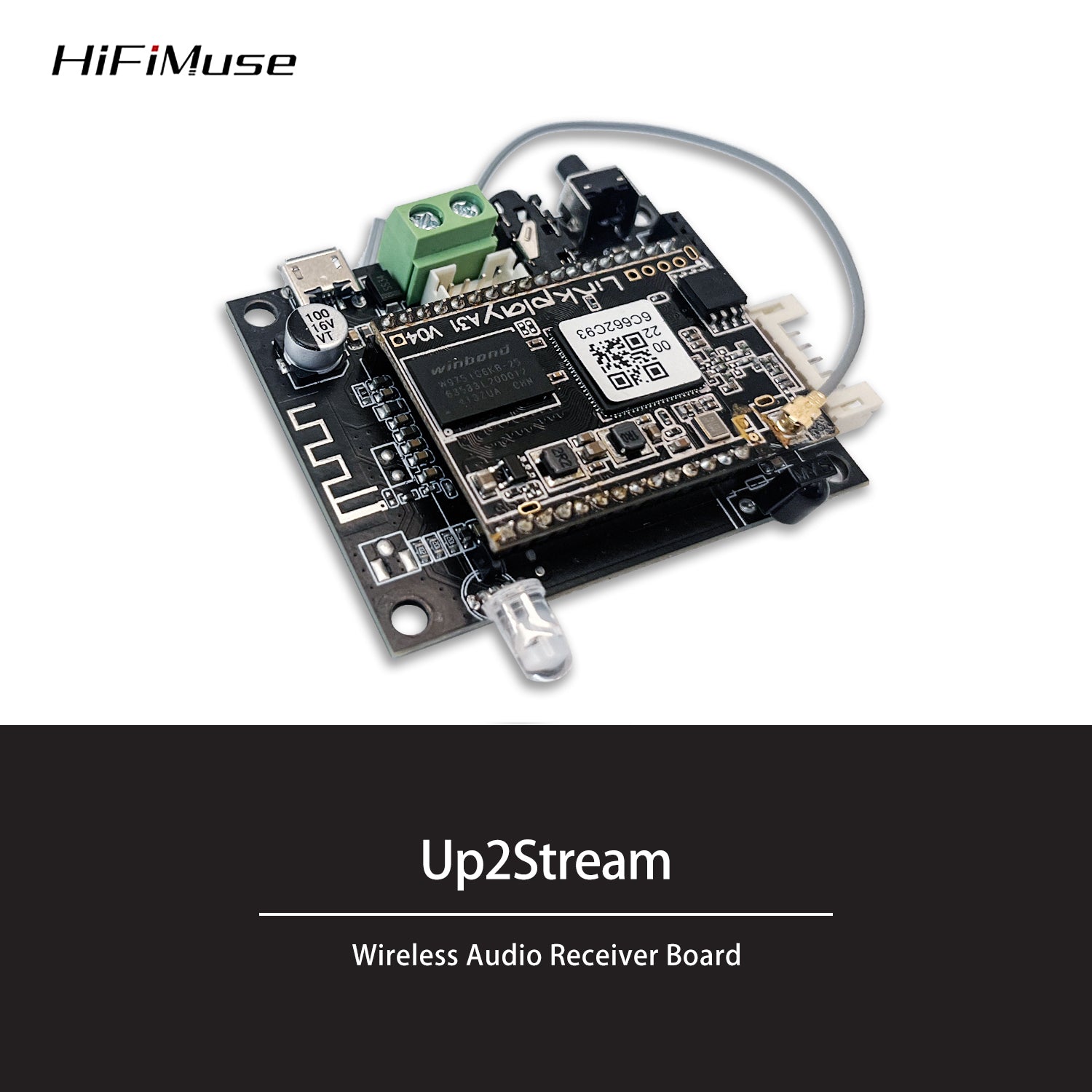

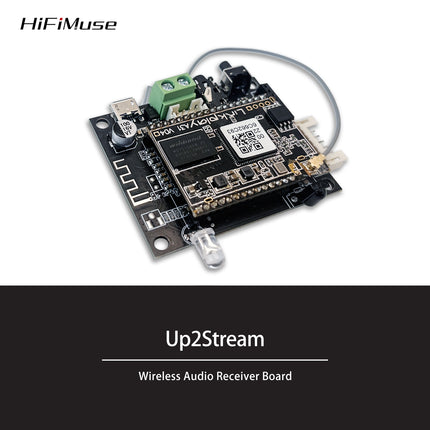

HiFiMuse D10 DIY Wireless WiFi Bluetooth Receiver

HiFiMuse D10 DIY Wireless WiFi Bluetooth Receiver

Regular price $37.79 USD
Regular price $41.99 USD Sale price $37.79 USD
Sale Sold out
Shipping calculated at checkout.

Product sellpoints:

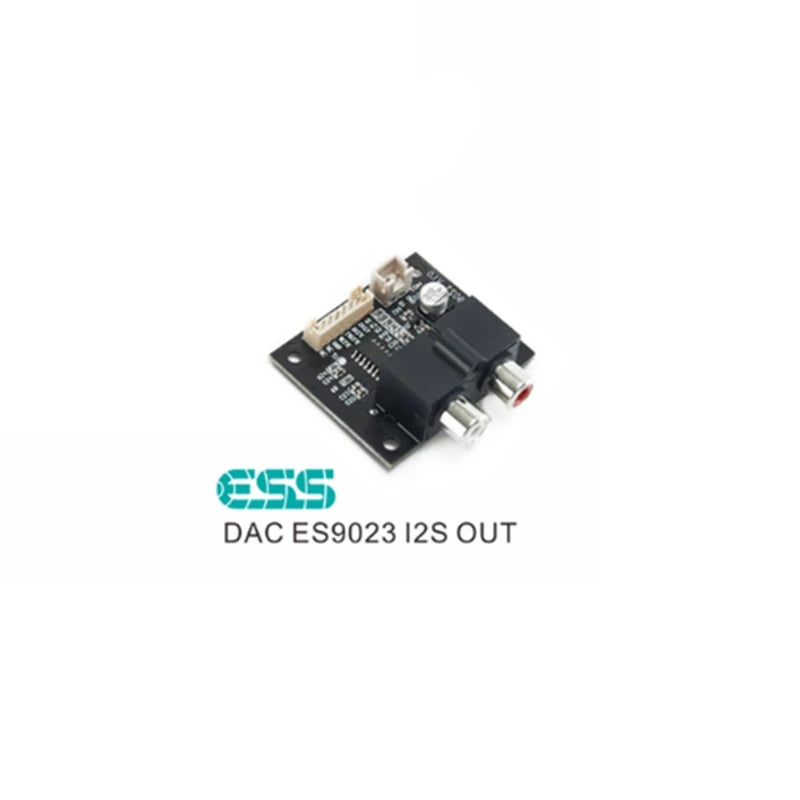

1.Wireless SpeakerHigh - Fidelity AudioHigh-Fidelity Audio with ESS9023:Experience crystal-clear sound with the ESS9023 chip, ensuring high-fidelity audio for audiophiles.

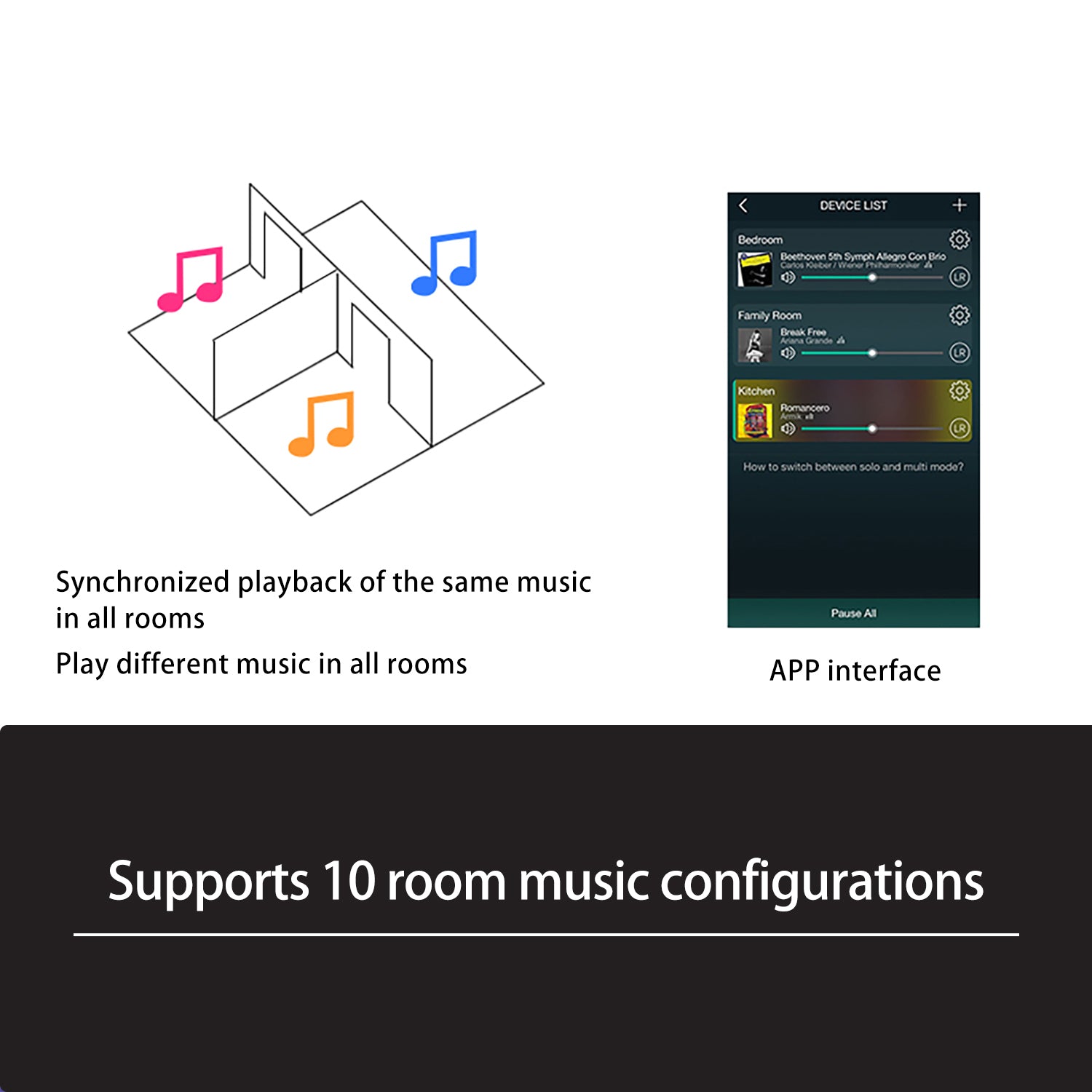

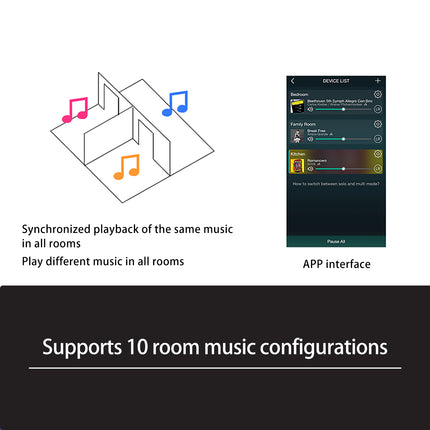

2.Wireless Multi-room Setup:Seamlessly stream audio across multiple rooms with wireless multi-room setup, enhancing your home audio experience.

3.Bluetooth 5.0 Streaming:Enjoy stable and high-speed Bluetooth 5.0 streaming, connecting effortlessly to your devices.

4.Supports Airplay & DLNA:Effortlessly stream audio from your devices with Airplay and DLNA support, enhancing your smart audio experience.

5.I2S/Analog Output:Versatile audio output with I2S and analog options, compatible with various audio systems.

Parameter information:
1.Wireless network: IEEE802.11 b/g/n 2.4G

2.Bluetooth:5.0 SBC/AAC

3.Power Input :5V-1A/2 pin connector  5V-1A micro USB input

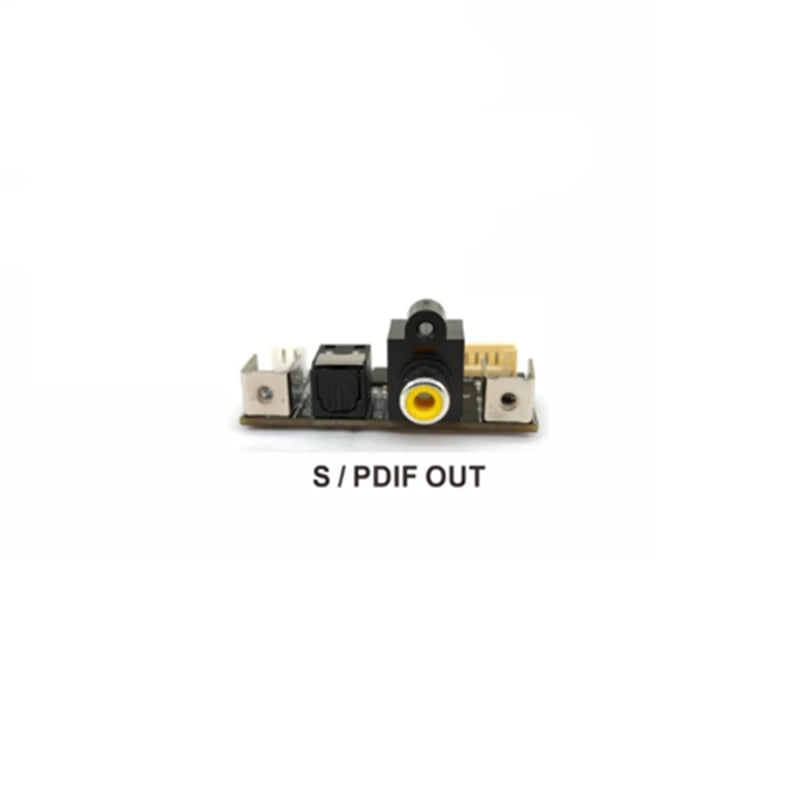

4.Audio output:Analog 3.5mm/4 pin connector  Digital12S,SPDIF(44.1KHz)

5.Frequency response: 20Hz to 20kHz

6.SNR:100dB @ 0dBFS, 1KHZ

7.THD+N:0.03% @ OdBFS, 1KHZ

8.Music Format:FLAC/MP3/AAC/AAC+/ALAC/APE/WAV

9.Decoding:Up to 24bit/192kHz

10.Protocols:AirPlay, DLNA, UPnP, Spotify Connect, Qplay

11.NAS Support:NAS with DLNA support

12.Dimensions:55*45*15mm

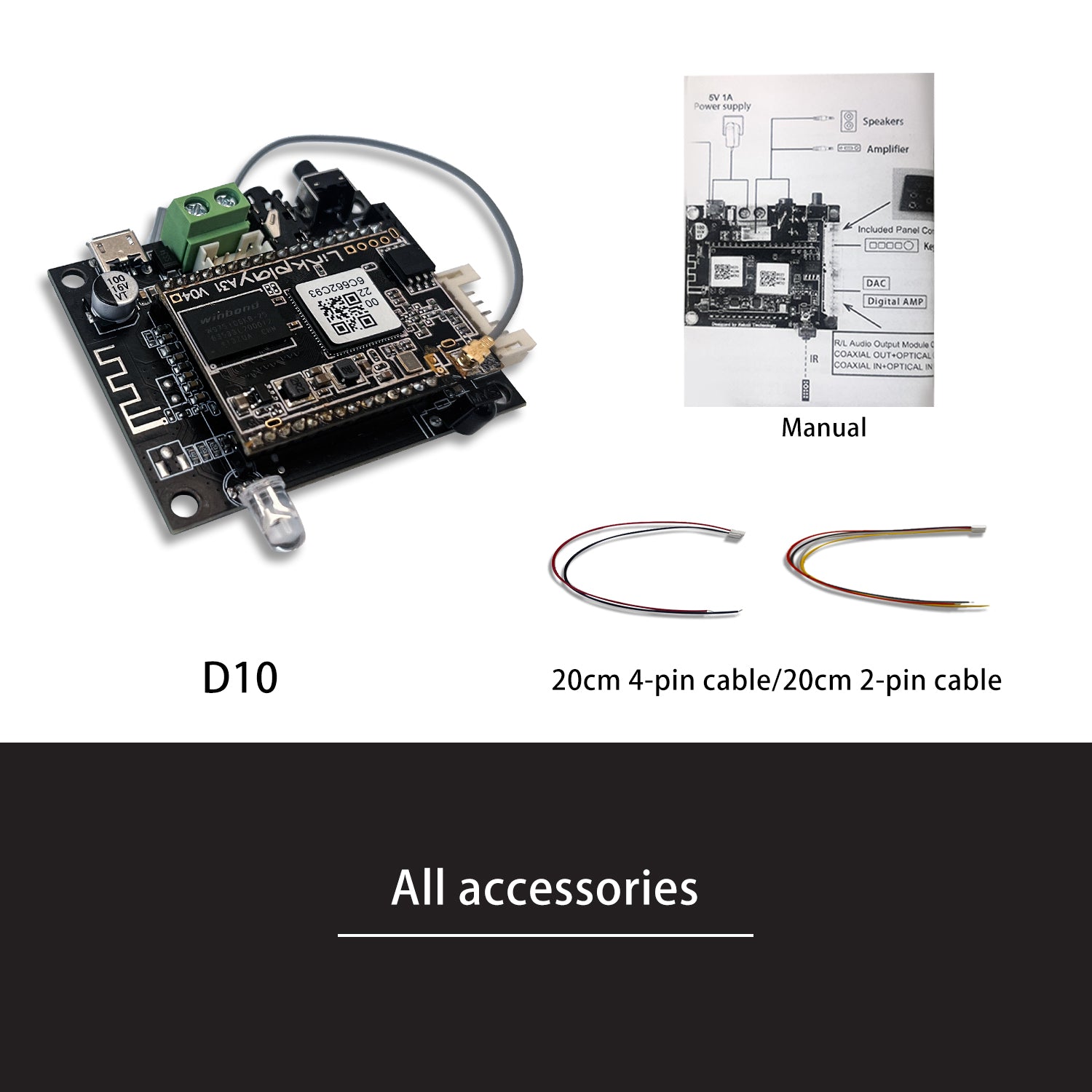

13.Accessory:4Pin 220mm PH2.0 Cable Pin 220mm PH2.0 Cable        2Pin 220mm Power Cable    User Manual

View full details

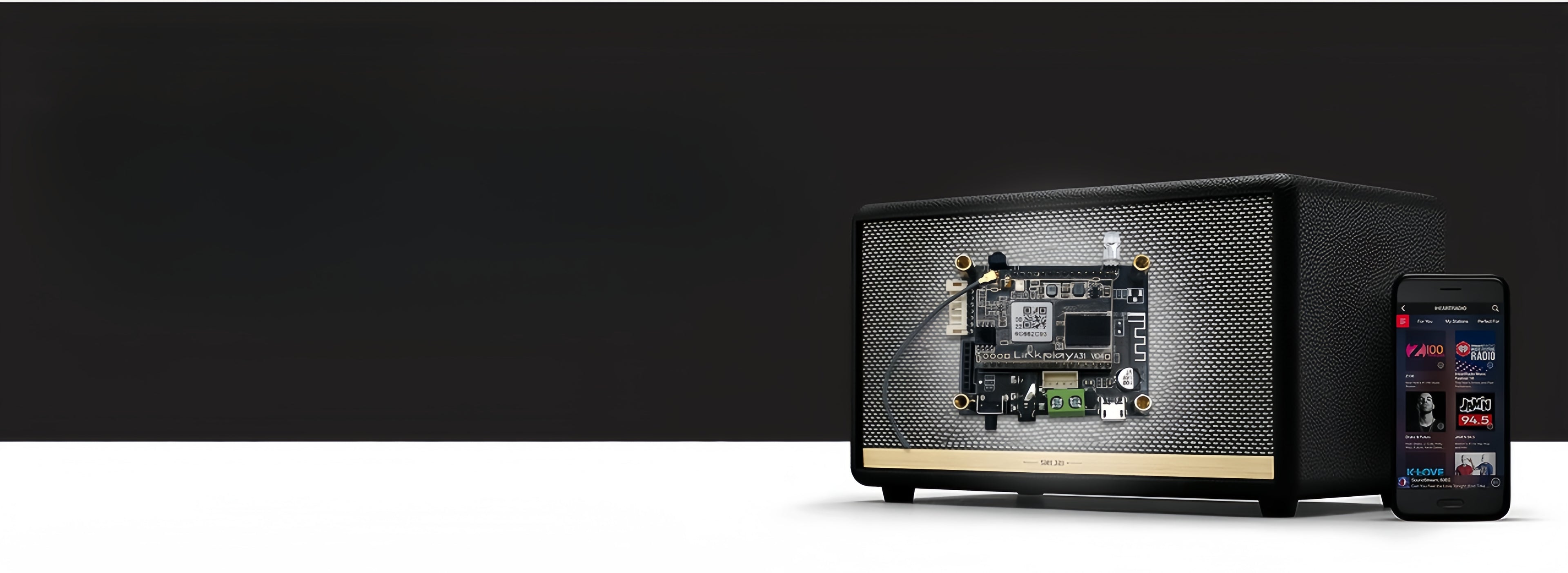

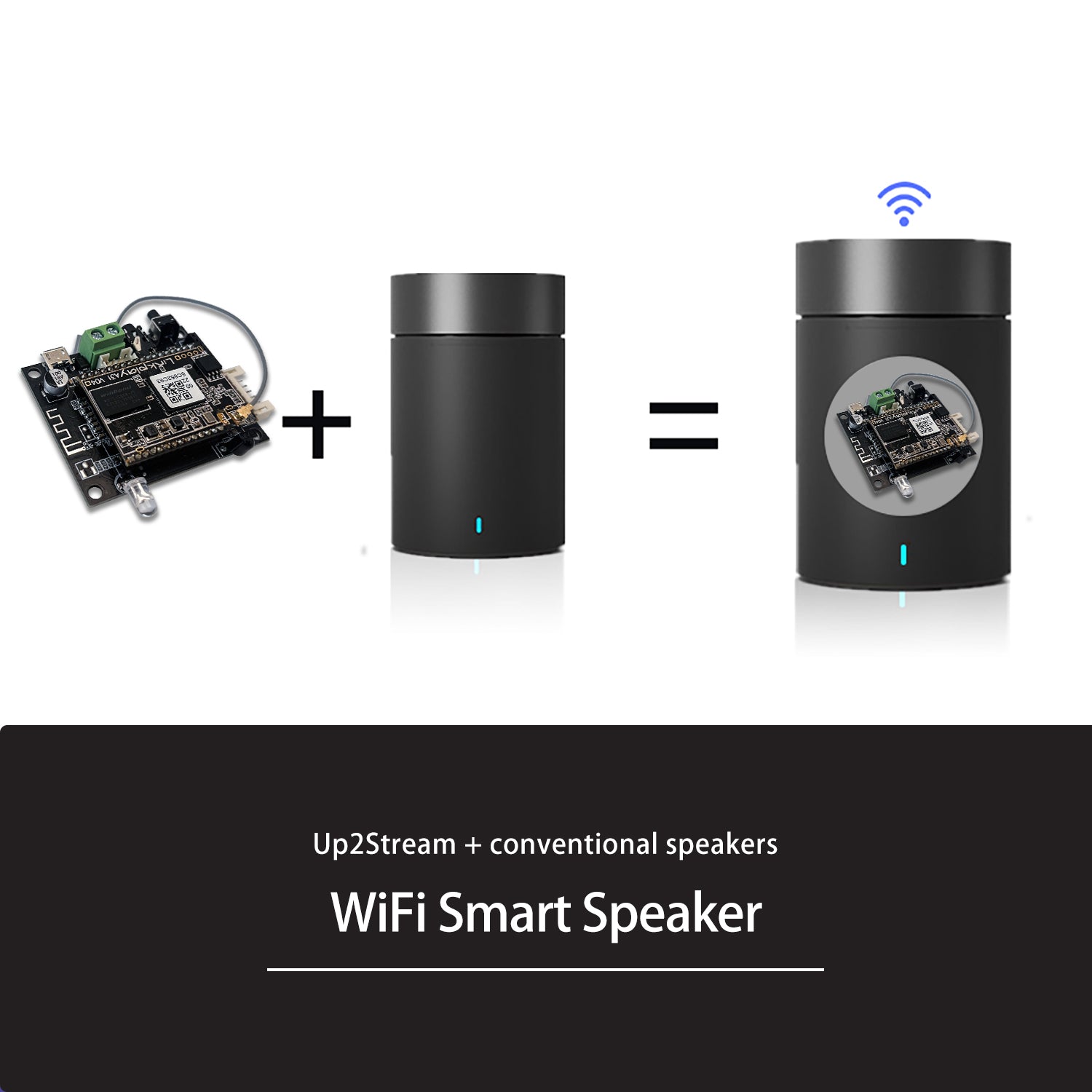

Easily Upgrade Your Traditional Audio System to a Wi-Fi Smart Audio System

SupportsAirPlay,DLNA,online steaming and localplayback with easy Wi-Fi multi-room control

Easy to install on equipment in a short time

Screw-in installation to existing equipment can be accomplished in minutes.

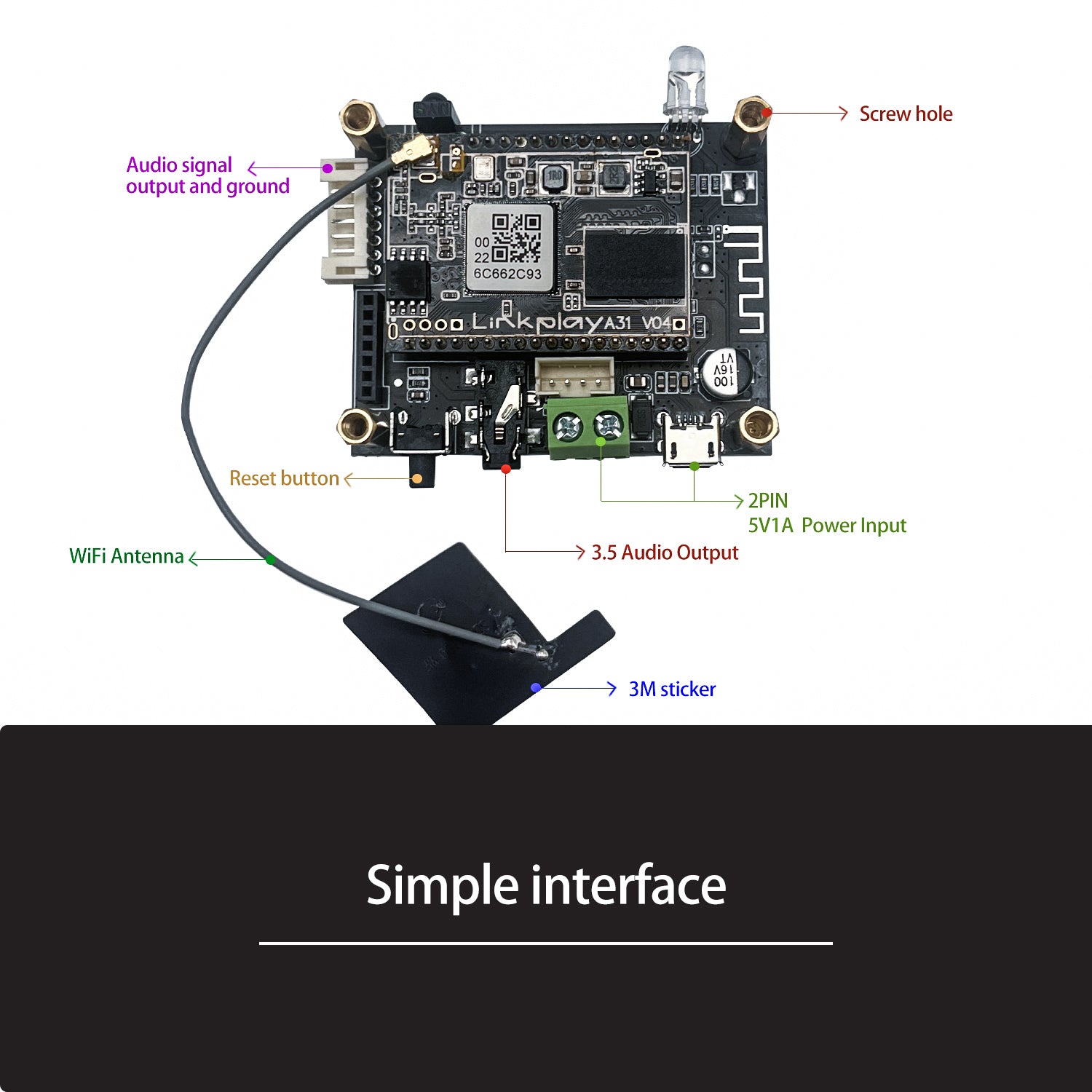

Interface Characteristics

Simple interface that adapts to most conventional seakers and amplifiers

Utilizes the latest Wi-Fi audio streaming technology

Supports 24bit/192kHz HD audio as well as common lossless audio formats such as FLAC, WAV,APE,etc.Also supports AAC,ALAC,WMA, MP3, etc.

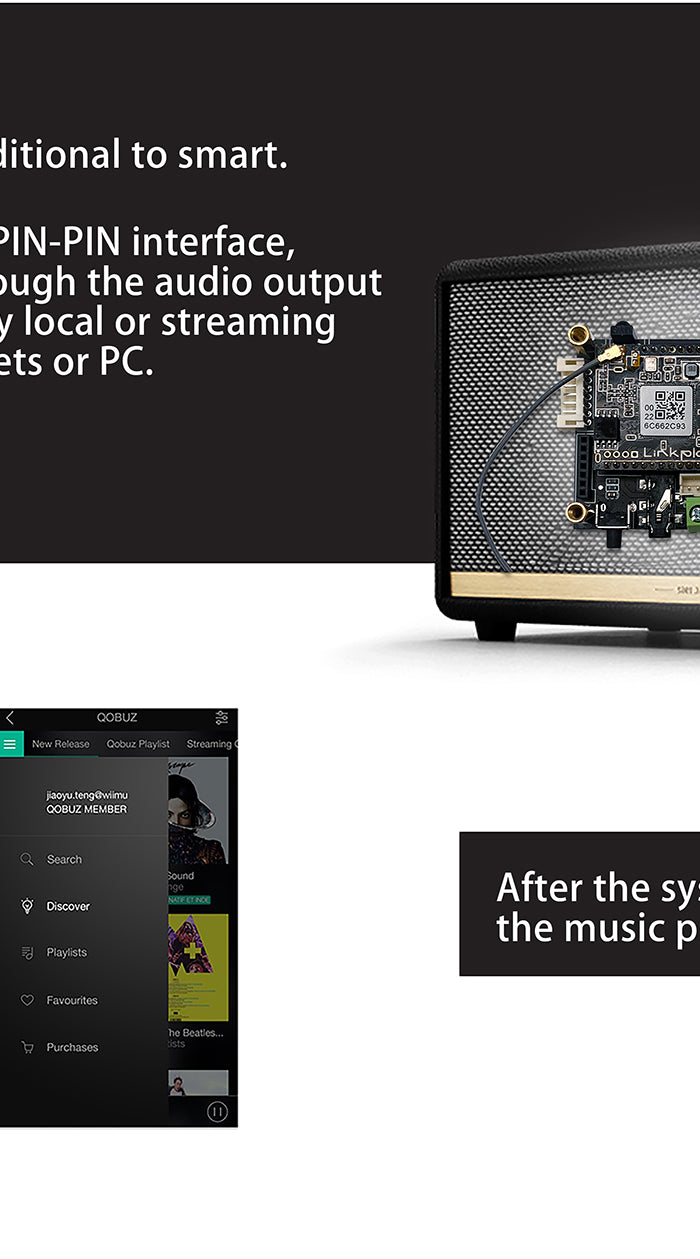

Installation and control

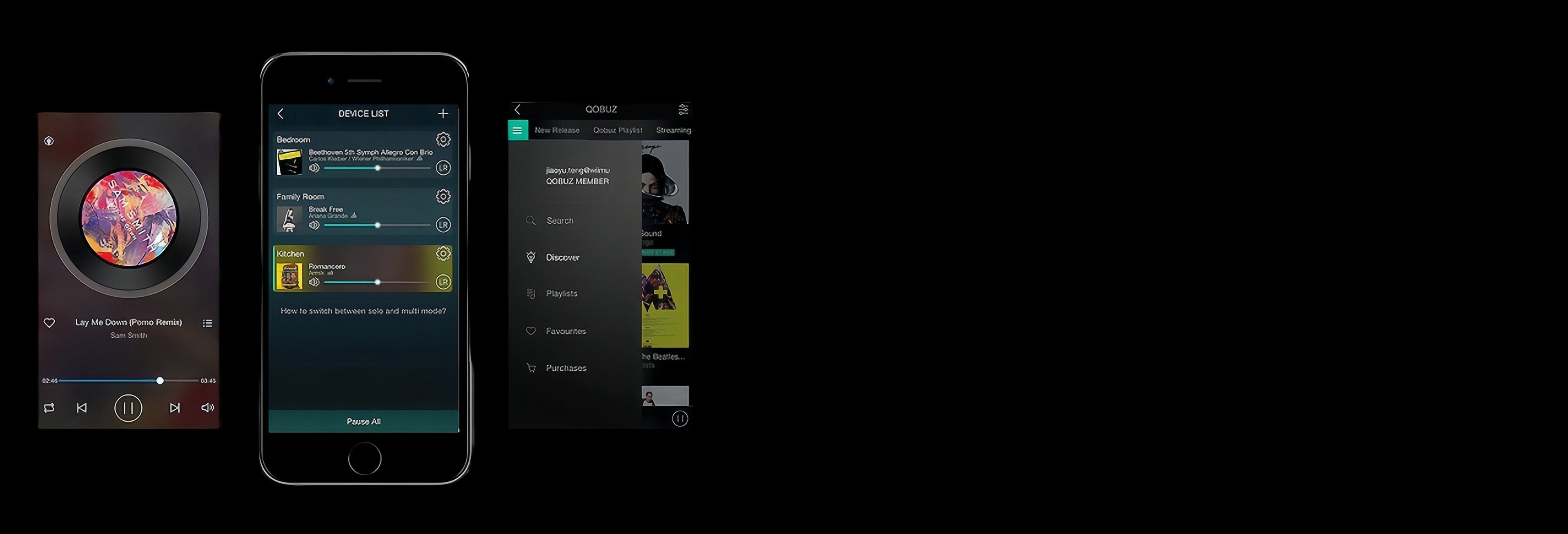

The D10 Integrated Module uses a PIN - PIN interface, accessed via 2PIN 5V - 1A and then analog output via the audio output port, upgrading a traditional audio system to a smart system in just a few minutes. Once upgraded, you can play local or streaming songs from your phone, tablet or PC, and control music playback in all rooms with a single APP.

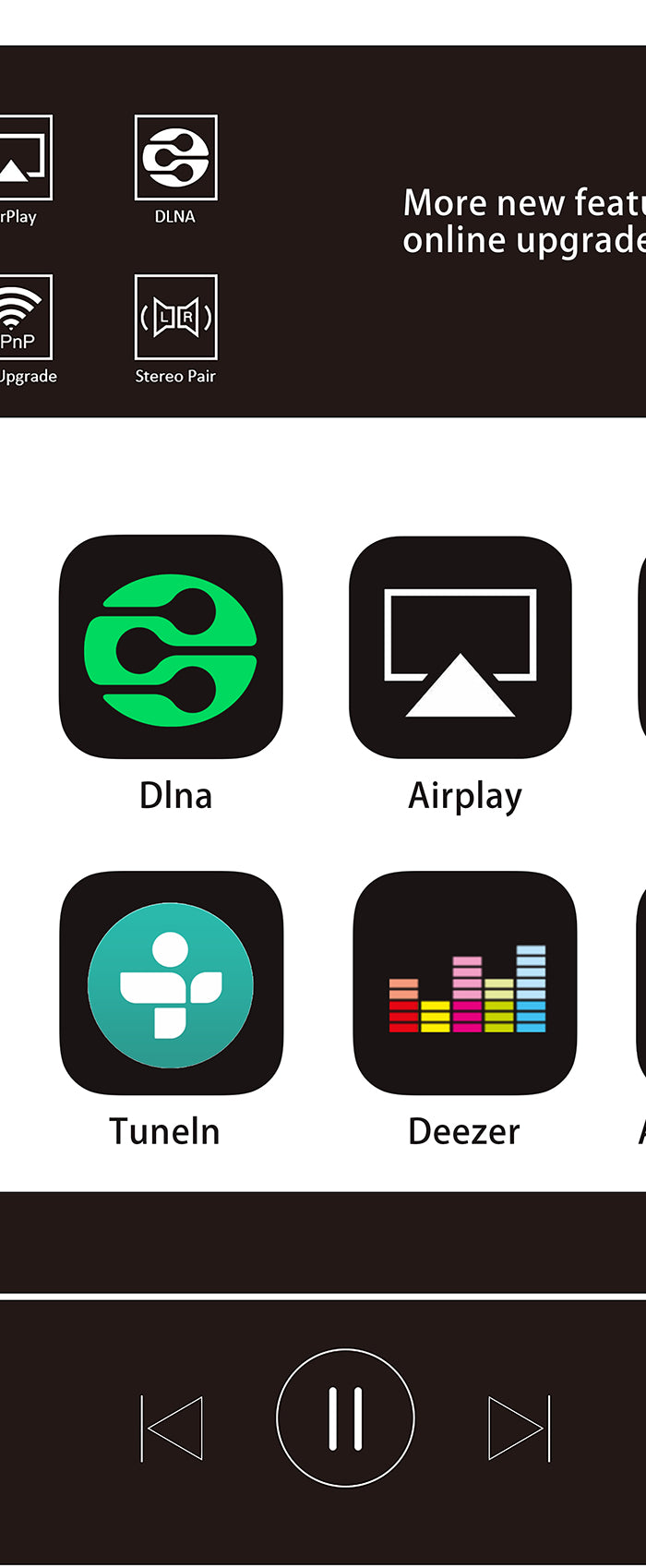

Functional Features

Supports Spotify Connect,Multiroom control (Multiroom),AirPlay,DLNA and more,with online upgrades for more new features.Has rich audio sources,such as Spotify ,DLNA,AirPlay,Qobuz,iHeart Radio,Tuneln,Deezer,Amazon Music,etc.Suupports Android and iOS with free APP and multi-language support,also supports third-parti playback protocola such as DLNA,AirPlay,etc.,and can control playback on Windows on Windows and Mac OS systems.

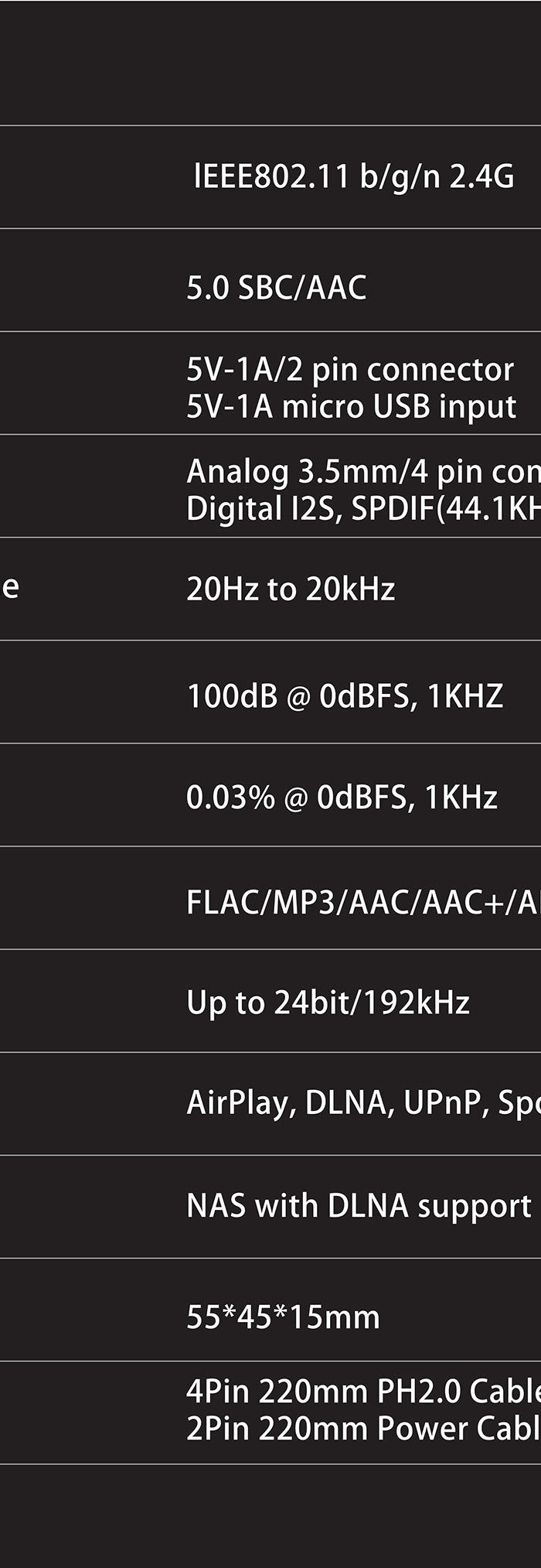

Specification

Wireless network

IEEE802.11 b/g/n 2.4G

Bluetooth

5.0 SBC/AAC

Power Input *

5V-1A/2 pin connector 5V-1A micro USB input

Audio output

Analog 3.5mm/4 pin connector Digital I2S, SPDIF(44.1KHz)

Frequency response

20Hz to 20kHz

SNR

100dB @ 0dBFS, 1KHZ

THD+N

0.03% @ 0dBFS, 1KHz

Music Format

FLAC/MP3/AAC/AAC+/ALAC/APE/WAV

Decoding

Up to 24bit/192kHz

Protocols

AirPlay, DLNA, UPnP, Spotify Connect, Qplay

NAS Support

NAS with DLNA support

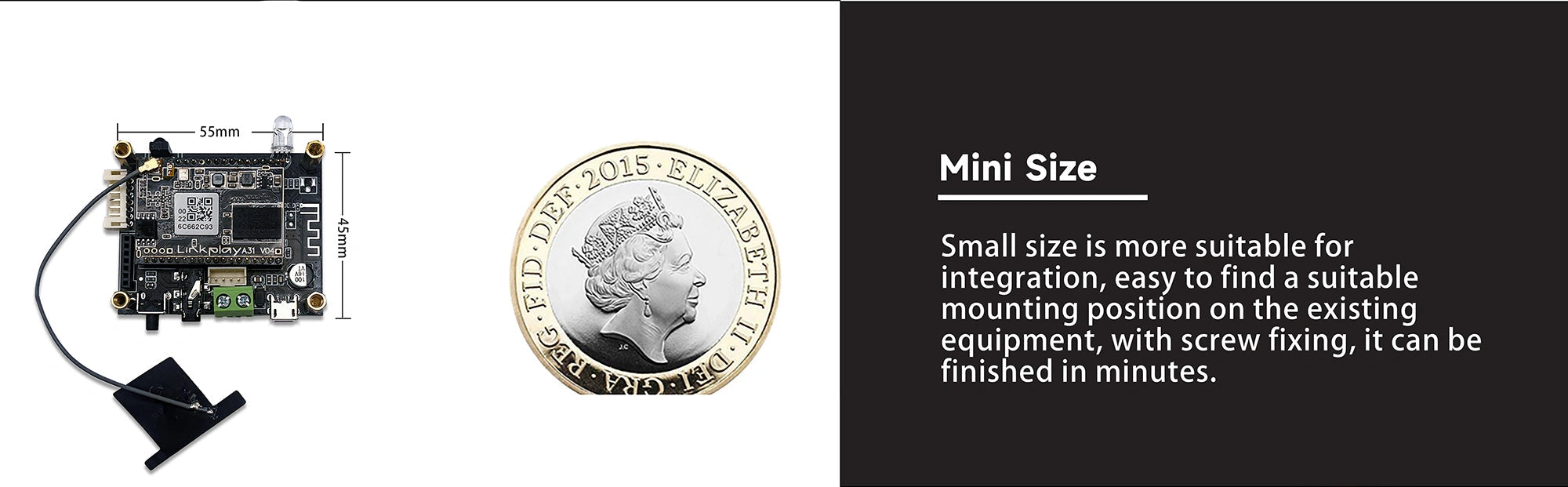

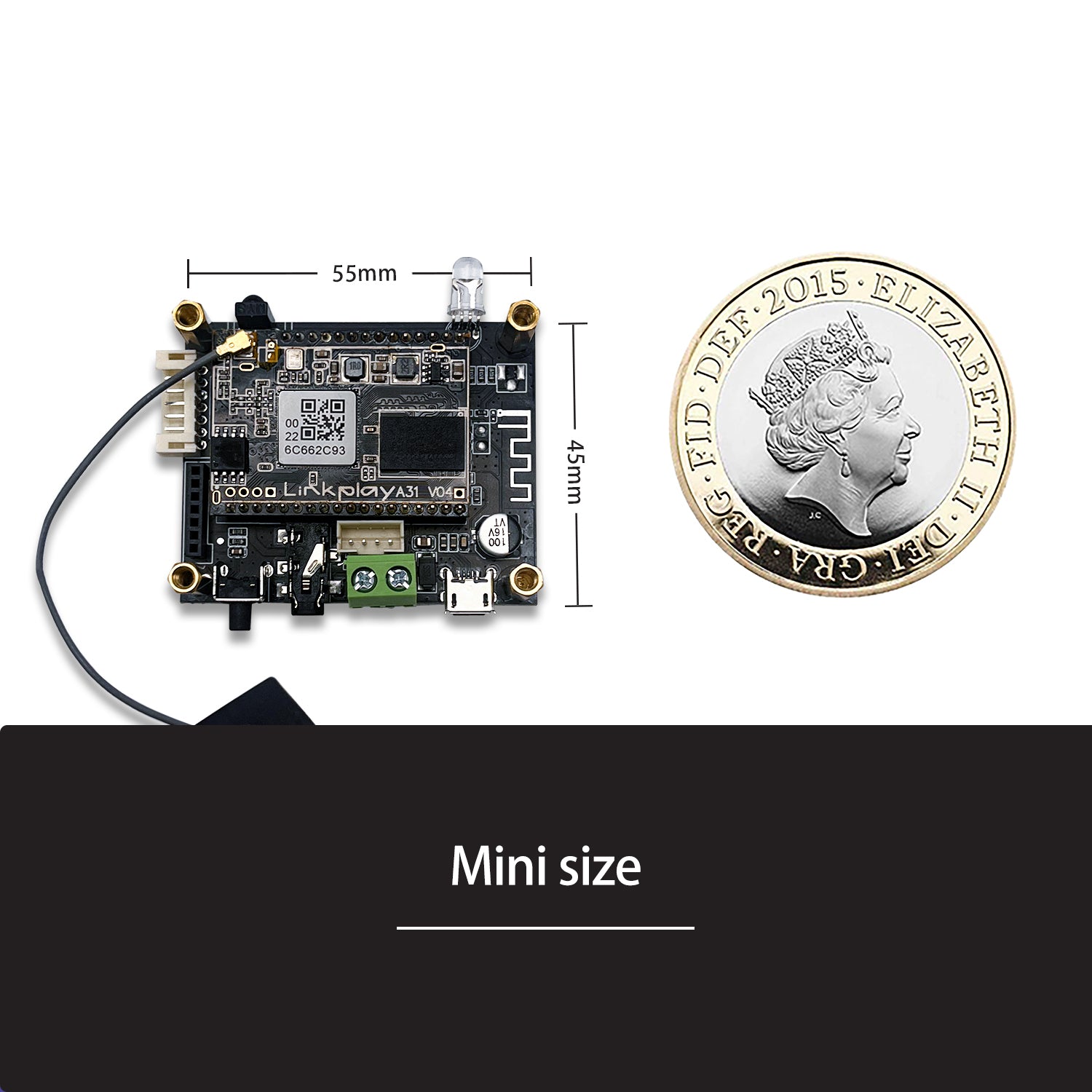

Dimensions

55*45*15mm

Collapsible row

4Pin 220mm PH2.0 Cable Pin 220mm PH2.0 Cable 2Pin 220mm Power Cable User Manual
