Audio-Technica AT81CP – P-Mount MM Cartridge with 0.6 mil Conical Stylus

Audio-Technica AT81CP – P-Mount MM Cartridge with 0.6 mil Conical Stylus

Product form

The Audio-Technica AT81CP is areplacement stylus specifically designedfor certain Audio-Technica dual-magnetphono cartridges, most notably theAT8008.It is a professional-grade stylusknown for... Read more

Next day delivery

$32.00 Excl. VAT

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: Nov 05, 2025 23:59:00 +0800
    • Free shipping on all orders above 50,00
    Pay whenever you want

    Easily pay within 30 days after you have received your package.
    Read more

    Description

    The Audio-Technica AT81CP is areplacement stylus specifically designedfor certain Audio-Technica dual-magnetphono cartridges, most notably theAT8008.It is a professional-grade stylusknown for its high output and robustperformance, making it particularly well-suited for DJing and scratching.
    Key Features & Description:
    1. Primary Compatibility: This stylus isthe designated replacement for the
    AT8008 cartridge. The AT8008 was apopular cartridge model designed forDJ use, often found on turntables likethe legendary Technics SL-1200 series
    2. Nude Square Shank Stylus Tip: Unlikethe spherical tip on the ATN3600L,theAT81CP features a nude-mounted 0.7mil spherical diamond tip. The "nude'mount means the diamond tip isdirectly attached to the cantileverwithout a meta shank.resulting inower mass and better tracking abiity.



    Specifications

    • Weight: 200gr
    • Usage: Indoor & outdoor

    Pros and cons

    • Sustainably produced
    • Ideal for everyday use
    • May discolor in direct sunlight

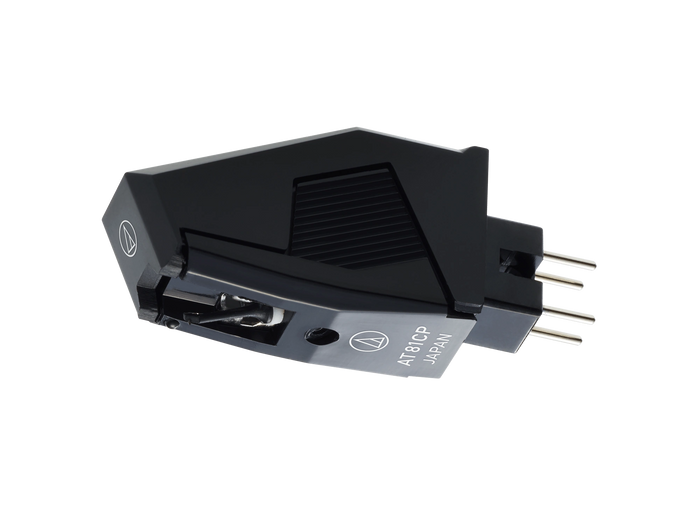

    <p>/Cartridge</p><h1>AT81CP</h1>

      /Cartridge

      AT81CP

      <p>/Overview</p><h2>AT81CP</h2><h2>————————</h2>

        /Overview

        AT81CP

        ————————

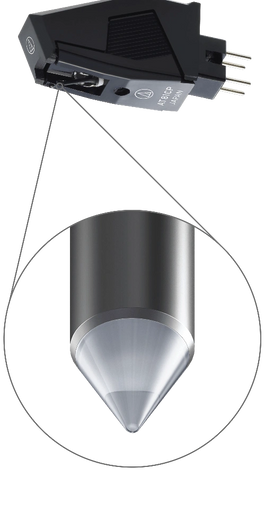

        This 0.6 mil conical cartridge fits P-mount turntables.

        Features

        This 0.6 mil conical cartridge fits P-mount turntables.

        Specifications

        Cartridge & Stylus
        Frequency Response
        20-20,000 Hz
        Channel Separation
        18 (dB at 1 kHz)
        Vertical Tracking Angle
        20°
        Vertical Tracking Force
        1.0-1.5 g (1.25 g standard)
        Stylus Construction
        Bonded round shank
        Recommended Load Impedance
        47,000 ohms
        Coil Impedance
        2.8 k ohms (1 kHz)
        DC Resistance
        410 ohms
        Coil Inductance
        400 mH (1 kHz)
        Output Voltage
        3.5 mV (1 kHz, 5 cm/sec.)
        Output Channel Balance
        2.5 dB (1 kHz)
        Stylus Shape
        0.6 mil conical
        Cantilever
        Carbon fiber-reinforced ABS
        Mounting
        P-mount
        Dimensions
        15.3 mm (0.60") H × 10.0 mm (0.39") W × 35.1 mm (1.38") D
        Mounting Feature
        P-mount
        Recommended Load Capacitance
        100 to 200 pF
        Replacement Stylus
        ATN81CP
        Stylus Size
        0.6 mil
        Type
        Dual Magnet
        Weight
        6.0 g (0.21 oz)
