Arylic Up2Stream Mini – Compact Wi-Fi Audio Receiver for DIY Streaming

Arylic Up2Stream Mini – Compact Wi-Fi Audio Receiver for DIY Streaming

Product form

The Arylic Up2Stream Mini is a compact yet powerful Wi-Fi audio receiver module designed to bring wireless streaming to any... Read more

Next day delivery

$39.00 Excl. VAT

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: Nov 05, 2025 23:59:00 +0800
    • Free shipping on all orders above 50,00
    Pay whenever you want

    Easily pay within 30 days after you have received your package.
    Read more

    Description

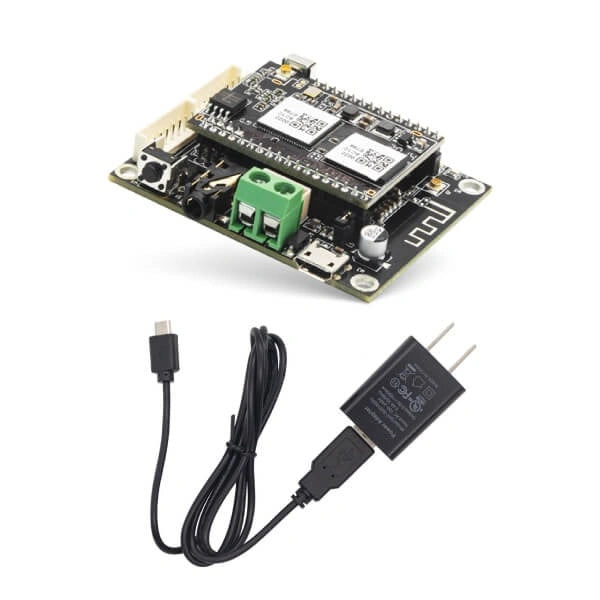

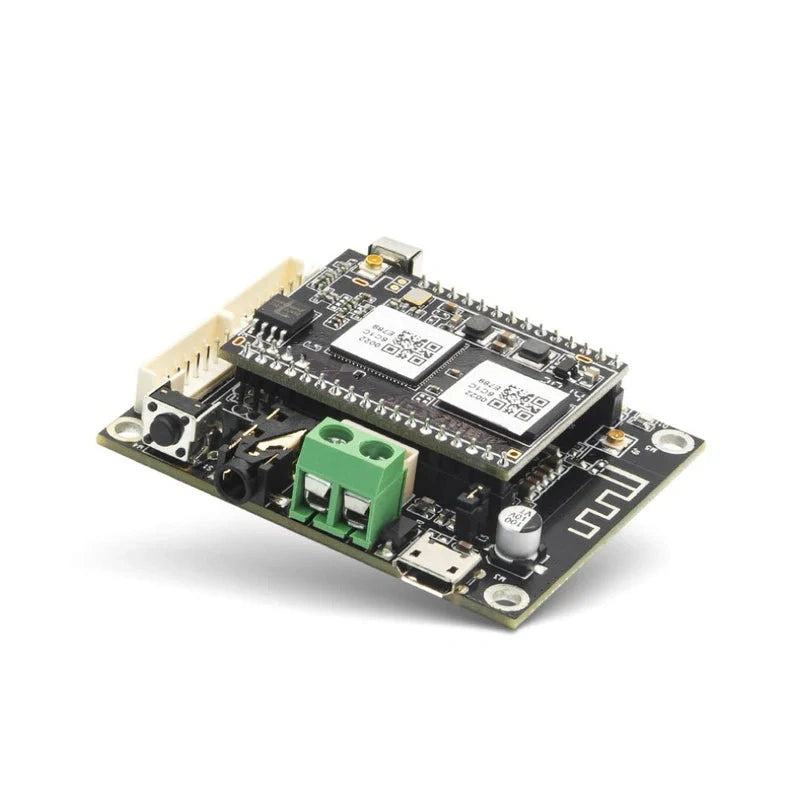

    The Arylic Up2Stream Mini is a compact yet powerful Wi-Fi audio receiver module designed to bring wireless streaming to any traditional amplifier or speaker. Supporting AirPlay, DLNA, UPnP, Qobuz, TIDAL, and Spotify Connect, it allows effortless high-quality playback from phones, tablets, or network storage (NAS).

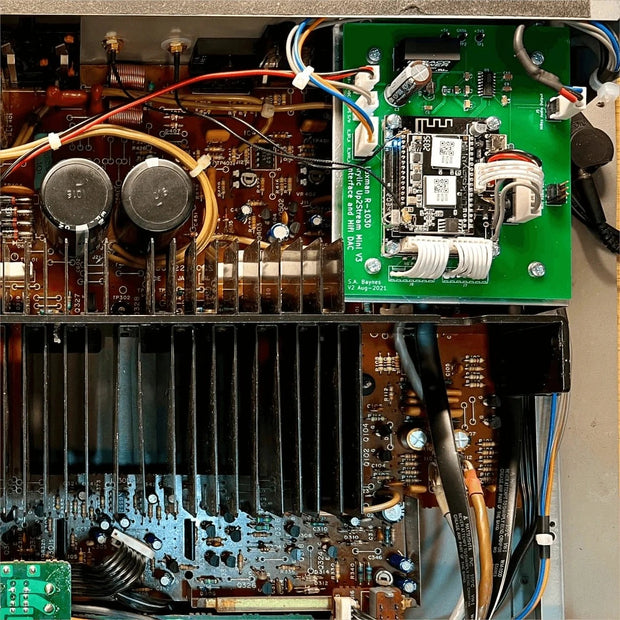

    Built for DIY and custom audio projects, the Up2Stream Mini integrates directly into existing speaker systems or amplifiers, instantly adding multiroom streaming and 24-bit high-resolution playback via Wi-Fi or Ethernet. Bluetooth connectivity is also available for easy pairing and control.

    Controlled through the 4STREAM App or Arylic Web Interface, users can enjoy synchronized multiroom playback, EQ tuning, source switching, and OTA firmware updates. With its low-noise audio circuitry, the Up2Stream Mini ensures clear and dynamic sound that rivals larger standalone streamers.

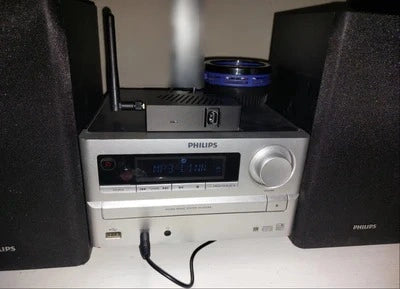

    Compact, flexible, and affordable, the Arylic Up2Stream Mini is ideal for DIY audio builders, home installations, or upgrading legacy systems to modern streaming capability. Turn your wired setup into a smart wireless Hi-Fi system with Arylic’s proven streaming platform.

    Arylic Up2Stream Series Comparison Chart

    Feature Up2Stream Mini Up2Stream Pro Up2Stream HD DAC
    Audio Resolution 24-bit / 192 kHz 24-bit / 192 kHz 32-bit / 384 kHz
    DAC Chipset Integrated basic DAC ESS 9023 DAC ESS 9038Q2M DAC
    Connectivity (Network) Wi-Fi 2.4 GHz / Ethernet Wi-Fi 2.4 GHz / Ethernet Dual-band Wi-Fi / Gigabit Ethernet
    Streaming Protocols AirPlay 1, DLNA, UPnP, Spotify Connect AirPlay 1, DLNA, Spotify Connect, TIDAL Connect AirPlay 2, DLNA, Spotify Connect, TIDAL Connect, Qobuz
    Bluetooth Bluetooth 5.0 Bluetooth 5.0 Bluetooth 5.2 (Hi-Res)
    Outputs Stereo Line-Out (3.5 mm) RCA Line-Out, Optical Out RCA, Coaxial, Optical, USB DAC Out
    Inputs USB (Service) Line-In, Optical In Optical In, Coax In, USB-Audio In
    Multiroom Support ✅ (4STREAM App) ✅ (4STREAM App) ✅ (4STREAM App / Web UI)
    App Control 4STREAM App / Web Control 4STREAM App / Web Control 4STREAM App / Web UI / OTA Updates
    Roon Ready ❌ ❌ ✅
    Power Supply 5 V DC (Micro-USB) 5 V DC 12 V DC External PSU
    Use Case DIY / Compact Streaming Mid-range Hi-Fi Upgrade Audiophile / Reference-Grade Streaming
    Typical Price Range ≈ $39 – 59 USD ≈ $79 – 109 USD ≈ $179 – 249 USD

    Specifications

    • Weight: 200gr
    • Usage: Indoor & outdoor

    Pros and cons

    • Sustainably produced
    • Ideal for everyday use
    • May discolor in direct sunlight

    A Range Of Options To Suit Your Design

    • Wireless Capability

      • AirPlay
      • Spotify Connect
      • WiFi
      • Bluetooth
      • DLNA
      • UPnP

    • Multi-room

      • Sync audio in all rooms
      • Play different songs at the same time
      • Support available audio input souce for multiroom streaming.

    • Music Service

      Spotify, Apple Music Amazon Music, Tidal, Qobuz, TuneIn, Internet Radio, BBC Radio, Napster, iHeart Radio, Radio Paradise.

    • Lossless Audio

      • Decoding up to 192khz/24bit, and output with CD quality.
      • Support FLAC / MP3 / AAC / AAC+ / ALAC / APE / WAV lossless audio format.

    • Local Music Source

      • Support phone storage, and NAS.

    • 4STREAM APP

      • Free iOS & Android APP
      • Manage all Arylic streaming devices in one APP
      • Full multiroom control

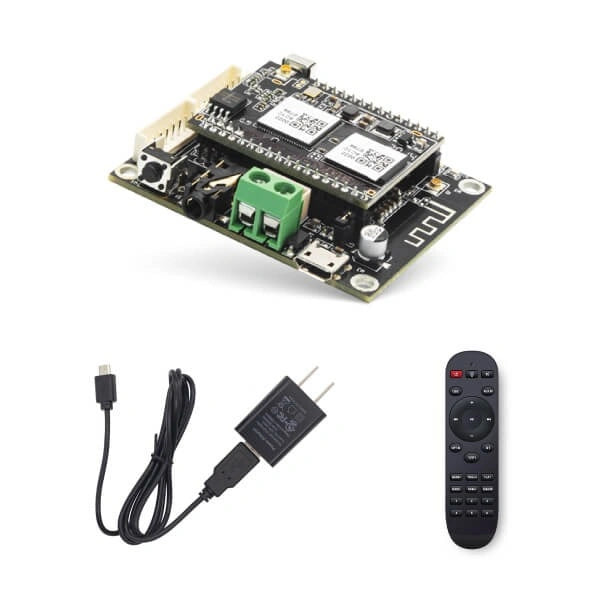

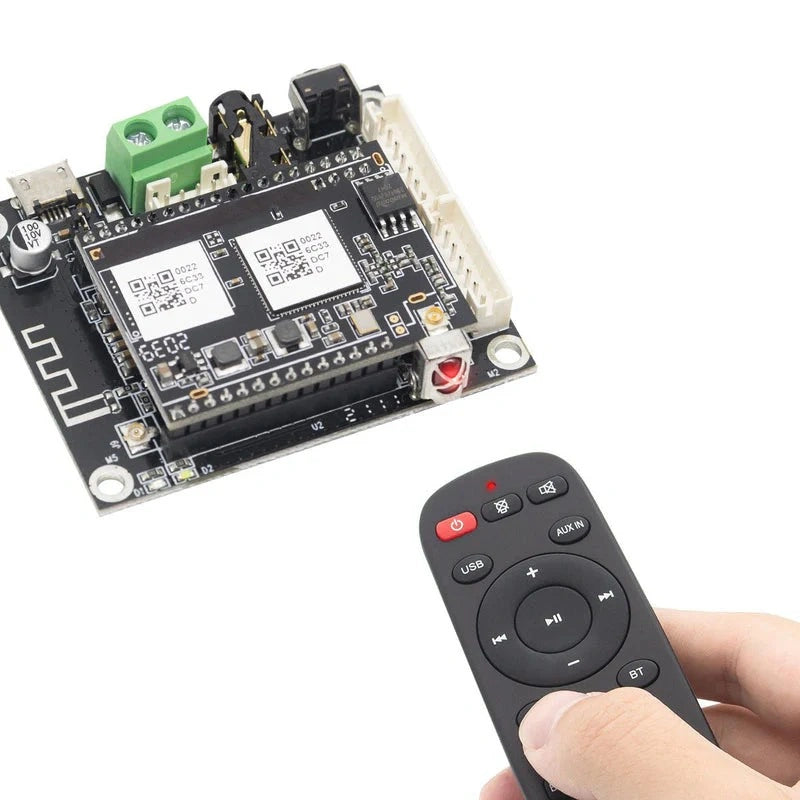

    • Optional Remote Control

      • Easy to control your music playback from a distance.

    • Rename Your Device

      With the 4STREAM APP, you can rename your Up2Stream streamimg device's WiFi SSID and Bluetooth name. The changes will stay even after a factory reset, untill you change it again.

    Specification

    Connectivity
    WiFi
    IEEE802.11 b/g/n 2.4G
    Bluetooth
    5.0 SBC/AAC, 15M, BT Receiver
    Protocols
    AirPlay, DLNA, UPnP, Spotify Connect, Qplay

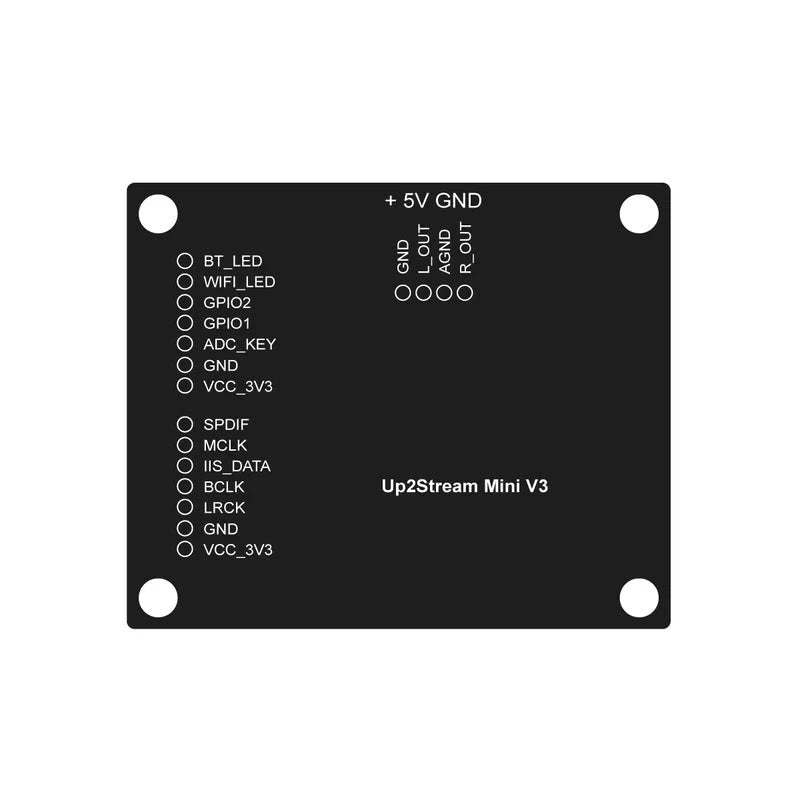

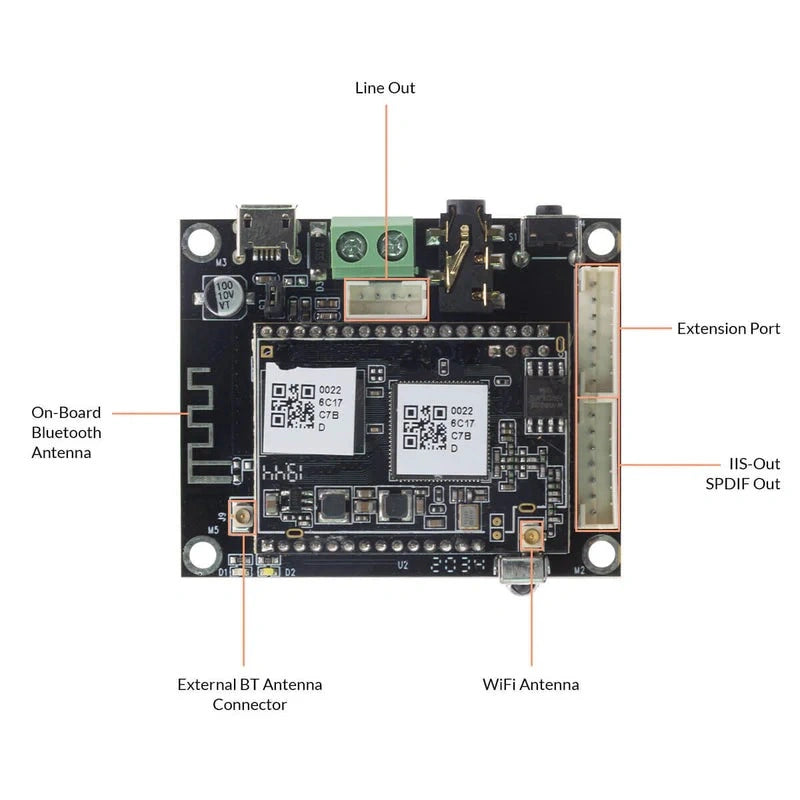

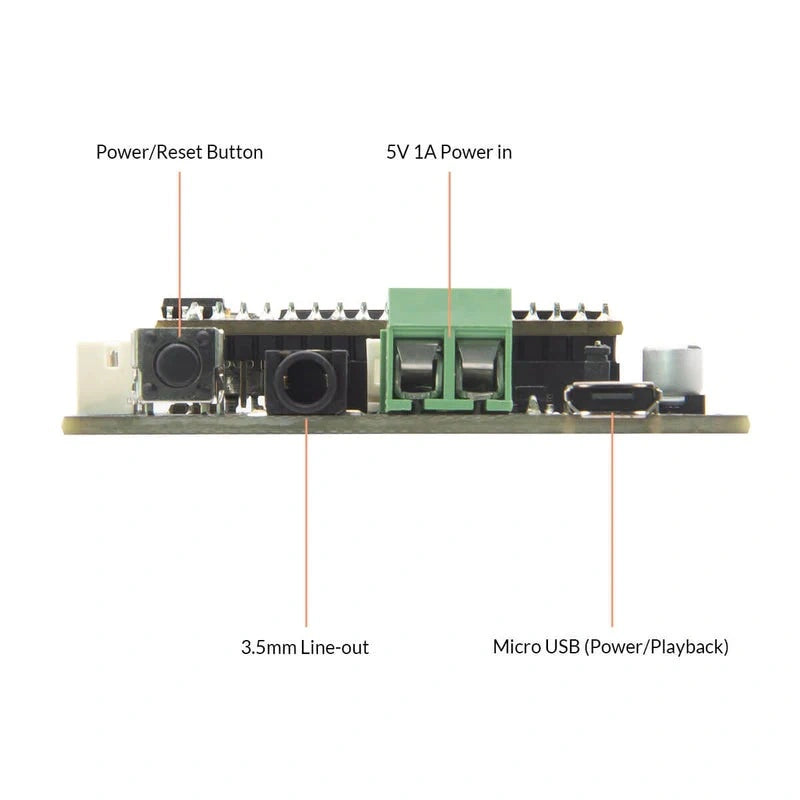

    Interface
    Power Input
    5V-1A 2 pin connector5V-1A micro USB input
    Audio Input
    Micro USB input
    Analog Output:
    3.5mm Line out (1 Vrms)4 pin connector Line out (1 Vrms)
    Digital Output:
    I2S out,*②SPDIF out (44.1KHz)
    Sound
    Audio Format
    Decoding up to 192khz/24bitOutput up to 44.1khz/16bit CD quality
    Music Format
    FLAC/MP3/AAC/AAC+/ALAC/APE/WAV
    NAS
    Support NAS with DLNA support
    SNR/THD+N
    91dB/0.03%, @1kHz 50W+50W 24V-4Ω
    Frequency response
    20Hz to 20kHz
    General and Accessory
    Dimensions
    55*45*12mm
    Weight
    150g
    Working temperature
    0~40℃

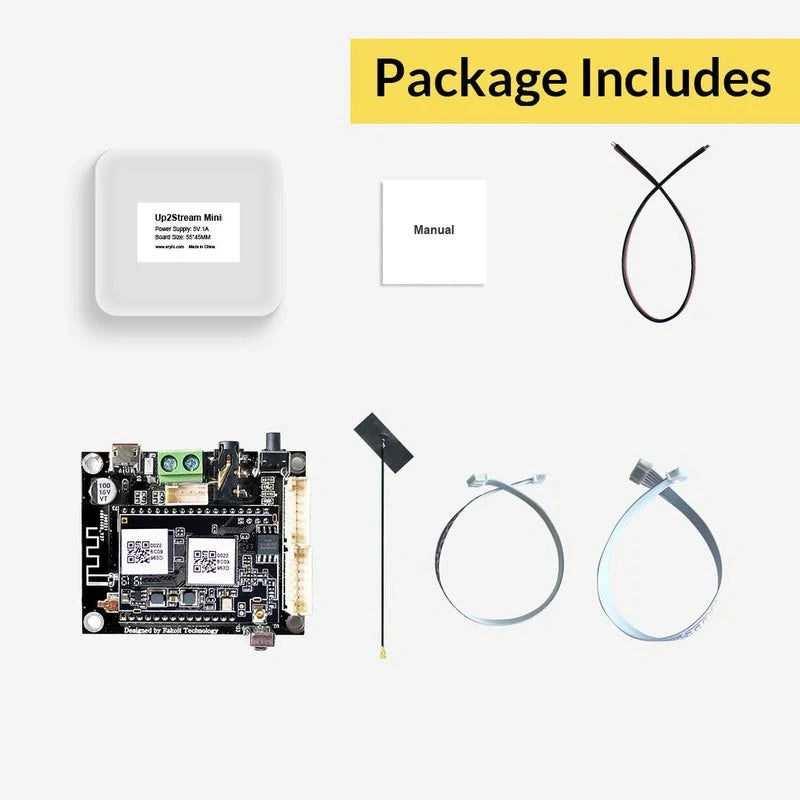

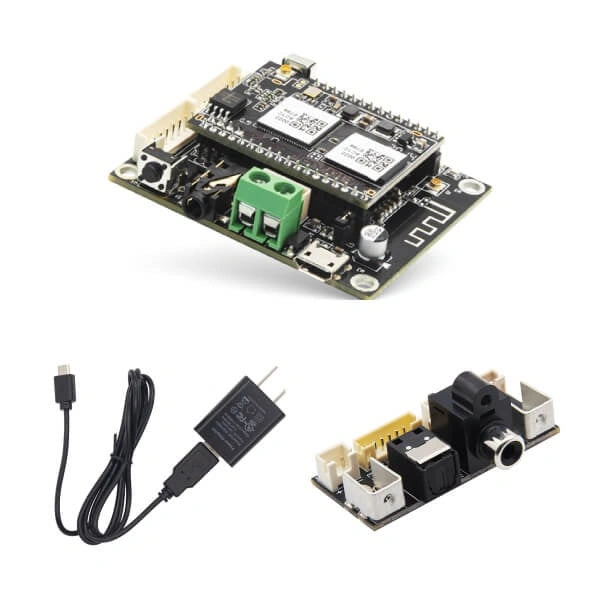

    Acessory
    220mm Internal WiFi Antenna4Pin 220mm PH2.0 Cable7Pin 220mm PH2.0 Cable2Pin 220mm Power CableUser Manual
    Reset Button and LED Indicators
    Device on:
    Short press once: Switch input modeLong press once: Switch offShort press twice: Disconnect current WiFi connection and enter paring mode (WiFi mode)；Disconnect current connected Bluetooth device (Bluetooth mode)Short press three times: Restore the factory settings.
    Device off:
    Short press: Switch on

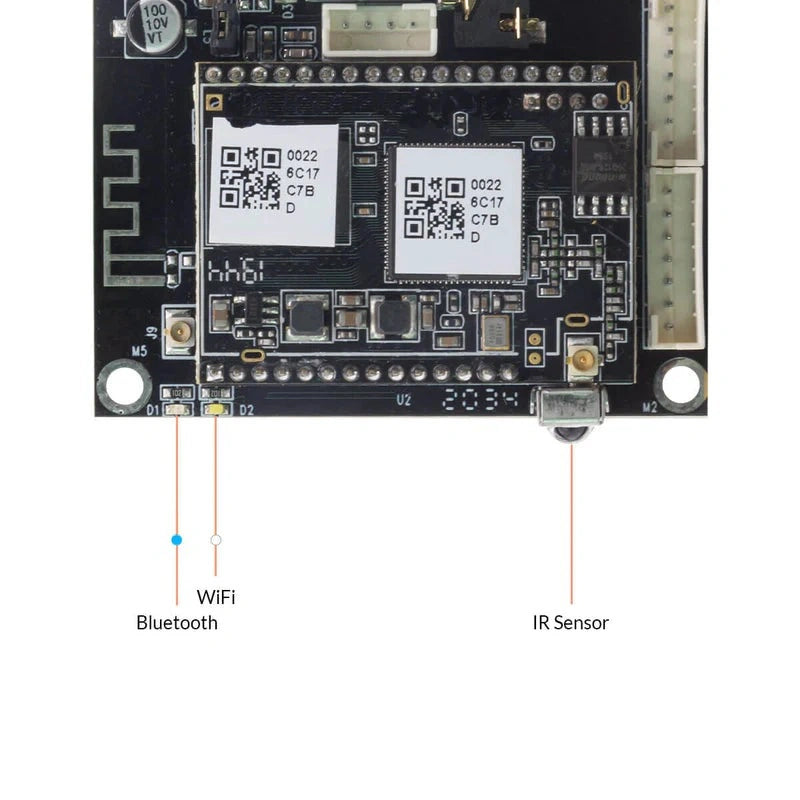

    LED Indicators
    ⚪White-WiFi & network mode:Flashing fast-device is bootingFlashing slow- waiting for WiFi connectionSolid- WiFi is connected🔵Blue-Bluetooth mode:Flashing slow- waiting for Bluetooth connectionSolid- Bluetooth is connected🔵Blue-connect to PC

    Control In Your Favorite Way

    • AirPlay

      Play and control from your iPhone, iPad or Mac directly. Support streaming directly from iTunes.

    • Bluetooth

      Flexiable to play from any audio sources from Bluetooth, like YouTube, Netflex, Tiktok or more.

    • 4STREAM & GO CONTROL APP

      Fully control with music service, multiroom, source switch, volume control. Change WiFi, Bluetooth name.

    • Web Control

      listen to the radio and your favorite playlists easily via web browsers.

    • DLNA/UPnP

      Support 3rd party app for playing by DLNA or UPnP protocols. Like Musicbee and Foobar2000.

    <h2>PC Sound Card</h2><p>Once you connect the Up2Stream Mini to your PC, it will be detected as a USB sound card. This allows you to stream audio from your PC directly to other devices connected to the Up2Stream Mini. This feature provides a convenient way to extend your audio playback capabilities beyond your PC. Support both Windows & Mac PC.</p>

      PC Sound Card

      Once you connect the Up2Stream Mini to your PC, it will be detected as a USB sound card. This allows you to stream audio from your PC directly to other devices connected to the Up2Stream Mini. This feature provides a convenient way to extend your audio playback capabilities beyond your PC. Support both Windows & Mac PC.

      <h2>10 band EQ</h2><p>Use <strong>GO CONTROL APP</strong> for 10 band advanced EQ control, and custom as you like. Apply on all your audio sources.</p>

        10 band EQ

        Use GO CONTROL APP for 10 band advanced EQ control, and custom as you like. Apply on all your audio sources.

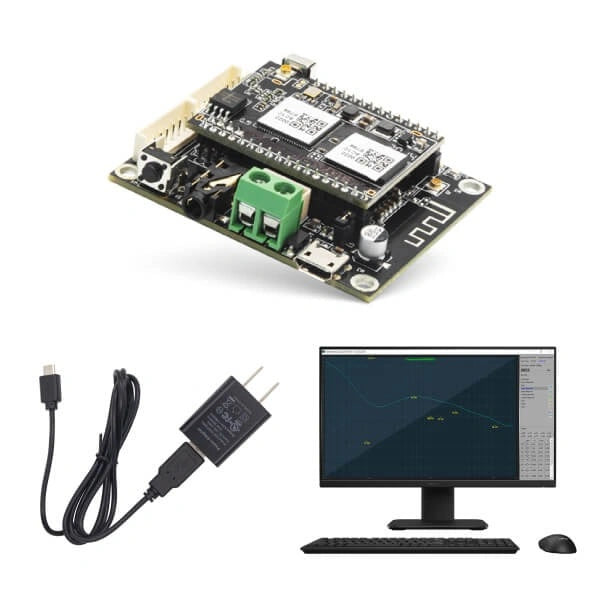

        <h2>Tune Like An Expert</h2><p>ACPWorkbench Tuning Tool is an advanced tuning tool that you can adjust specific EQ for each channel and switch pins configuration.</p>

          Tune Like An Expert

          ACPWorkbench Tuning Tool is an advanced tuning tool that you can adjust specific EQ for each channel and switch pins configuration.

          <h2>Plug and Play</h2><ul><li>With the ready-to-use interfaces, streaming music is as simple as plugging in the power and connecting to a passive speaker. Unlike other audio boards, there's no need for soldering of pins before you can get started.</li><li>This makes it incredibly easy and user-friendly for anyone to use.</li></ul>

            Plug and Play

            • With the ready-to-use interfaces, streaming music is as simple as plugging in the power and connecting to a passive speaker. Unlike other audio boards, there's no need for soldering of pins before you can get started.
            • This makes it incredibly easy and user-friendly for anyone to use.
            <h2>Enhanced Up2Stream</h2><p>The Up2Stream Mini offers several optional expansion boards that can be used to enhance its functionality and performance. These expansion boards include the Up2Stream SPDIF Board, Up2Stream Button Board, Up2Stream ESS9023 DAC Board, Up2Stream IR Extension Board, and Up2Stream Volume Knob Board. You can find all the boards in Accessories.</p>

              Enhanced Up2Stream

              The Up2Stream Mini offers several optional expansion boards that can be used to enhance its functionality and performance. These expansion boards include the Up2Stream SPDIF Board, Up2Stream Button Board, Up2Stream ESS9023 DAC Board, Up2Stream IR Extension Board, and Up2Stream Volume Knob Board. You can find all the boards in Accessories.

              Smart Home Assistant Integration

              The Up2Stream Mini offers a range of communication options, including HTTP API, UART, and TCP commands, providing flexibility for users to integrate the device into their existing smart home systems or to develop custom applications.

              Get API files below and check the cases in our forum.

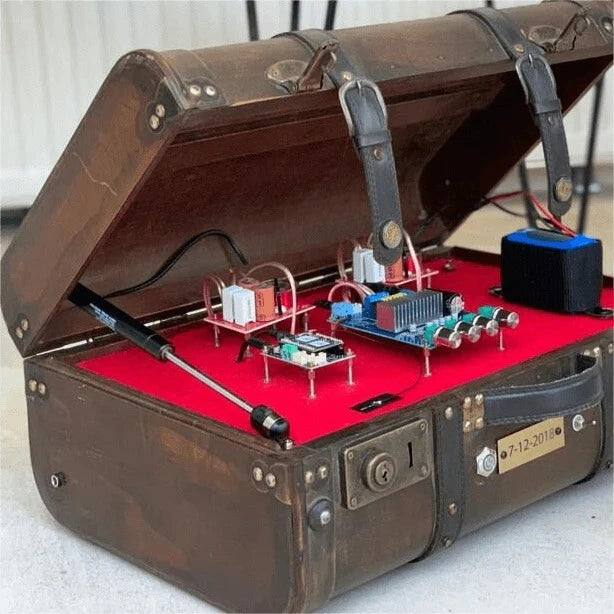

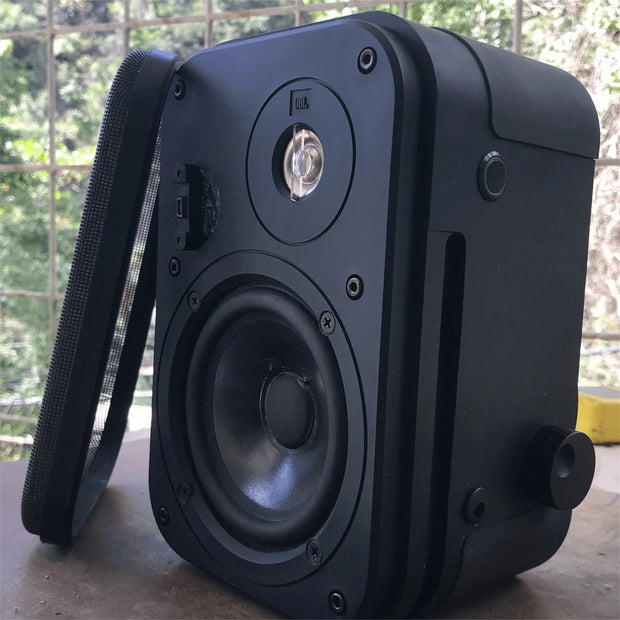

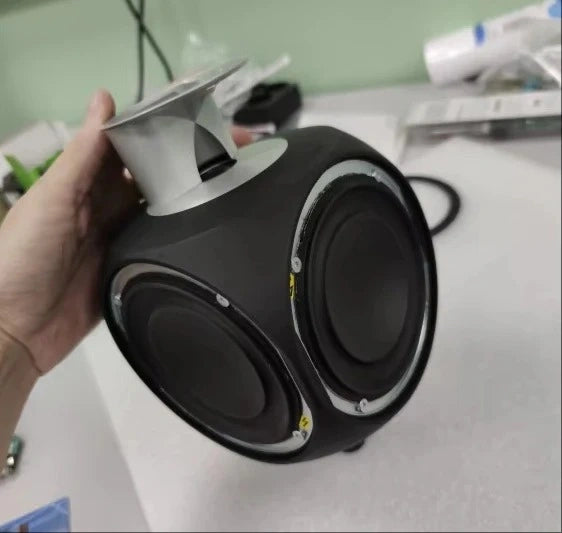

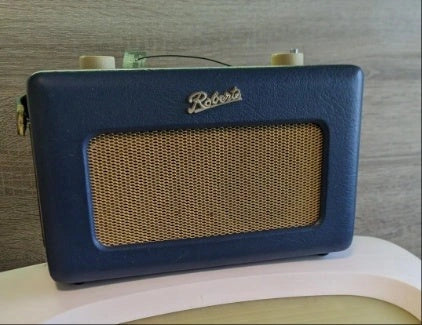

              Build Your Wireless Projects

              Collapsible content

              Is there a connection for triggering a relay to switch on/off an external amplifier?

              Yes. but need to use our dsp tool ACPWorkbench Tuning Tool to define the GPIO to work as relay.

              Can I stream from YouTube ?

              Yes you can stream YouTube by AirPlay or Bluetooth.

              How can I stream from PC wirelessly?

              You can use any software that supports Airplay, DLNA or UPnP protocols. Such as iTunes, Muiscbee, Foobar2000 etc.

              Can we listen to a radio with a personalized link? If yes, how ?

              Yes, this is available. There are 2 ways you can do this.

              1. 4STREAM APP> Internet radio> Click on the menu icon on the top right corner.>You should see a "Custom URL" button, then you can put in your link there and listen to the radio that URL points to.

              2. Entry web control>Radio>register your account>my station

              Can a Google Home stream to this over wifi?

              Currently , Up2Stream Mini only support connecting Google Home or Alexa via Bluetooth or Line in.
