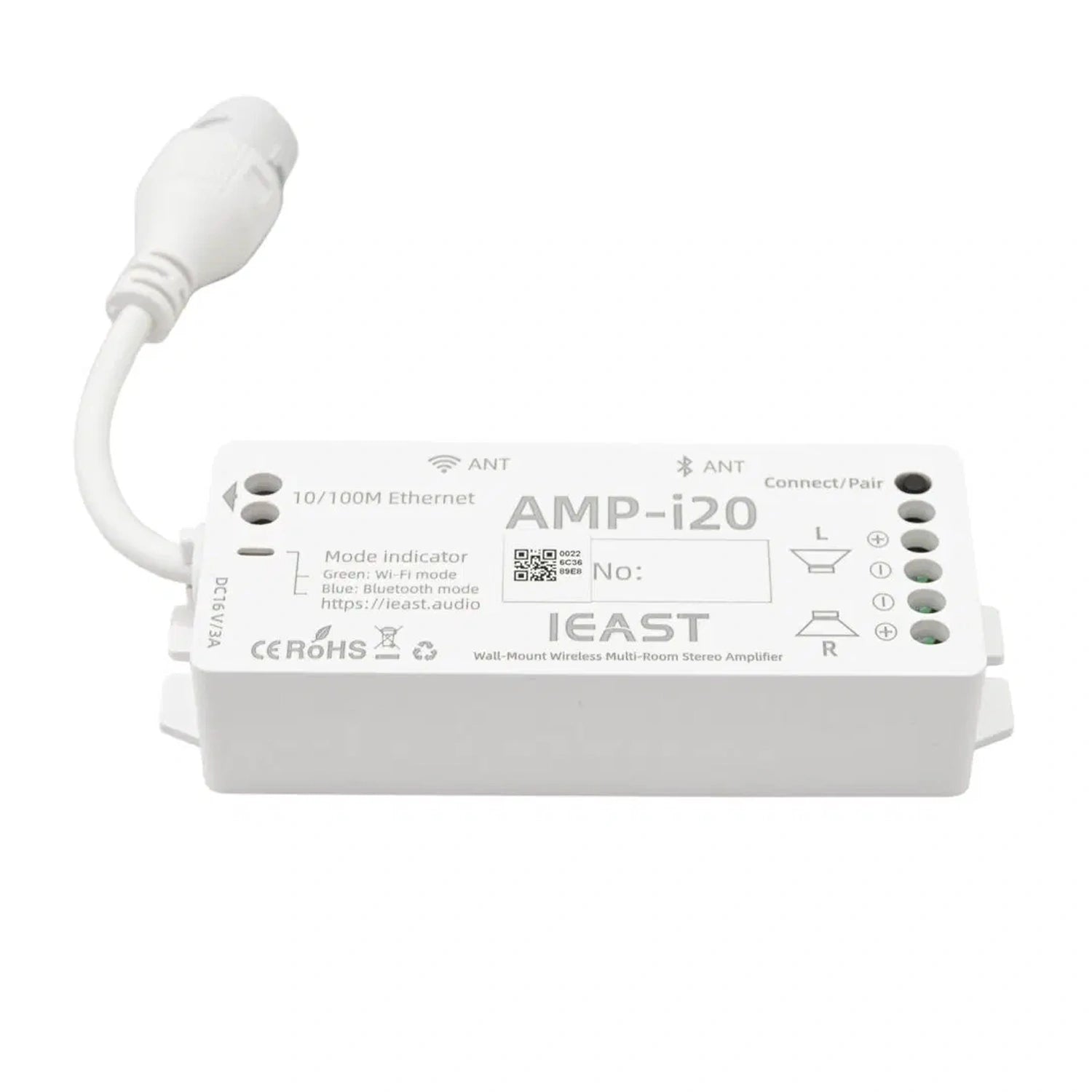

iEAST AMP-i20 is a compact 2 × 20W streaming and Bluetooth amplifier for driving passive speakers in background-music and small-room systems. Wi-Fi, Ethernet, multi-room control and model-specific speaker EQ presets make it especially suitable for discreet installations.

Why it stands out

Ultra-compact integrated amplifier

Combines streaming, Bluetooth and stereo speaker amplification in a chassis suited to concealed or wall-mounted installation.

Direct passive-speaker drive

Provides 2 × 20W into 4Ω for compact ceiling, in-wall or bookshelf speaker systems.

Installation-focused connectivity

Wi-Fi, Ethernet and TCP control support make it easier to integrate into fixed background-audio systems.

Dedicated LARK speaker tuning

Built-in presets are designed for compatible LARK installation speakers.

Best for

• Ceiling and in-wall speaker systems
• Small-room background music
• Retail, café and office installations
• AudioCast/iEAST multi-room systems
• Compact hidden amplifier locations

Not ideal for

• Large or inefficient floorstanding speakers
• Users needing HDMI ARC
• Systems requiring analog or optical source inputs
• Headphone listening

EMiUZEK Buying Notes

• AMP-i20 is a power amplifier and can directly drive compatible 4Ω/8Ω passive speakers.
• Its 20W-per-channel rating suits background audio and efficient compact speakers rather than demanding high-output systems.
• Speaker EQ presets are optimized for specified LARK models; choose the correct preset for the installed speaker.

Frequently asked questions

Can it drive passive speakers?

Yes. It provides two amplified speaker channels.

How much power does it provide?

More than 20W/channel into 4Ω and more than 15W/channel into 8Ω under the stated official test conditions.

Does it support Ethernet?

Yes, 10/100 Ethernet is supported.

Does it support Bluetooth?

Yes, Bluetooth audio is supported.

Can it connect directly to a TV?

It does not provide HDMI ARC or a dedicated optical input.

Is it suitable for ceiling speakers?

Yes, provided speaker impedance and power requirements are compatible.

HOW TO CONNECT

Ceiling speaker system

Source: Streaming services
Connection: Wi-Fi or Ethernet
Output connection: Speaker output
Target: Passive ceiling speakers

Bluetooth background audio

Source: Phone or tablet
Connection: Bluetooth
Output connection: Speaker output
Target: Passive speakers

Multi-room installation

Source: iEAST app
Connection: Shared network
Output connection: Speaker output in each zone
Target: Multiple room speaker pairs

Technical Specifications

Additional Product Content

📊 Comparison: Which iEAST Installation Amplifier Is Right for You?

Choose AMP-i20 for compact background music and LARK speakers; choose AMP50 for more source inputs and power, or AMP-i50Bv2 when wall mounting, subwoofer output and higher-output custom installation are required.
