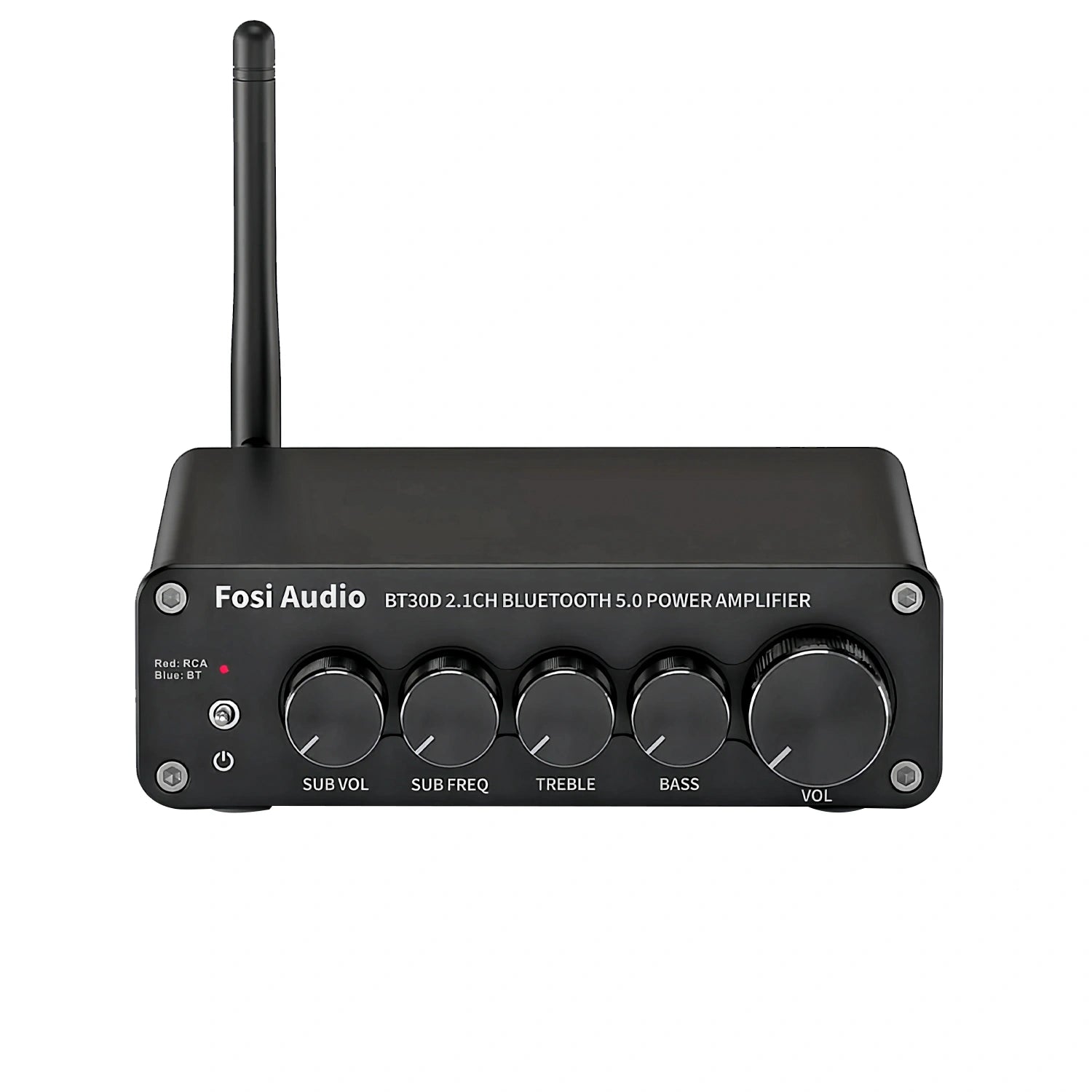

Fosi Audio BT30D is a compact 2.1-channel Bluetooth integrated amplifier for two passive speakers and a passive or powered subwoofer.
Dedicated subwoofer level and crossover controls make it a straightforward way to build an adjustable small-room, desktop or TV audio system.
Why it stands out
True 2.1-channel speaker control
Separate stereo and subwoofer amplification supports passive speakers plus a passive subwoofer from one compact unit.
Passive and powered subwoofer flexibility
Speaker-level subwoofer output and a line-level subwoofer connection support different bass-system configurations.
Dedicated bass integration
Subwoofer volume and cutoff adjustment help blend low frequencies with the main speakers.
Compact analog control
Master volume, bass, treble, subwoofer level and crossover adjustment are available directly from the front panel.
Best for
- Compact 2.1 passive-speaker systems
- Desktop and small-room audio
- Adding an adjustable subwoofer to bookshelf speakers
- Bluetooth or RCA playback
Not ideal for
- Systems requiring HDMI ARC or digital audio inputs
- Users needing a headphone output
- Large high-output home-theater systems
EMiUZEK Buying Notes
- The main left/right outputs are for passive speakers.
- Use the dedicated speaker output for a passive subwoofer or the line-level output for a powered subwoofer.
- It has no phono stage; a turntable requires line output or an external phono preamplifier.
Frequently asked questions
Can it power a passive subwoofer?
Yes, through the dedicated subwoofer speaker output.
Can it connect to a powered subwoofer?
Yes, through its line-level subwoofer output.
Can it be used without a subwoofer?
Yes, it can operate as a 2.0-channel amplifier for passive speakers.
Can it connect to a TV?
Yes when the TV provides compatible analog audio output; it has no HDMI or optical input.
Can it power active speakers?
The main speaker outputs are amplified for passive speakers. A compatible line-level output should be used for powered equipment.
Does it include Wi-Fi streaming?
No. Wireless playback is through Bluetooth.
HOW TO CONNECT
Passive 2.1 system
Source icon: phone
Source: Phone / streamer
Connection: Bluetooth or RCA
Output connection: L/R speaker terminals + passive subwoofer terminals
Target icon: speakers
Output: Two passive speakers + passive subwoofer
Powered subwoofer system
Source icon: TV
Source: TV analog output / DAC
Connection: RCA
Output connection: L/R speaker terminals + line-level sub output
Target icon: speakers
Output: Passive speakers + powered subwoofer
Passive 2.0 stereo system
Source icon: streamer
Source: Streamer / DAC / phone
Connection: RCA or Bluetooth
Output connection: Left and right speaker terminals
Target icon: speakers
Output: Two passive speakers
Note: A subwoofer is optional; the BT30D can operate as a conventional stereo amplifier.
Technical Specifications
Inputs
| Feature | Specification |
|---|---|
| Bluetooth 5.0 | Included |
| RCA line input | Included |
Outputs
| Feature | Specification |
|---|---|
| Stereo passive-speaker output | Included |
| Passive-subwoofer speaker output | Included |
| Line-level output for powered subwoofer | Included |
Amplification
| Feature | Specification |
|---|---|
| Amplifier Chipset | 2 × TI TPA3116D2 |
| Maximum Main Output | 50 W × 2 |
| Maximum Subwoofer Output | 100 W |
| Speaker Impedance | 2–8 Ω |
| Subwoofer Cutoff Adjustment | 20–200 Hz |
Connectivity and physical
| Feature | Specification |
|---|---|
| Bluetooth Range | up to 15 m / 49 ft without obstacles |
| Dimensions | 118 × 132 × 35 mm |
| Supplied Power Adapter | 24 V / 4.5 A |
Additional Product Content
Comparison: BT30D or BT30D Pro?
| Feature | BT30D | BT30D Pro |
|---|---|---|
| Amplifier architecture | 2 × TPA3116D2 | TPA3255 |
| Maximum output | 50 W × 2 + 100 W | 165 W × 2 + 350 W at 4 Ω |
| DC input range | Supplied 24 V / 4.5 A | 12–36 V |
| Best use | Compact moderate-output 2.1 | Higher-output 2.1 systems |
