Audio-Technica AT-VM740xML
Audio-Technica AT-VM740xML
$289.24
We help you choose, connect and maintain your system—not just ship a box.
The following product descriptions, specifications and images are provided by the manufacturer.

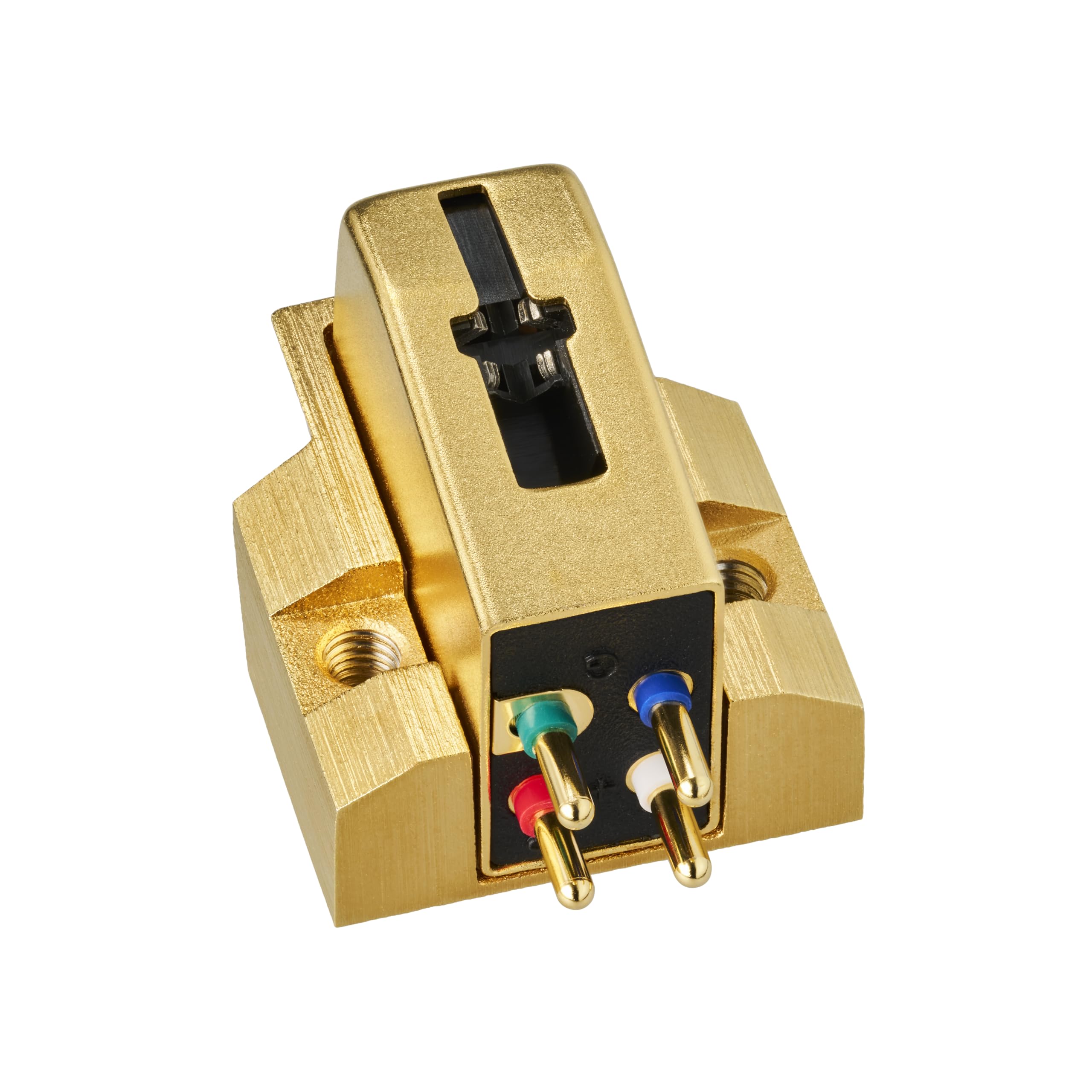

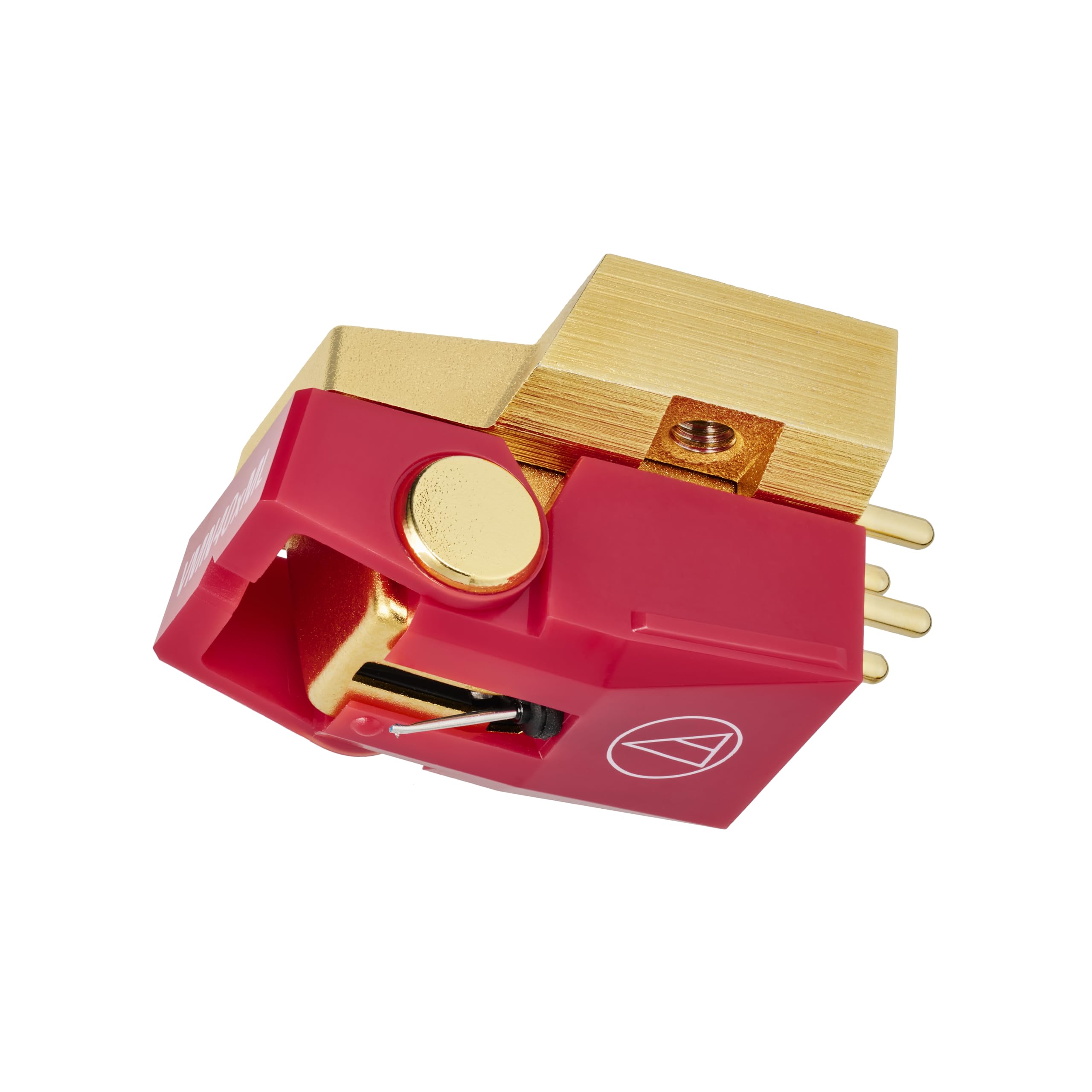

Audio-Technica AT-VM740xML is a premium dual moving magnet stereo cartridge with a nude MicroLinear stylus and tapered aluminum-pipe cantilever.
Its precise groove tracing, rigid aluminum body, and refined AT-VMx generator deliver detailed playback with excellent tracking and reduced inner-groove distortion.
Closely follows complex groove modulations to retrieve fine detail and maintain clarity toward the inner grooves.
PCUHD coils and paratoroidal construction improve transient response, channel separation, and stereo definition.
Suppresses unwanted resonance and vibration while providing effective electromagnetic shielding.
Supports compatible stereo AT-VMx replacement styli for future maintenance or a different stylus profile.
No. It is supplied as a cartridge for installation on a compatible headshell or integrated tonearm.
Use an MM-compatible phono input with a recommended load of 47 kΩ and 150–250 pF capacitance.
No. It is designed for compatible 1/2-inch mounting systems.
The specified range is 1.8–2.2 g, with 2.0 g as the standard setting.

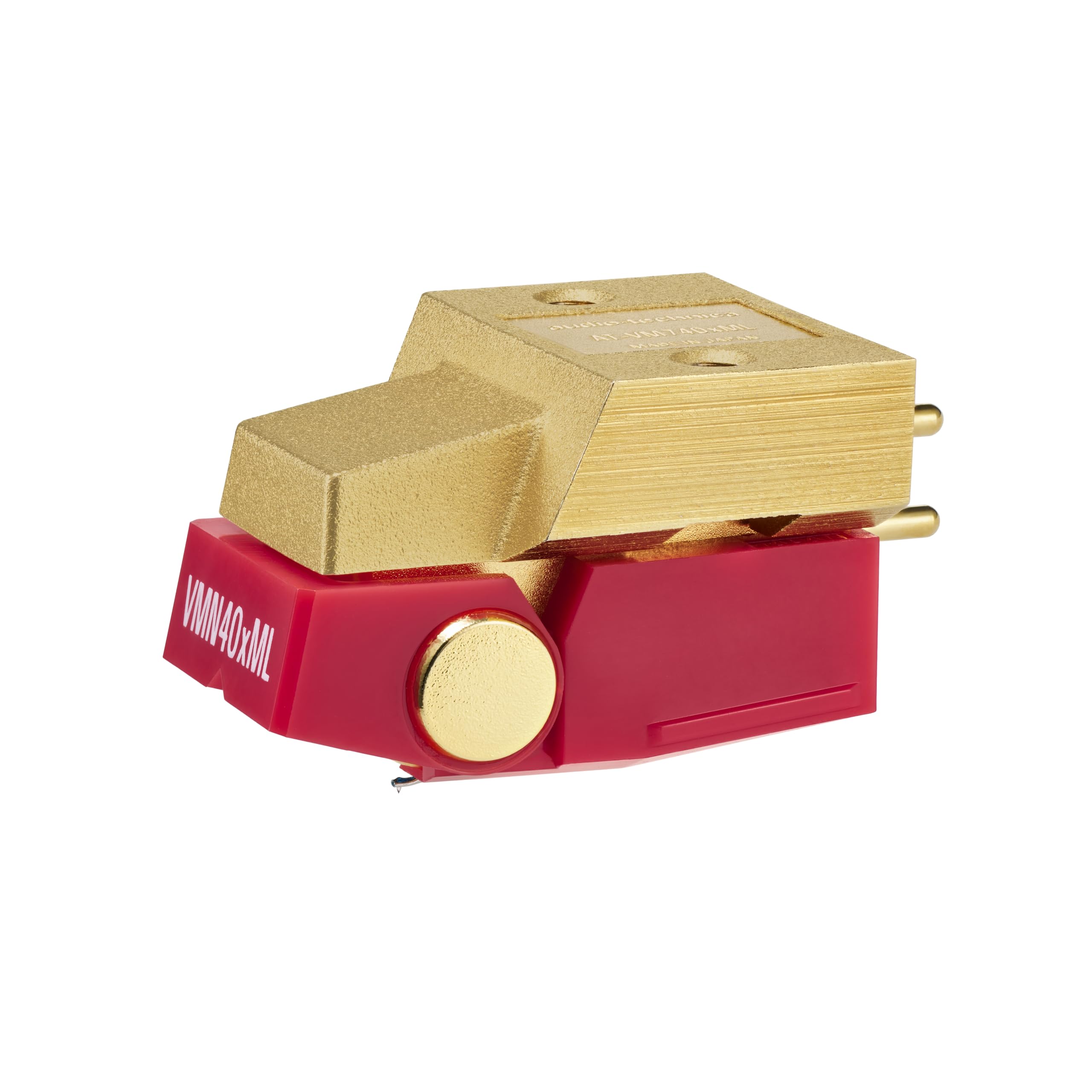

The direct replacement is the Audio-Technica AT-VMN40xML, sold separately.
Compatible stereo AT-VMx replacement styli can be used for different stylus profiles and budgets; mono models are excluded.
Source icon: device
Source: Vinyl Record
Connection: Stylus / Groove
Output connection: Cartridge Pins
Target icon: device
Output: MM Phono Input
Note: Install and align the cartridge on a compatible 1/2-inch headshell or tonearm, then set the specified tracking force.
Source icon: device
Source: Turntable
Connection: Tonearm Wiring
Output connection: RCA Phono Cable
Target icon: device
Output: External MM Phono Stage
Note: Connect the phono stage to an amplifier line input; do not connect the cartridge-level signal directly to a standard line input.
| Setup | Connection |
|---|---|
| Integrated Amplifier | Turntable → MM Phono Input → Amplifier → Speakers |
| External Phono Stage | Turntable → MM Phono Stage → Line Input → Amplifier → Speakers |
Access product manuals, firmware updates, and additional support resources.
https://emiuzek.com/pages/download
| Feature | AT-VM750xSH | AT-VM740xML | AT-VM520xEB/H |
|---|---|---|---|
| Product Position | Premium Shibata cartridge | Premium MicroLinear cartridge | Pre-mounted elliptical cartridge and headshell |
| Stylus | Nude Shibata | Nude MicroLinear | Bonded elliptical |
| Cantilever | Solid boron | Tapered aluminum pipe | Aluminum pipe |
| Output Voltage | 3.7 mV | 3.2 mV | 5.0 mV |
| Headshell Included | No | No | AT-LT10, pre-mounted |
| Best Use | Rich, detailed premium vinyl playback | Precise tracking and low inner-groove distortion | Convenient upgrade for compatible detachable-headshell tonearms |
