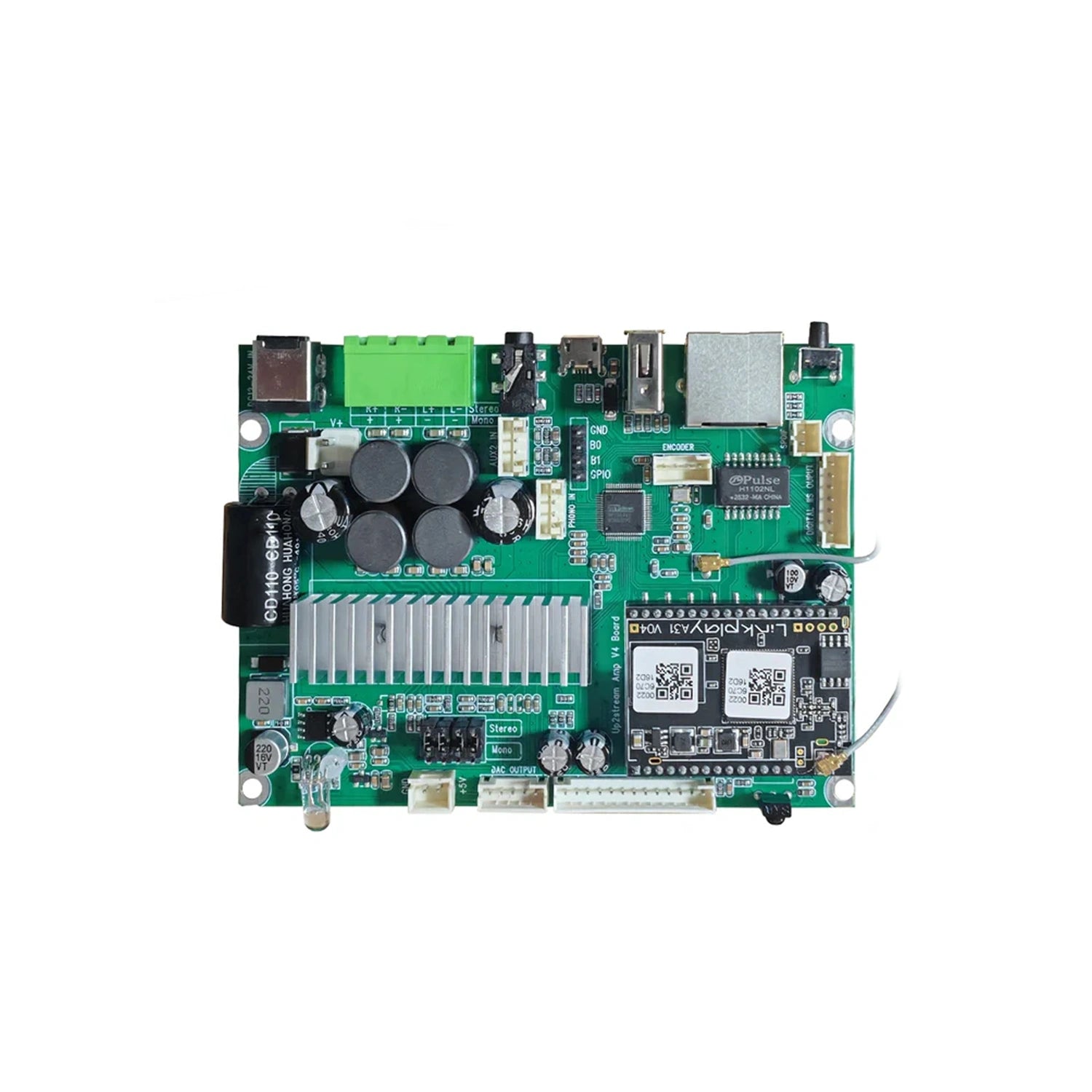

✨ EMiUZEK AMP D60: Multiroom Wireless Stereo Streaming Amplifier Board
The EMiUZEK AMP D60 board is a versatile and powerful solution designed to transform any traditional speaker setup into a modern, wireless streaming audio system. It serves as the core component for DIY enthusiasts looking to build custom speakers or integrate multiroom capabilities into their existing passive speaker infrastructure.
Key Features:
-
Seamless Multiroom Streaming: Easily connect multiple devices across your home to play synchronized audio or different music in different rooms, all controlled via a single app.
-
High-Fidelity Stereo Output: Delivers clean, robust stereo sound, ensuring an excellent listening experience whether you are streaming high-resolution audio or popular music services.
-
Wireless Connectivity: Features both WiFi (2.4G) and Bluetooth 5.3 connectivity, giving you flexible options for local and network streaming. Stream directly from your phone or over your home network.
-
Comprehensive Streaming Support: Access your favorite music from popular services, NAS drives, or local storage. Supports a wide range of streaming protocols for maximum compatibility.
-
Easy DIY Integration: The compact amplifier board design makes it simple to embed into custom speaker enclosures, old receivers, or soundbars, giving new life to your audio equipment.
-
Intuitive App Control: Manage your entire multiroom setup, select music sources, and adjust volume and EQ settings all through a user-friendly mobile application.
Bring the future of audio to your home with the EMiUZEK AMP D60. It is the perfect blend of performance, versatility, and cutting-edge wireless technology.
Specifications
- Weight: 200gr
- Usage: Indoor & outdoor
Pros and cons
- Sustainably produced
- Ideal for everyday use
PC Sound Card
Once you connect the EMiUZEK Amp D60 to your PC, it will be detected as a USB sound card. This allows you to stream audio from your PC directly to other devices connected to the EMiUZEK Amp D60. This feature provides a convenient way to extend your audio playback capabilities beyond your PC. Support both Windows & Mac PC.
EQ control
Use WiiM HOME & 4STREAM for advanced EQ control, and custom as you like. Apply on all your audio sources.
Plug and Play
- With the ready-to-use interfaces, streaming music is as simple as plugging in the power and connecting to a passive speaker. Unlike other audio boards, there's no need for soldering of pins before you can get started.
- This makes it incredibly easy and user-friendly for anyone to use.
Enhanced
The Amp D60 offers several optional expansion boards that can be used to enhance its functionality and performance. These expansion boards include the Amp D60 SPDIF board, Button Board, IR Extension Board, and Volume Knob Board. You can find all the boards in Accessories.
Smart Home Assistant Integration
The Amp D60 offers a range of communication options, including HTTP API, UART, and TCP commands, providing flexibility for users to integrate the device into their existing smart home systems or to develop custom applications.
A Range Of Options To Suit Your Design
Powerful Amplifier
- 2.0 stereo system
- Stereo: 50W x2
Mono: 100W - TPA3116D2 amplifier chip
Wireless Capability
- AirPlay
- Spotify Connect
- WiFi
- Bluetooth
- DLNA
- UPnP
Multi-room
- Sync audio in all rooms
- Play different songs at the same time
- Support available audio input souce for multiroom streaming.
Music Service
Spotify, Apple Music Amazon Music, Tidal Qobuz, TuneIn, Internet Radio, BBC Radio,Napster, iHeart Radio, Radio Paradise.
Lossless Audio
- Decoding up to 192khz/24bits, and output with CD quality.
- Support FLAC / MP3 / AAC / AAC+ / ALAC / APE / WAV lossless audio format.
Stereo/ Mono Switcher
- Supoort switch between stereo mode and mono mode easily by the jumper.
- Stereo mode, connect to a pair of passive speaker.
- Mono mode, connect to a mono speaker.
Local Music Source
- Support phone storage, NAS, and USB stick.
4STREAM APP
- Free iOS & Android APP
- Manage all Up2Stream streaming devices in one APP
- Full multiroom control
Specification
Connectivity
WiFi
IEEE802.11 b/g/n 2.4G
Bluetooth
5.0 SBC/AAC, 15M, BT Receiver
Wired Network
Ethernet Single 10/100M RJ45
Protocols
AirPlay, DLNA, UPnP, Spotify Connect, Qplay
Interface
Power Input
12V-24V/DC in
12V-24V 2Pin Connector
Analog Input
3.5mm Line Input (1 Vrms)
4 pin connector Line Input (1 Vrms)
Analog Output
4 pin connector Line Out (1 Vrms)
Speaker Out
Digital Input
Micro USB Input
*SPDIF In pin connector
I/O Interface
LED pin connector
IR pin connector
Button pin connector
Rotary encoder pin connector
GPIO pin connector
Mono Out pin connector
Sound
Audio Format
Decoding up to 192khz/24bit
Output up to 44.1khz/16bit CD quality
Music Format
FLAC/MP3/AAC/AAC+/ALAC/APE/WAV
NAS
Support NAS with DLNA support
SNR/THD+N
91dB/0.03%, @1kHz 50W+50W 24V-4Ω
USB Host
For USB pen drive/stick, 1000 songs limited.
Frequency response
20Hz to 20kHz
Speaker and Amplifier
Stereo
2x50W @ 4ohm load at 24V
2x30W @ 8ohm load at 24V
2x15W @ 8ohm load at 15V
Mono
100W @ 2ohm load at 24V
60W @ 4ohm load at 21V
30W @ 8ohm load at 18V
Speaker Impedance
4-8Ω
Amplifier Chip
TPA3116D2
General and Accessory
Working temperature
0~40℃
Acessory
220mm Internal WiFi Antenna x2
4Pin Phoenix Connector
Screw Driver
User Manual
Reset Button and LED Indicators
Device on
Short press once: Switch input mode
Long press once: Switch off
Short press twice: Disconnect current WiFi connection and enter paring mode (WiFi mode)；
Disconnect current connected Bluetooth device (Bluetooth mode)
Short press three times: Restore the factory settings
Device off
Short press: Switch on
LED Indicators
⚪White-WiFi & network mode:
Flashing fast-device is booting
Flashing slow- waiting for WiFi connection
Solid- WiFi is connected
🔵Blue-Bluetooth mode:
Flashing slow- waiting for Bluetooth connection
Solid- Bluetooth is connected
🟢Green-Line in mode
🔴Red-USB mode
🟡Yellow-connect to PC
🟣Purple-Spdif in mode
Control In Your Favorite Way
AirPlay
Play and control from your iPhone, iPad or Mac directly. Support streaming directly from iTunes.
Bluetooth
Flexiable to play from any audio sources from Bluetooth, like YouTube, Netflex, Tiktok or more.
4STREAM & wiim home
Fully control with music service, multiroom, source switch, volume control. Change WiFi, Bluetooth name.
Web Control
listen to the radio and your favorite playlists easily via web browsers.
DLNA/UPnP
Support 3rd party app for playing by DLNA or UPnP protocols. Like Musicbee and Foobar2000.
FAQ
Can I use this amp in an active configuration, meaning one channel places highs for the tweeter, and the other plays lows for the woofer?
Yes, that is available.
How can I stream from PC wirelessly?
You can use any software that supports Airplay, DLNA or UPnP protocols. Such as iTunes, Muiscbee, Foobar2000 etc.
Can we listen to a radio with a personalized link? If yes, how ?
Yes, this is available. There are 2 ways you can do this.
1. 4STREAM APP> Internet radio> Click on the menu icon on the top right corner.>You should see a "Custom URL" button, then you can put in your link there and listen to the radio that URL points to.
2. Entry web control>Radio>register your account>my station
Can a Google Home stream to this over wifi?
Currently, Up2Stream Amp only support connecting Google Home or Alexa via Bluetooth or Line in.
