Description
IEAST eAMP 2 Pro Network Streaming Amplifier
The IEAST eAMP 2 Pro is a full-featured integrated network streaming stereo power amplifier. Delivering robust 150W high power per channel at 8Ω impedance with low distortion, it directly drives passive speakers to bring premium high-fidelity audio experience. With abundant expansion interfaces and all-round smart functions, it perfectly fits whole-home audio, commercial background music and high-end custom audio systems.
Smart Multi-Platform Wireless Streaming
Comprehensive Global Streaming Service Support
Powered by IEAST Stream 2.0 technology, eAMP 2 Pro natively supports Spotify Connect, Tidal Connect, Airplay 2 and DLNA multi-room streaming. It enables seamless wireless music casting from all your smart devices, with stable dual-band WiFi, Ethernet and Bluetooth 5.2 AAC connectivity.
Exclusive IEAST Multi-Room Technology
Stable Whole-Home Audio Interconnection
Built with proprietary IEAST MRM multi-room audio system, it achieves stable synchronized playback, group control and interconnection management across multiple audio devices in different indoor spaces for whole-house seamless audio coverage.
Premium High-Resolution HiFi Audio Performance
Ultra High-Precision Lossless Decoding
Adopts professional 1:1 original sampling rate output decoding architecture, supporting up to 192kHz/24bit high-resolution lossless audio decoding and output. With ultra-low total harmonic distortion (THD ≤1%), it restores pure, delicate authentic original sound details for both online streaming and local music playback.
Versatile All-Round Intelligent Control
Diversified Flexible Control Solutions
It is compatible with abundant comprehensive control modes: RS232 serial control, TCP network control, IR infrared remote control, and Siri voice control, realizing convenient intelligent linkage management for customized whole-house audio and commercial audio projects.
Unique Exclusive Practical Functions
0ms Zero-Latency TV Audio Synchronization
Featuring innovative one-line function, it achieves 0ms TV sound delay, perfectly realizing audio-video synchronization for immersive home theater viewing experience.
One-Touch Non-Disturb Mode
Comes with handy one-button non-disturb mode and adjustable 10-band PEQ EQ sound tuning function, easily adapting to quiet environment and personalized sound tuning demands.
Rich Interfaces & System Expansion
Abundant Complete Input & Output Port Design
It integrates dual analog line inputs, optical digital input, analog stereo output, independent subwoofer output, as well as full 12V trigger input & output ports. Built-in low-ripple high-power audio power supply, it widely matches diverse peripheral audio equipment with powerful system expansibility.
Professional Integrated Rack-Mount Design
Compact Engineering Installation Chassis
Adopts industry standard 19-inch 1U single-unit rack mount design. Its slim integrated chassis is easy for cabinet installation, perfectly suitable for home custom audio, commercial background music and multi-room whole-house audio deployment projects.
Upgrade Your Audio System All-In-One
All-In-One Integrated Audio Solution
Integrates high-power power amplifier, network streamer and high-performance DAC into one all-in-one device. You can upgrade your existing passive speaker system into modern smart wireless streaming audio system without replacing your original hardware equipment.
Why Choose IEAST eAMP 2 Pro
- 2-channel 150Wx2 8Ω high power stereo amplification, ultra-low THD ≤1%
- Proprietary IEAST MRM multi-room audio interconnection & Stream 2.0 technology
- 1:1 sampling rate decoding, supports up to 192kHz/24bit high-res lossless audio
- Full streaming support: Spotify Connect, Tidal Connect, Airplay 2, DLNA
- Multiple control modes: RS232, TCP, IR remote and Siri voice control
- Full 12V trigger in & out inter-device linkage control interfaces
- Unique 0ms zero delay TV audio sound synchronization function
- One-button non-disturb mode with 10-band PEQ EQ sound adjustment
- Rich analog, optical input/output and independent subwoofer output ports
- Standard single-unit 1U rack-mount design for professional easy installation
Specifications
- Weight: 200gr
- Usage: Indoor & outdoor
Pros and cons
- Sustainably produced
- Ideal for everyday use
IEAST eAMP 2 Pro
Network streaming media amplifier

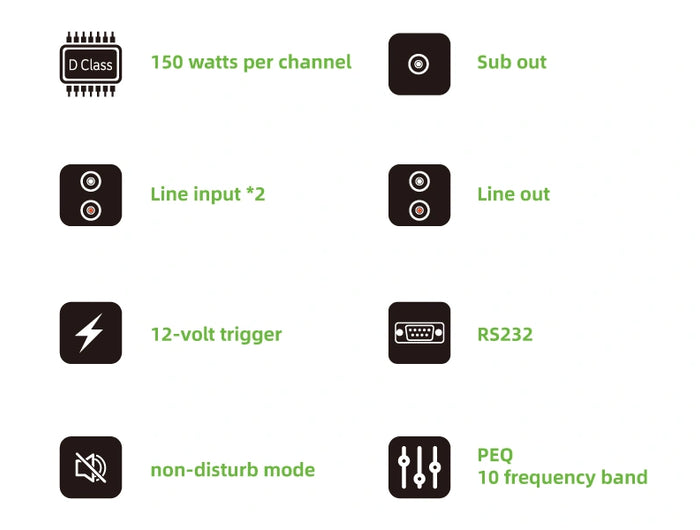

What is eAMP 2 Pro?
EAMP 2 Pro is a comprehensive network streaming stereo power amplifier with a powerful output power of 150W per channel, which can directly drive passive speakers and provide users with excellent sound quality experience. In addition, the device is equipped with rich interfaces and expansion functions, including two analog and optical digital inputs, which can easily transfer audio from other sources to other speakers. Meanwhile, the eAMP 2 Pro is also equipped with features such as subwoofer output, 12V trigger interface, and RS232 interface to meet users' higher requirements for sound effects.
In addition to basic audio functions, eAMP 2 Pro also supports a no disturb mode and EQ setting function, providing users with an excellent auditory experience. Whether it is widely used in high-end background music systems or in daily listening, it can bring endless music enjoyment. Whether used alone or in conjunction with other IEAST streaming devices, eAMP 2 Pro provides users with a seamless and convenient multi room music playback experience, immersing them in a high-quality music world.
In addition, the eAMP 2 Pro adopts a 19 inch standard cabinet installation design, with an ultra-thin 1U thickness, and comes with an organic rack installation kit for easy installation and use by users. It also supports wireless network and wired Ethernet connections (2.4G&5.8G WIFI+10/100M), as well as Bluetooth 5.2 (AAC) connections, providing users with more connection options. Meanwhile, the built-in IEAST Stream2.0 technology supports online streaming media such as Airplay2, Spotify connect, TIDAL connect, and Qplay, providing users with a more convenient music playback experience.

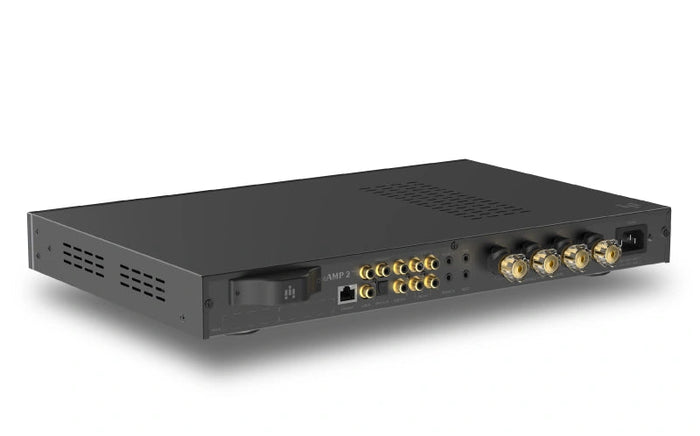

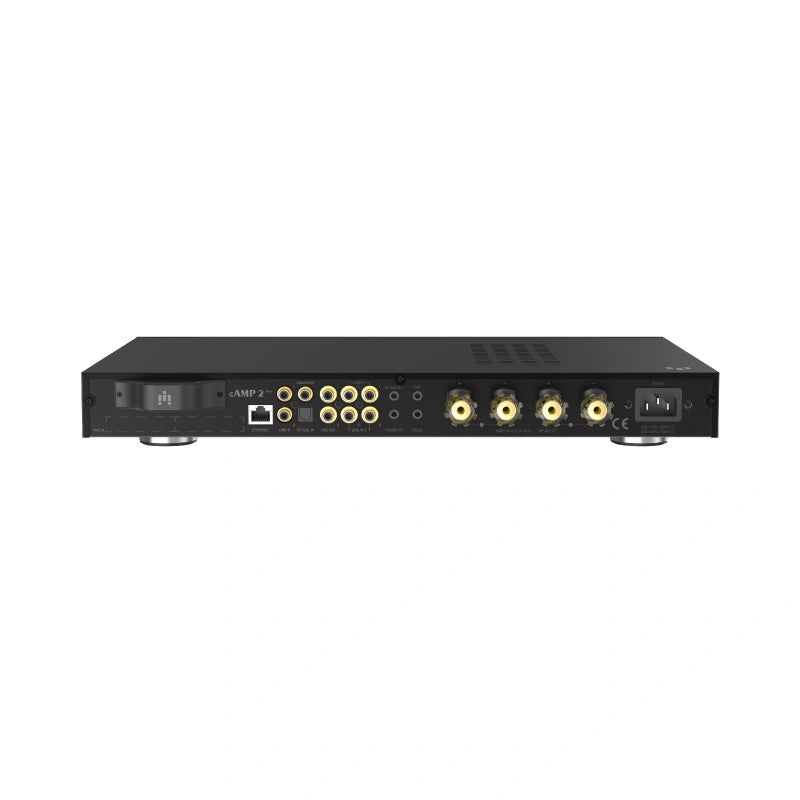

Rich interfaces and extensions
Output interface: including 2x150 watt speaker output, 1 analog stereo output, 1 subwoofer output, and 1 12V trigger output.
Input interface: including 2 analog inputs and 1 digital optical input.
In addition, the product also includes intelligent control interfaces such as RS232, infrared remote control input, Ethernet, and 12V trigger input. In addition, it also has a built-in low ripple high-power audio power supply and provides powerful streaming media functionality.
Multi room listening for better sound quality
Add more IEAST streaming devices at home, connect the best speakers, place them in different rooms, and you can achieve multi room audio centralized, individual, and combined management:
• Independent mode: Play different music in different rooms without interfering with each other;
• Partition mode: Partition or synchronize all speakers to play songs and enjoy them together.
Dual band Wi Fi 5&Bluetooth 5.2
• Supports 802.11b/g/n/ac dual band Wi Fi, providing more stable and faster network connection speeds. By connecting to Wi Fi, you can easily listen to high-quality online music, web broadcasts, and local music collections;
• Supports Bluetooth connection;
• IEAST streaming devices have undergone rigorous testing and obtained certification from the Wi Fi Alliance and Bluetooth SIG organizations.
Support mainstream streaming protocols
Massive music within reach
Support mainstream streaming protocols
Massive music within reach
Support Siri
-From Apple Home/Homekit
-From iPhone/iPad/MAC/Apple Watch
IEAST Controller Application
Through the IEAST control application, you can quickly set up your IEAST wireless audio products. Easily achieve multi room music synchronization, free product combination, playback control, EQ adjustment and other functions.
Specification
Type
Network streaming media amplifier
Input
Streaming*: Please refer to the streaming function description for details
Analog input (line 1): Stereo analog RCA input
Digital input: PCM audio with TOSLINK plug can reach up to 24bit/192KHz.
Analog input (line 2): Stereo analog RCA input X2
Wireless network compatibility:
Dual band Wi Fi 5
IEEE 802.11 b/g/n/ac/ac, 2.4GHz/5.8GHz
Ethernet:
10/100M (automatically obtains IP address)
Streaming Protocol:
Airplay2
Spotify connect
TIDAL connect
Qplay
DLNA
Smart home:
TCP / RS232 / IR
Control 4
Work with Apple Home
Supported audio formats: APE/FLAC/MP3/WAV/AAC/AAC+/WMA/ALAC
Bluetooth: Bluetooth 5.2
Bluetooth audio codec: AAC
Built in streaming service: Amazon Music, Deezer, Tunein, Tidal,Qobuz, iHeartRadio, Napster, Sound machine,etc.
Output
speaker out
Power: 2 x 150W @ 1% THD+N, 20Hz-20kHz, 8 Ω
analog output
RCA OUT Power Output=1.8Vrms DCA:ESS9018
Bass speaker output
Mono RCA output with a 200 Hz Low-pass filter
12V trigger
12V trigger input: DC 9-12V<10mA
12V trigger output: DC 12V/50mA Max
Power Specifications
Power supply voltage: AC 100V-120V 50/60Hz AC 220V-240V 50/60Hz
Supports two voltage specifications. Please pay attention to the power supply voltage in your area.
Low power mode without input:<7.6W
Standby power consumption:<1.5W
Maximum power:<500W
Weight and dimensions
Weight: 3.9kg
Size:
Width: 430 millimeters (16.92 inches)
Depth: 295 millimeters (11.614 inches)
Height: 53 millimeters (2.09 inches)
Accessories
Power cord (selected audio specific) x 1
Quick Guide x 1
1 to 2 RCA audio signal cable x 1
Infrared remote control x 1
2 to 2 RCA audio signal cables x 1
Certification
Intermediate Inspection and Quality Inspection Report
CE-RED
RoHS
FAQs
What is the power specification and distortion performance of eAMP 2 Pro amplifier?
It is a 2-channel stereo amplifier with 150W high power output per channel at 8Ω impedance, with total harmonic distortion ≤1%.
What streaming services and wireless connectivity does this amplifier support?
It supports Spotify Connect, Tidal Connect, Airplay 2 and DLNA streaming, with dual-band WiFi, wired Ethernet and Bluetooth 5.2 AAC wireless connection.
What is the high-resolution audio decoding performance of eAMP 2 Pro?
It adopts 1:1 original sampling rate architecture, supporting up to 192kHz/24bit high-precision lossless audio decoding and output.
What unique functions and expansion interfaces does this amplifier have?
It owns 0ms zero-latency TV audio sync, one-touch non-disturb mode, PEQ EQ tuning, abundant audio ports, and full 12V trigger input & output interfaces.
What control methods and installation design does this product adopt?
It supports RS232, TCP, IR and Siri multi-control modes, and features integrated standard 1U single-unit rack-mount design for professional cabinet installation.
