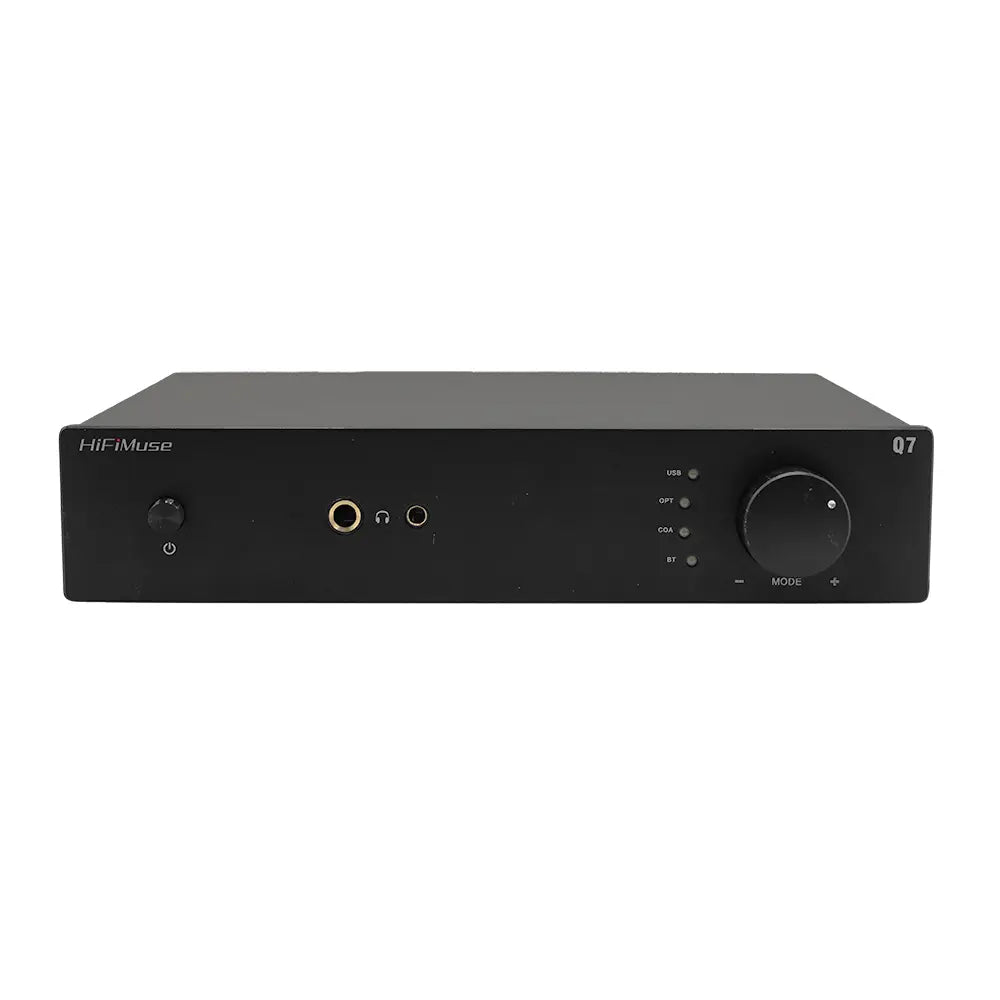

HiFiMuse Q7 Bluetooth 5.2 Transmitter and Receiver

HiFiMuse Q7 Bluetooth 5.2 Transmitter and Receiver

$166.95 USD
$207.90 USD $166.95 USD
Promoção Esgotado
Frete calculado no checkout.

Product Parameters:
1.Configuration/Model：Q7

2.Color:Black

3.Body Material:Aluminum Panel + lron Case

4.Audio DAC: ES9039Q2M*2

5.Audio Processor:Second generation XMOS interface 8-core processor XU208 Amplifier

6.Amplifier:JRC5535*2  OPA1642*1

7.Power Supply:Square Transformer

8.Bluetooth Audio Input:Qualcomm Qcc3040 Bluetooth Module / Bluetooth version:5.2  SupportS APTX/APTX-LL/APTX HD/SBC/AAC Bluetooth audio protocols

9.USB AudioCompatibility: Windows 7-11,Mac / Android, ios

10.USB-B DAC Inputs:Supports up to stereo DSD512    PCM384KHZ 32Bit

11.Optical AudioInput:Supports up to PCM 192KHz 24Bit

12.Coaxial Audio Input:Supports up to PCM 192KHz 24Bit

13.Analog Audio Output:"Preamp output: XLP (balanced) + RCA
Earphone output: 6.35 single-ended + 4.4 balanced"

14.Control Mode.Knob control+ remote control

15.Recommended Headphone lmpedance:16-300Q/single-ended,16-6000/balanced

16.XLP Output Audio Characteristics:Output Level(Vrms):3.14Vrms@0dB   Total Harmonic Distortion (THD+N):-97dB@1khz   Noise:1uVrms    Signal-to-Noise Ratio (SNR): 120dB@1kHZ   Frequency Response:20-20kHz(±0.07dB)    Channel separation (CROSSTALK):-110dB   Dynamic Range(DNR):120dB@1kHZ

17.RCA Outputs Audio Characteristics:Output Level(Vrms):3.14Vrms@0dB  Total Harmonic Distortion(THD+N):-97dB@1kHZ    Noise:3uVrms   Signal-to-Noise Ratio (SNR):116dB@1kHZ    Frequency Response:20-20kHz(±0.06dB)    Channel separation (CROSSTALK):-108dE   Dynamic Range(DNR):116dB@1kHZ

18.Headphone Output Audio Characteristics (6.35 single-ended):Output Level(Vrms):2.9Vrms@0dB   Maximum Undistorted Power:360mW@16Q/28mW@3000 Total Harmonic Distortion(THD+N):-96dB@1kHz   Noise:3uVrms   Signal-to-Noise Ratio (SNR):116dB@1kHz   Frequency Response:20-20kHz(±0.06dB)    Channel separation (CROSSTALK):-108dB   Dynamic Range(DNR):116dB@1kHZ

19.Headphone OutputAudio Characteristics(4.4 Balanced):Output Level(Vrms):5.9Vrms@0dB   Maximum Undistorted Power:1000mW@16Q/56mW@6000Ω   Total Harmonic Distortion(THD+N):-96dB@1kHZ  Noise:1uVrms   Signal-to-noise ratio (SNR): 120dB@1kHZ  Frequency Response:20-20kHz(士0.07dB)  Channel separation (CROSSTALK): -110dB  Dynamic Range(DNR):120dB@1kHZ

20.Power input:AC 110V 50Hz/AC 220V 50Hz

21.Rated Power Consumption:15W

Ver informações completas

High-resolution audio decoder and amplifier in one unit

ESS9039Q2M*2 / DSD512 / Bluetooth 5.2 / XMOS

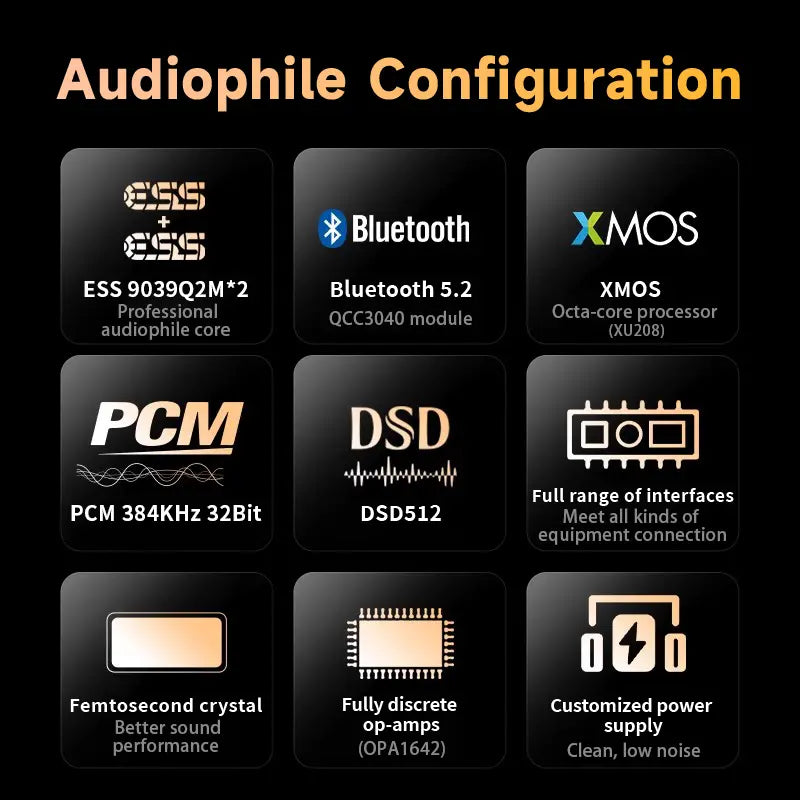

Audiophile Configuration

ESS 9039Q2M Professional audiophile core / Bluetooth 5.2 QCC3040module/XMOS Octa-coreprocessor(XU208) / PCM 384KHz 32Bit /DSD512/Femtosecond crystal Better sound performance / Fully discrete op-amps (OPA1642) / Customized power supply Clean, low noise / Full range of interfaces Meet all kinds of equipment connection

ESS9039Q2M Dual Core Decoding

Adopts dual-chip design so that each way of sound has Independent DAC chip decoding output / The whole system truly realizes the independent high resolution of left and right channels, and enhances the sound effect in all aspects




The key to good sound

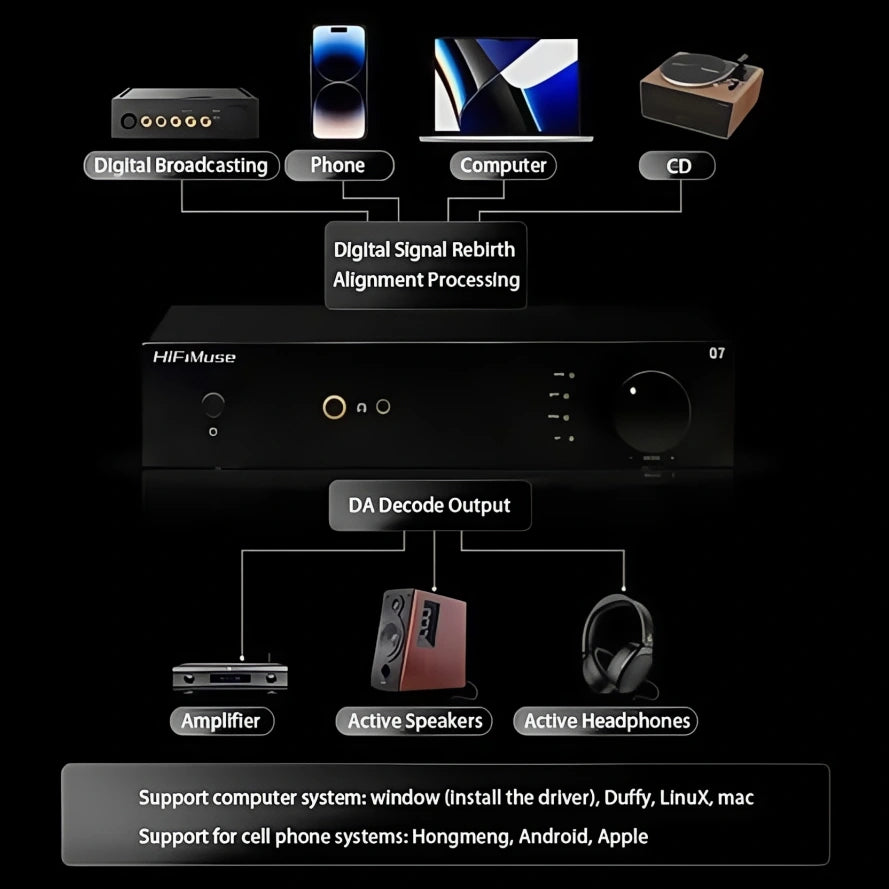

Whether it’s a cell phone/tablet/computer or a digital player/CD player, by connecting the Q7 hard decoding can restore the best sound effect of the source file. It’s not a necessity for listening to music, but it’s certainly the most effective way to improve sound quality



CD-quality Bluetooth sound

Support APTX/APTX-LL/APTX HD/SBC/AAC etc. Bluetooth audio protocol, through the Bluetooth connection with cell phones /tablets/computers Enjoy CD-quality lossless music with ease





Professional Configuration Non-Destructive Guarantee

Q7 adopts the second-generation XMOS-208 processor and three OPA1642 op-amp chips / Effectively guarantee the lossless transmission of high-definition audio / USB supports up to DSD512 and PCM384KHz@32Bit

Professional Configuration Non-Destructive Guarantee

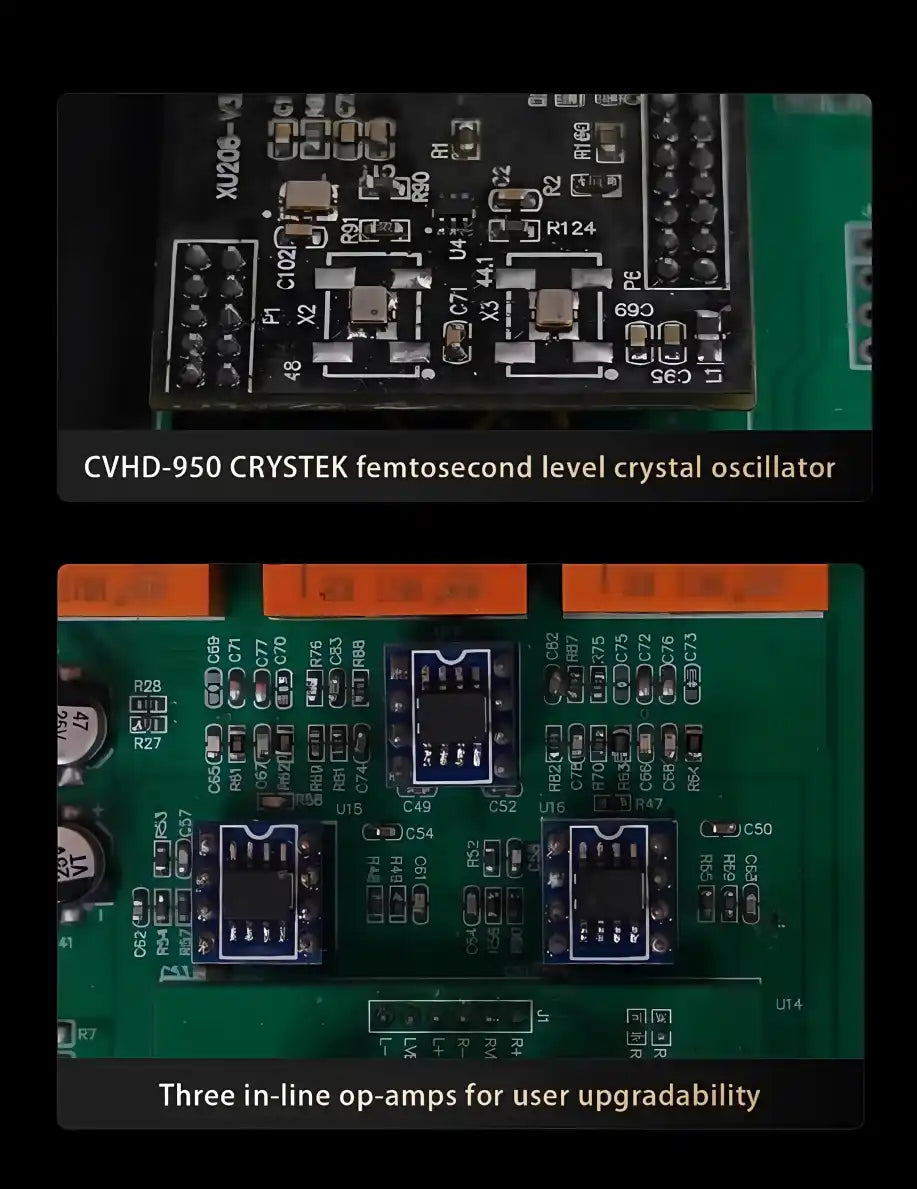

Q7 adopts dual clock management technology, in USB decoding and Bluetooth decoding / Q7 adopts asynchronous dual femtosecond clock for USB decoding and Bluetooth decoding, and asynchronous dual femtosecond clock for optical and coaxial decoding / The auto-calibrated PLL clock makes it easy to handle any music genre / CVHD-950 CRYSTEK femtosecond level crystal oscillator

Dual earphone jacks with monitor grade Earphone circuit design

Fully balanced earphone amplifier circuit design, effectively enhance the headphone amplification circuitry Output power and output quality, can be used as a high-performance decoding earphone amplifier / Support 6.35mm single-ended 16-300 ohm impedance high-end headphones / 4.4mm balanced output can promote 16-600 ohm impedance high-end headphones

Low noise linear power supply Isolated digital power supply with dual power supply design

In order to provide sufficient power to the analog section Q7 uses linear transformer with 3pcs 2200uf+4pcs 1000uf capacitors. full power; the digital part of the isolated power supply, so that it is physically isolated from the analog part of the power supply / Power supply physical isolation, a good shielding of interference, restore the pure sound quality / Low noise power supply / Built-in self-developed low noise switching power supply and multiple analog circuit low noise power supply / Digital and analog isolated power supply

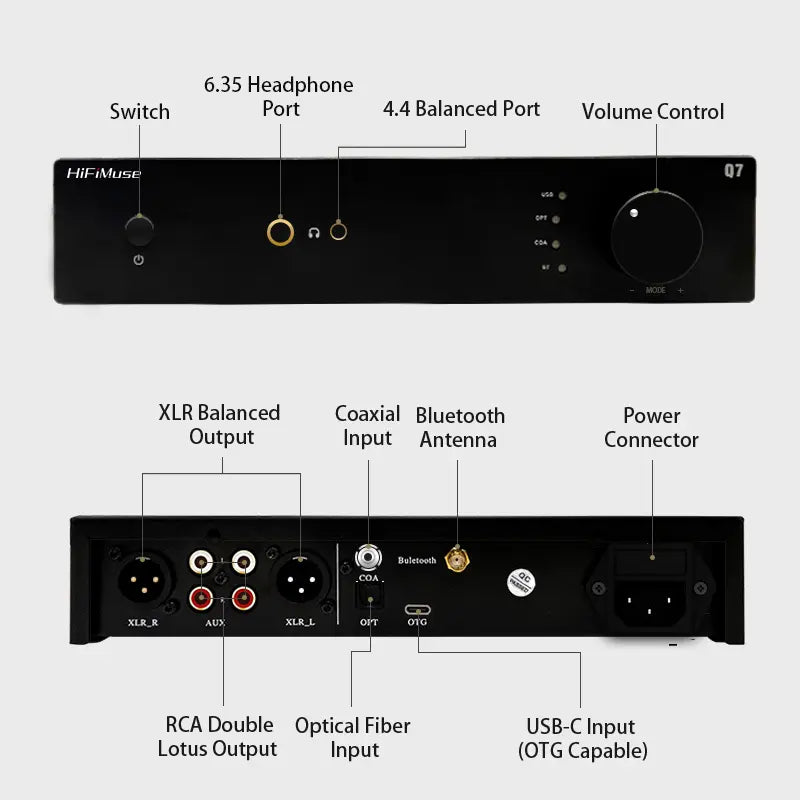

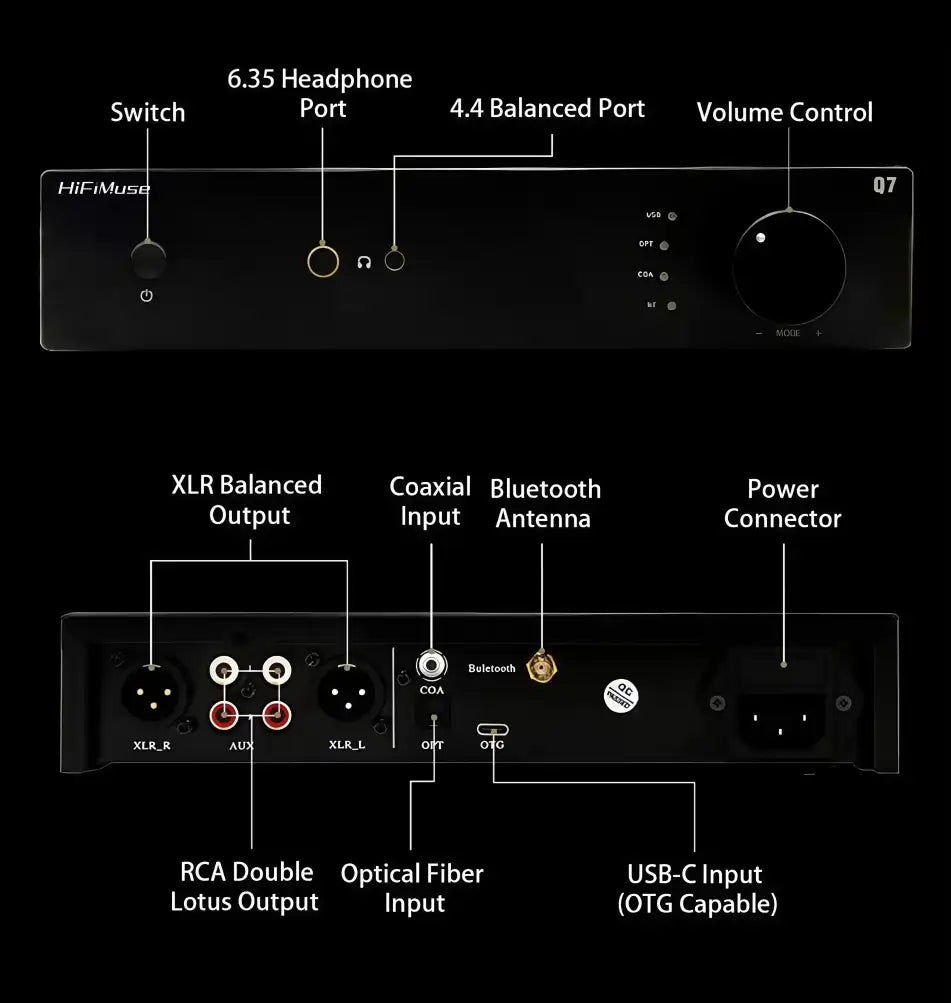

Abundant output and input interfaces Meet all kinds of equipment connection

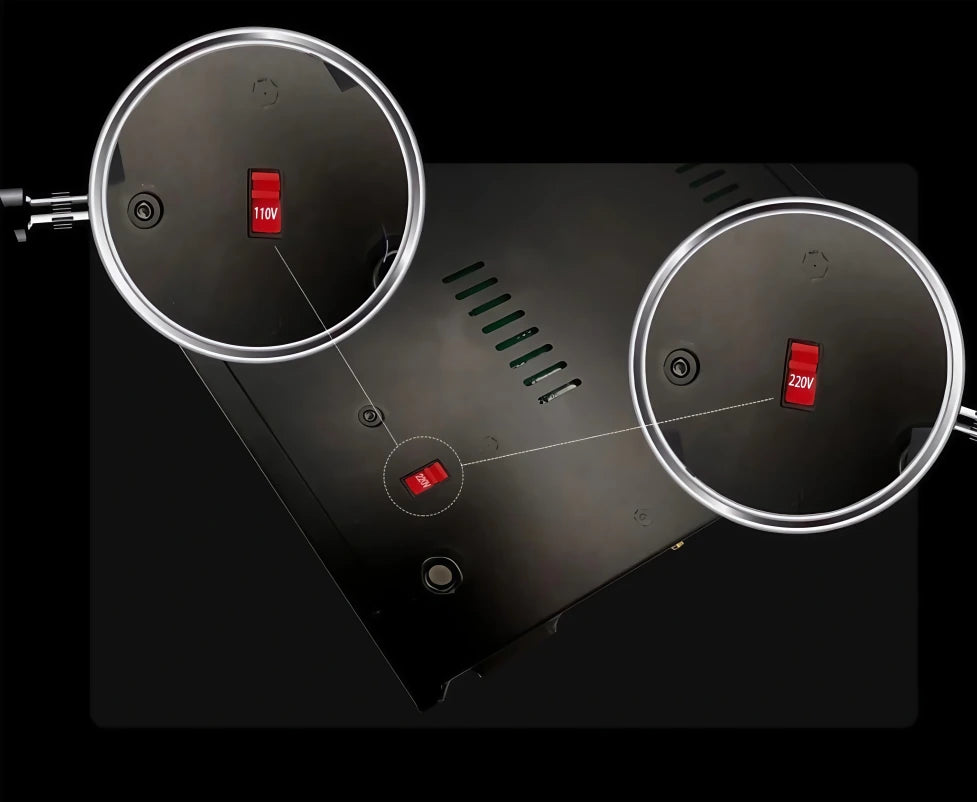

Voltage 220V/110V adjustable
