Description
Precision Redefined: The Reference Timing Standard

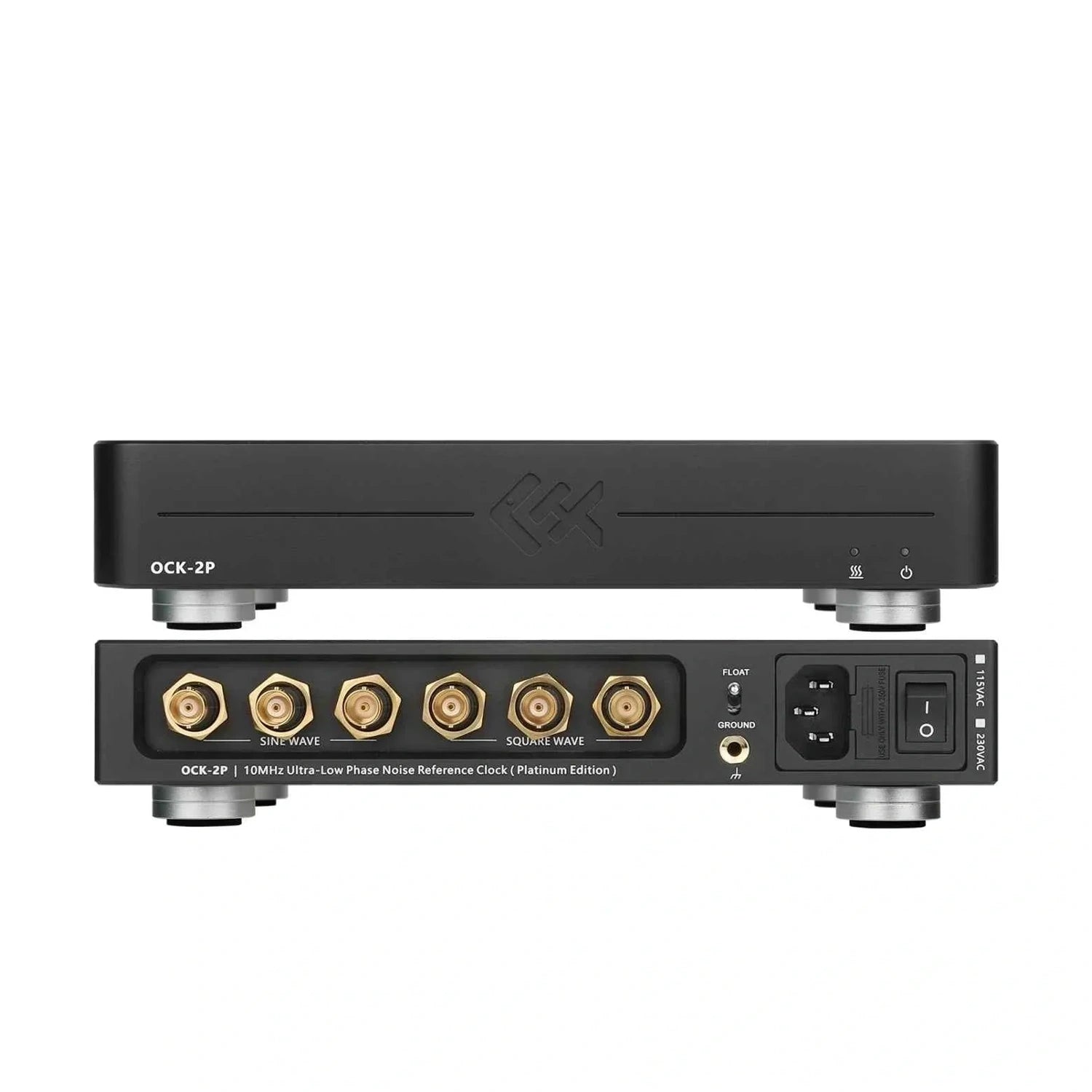

The LHY Audio OCK-2P is a professional-grade 10MHz master clock generator engineered to provide the absolute reference frequency for the world's most demanding digital audio systems. By replacing the internal clocks of your DACs, CD players, and network switches with the OCK-2P’s ultra-stable signal, you eliminate the "digital grit" and restore the natural, fluid harmonics of the original recording.
Why the OCK-2P is Essential:
-
Professional Grade SC-CUT OCXO: The OCK-2P uses a hand-picked, high-specification SC-CUT Oven Controlled Crystal Oscillator. This core provides superior long-term stability and extremely low phase noise, ensuring your digital audio components operate in perfect synchronicity.
-
Triple Independent Outputs: Featuring 3 BNC outputs, the OCK-2P can synchronize three devices at once. Each output is physically isolated to prevent cross-interference.
-
Universal Compatibility: Each of the 3 outputs features its own independent toggle for 50 $\Omega$ / 75 $\Omega$ impedance and Sine Wave / Square Wave selection. This makes it compatible with everything from consumer Hi-Fi to professional studio equipment.
-
Silent Power Foundation: Noise is the enemy of precision. The OCK-2P features a high-performance Talema transformer and a multi-stage LT3042 + PNP linear regulator circuit ($<1\mu V$ noise), ensuring the OCXO operates in a perfectly clean electrical environment.
-
Premium Thermal Management: The heavy CNC aluminum chassis isn't just for shielding; it provides a stable thermal mass to help the internal oven maintain a constant temperature for the crystal, minimizing frequency drift.
Technical Specifications:
-
Output Frequency: 10.000000MHz
-
Clock Core: Selected SC-CUT OCXO
-
Output Ports: 3 x BNC (Independent)
-
Waveform Options: Sine Wave / Square Wave (Per port)
-
Impedance Options: 50 $\Omega$ / 75 $\Omega$ (Per port)
-
Frequency Accuracy: $\pm 0.01 ppm$
-
Phase Noise: $<-115 dBc/Hz$ @ 1Hz offset
-
Power Supply: LT3042 + PNP Ultra-low noise Linear Regulator
Technical Specifications/Raw Specs
-
Input Voltage: AC 115V / 230V Switchable
-
Output Level: 7dBm @ 50 $\Omega$
-
Chassis: Full CNC Machined Aluminum
-
Status Display: High-visibility front-panel LED frequency display
-
Dimensions: 240mm x 175mm x 50mm
-
Weight: 2.6kg
OCK-2P is a high-performance external master clock fully upgraded from the acclaimed OCK-2S. Featuring a flagship low-phase-noise OCXO, an independent thermos chamber, an enhanced power supply architecture, and ultra-low additive phase noise clock distribution, OCK-2P significantly improves time-base stability and signal purity. A newly added selectable grounding design further enhances system compatibility and noise management in complex audio setups.
Specifications
- Weight: 200gr
- Usage: Indoor & outdoor
Pros and cons
- Sustainably produced
- Ideal for everyday use
OCK-2P: Advancing Precision and Purity to the Next Level
As a comprehensive upgrade to the highly acclaimed OCK-2S, the OCK-2P represents a major evolution in core specifications, power architecture, mechanical design, and clock distribution performance.
From ultimate time-base stability to enhanced micro-dynamics and spatial accuracy, OCK-2P redefines the performance ceiling of external audio clocks through deeper engineering refinement.
Upgraded Features:
-
Ultra-Precision OCXO
-
Isolated OCXO Chamber
-
30VA Toroidal Transformer
-
Two-Stage Regulation
-
Ultra-Low Additive Phase Noise Clock Distribution
-
Dedicated TerminalGround
Ultra-Low Phase Noise
<-115dBc
OCK-2P employs a carefully selected, high-grade OCXO, delivering a significant improvement in critical close-in phase noise performance:
- –115 dBc @1Hz
- –140 dBc @10Hz
- More stable soundstage
- Improved image focus
- Enhanced micro-detail retrieval
- Darker, more controlled background
CNC Unibody Chassis
Engineered Isolation Chambers
Machined from a single block of aluminum, the chassis adopts a refined five-chamber isolation architecture.
Each compartment is physically separated to minimize electromagnetic and mechanical interference, ensuring a cleaner power environment and a more stable signal path.
OCK-2P introduces anindependent thermos Chambers, providing a more stable and controlled thermal environment for the OCXO.
An integratedOCXO warm-up status LEDvisually indicates when the oscillator has reached optimal operating conditions.
Fully Upgraded Power Supply: Stronger.Cleaner.More Stable .
Two-Stage Regulation: LM350T + LT3041
The two-stage linear regulation topology further reduces noise and improves PSRR compared to the single-stage design of OCK-2S.
This ensures a cleaner and more stable power foundation for both the OCXO and the distribution circuitry.
30VA Toroidal Transformer
OCK-2P features a Multicomp 30VA transformer, doubling the power headroom compared to the 15VA design used in OCK-2S.
Greater power reserve results in:
- Improved transient response
- Lower supply impedance
- Enhanced overall stability
Ultra-Low Additive Phase Noise Clock Distribution
OCK-2P upgrades its clock distribution amplifier to an ultra-low additive phase noise design, maintaining exceptional signal integrity even with multiple outputs.
Selectable Grounding for System Optimization
OCK-2P features a dedicated grounding terminal with a selectable ground switch, allowing users to choose grounded or floating operation to best match your system.
