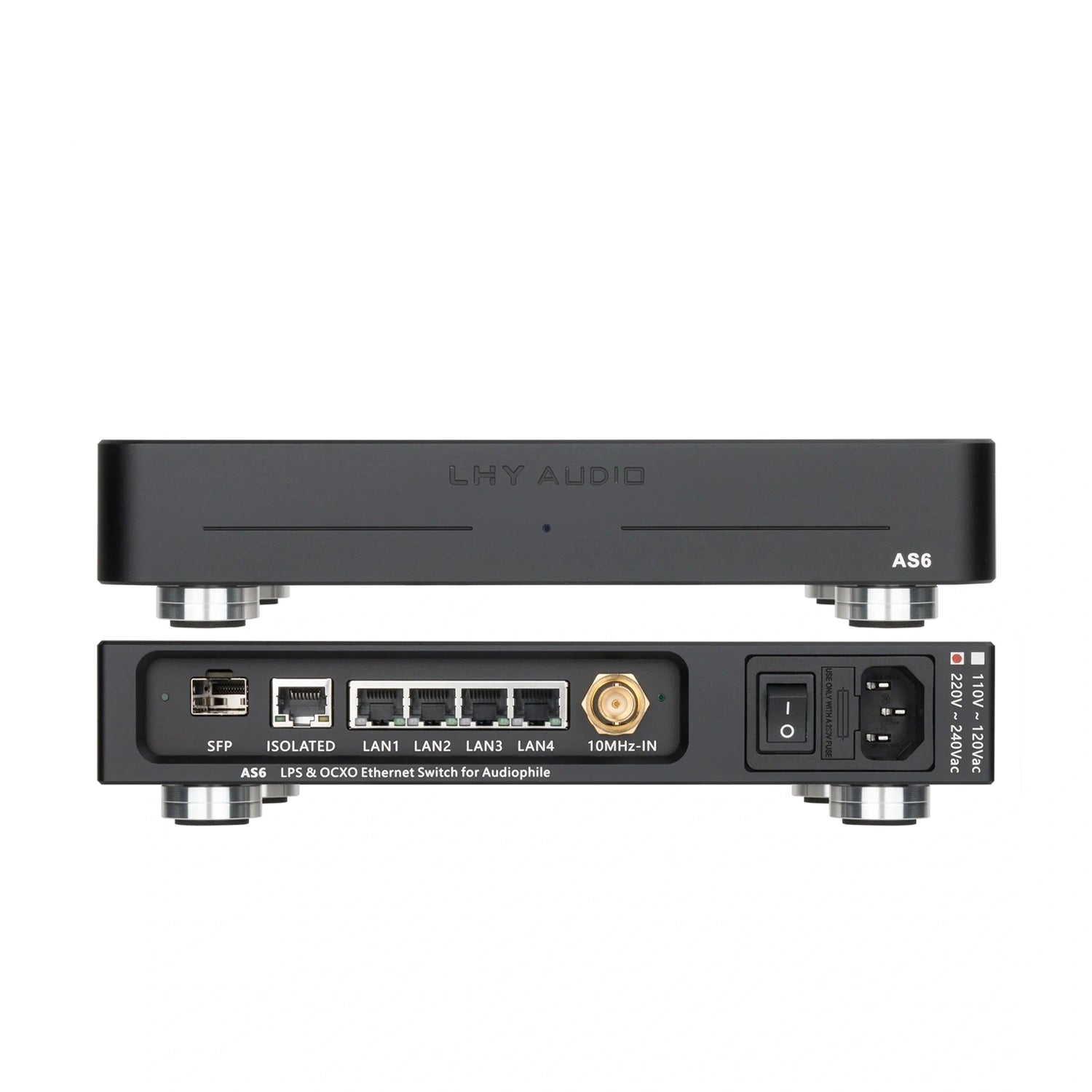

LHY Audio AS6: Flagship Audiophile Network Switch with SC-CUT OCXO & Isolated RJ45
Ultimate Network Fidelity in a Compact Flagship Chassis
The LHY Audio AS6 is a reference-grade network switch designed for audiophiles who demand the highest level of signal purity without the bulk of full-sized components. As a core member of the flagship AS series, the AS6 incorporates the same SC-CUT OCXO clocking and ultra-low noise power technology found in the AS8 Pro, ensuring your digital audio remains free from network-induced jitter and noise.
Key Technical Highlights
Flagship SC-CUT OCXO Clocking
The AS6 is powered by a hand-selected SC-CUT Oven Controlled Crystal Oscillator. Combined with a high-performance Si5381 PLL circuit, this industry-leading timing reference provides near-zero jitter and ultra-low phase noise (-100dBc/Hz typical), resulting in a blacker background and a more natural musical flow.
Specially Designed Isolated RJ45 Port
Beyond standard connectivity, the AS6 features a dedicated Isolated RJ-45 port. This port is engineered to physically decouple electrical noise between the network and your sensitive audio streamer, providing a cleaner data path than conventional switches.
Master Grade Linear Power Supply
Pristine sound requires pristine power. The AS6 features a built-in 30VA Noratel Toroidal Transformer and an ultra-low uV noise level linear regulator circuit. An integrated AC EMI filter further ensures that the switch operates in a dead-silent electrical environment.
Flexible Connectivity & Master Clock Sync
Equipped with 4 Gigabit RJ45 ports, 1 Isolated RJ45 port, and 1 SFP port for fiber optic isolation. For the ultimate performance, the 10MHz external clock BNC input (50 ohms) allows you to synchronize the AS6 with high-end master clocks like the LHY OCK series.
Solid CNC Aluminum Block Chassis
The enclosure is precision-machined from a solid block of aviation-grade aluminum. This heavy-duty chassis provides massive thermal stability for the OCXO and 360-degree EMI/RFI shielding to protect internal circuits from interference.
Technical Specifications
-
Network Interface: 4 x Gigabit Ports RJ-45, 1 x Isolated Gigabit Port RJ-45, 1 x SFP Port
-
Internal Clock: Ultra-low phase-noise OCXO with Si5381 PLL
-
Clock Precision: -100dBc/Hz (Typical)
-
External Clock In: 10MHz Master Clock via BNC (50 ohms)
-
Power Regulator: Ultra-low uV noise level linear circuit
-
AC Transformer: 30VA Noratel Toroidal Transformer
-
Voltage Input: AC 110V-120V / 220V-240V Selector
-
Chassis Material: CNC Aluminum Block (Silver/Black)
-
Dimensions: 240W x 50H x 175D (mm)
-
Weight: 2.05kg
