Description
Reclaim the Purity of Your Digital Audio

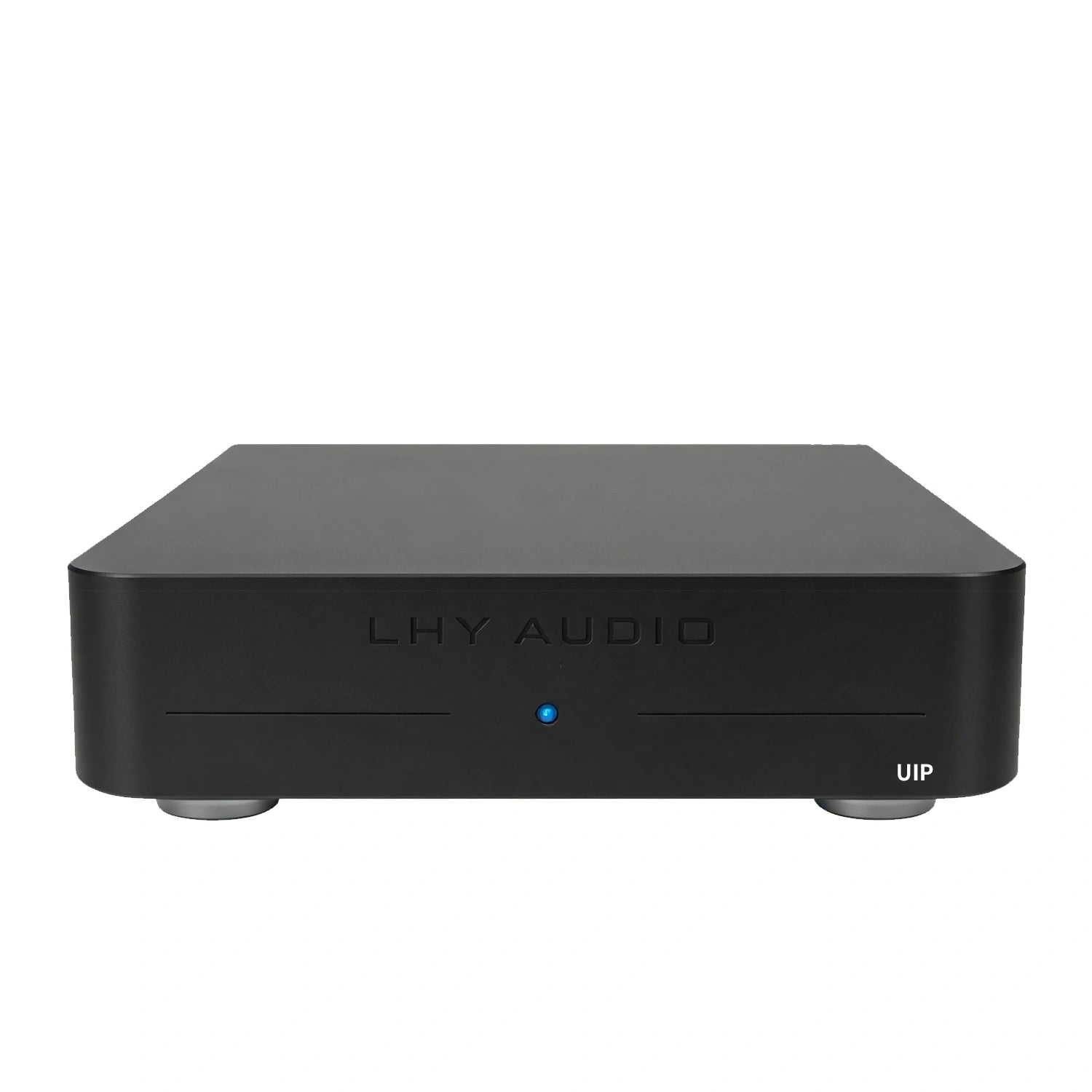

The LHY Audio UIP is not just a USB isolator; it is a comprehensive signal conditioning hub for serious digital audiophiles. By combining cutting-edge galvanic isolation, high-precision clocking, and laboratory-grade linear power, the UIP eliminates the digital glare, hiss, and timing errors (jitter) inherent in standard USB outputs from PCs and streamers.
Key Technical Highlights:
-
True Galvanic Isolation: Utilizing the advanced ADI ADuM4165 chip, the UIP provides up to 5700Vrms of isolation. This physically breaks the ground loop and electrical connection between your noisy computer and your sensitive DAC.
-
OCXO + PLL Reclocking: Features a built-in SC-CUT Oven Controlled Crystal Oscillator (OCXO). Unlike standard filters, the UIP reconstructs the USB data stream with femtosecond-level precision, drastically reducing jitter for a more natural, analog-like sound.
-
Integrated Multi-Stage Linear Power: No external "wall-wart" needed. The UIP houses a custom Talema toroidal transformer and multiple LT3042 + PNP ultra-low noise regulators ($<1\mu V$) to independently power the isolation chip, the clock, and the USB output.
-
High-Speed Compatibility: Supports USB 2.0 High-Speed (480Mbps), ensuring seamless playback for high-resolution formats up to PCM 768kHz and Native DSD512.
-
Master Clock Input: For the ultimate setup, the UIP includes a 10MHz BNC input, allowing you to sync it with an external master clock (like the LHY OCK-2).
Specifications:
-
Input: USB-B (Computer/Streamer)
-
Output: USB-A (To DAC)
-
External Clock In: 10.0MHz (BNC @ 50/75 Ohms)
-
Isolation Chip: ADI ADuM4165
-
Voltage: 110-120VAC or 220-240VAC
-
Chassis: CNC-Machined Solid Aluminum Block
-
Dimensions: 150 x 175 x 50 mm
-
Weight: 1.5kg
Specifications
- Weight: 200gr
- Usage: Indoor & outdoor
Pros and cons
- Sustainably produced
- Ideal for everyday use
Monolithic Aluminum FortressLuxurious CNC-machined all-aluminum alloy monocoque enclosure
Pure Power, Absolute IsolationUp to 4 Independent µV Rails to Silence PC Noise.
Dual independent LT3042+PNP architecture sections, providing isolated μV-level power supply to the OCXO and USB output respectively
Dual LT3042 regulators feed dedicated power to the input and output of the isolation chip separately
Eliminate Noise. Ensure Purity.ADuM4165 USB Isolation: 5700V Protection, 480Mbps Speed.
Featuring ADuM4165 USB 2.0 high-speed isolation, delivering 5700V isolation voltage and 480Mbps bandwidth (supports DSD512 & PCM768). Eliminates ground loop noise and signal interference in data interfaces.
Ultra-Low Phase NoiseOCXO-based PLL clock system that reprocesses data quality
Utilizing an OCXO with PLL phase-locked loop, this precision low-phase-noise clock system reprocesses and optimizes USB signals. Delivers fully isolated USB data that is clean, stable, high-speed, and jitter-free.
Connection Diagram
Technical Specifications
| Category | Details |
|---|---|
| Specification | Parameters |
| Port Quantity | USB A-Out × 1, USB B-In × 1, BNC-in × 1 |
| Port Speed | 480Mbps |
| Regulated Power Supply | 2 Channels of LT3042 + PNP/2 Channels of LT3042 |
| Core Clock | Imported OCXO (Oven-Controlled Crystal Oscillator) |
| Chassis Type | Solid Aluminum Alloy Machining |
| Dimensions | 150 × 175 × 50mm (Width × Depth × Height) |
| Weight | 1.5kg |
| Voltage | Factory Default 220~240VAC (Customizable to 110~120VAC) |
| Accessories | Default China Standard Power Cord |
