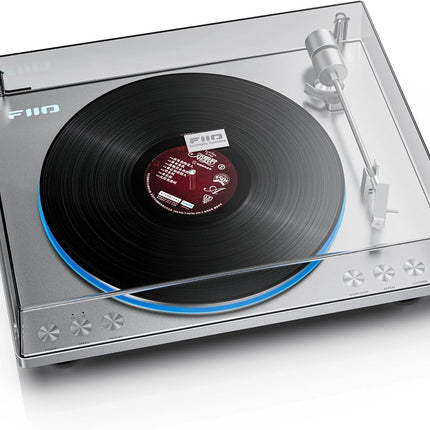

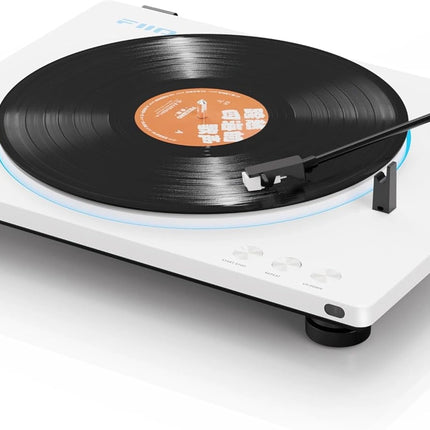

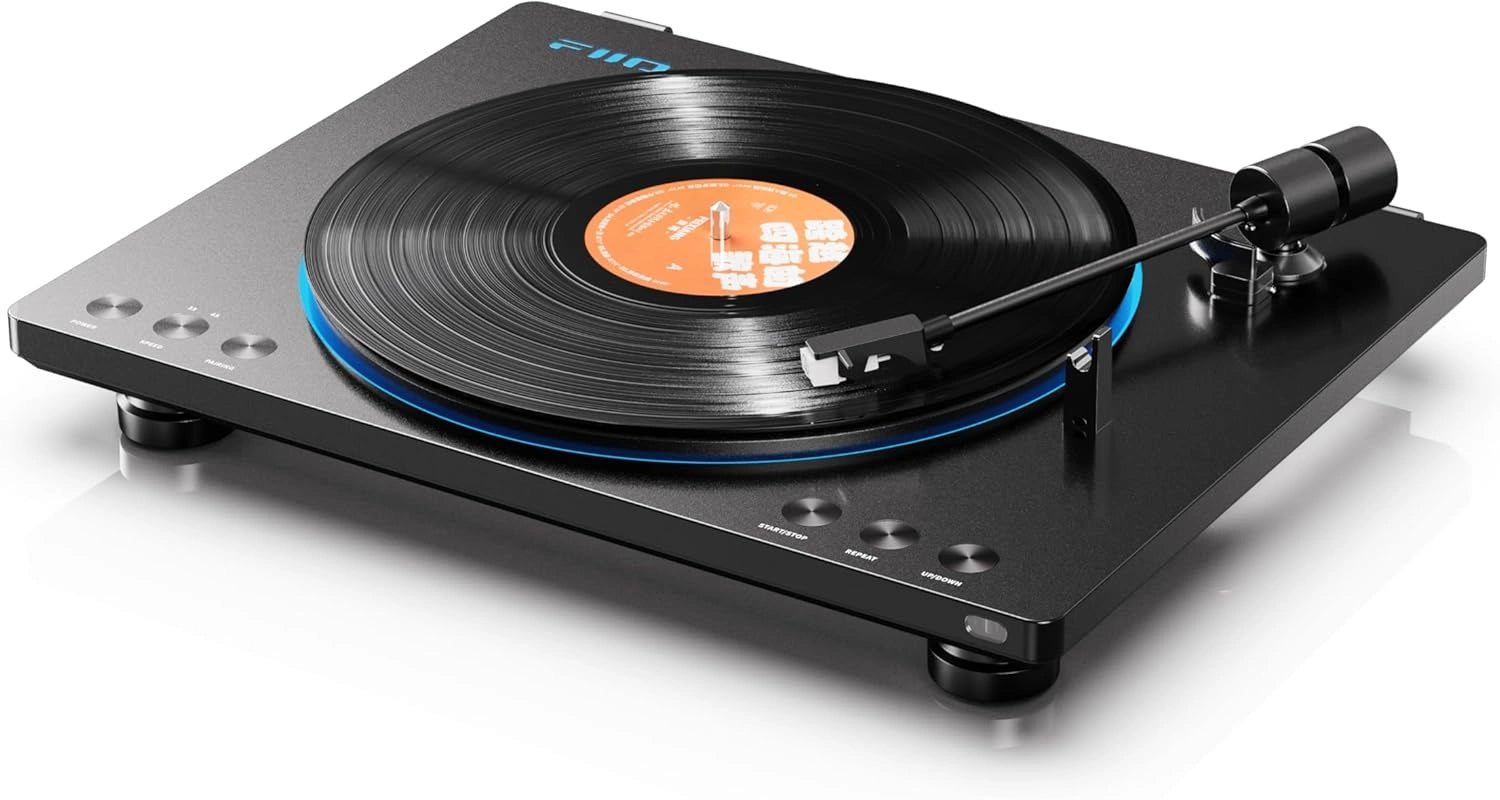

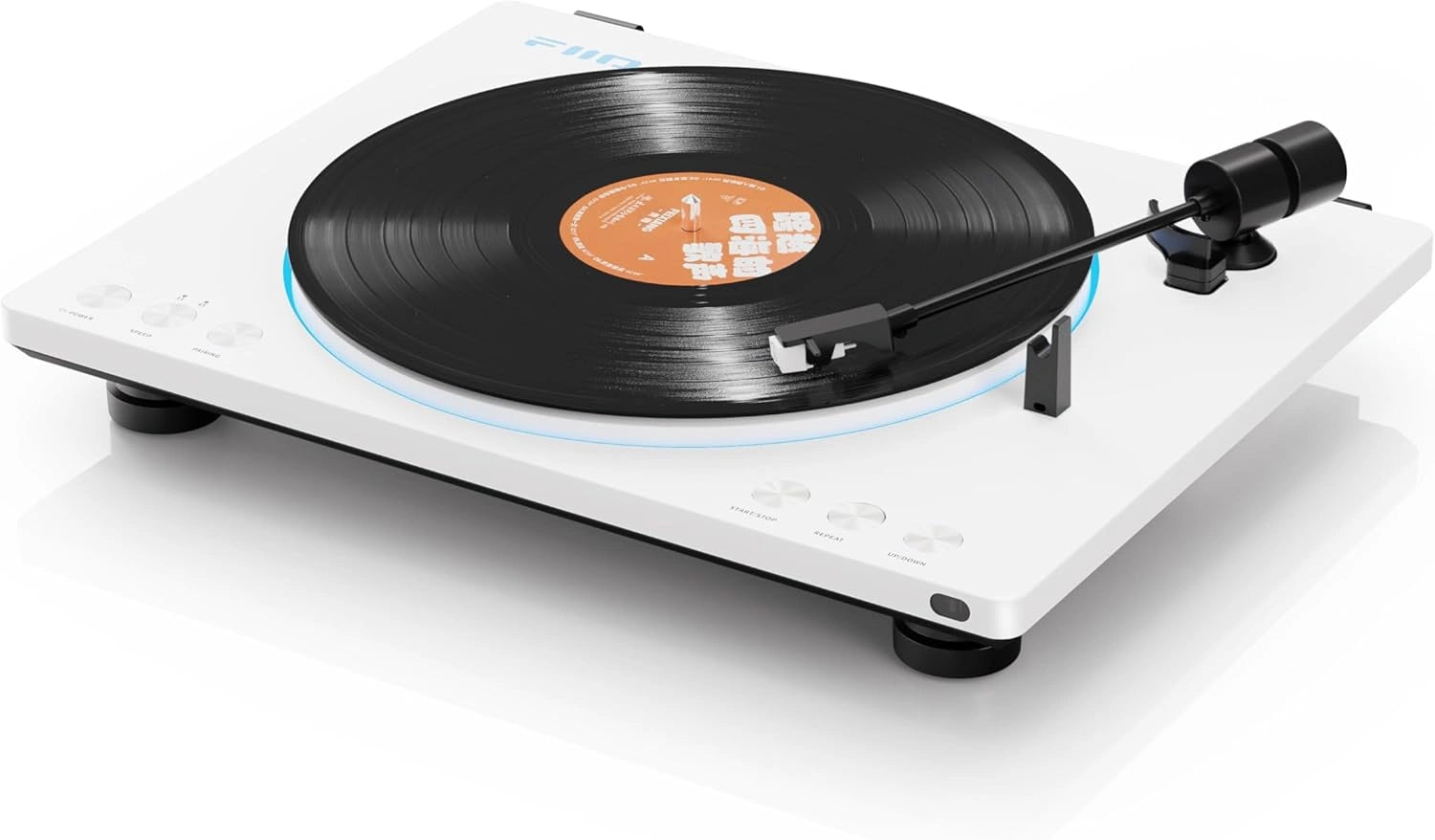

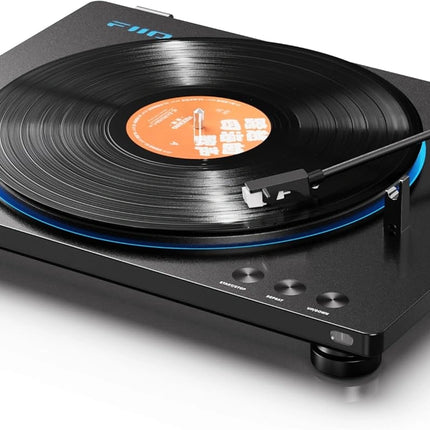

The FiiO TT13 is a fully automatic belt-drive turntable designed for straightforward vinyl playback. Press Start and the tonearm lifts, moves into position and begins playing; at the end, it can stop and return automatically. Repeat playback and remote control make it especially convenient for everyday listening.

A built-in phono preamplifier provides fixed RCA line output for direct connection to active speakers or a line-level amplifier input. The Bluetooth version can also transmit vinyl audio wirelessly to compatible headphones or speakers, while the Standard version is intended for wired RCA listening.

Why it stands out

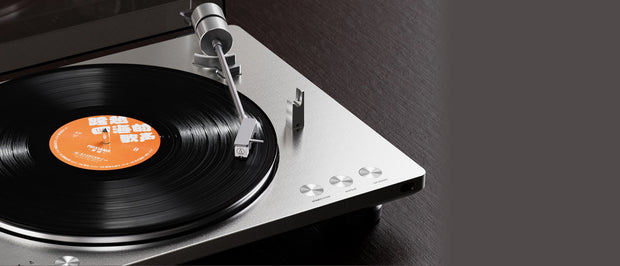

Fully automatic playback with repeat

Automatic start, stop, tonearm return and loop playback reduce handling and make vinyl easier to use without manually cueing every side.

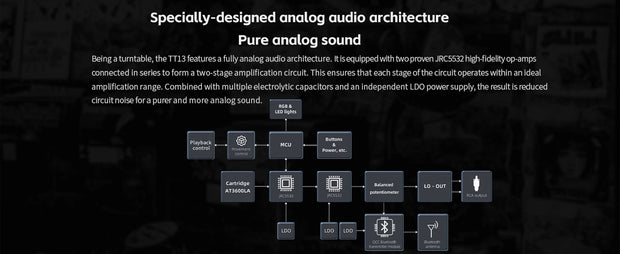

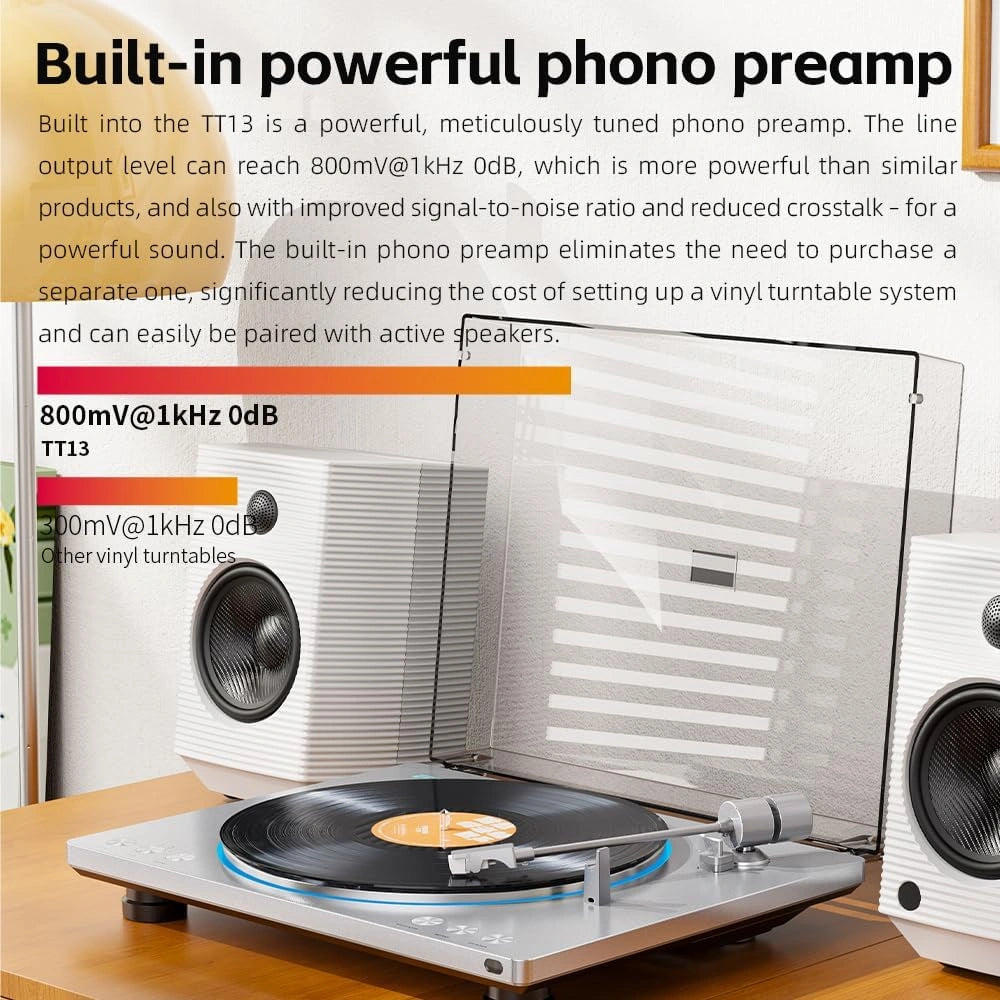

Built-in analog phono preamplifier

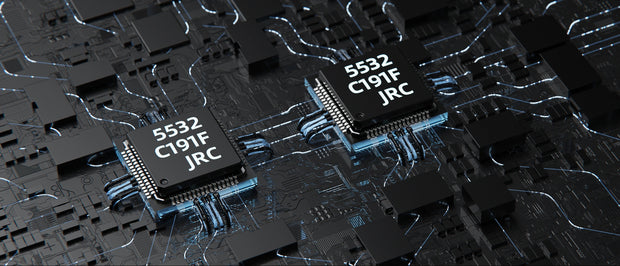

Dual JRC5532 op-amps provide an RCA line-level output up to 800mV, allowing direct connection to active speakers or a standard line input.

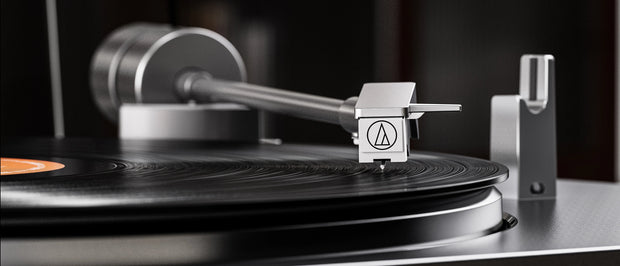

Audio-Technica AT3600LA cartridge

The fitted moving-magnet cartridge is widely supported, with a replaceable stylus and factory-optimized tracking force for the automatic tonearm.

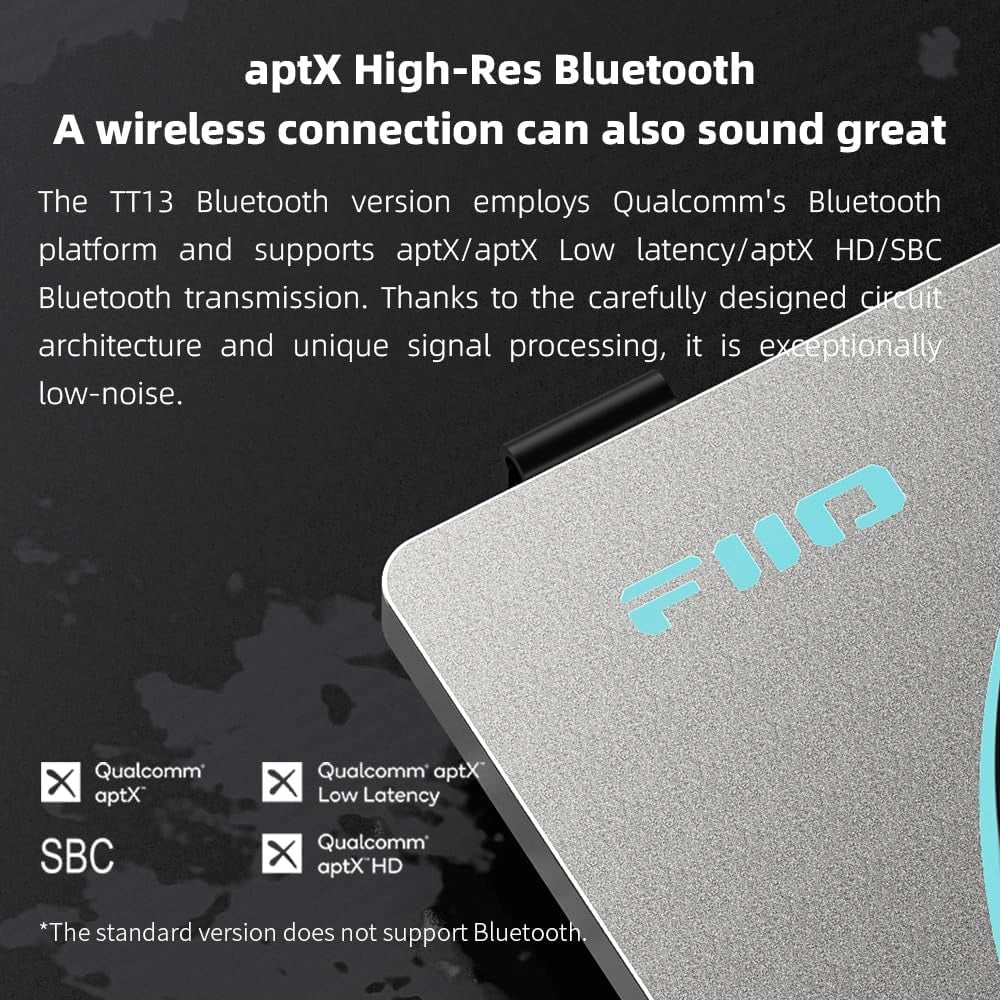

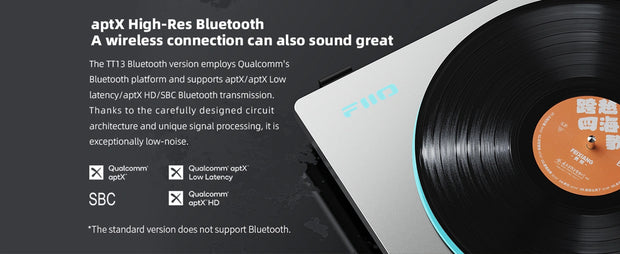

Optional aptX HD Bluetooth transmission

The Bluetooth version uses a Qualcomm QCC3040 platform and supports SBC, aptX, aptX Low Latency and aptX HD transmission.

Best for

• First-time vinyl listeners who want automatic, low-effort operation
• Direct connection to active speakers or an amplifier's AUX/LINE input

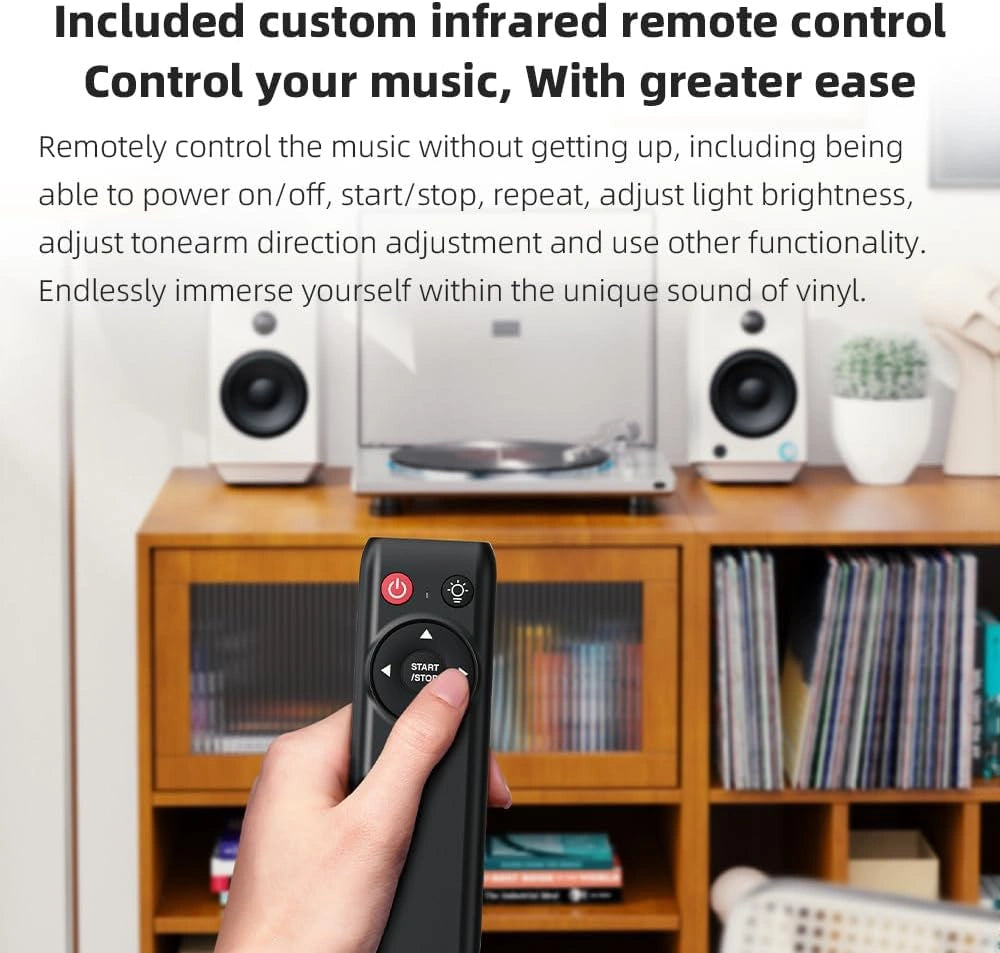

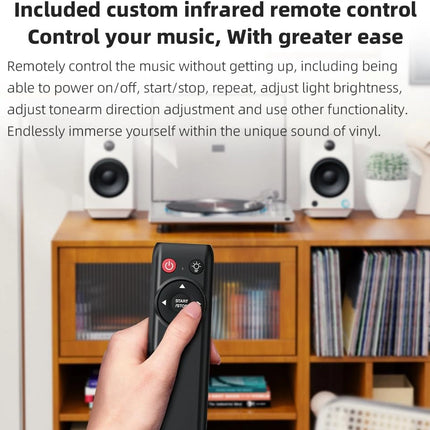

• Users who value remote start, stop, repeat and tonearm control
• Wireless listening through compatible Bluetooth headphones or speakers when choosing the Bluetooth version

Not ideal for

• Users who want adjustable tracking force, anti-skate or broad cartridge experimentation
• Systems that require a raw PHONO-level output for an external phono stage
• Anyone who wants to digitize records through USB
• Buyers expecting Bluetooth transmission from the Standard version

EMiUZEK Buying Notes

• Choose the variant carefully: only the Bluetooth version can transmit audio wirelessly. Color and regional power-plug options are separate variant selections.
• The TT13 provides fixed RCA LINE output only, not switchable PHONO output. Connect it to AUX, LINE, CD or another line-level input—not to a phono input.
• The automatic mechanism is calibrated for the supplied Audio-Technica AT3600LA cartridge at 3.5 ± 0.5g. FiiO recommends replacing it only with the same cartridge model.
• Place the turntable on a level, stable surface away from speakers and vibration. Confirm the correct 7/12-inch size and 33⅓/45 RPM settings before playback.

Frequently asked questions

Do all FiiO TT13 versions include Bluetooth?

No. Bluetooth transmission is available only on variants labelled Bluetooth. The Standard version uses wired RCA output only.

Is Bluetooth an input or an output?

It is an output. The Bluetooth version transmits record playback to compatible headphones, speakers or receivers; it does not receive music from a phone.

Which Bluetooth codecs are supported?

The Bluetooth 5.2 version supports SBC, aptX, aptX Low Latency and aptX HD. The receiving device must support the same codec, otherwise the connection falls back to a mutually supported format.

Does Bluetooth preserve a completely analog signal path?

No. RCA playback follows the analog signal path, while Bluetooth transmission requires analog-to-digital conversion and wireless encoding.

Do I need a separate phono preamp?

No. The built-in phono stage outputs line level. Connect RCA directly to active speakers or a LINE/AUX input.

Can I connect the TT13 to a PHONO input?

It is not recommended because the TT13 does not provide raw phono-level output. Feeding its line-level signal into another phono stage can cause excessive gain and incorrect equalization.

Can it drive passive speakers directly?

No. Passive speakers require an integrated amplifier or power amplifier. The TT13 can connect directly only to active speakers or line-level equipment.

Can I connect wired headphones directly?

No. There is no headphone output. Use a headphone amplifier with RCA input, or choose the Bluetooth version for compatible wireless headphones.

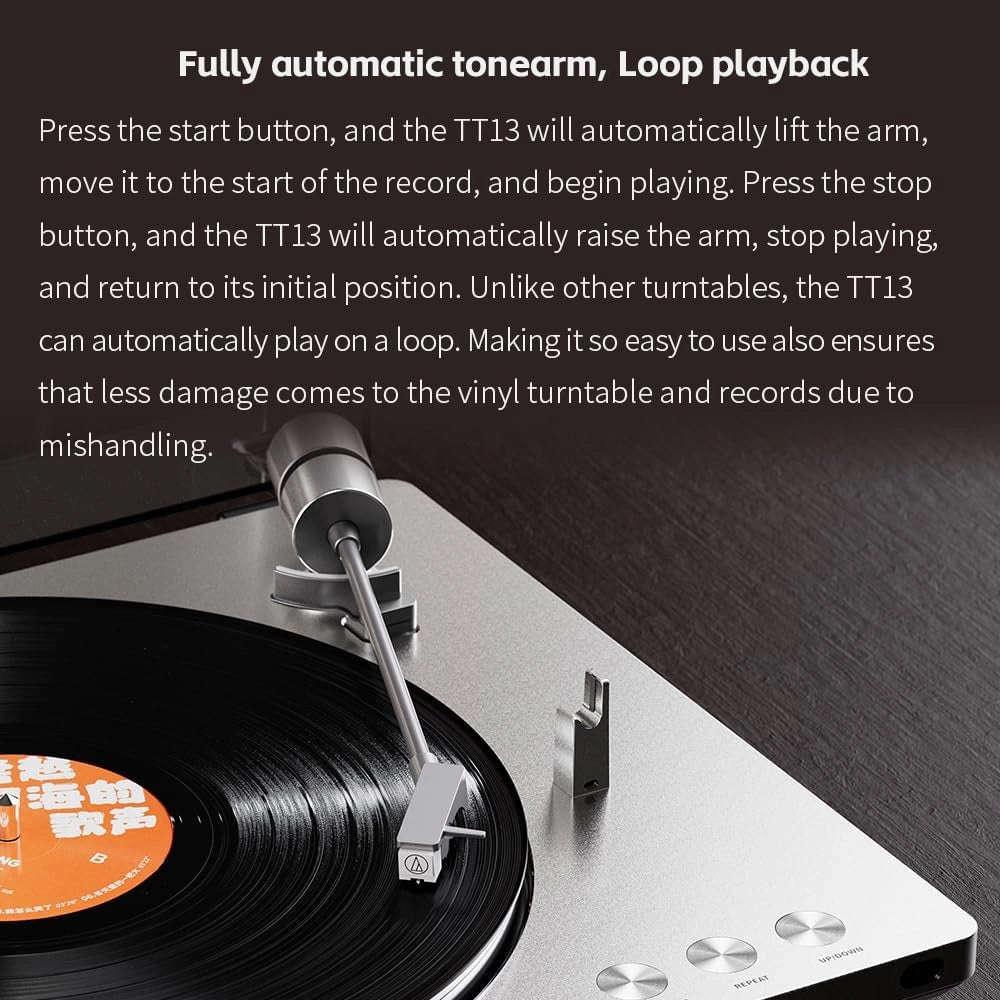

Is the TT13 fully automatic?

Yes. It supports automatic start, stop, tonearm movement and return, plus repeat playback. Manual cueing is also possible when needed.

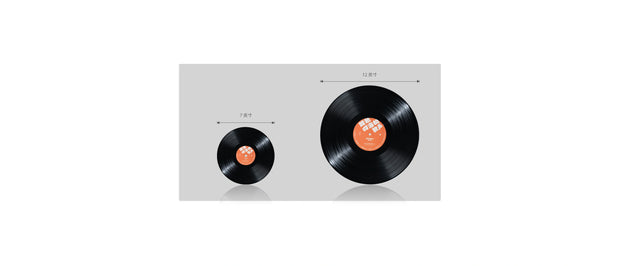

Which record sizes and speeds are supported?

It supports 7-inch and 12-inch records at 33⅓ or 45 RPM. A large-hole 45 RPM adapter is included.

Can it play 10-inch records?

The automatic size selector is specified for 7-inch and 12-inch records. A 10-inch record may require careful manual cueing and is not part of the stated automatic-size support.

Can I install a different cartridge?

FiiO recommends only the same AT3600LA model because the automatic tonearm and tracking force are factory-calibrated for it. Other cartridges are not supported.

Can I replace only the stylus?

Yes. The stylus is a consumable part and can be replaced with a compatible stylus for the AT3600LA cartridge. Stylus wear is not covered by the product warranty.

Can tracking force and anti-skate be adjusted?

No user adjustment is provided. Tracking force is factory-set to approximately 3.5 ± 0.5g for the supplied cartridge.

Can the TT13 convert records to digital files?

No. It does not include USB recording or vinyl-ripping functionality.

Why does the platter appear to wobble slightly?

First confirm that the cast-aluminum platter is seated correctly and rotates freely. If movement is excessive or audible, stop playback and reseat the platter rather than forcing the mechanism.

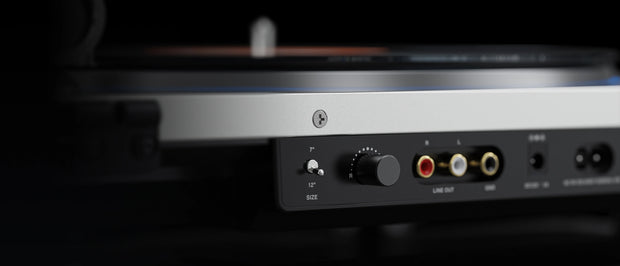

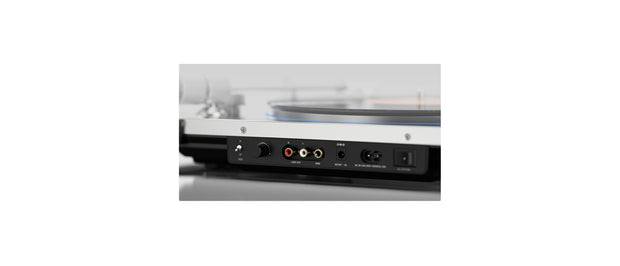

What does the rear balance control do?

It compensates for small left/right level differences in the analog output. Leave it centred unless one channel is consistently louder after checking the cables and speakers.

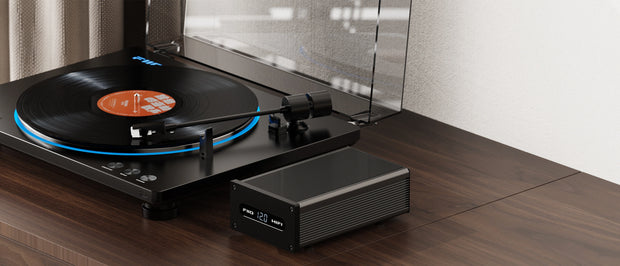

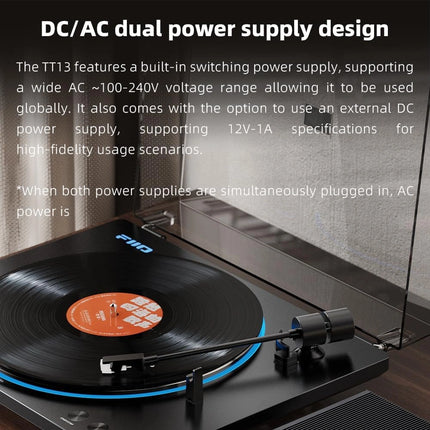

Can I use an external DC power supply?

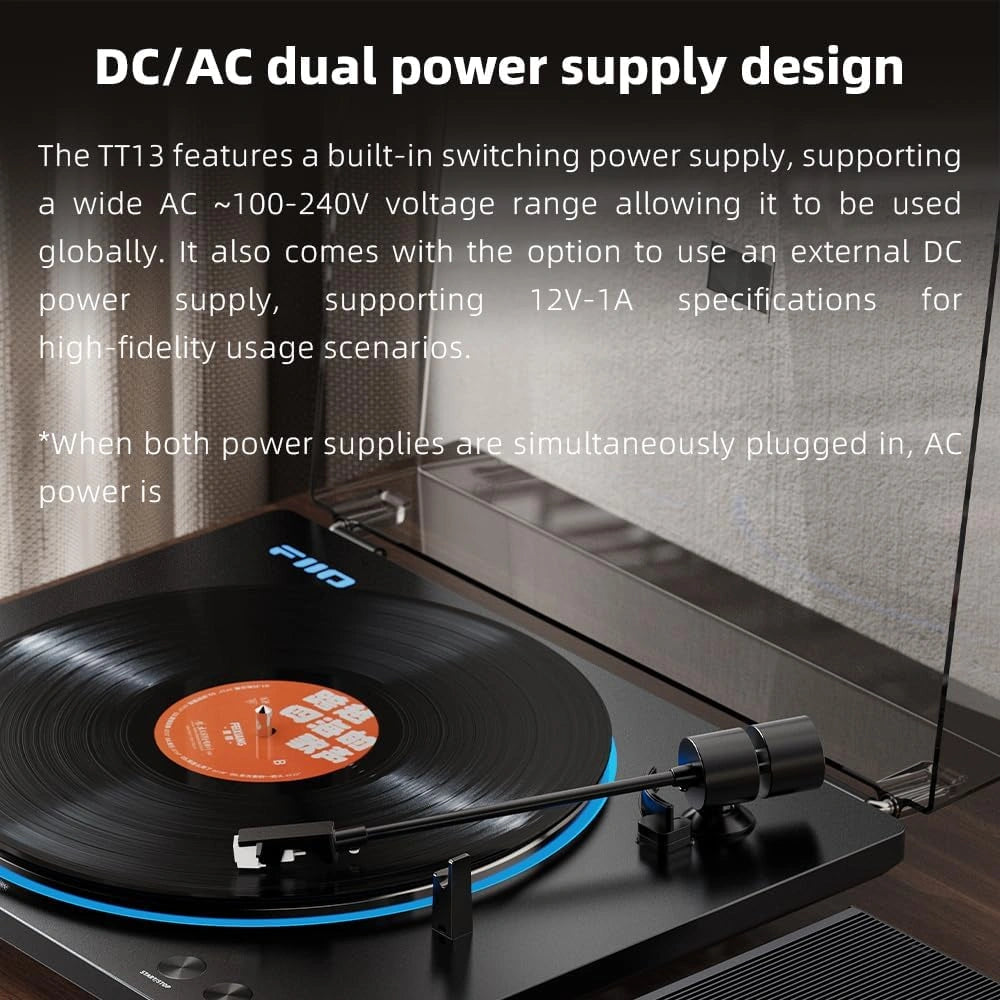

Yes. Use a suitable 12V/1A or higher supply and turn off the AC power switch when using DC. If AC and DC are connected together, AC takes priority.

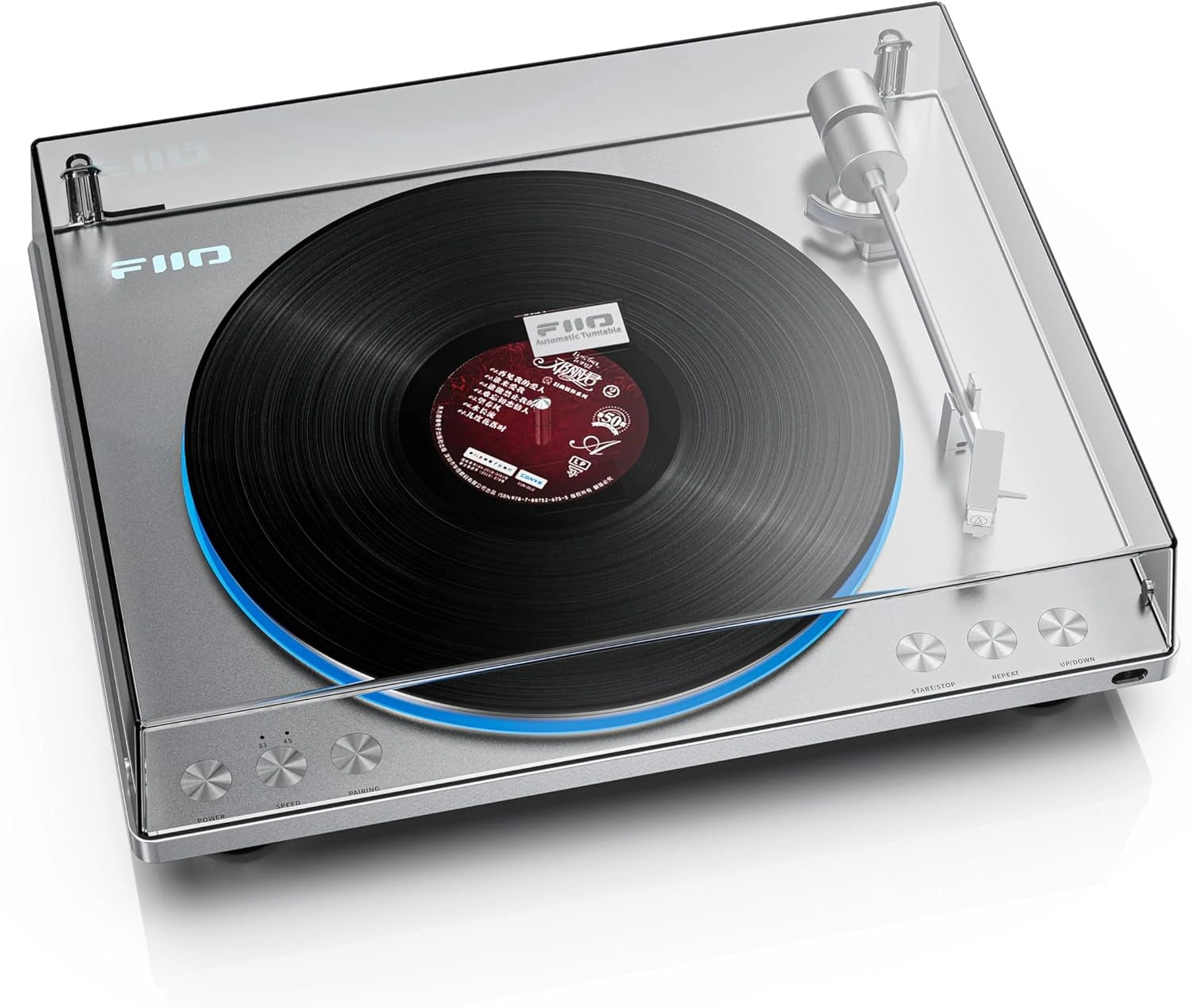

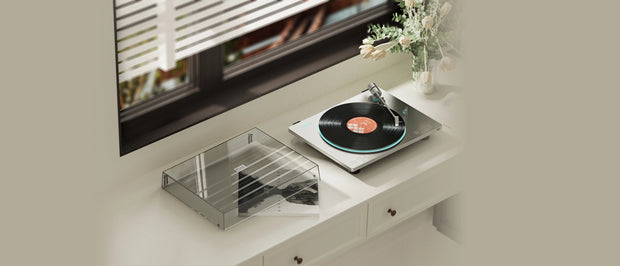

Does the dust cover need to be removed during playback?

No. It can be used open or closed and is removable. If acoustic feedback occurs at high speaker volume, try closing it, removing it or moving the turntable farther from the speakers.

HOW TO CONNECT

Active speakers

Source icon: Vinyl record
Source: 7-inch or 12-inch record
Connection: AT3600LA cartridge and built-in phono preamplifier
Output connection: Stereo RCA line output
Target icon: Active speakers
Output: RCA input on powered speakers

Note: Use a LINE/AUX input, start with low speaker volume and connect the supplied ground wire if the speaker system provides a grounding terminal.

Integrated amplifier or receiver

Source icon: Vinyl record
Source: TT13 analog playback
Connection: Built-in phono preamplifier
Output connection: Stereo RCA line output
Target icon: Amplifier
Output: AUX / LINE / CD input

Note: Do not use the amplifier's PHONO input because the TT13 already outputs an equalized line-level signal.

Wired headphone system

Source icon: Vinyl record
Source: TT13
Connection: RCA line output
Output connection: RCA cable
Target icon: Headphone amplifier
Output: Wired headphones through a separate headphone amplifier

Note: The TT13 has no headphone socket or volume control; adjust listening level on the connected headphone amplifier.

Bluetooth headphones or speakers

Source icon: Vinyl record
Source: TT13 Bluetooth version
Connection: Bluetooth 5.2 transmission
Output connection: SBC / aptX / aptX LL / aptX HD
Target icon: Wireless headphones or speaker
Output: Wireless vinyl playback

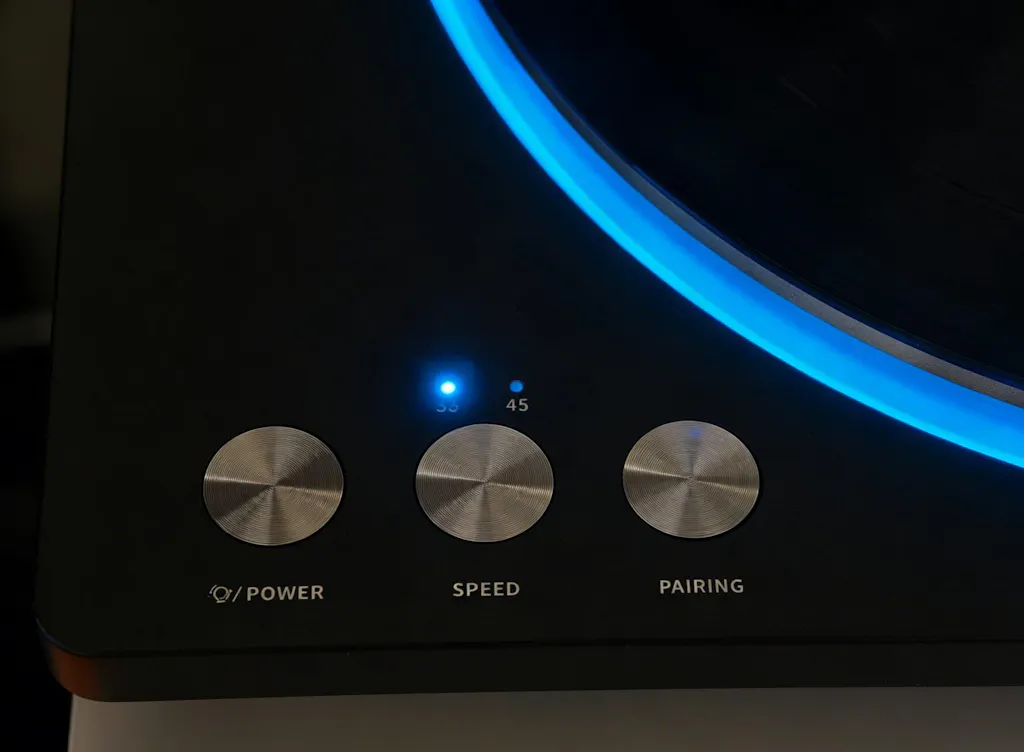

Note: Hold Pairing for three seconds, place the receiving device in pairing mode and keep nearby devices from entering pairing mode accidentally.

Technical Specifications

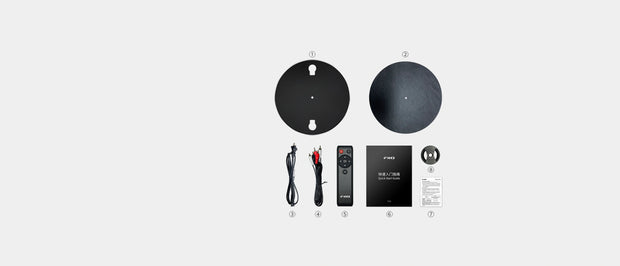

What's in the box, manuals and downloads

• FiiO TT13 with Cast-Aluminum Platter ×1
• Platter Mat ×1
• Regional Power Cord ×1
• RCA Audio Cable with Ground Wire ×1

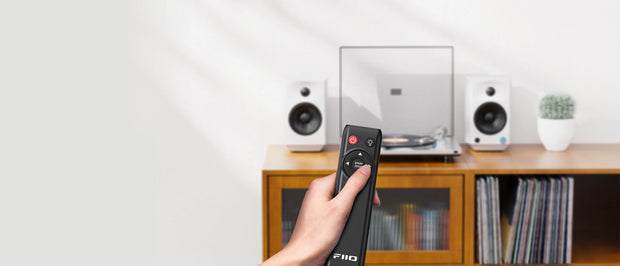

• Infrared Remote Control ×1
• Quick Start Guide ×1
• Warranty Card ×1
• Large-Hole 45 RPM Record Adapter ×1
