💻 RAKOSO H400: Professional 4-Zone Wireless Streaming Pre-amplifier
💡 Product Overview

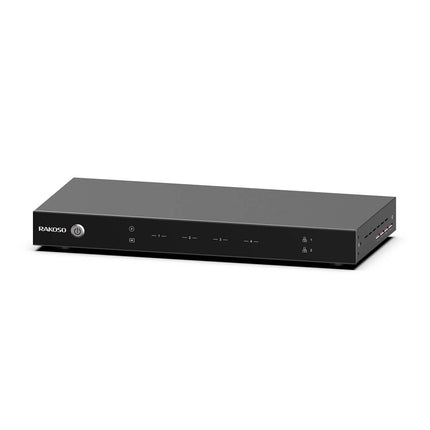

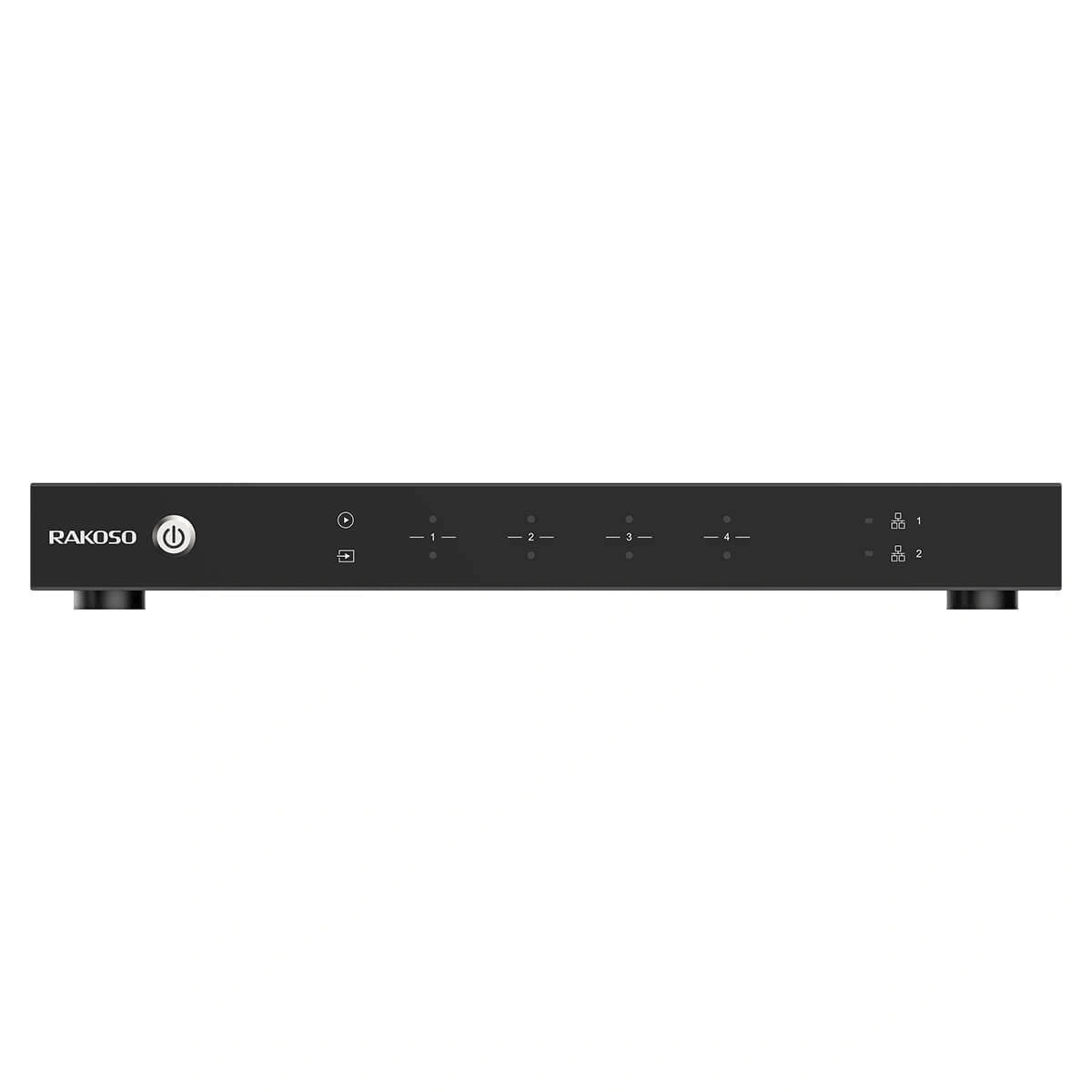

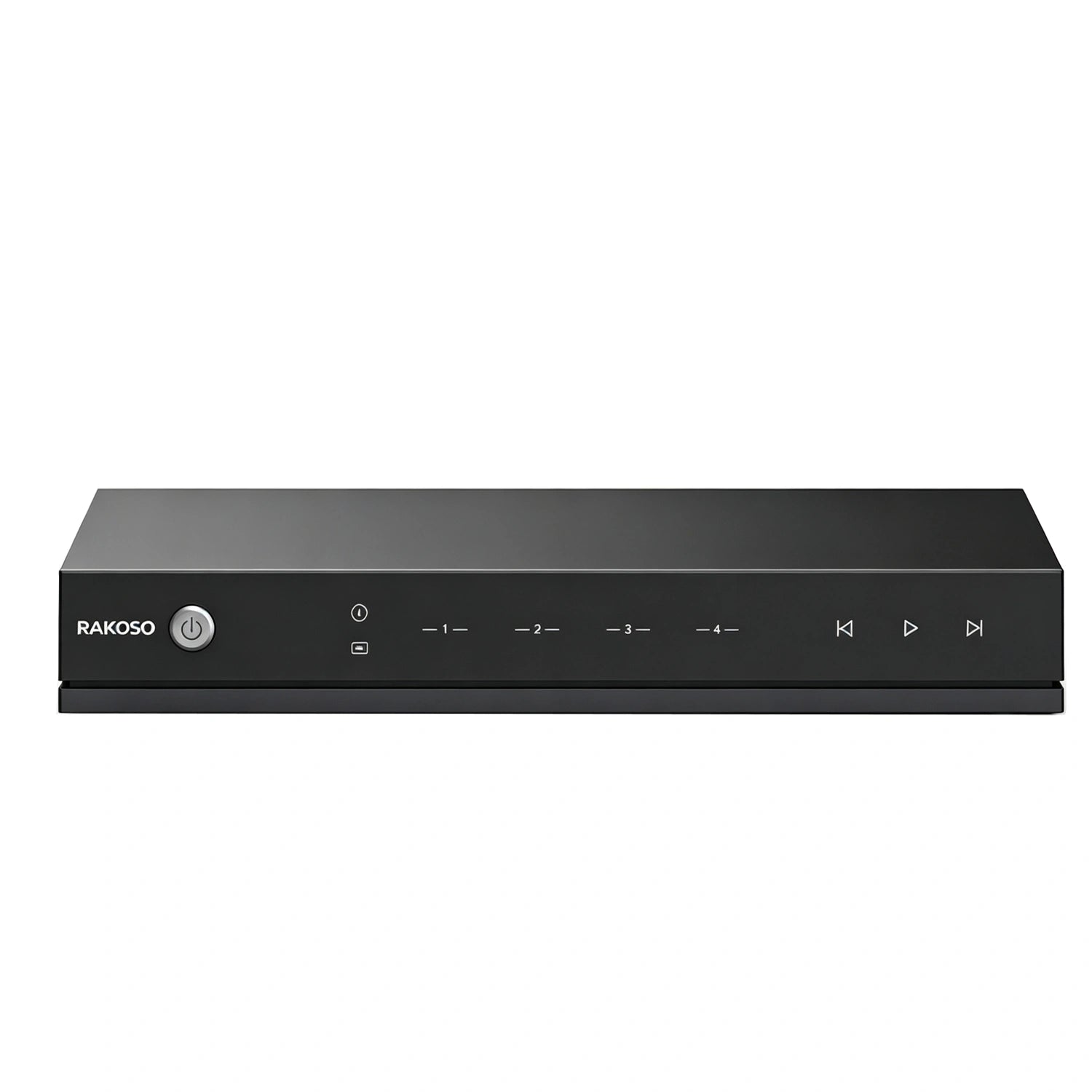

The RAKOSO H400 is a professional 4-zone wireless streaming pre-amplifier designed for whole-house audio integration. Unlike the HA400 which includes a power amplifier, the H400 acts as a high-fidelity source manager. Housed in a compact 1U rack-mount chassis, it features four independent Hi-Fi audio decoding units. It is the ideal engine for complex audio systems where you want to stream high-resolution music to multiple zones while utilizing your own external high-power amplifiers or active speakers.
⚙️ Key Specifications
| Feature | Details |
| Device Type | Multi-Zone Pre-amplifier (No built-in power amp) |
| Chassis Size | Standard 1U Rack-mount |
| Audio DAC | High-performance Texas Instruments (TI) DAC |
| Decoding | Up to 24-bit/192kHz; Support for FLAC, WAV, APE, etc. |

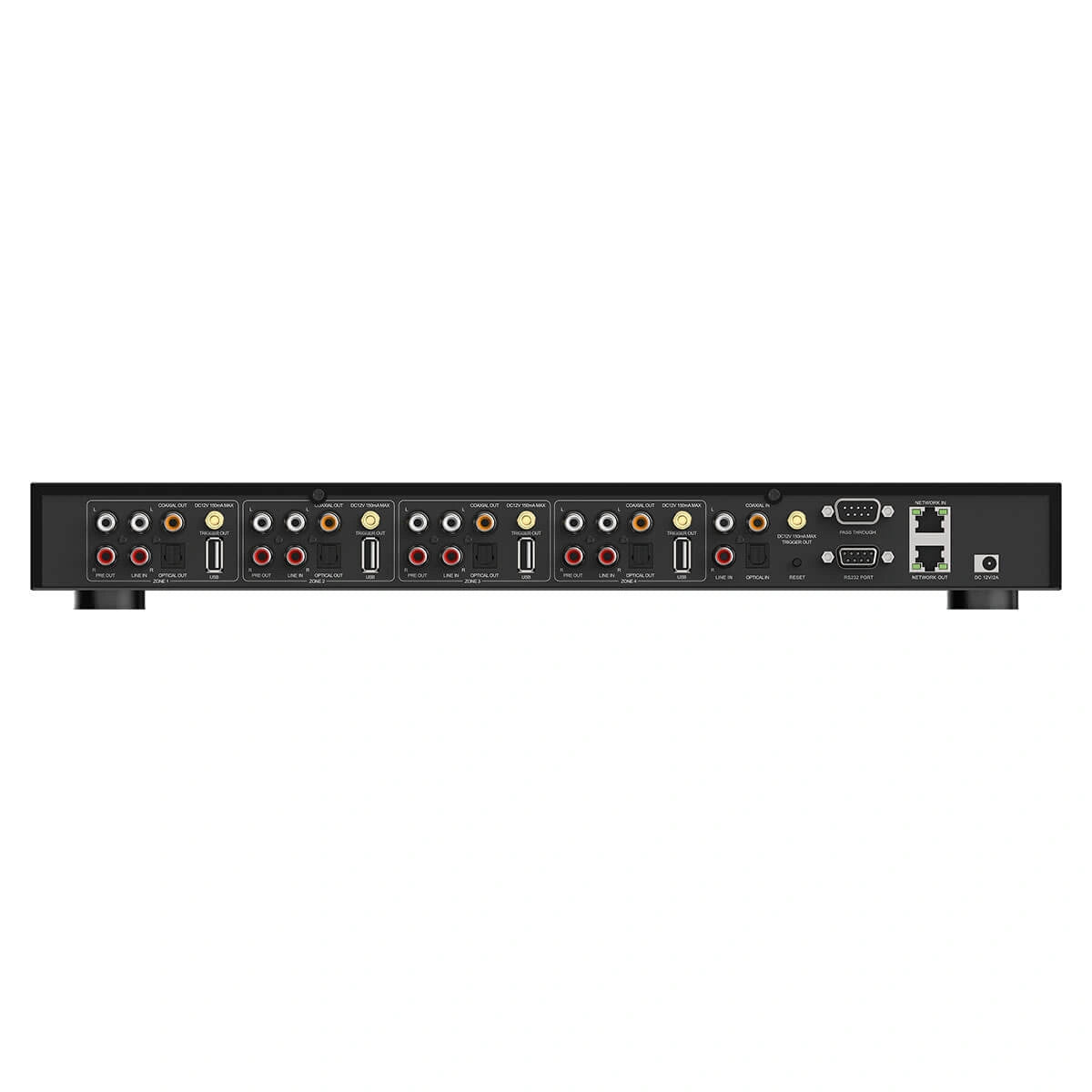

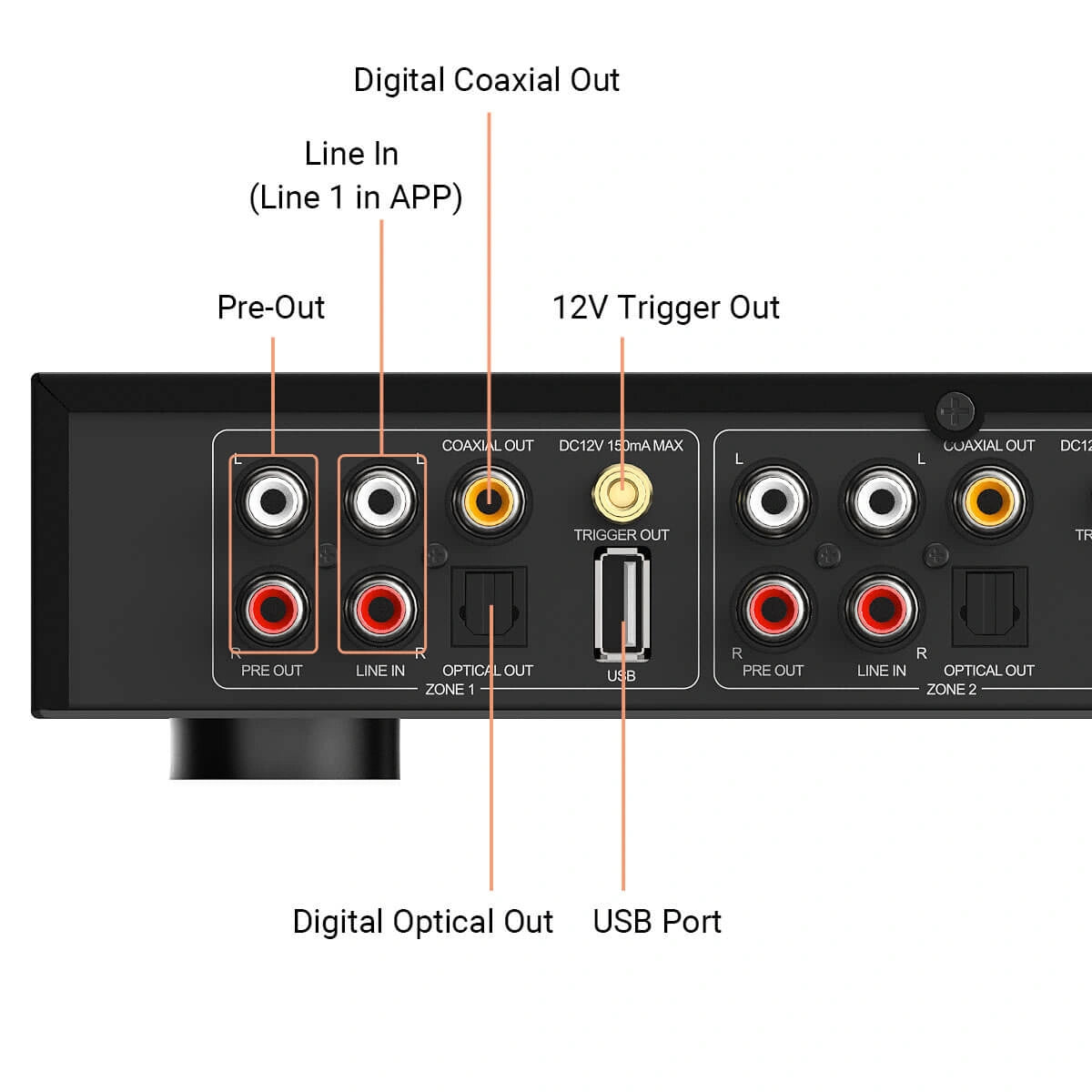

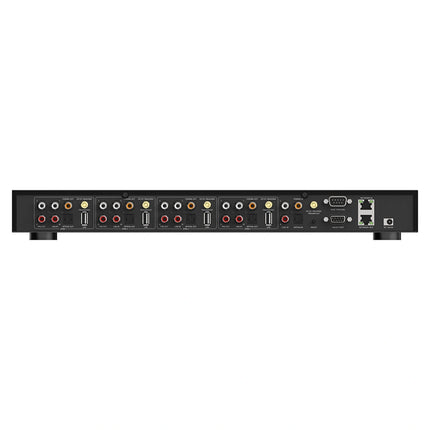

| I/O per Zone | RCA Pre-out, Optical In/Out, Coaxial Out, Line In, USB Host |
| Streaming | AirPlay, Spotify Connect, Tidal Connect, DLNA, UPnP, Qplay |
| Expansion | Scalable up to 32 zones via multiple linked units |
🔄 Technical Comparison: H400 vs. HA400
Choosing the right model depends on your existing hardware and installation needs:
| Feature | RAKOSO H400 | RAKOSO HA400 |
| Amplification | None (Requires external amp) | Built-in 50W x 8 (Directly drives speakers) |
| Rack Height | 1U (Saves space) | 2U (Due to heat and amp components) |
| Connectivity | Pre-out (RCA) & Digital Outs | Speaker Binding Posts & Pre-out |
| Primary Use | High-end installs with dedicated power amps | All-in-one convenience for passive speakers |
| Thermal Design | Low heat (Pre-amp only) | Integrated fans for cooling internal amp |
🎯 Ideal Use Cases
-
Existing Pro-Audio Setup: Use the H400 to add smart wireless streaming to high-end multi-channel power amplifiers (like those from Rotel, Anthem, or Parasound).
-
Active Speaker Projects: Perfect for luxury homes where high-quality active speakers are already installed in various rooms.
-

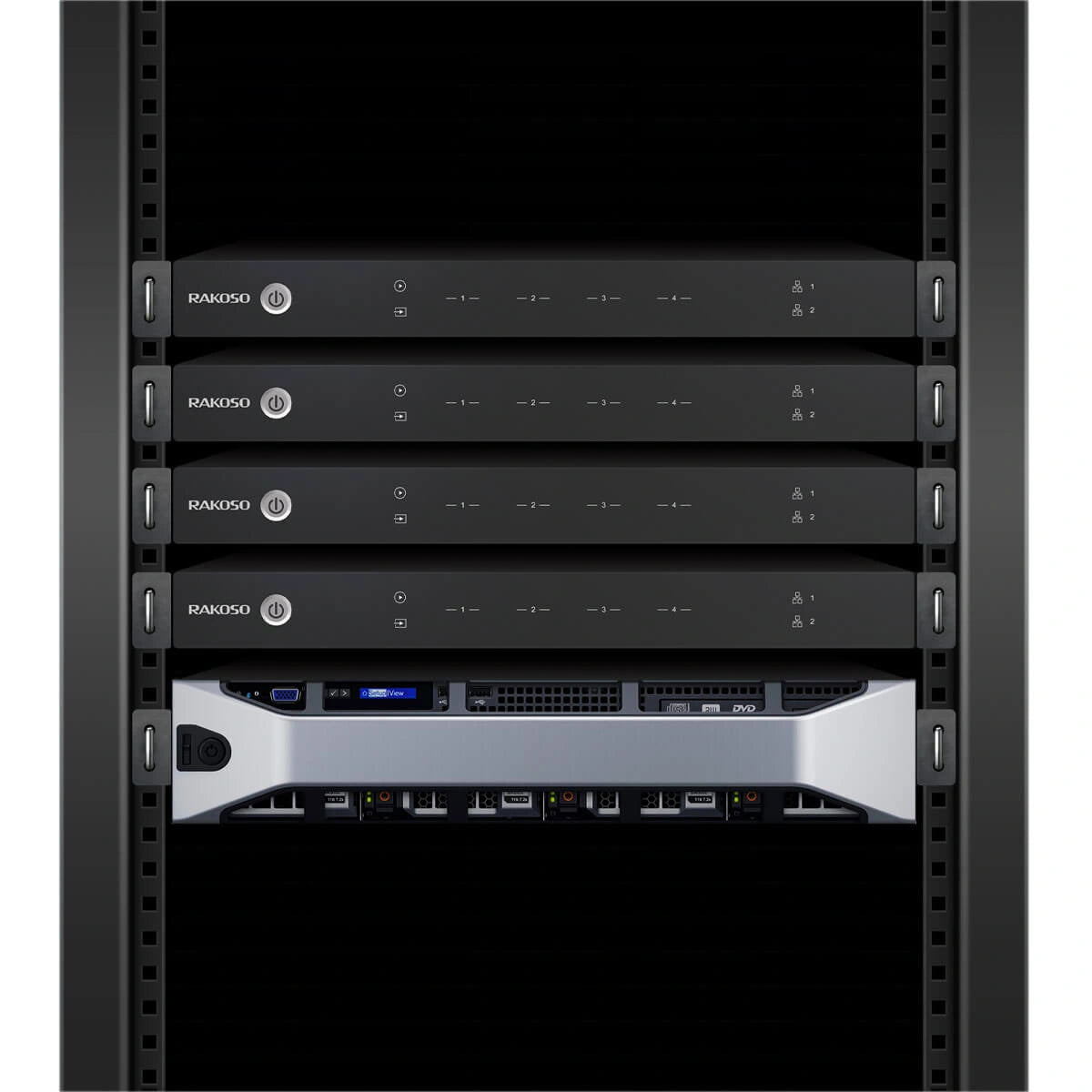

Large Scale Integration: When building a massive 12 or 16-zone system, multiple 1U H400 units provide a cleaner, more efficient rack layout than using multiple heavy amplifier units.
Specifications
- Weight: 200gr
- Usage: Indoor & outdoor
Pros and cons
- Sustainably produced
- Ideal for everyday use
Smart 4 Zone Streaming Preamplifier
The M400 is a networked 4-zone streaming preamplifier that allows you to directly stream up to 4 audio devices at the same time, per M400 unit.
The M400 supports the most popular smart home systems, Fibaro and Elan, and will be integrated with more smart home brands in the future.
Stream To 4 Zones - Independently, Or In Sync
Add Direct Streaming, AirPlay 2, and Spotify Connect capability to your existing active wired speakers, amplifiers, preamps and receivers.
Stream and control 4 different audio outputs at once, controlled wirelessly via our 4STREAM App.
Stream Any Kind of Audio On One Device
In addition to direct streaming from online streaming services, AirPlay 2, and Spotify Connect, there are multiple digital and analog input and output ports allowing you to connect most of the audio devices in your home.
Brilliant Sound Streamed Directly From Your Favorite Providers
Spotify, Amazon Music, Tidal, Qobuz, Napster, TuneIn, Internet Radio, iHeart Radio, QQ Music, QQ FM.
The H400 connects directly to your online streaming providers to play high quality audio, avoiding Bluetooth bottlenecks and compression.

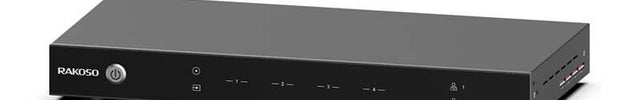

Slim Design - Shelf or Rack Mount

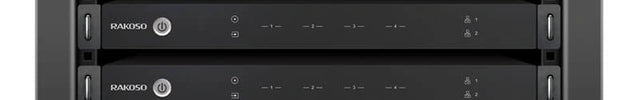

The H400 comes with optional mounting brackets for installation in standard 19" racks (1U height).
LAN And Smart Home Integration
H400 comes ready to integrate with Fibaro and ELAN Smart Home installations, with an RS-232 port to connect to your smart home control unit.
Integrate and control your H400 with your smart home programs.

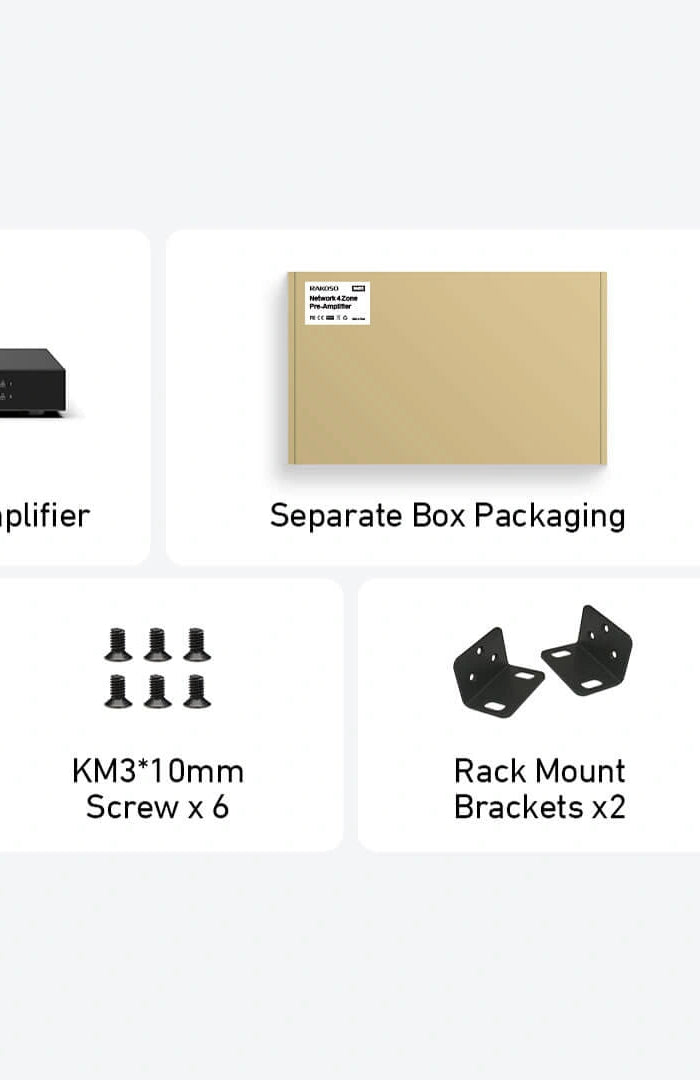

Package Includes
M400, User Manual, Ethernet Cable, 12V 2A DC Power Adapter, Rack Mount Brackets x2.
Technical Specifications
| Category | Details |
|---|---|
| Newest Firmware Version | 4.6.415145.35 |
| Connectivity | WiFi:IEEE802.11 b/g/n 2.4G Bluetooth:5.0 SBC/AAC, 15M, BT Receiver Wired Network:Ethernet Single 10/100M RJ45 InEthernet RJ46 Out(Output to other device to share the network) |
| Streaming Protocols | AirPlay 2, DLNA, UPnP, Spotify connect, Qplay |
| Music Format | FLAC/MP3/AAC/AAC+ALAC/APE/WAV |
| Audio Format | Decoding up to 192khz/24bitsOutput up to 44.1khz/16bits CD quality |
| Frequency Response | 20Hz-20kHz |
| Local Storage | Mobile device memory, NAS, USB pen drive/Stick |
| Power Input | 12V/2A |

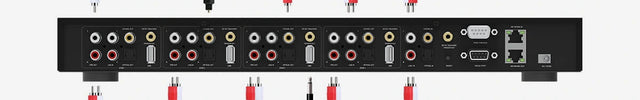

| Audio Input | 4 Zone InterfacesAnalogRCA In(Max 2V RMS input) Master InterfacesAnalogRCA In(Max 2V RMS input) DigitalOptical InputCoaxial Input |
| Audio output | 4 Zone InterfacesAnalogRCA Out(Max 2V RMS Output) Digital Optical OutputCoaxial Output |

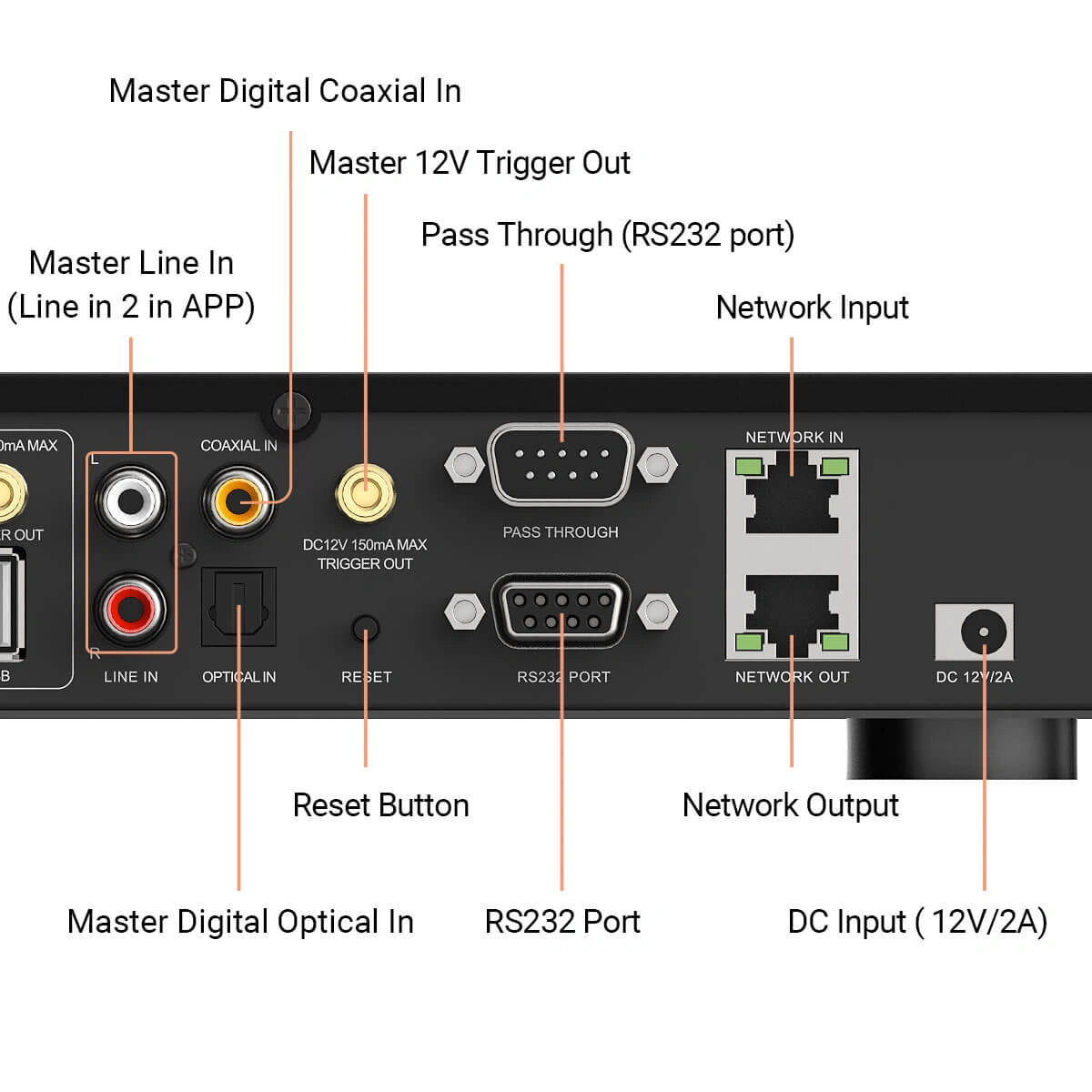

| Other Interfaces | 4 Zone InterfacesTrigger Output(12V) Master InterfacesTrigger Output x1(12V)Dual-way RS232 |
| USB Host | For USB pen drive/stick, 1000 songs limited |
| Weight | 3kg |
| Dimensions | 43x20x4.5(5.3 with footer) cm |
| Working temperature | 0~40℃ |
| Power Button | ⚪White-WiFi & network mode:Flashing fast-device is bootingFlashing slow- waiting for WiFi connectionSolid- WiFi is connected🟢Green-Line in 1 (Zone Line in)🔴Red-USB mode🟡Yellow-Yellow for Line in 2 (Master Line in)🟣Magenta-Master Optical inCyan-Master Coaxial in |
FAQ
How does the RAKOSO H400 centralize a home audio system?
The RAKOSO H400 acts as a powerful hub for all your music needs. It combines a high-performance amplifier with advanced Wi-Fi and Bluetooth 5.0 streaming capabilities. By connecting your favorite passive speakers to the H400, you can stream music directly from the cloud, your phone, or your local network, effectively modernizing your entire audio setup while maintaining professional-grade sound output.
What makes the H400 different from standard wireless amplifiers?
The versatility of the RAKOSO H400 lies in its extensive range of physical and wireless inputs. Beyond high-res Wi-Fi streaming, it features Optical input for TV integration, USB DAC for PC connection, and Line-in/Line-out for traditional analog gear. This "all-in-one" design allows it to serve as the primary audio driver for your living room, home theater, or even high-fidelity desktop setup.
Can I expand the H400 into a whole-house audio network?
Absolutely. The H400 is fully compatible with the multi-room audio ecosystem. Through a dedicated mobile app, you can pair the H400 with other compatible streaming devices in different rooms. This allows you to sync the same playlist across your entire home for a seamless "party mode" or manage different audio zones independently with just a few taps on your smartphone.
Is the RAKOSO H400 compatible with high-resolution streaming services?
Yes, it is built for audiophiles who prioritize quality. The H400 supports a wide array of premium streaming protocols including AirPlay, Spotify Connect, Tidal Connect, and Qobuz. Because it streams via Wi-Fi, it can handle lossless audio files without the compression typically associated with standard Bluetooth, ensuring you hear every detail of your high-resolution music library.
How does the H400 handle wired connections like TVs or Turntables?
The H400 is designed to bridge the gap between digital convenience and analog tradition. Its Optical (S/PDIF) input ensures a lag-free, high-quality digital connection for your TV or gaming console. Meanwhile, the RCA Line-in allows you to connect analog sources such as a CD player or a turntable (with a phono preamp), making it a truly flexible amplifier that adapts to whatever playback device you prefer.
