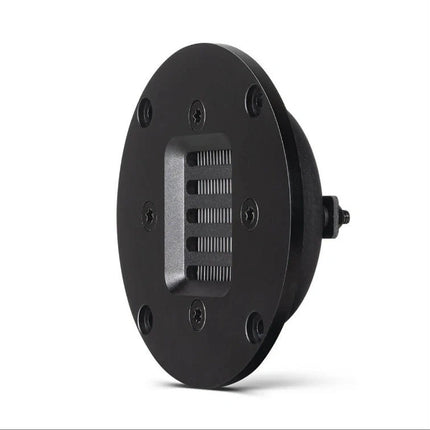

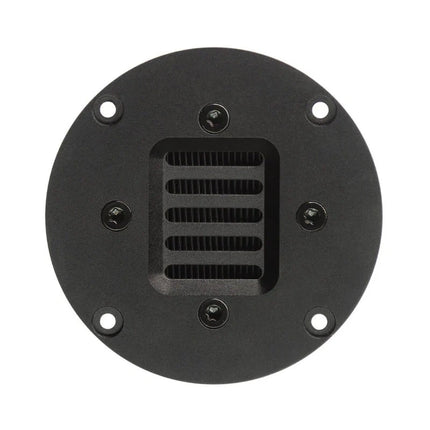

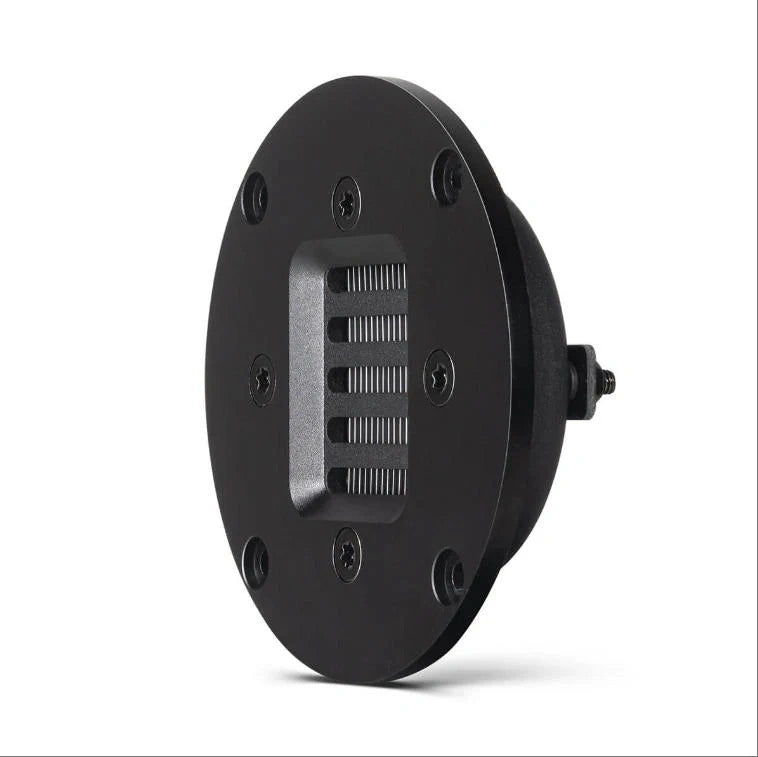

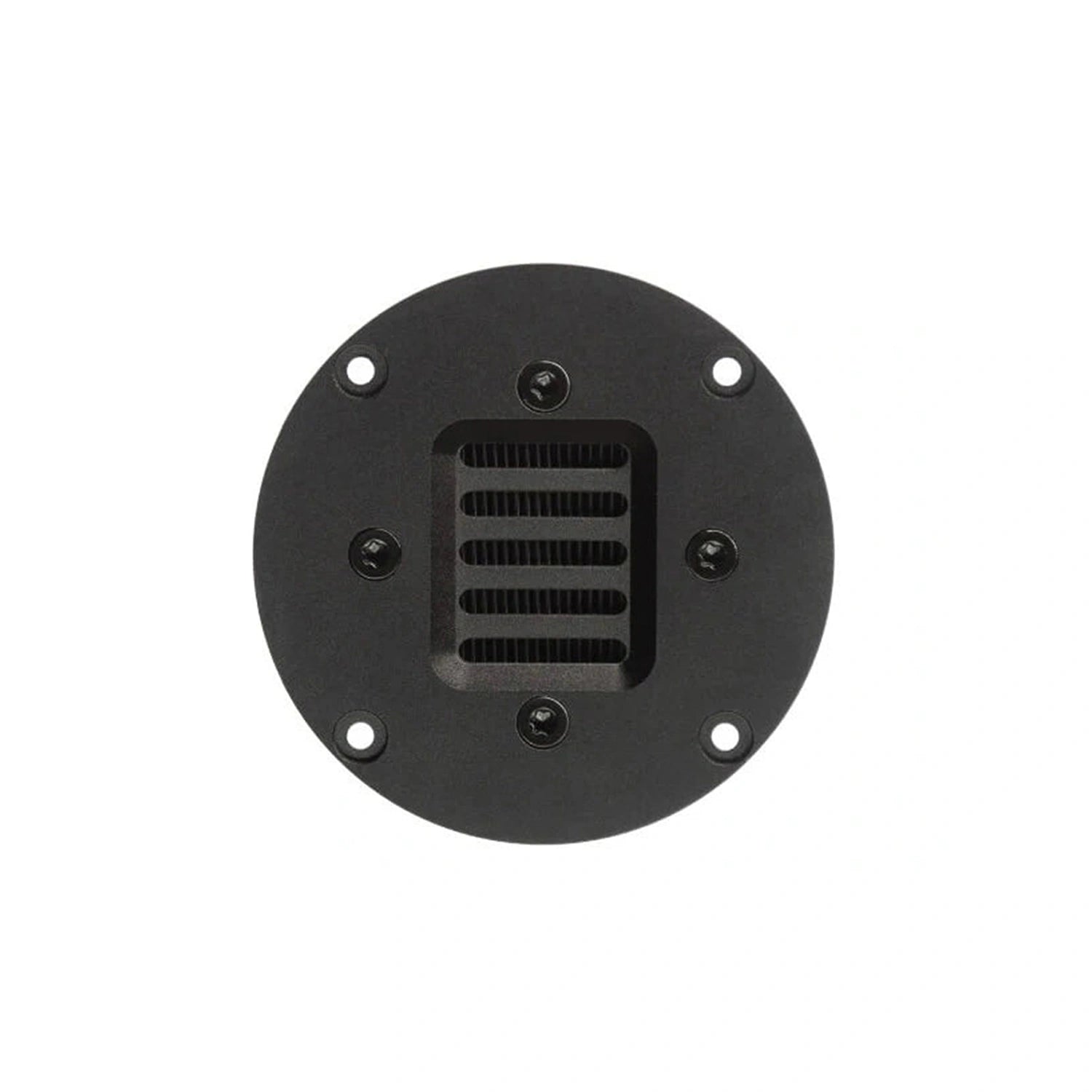

Arylic AMT Tweeters: Air Motion Transformer High-Frequency Drivers
Elevate your sound system's performance to audiophile standards with Arylic Air Motion Transformer (AMT) Tweeters. Utilizing proprietary pleated diaphragm technology, these drivers accelerate the air faster than traditional dome tweeters, resulting in unmatched clarity, speed, and accuracy in high frequencies.
Key Features and Benefits
-
Exceptional Transient Response: The low-mass pleated ribbon diaphragm reacts instantly to the audio signal, reproducing high-frequency details with stunning speed and precision, delivering a truly "live" sound experience.
-
Crystal-Clear Highs: Enjoy shimmering cymbals, airy vocals, and intricate instrumental textures without harshness or fatigue, extending the frequency response far beyond human hearing.
-
Wide Sound Dispersion: Designed to offer a broad and controlled soundfield, ensuring that the sweet spot is large and the imaging is stable, regardless of your listening position.
-
High Power Handling: Built with robust magnetic structures and high-temperature components, these tweeters maintain performance and integrity even under high-demand audio conditions.
-
Ideal for Upgrades: Perfect for DIY speaker builds, professional studio monitors, or as a direct upgrade to existing systems that lack high-frequency refinement.
Transform your listening experience with Arylic AMT Tweeters and hear the subtle details in your music you never knew were there.
Specifications
- Weight: 200gr
- Usage: Indoor & outdoor
Pros and cons
- Sustainably produced
- Ideal for everyday use
A Range Of Options To Suit Your Design
HiFi Tweeter
Play with clear and detailed sound.
Frequency Range
- AMT7：3.3kHz to 40kHz
- AMT9：2.3kHz to 31kHz
Power Handling
- Easy to handle any music scene.
- AMT7：25W
- AMT9：35W
Coverage
180°Wide Soundstage
Diversified Design
- 2-way
- 3-way
- bookshelf
- satellite
- center speakers
- boombox
High Performance
the powerful, lightweight neodymium magnet structure ensuring low distortion and high efficiency
Easy to Install
Easy to install and full sealing with already mounted EVA.
Optional Size

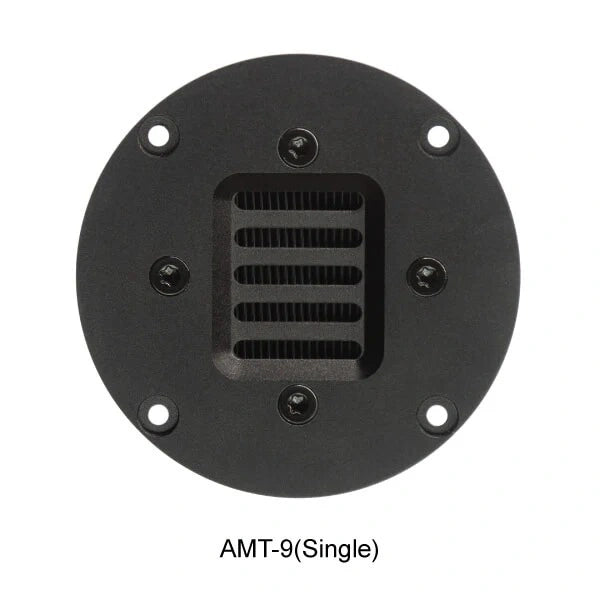

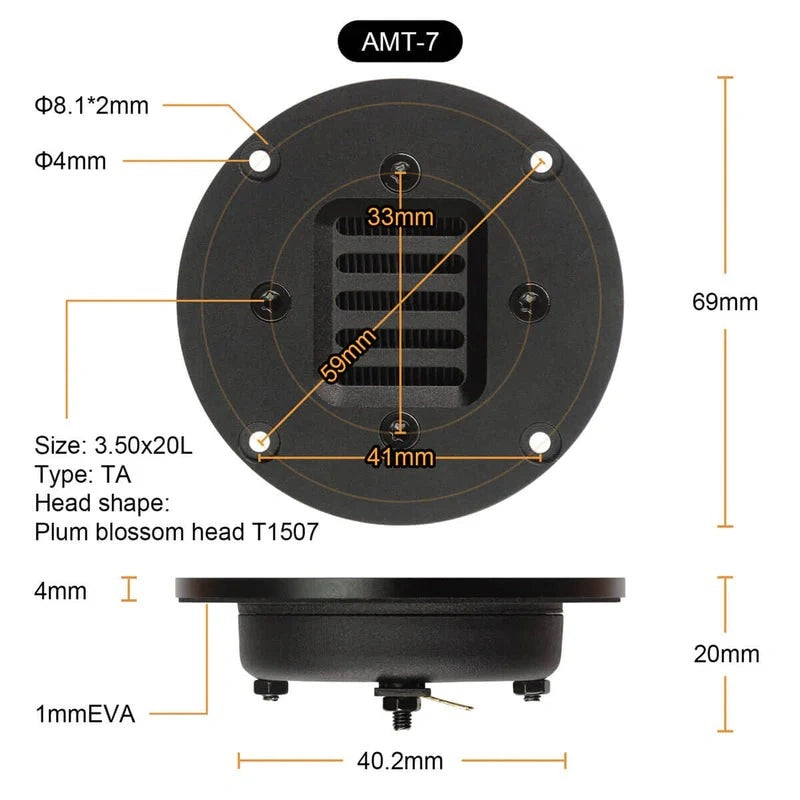

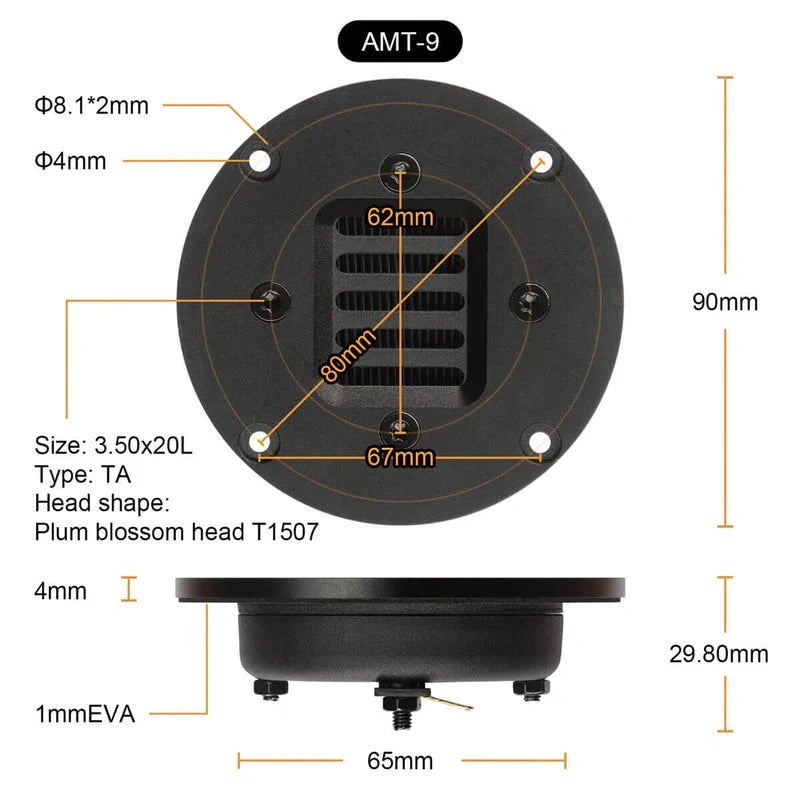

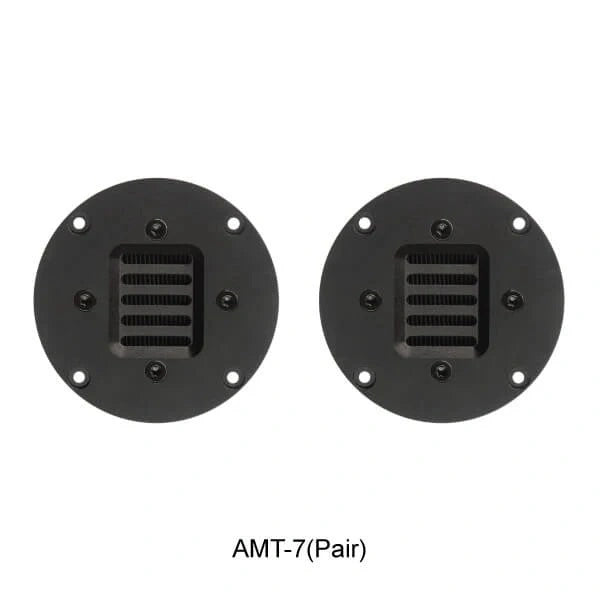

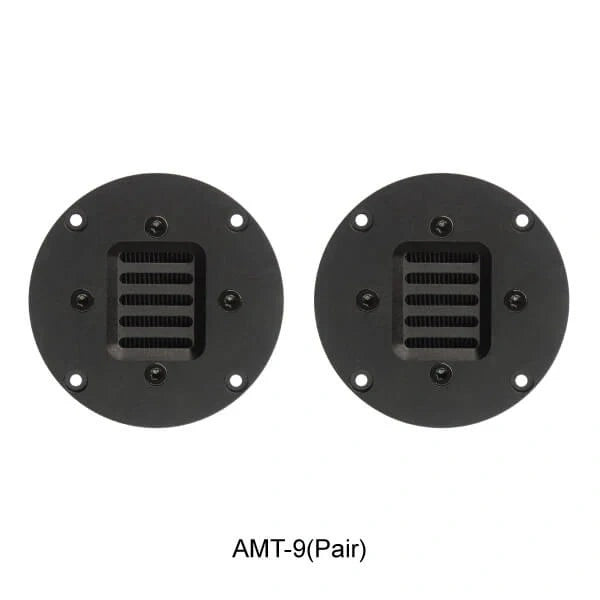

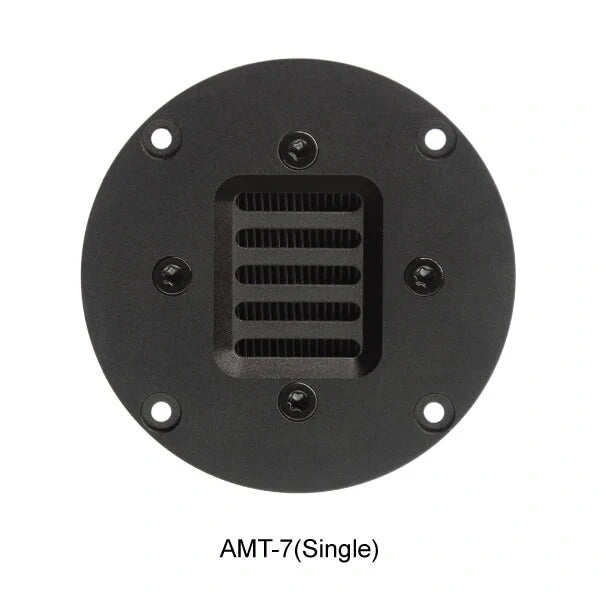

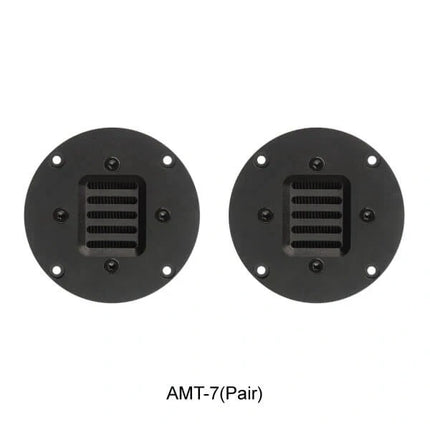

We offer AMT-7 and AMT-9 two size for flexiable speaker building projects.
About AMT Tweeters

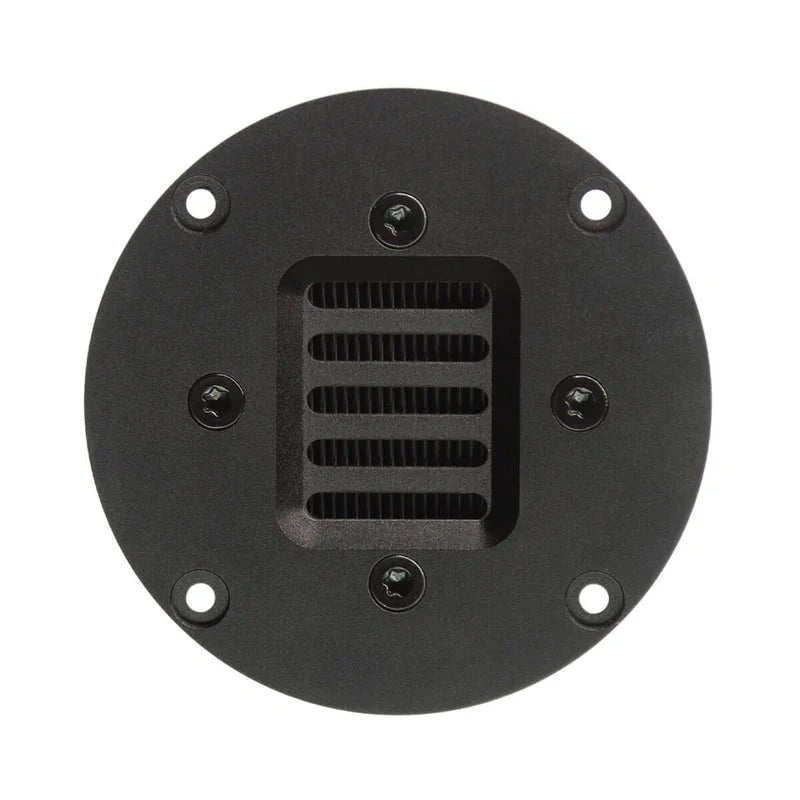

The AMT-7 and AMT-9 Heil AMT Tweeters feature a compact AMT element housed in a round design, offering a wide dispersion of sound that can easily upgrade existing or new speaker designs.

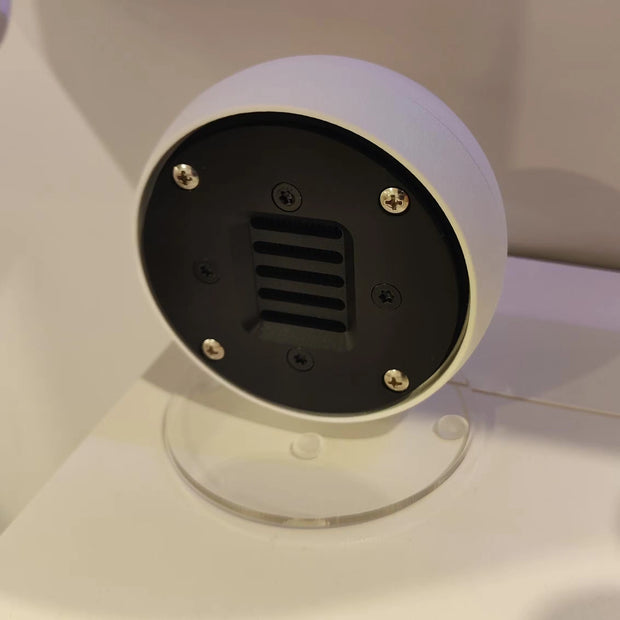

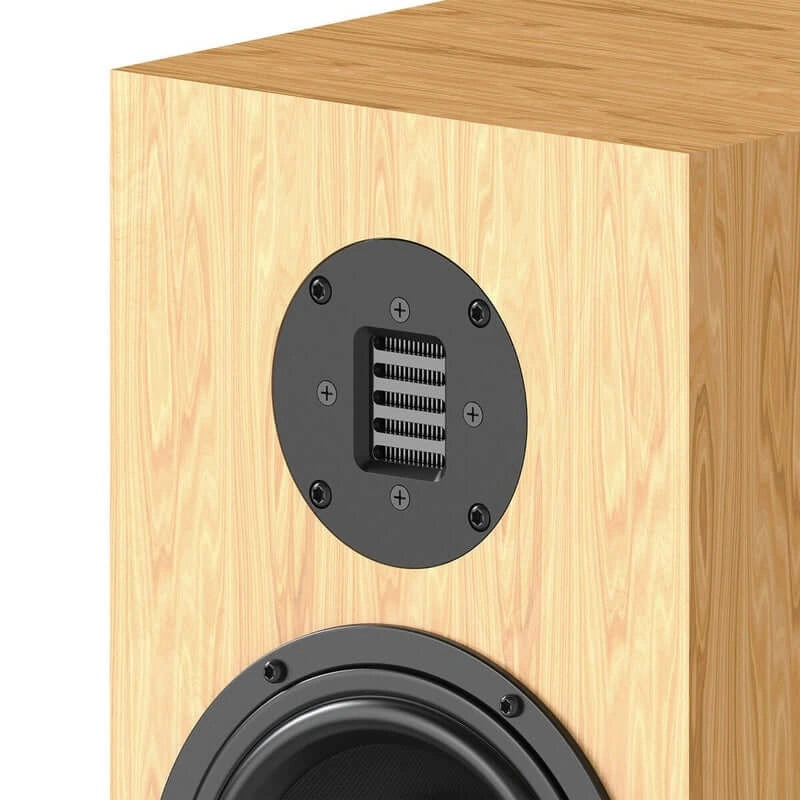

With their small size, they can be used in a variety of speaker projects, including 2-way, 3-way, bookshelf, satellite, center speakers, and boombox.
The attached EVA on the AMT Tweeter ensures a tight seal, optimizing sound quality.
These tweeters utilize premium black film and an advanced AMT design that "squeezes" air molecules to produce clean, detailed, and dynamic treble output with a broad frequency range of up to 40kHz and a wide soundstage.
Additionally, the powerful, lightweight neodymium magnet structure ensuring low distortion and high efficiency.

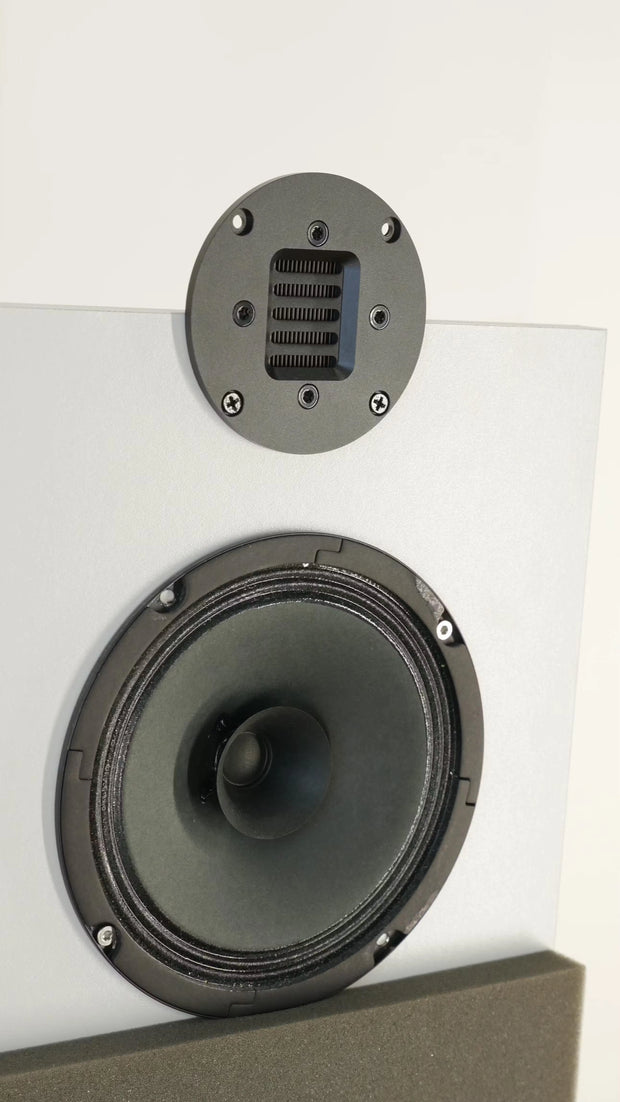

You can easily replace old tweeters or be integrated into new speaker designs to deliver exceptional audio performance by AMT-7 or AMT-9.
More Features
- Superior black film technology for better look and a clear, more transparent sound.
- Sonically best than the soft dome tweeter and the common yellow film AMT Tweeter.
- Advanced AMT design "squeezes"air molecules instead of shoving or crushing them.

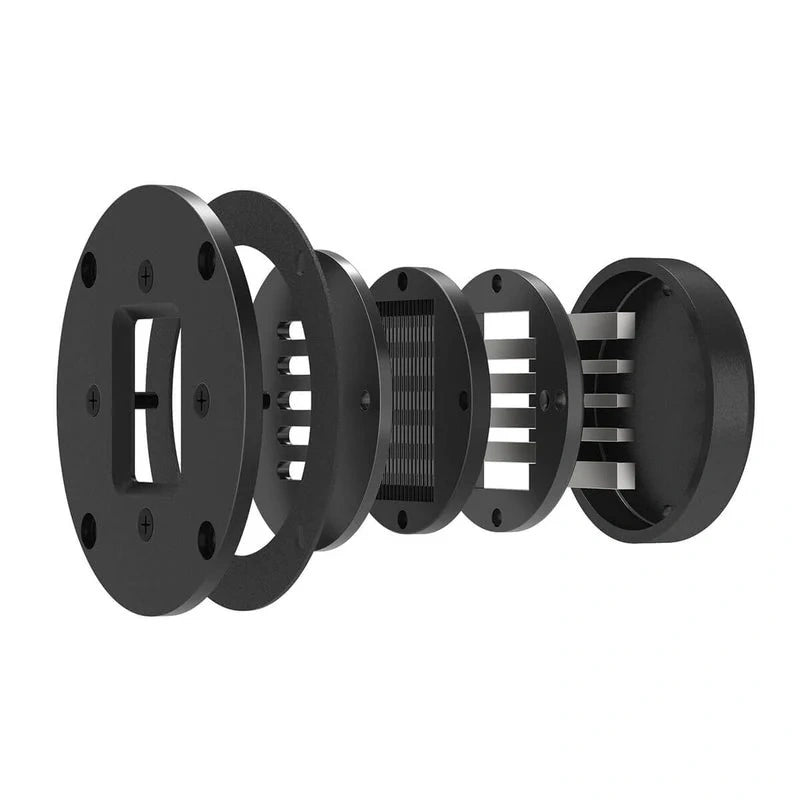

- Folded Kapton ribbon diaphragm delivers clean, detailed, and highly dynamic output.
Technical Specifications
| Category | Details |
|---|---|
| Speaker | - |
| Rated Impedance | 4Ω+0/-15% |
| Re | 3.3Ω±10% |
| RMS Power | 15W |
| Maximal Power | 25W |
| Sensitivity | 89dB±2.5dB |
| Frequency Range | 3.3kHz-40kHz |
| Lowest Recommend Crossover | ≥4.5kHz |
| Material | - |
| Front Panel Material | Aluminum |
| Diaphragm Material | KAPTON |
| Conductive Line Material | Alumium foil |
| Magnet Material | Alumium foil |
| Net Weight | 88.5g/pc |
Technical Specifications
| Category | Details |
|---|---|
| Speaker | - |
| Rated Impedance | 4Ω+0/-15% |
| Re | 3.6Ω±10% |
| RMS Power | 20W |
| Maximal Power | 35W |
| Sensitivity | 92dB±2.0dB |
| Frequency Range | 2.3kHz-31kHz |
| Lowest Recommend Crossover | ≥2.7kHz |
| Material | - |
| Front Panel Material | Aluminum |
| Diaphragm Material | KAPTON |
| Conductive Line Material | Alumium foil |
| Magnet Material | Alumium foil |
| Net Weight | 280g/pc±10% |

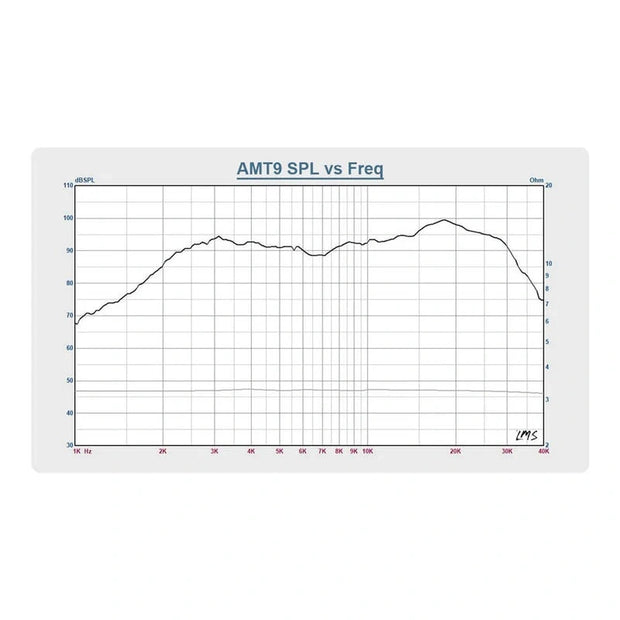

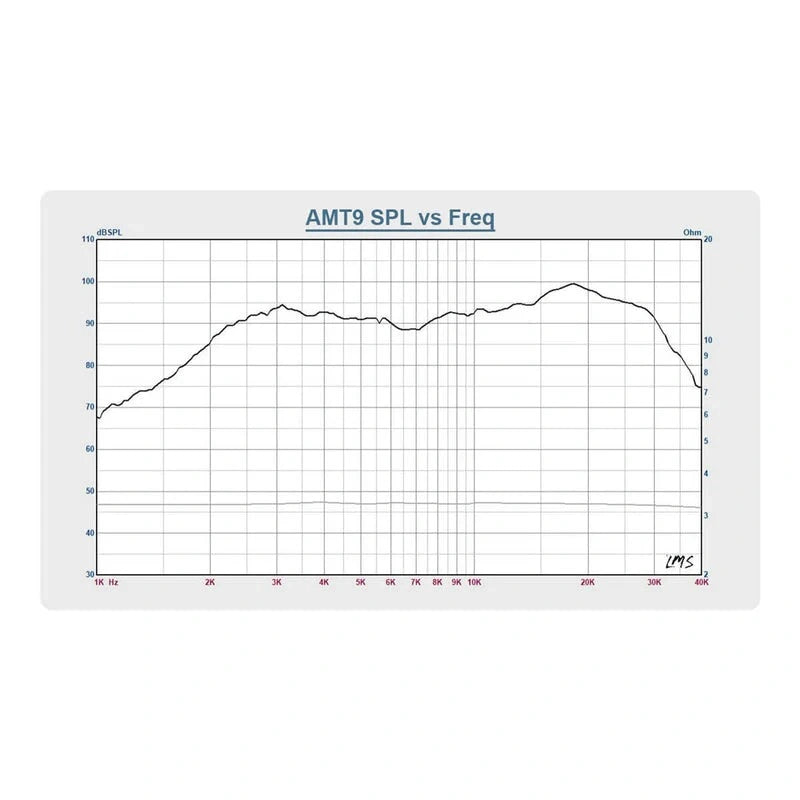

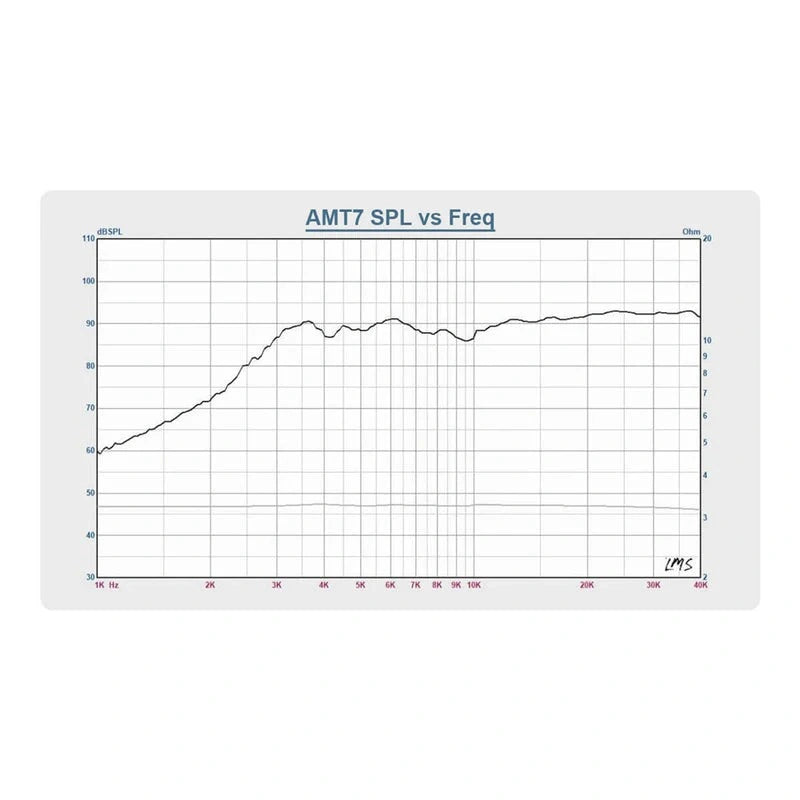

SPL vs Freq
Build Your Wireless Projects
FAQ
What makes Arylic AMT Tweeters different from standard dome tweeters?
Arylic AMT (Air Motion Transformer) Tweeters utilize a unique folded diaphragm technology that squeezes air out rather than pushing it like a traditional piston. This results in a significantly faster transient response and lower distortion. Because the surface area of the folded diaphragm is larger than a standard dome, it moves a higher volume of air with minimal movement, delivering incredibly crisp, airy, and transparent high frequencies.
How do AMT Tweeters improve the "soundstage" of a DIY speaker?
Thanks to their wide horizontal dispersion and controlled vertical radiation, Arylic AMT Tweeters create a vast and precise soundstage. This allows listeners to pinpoint the exact location of instruments and vocals in a recording. By integrating these into your custom speaker build, you achieve a more "three-dimensional" listening experience that is often found only in high-end, professional studio monitors.
Are Arylic AMT Tweeters suitable for high-resolution audio systems?
Absolutely. AMT tweeters are the preferred choice for Hi-Res audio enthusiasts because of their ability to reproduce ultra-high frequencies far beyond the range of human hearing with extreme accuracy. This ensures that the delicate harmonics and "shimmer" of instruments like cymbals, violins, and female vocals are preserved, making them a perfect match for high-fidelity streamers and lossless music sources.

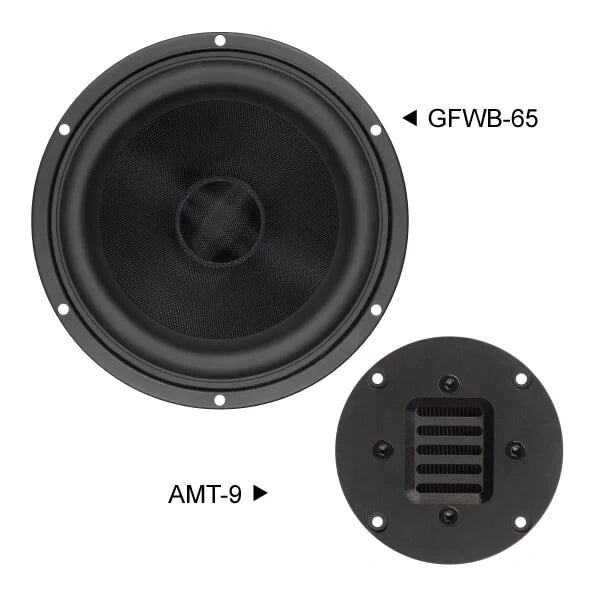

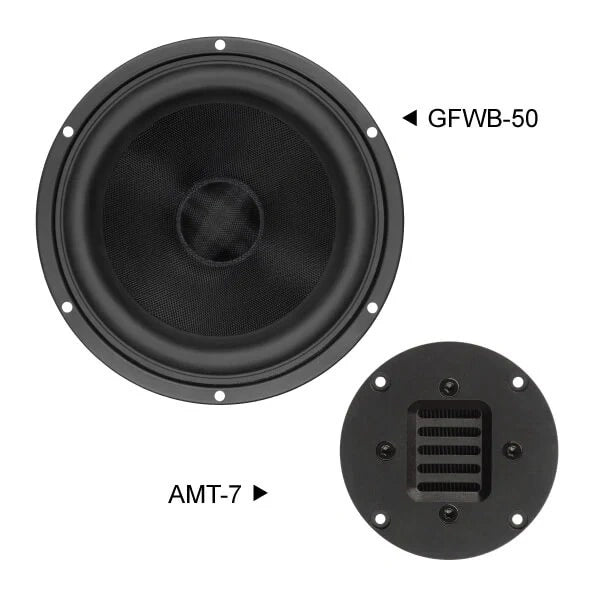

Can I pair Arylic AMT Tweeters with any Midbass driver?
Yes, but for the best results, they should be used in a multi-way system with a high-quality crossover. Because AMT tweeters are exceptionally fast and detailed, pairing them with a responsive Arylic Midbass driver ensures a seamless transition between frequencies. This combination provides a balanced sound signature where the punchy low-end of the midbass meets the refined, effortless highs of the AMT driver.
Why are AMT Tweeters recommended for critical listening and studio monitors?
Professional engineers and audiophiles favor AMT technology for its low fatigue and high clarity. Unlike some metal dome tweeters that can sound "harsh" or "sibilant" during long sessions, the Arylic AMT Tweeter delivers detail without the edge. This makes them ideal for critical listening environments where accuracy is paramount, allowing you to hear deep into the layers of a mix without ear strain.
