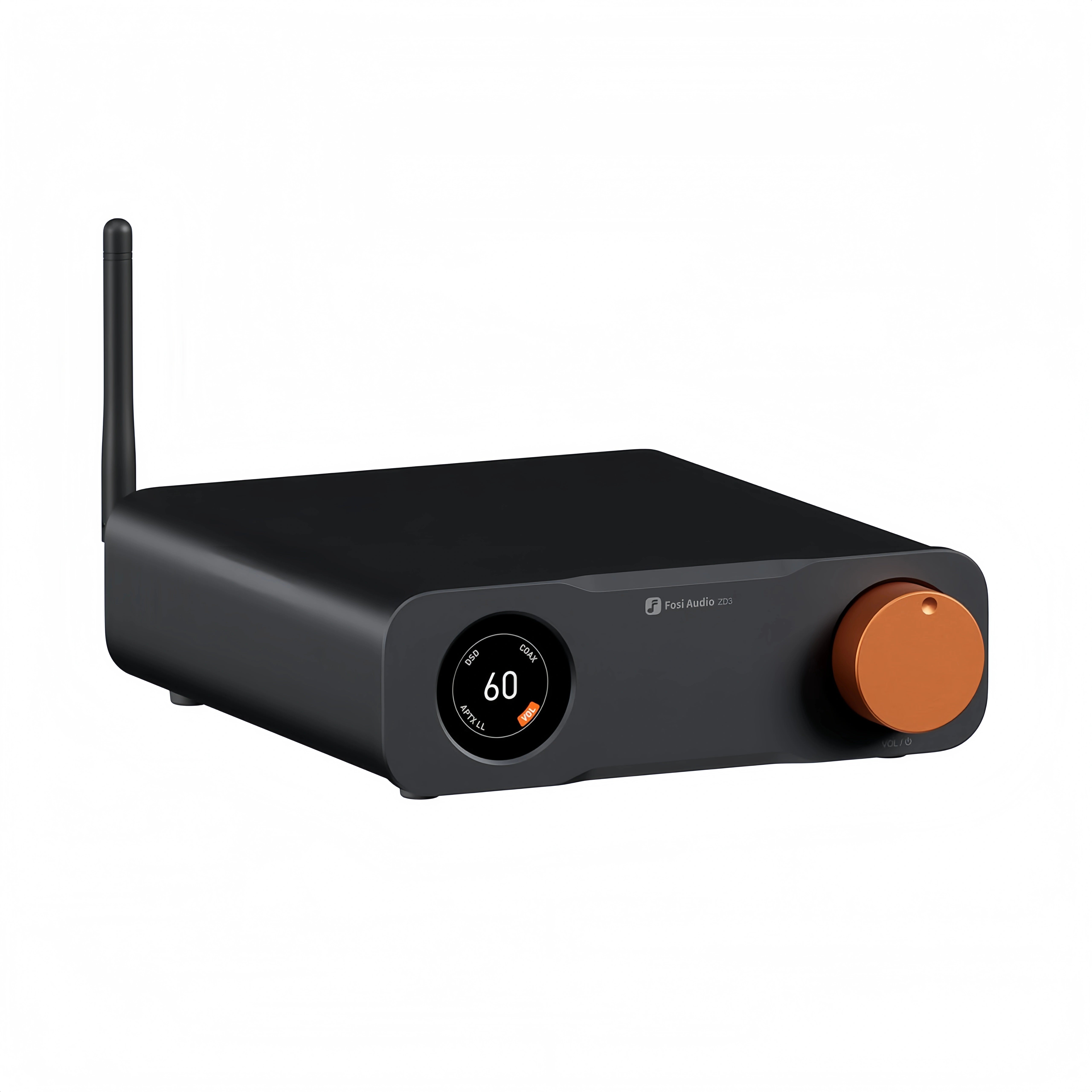

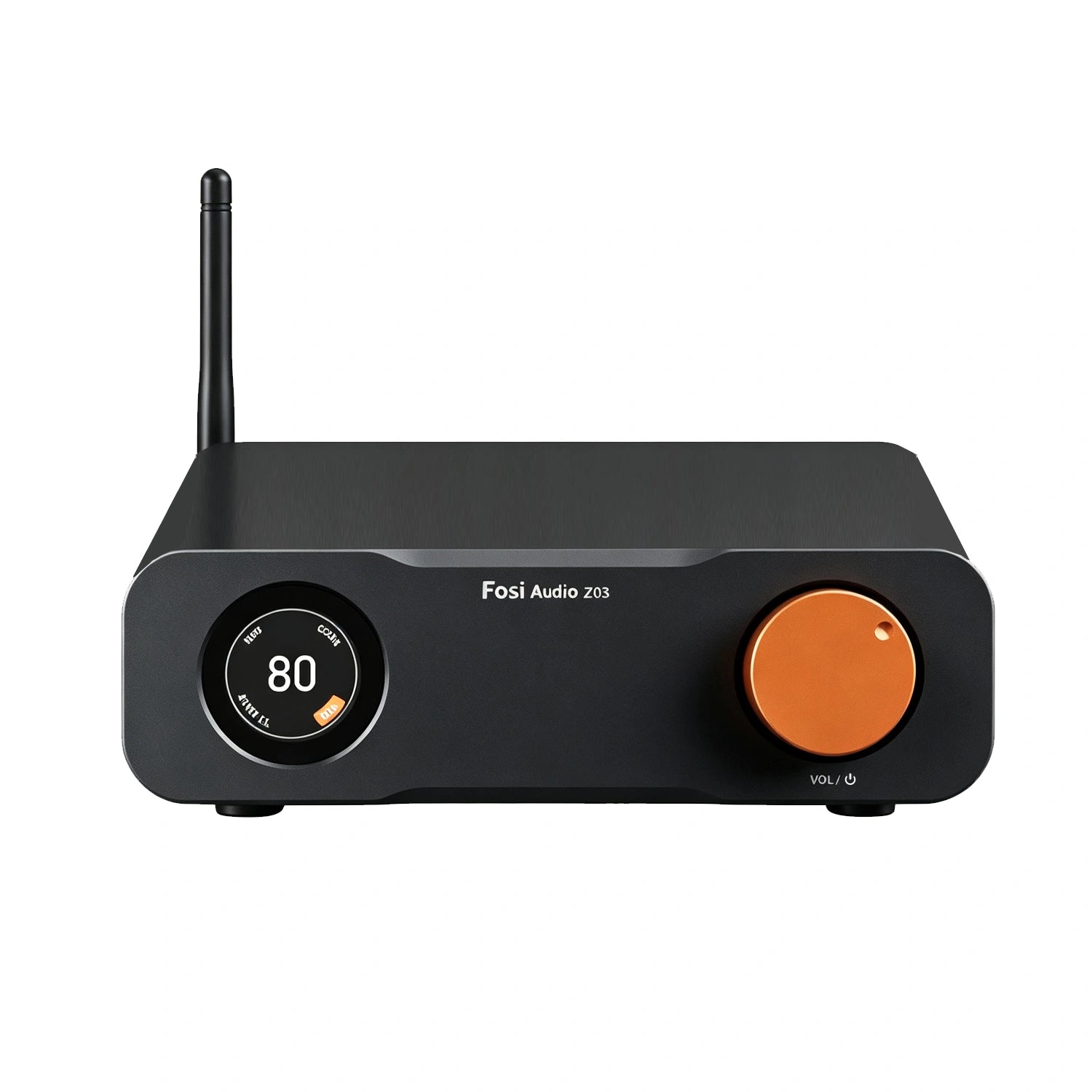

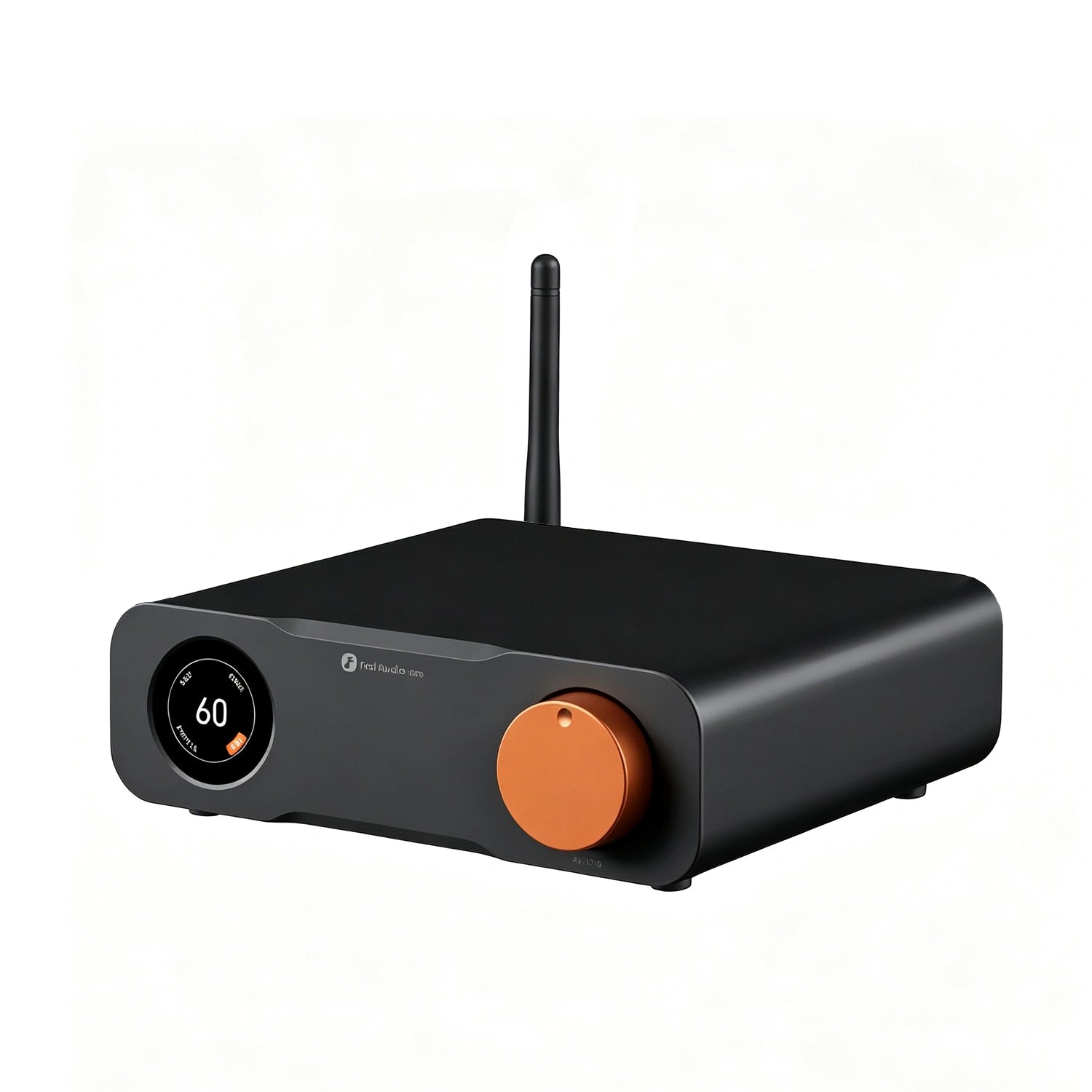

Fosi Audio ZD3 – Fully-Balanced Desktop DAC/Preamp with HDMI ARC

Fosi Audio ZD3 – Fully-Balanced Desktop DAC/Preamp with HDMI ARC

Product form

High-Performance Digital-to-Analog Audio ConverterThe ZD3 is a audiophile-grade balanced stereo DAC meticulously developed by Fosi Audio after thoroughly understanding user needs. It... Read more

Next day delivery

$179.90 Excl. VAT

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: Nov 05, 2025 23:59:00 +0800
    • Free shipping on all orders above 50,00
    • No hassle returns, 30 days return
    Pay whenever you want

    Easily pay within 30 days after you have received your package.
    Read more

    Description

    High-Performance Digital-to-Analog Audio ConverterThe ZD3 is a audiophile-grade balanced stereo DAC meticulously developed by Fosi Audio after thoroughly understanding user needs. It features the ES9039Q2M high-precision DAC chip, delivering rich and superior sound.

    The Fosi Audio ZD3 is a compact andversatile digital-to-analog converter(DAC) and pre-amplifier designed to bethe heart of a modern high-fidelity audiosystem.lt focuses on high-resolutionaudio decoding and source switchingacting as a superior connection hub
    between your digital sources and yourpower amplifier or active speakers.
    Key Features:
    1. High-Resolution DAC Chip:. The ZD3 is built around a high-performance DAC chip (such as anESS Sabre or AKM variant),capableof decoding audio signals up to 32-bit/768kHz PCM and DSD512 via itsUSB input. This ensures bit-perfect,detailed, and accurate soundreproduction from your digital sources.

    Specifications

    • Weight: 200gr
    • Usage: Indoor & outdoor

    Pros and cons

    • Sustainably produced
    • Ideal for everyday use
    • May discolor in direct sunlight

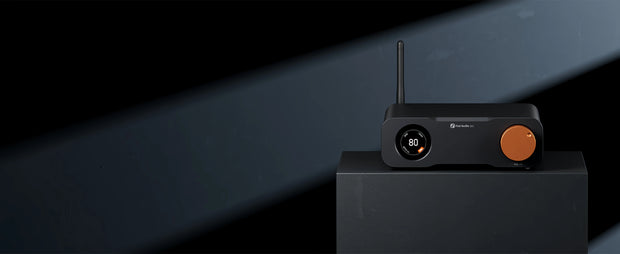

    • Banner image for:

      Fully Balanced Design

      Fosi Audio ZD3 Flagship

      Desktop DAC Preamplifier

      Presents tailored DAC performance, ensuring superior audio quality

      for pure enjoyment with ease of use.

    <h1><strong>High-Performance Digital-to-Analog Audio Converter</strong></h1>

      High-Performance Digital-to-Analog Audio Converter

      The ZD3 is an audiophile-grade balanced stereo DAC meticulously developed by Fosi Audio after thoroughly understanding user needs. It features the ES9039Q2M high-precision DAC chip, delivering rich and superior sound.

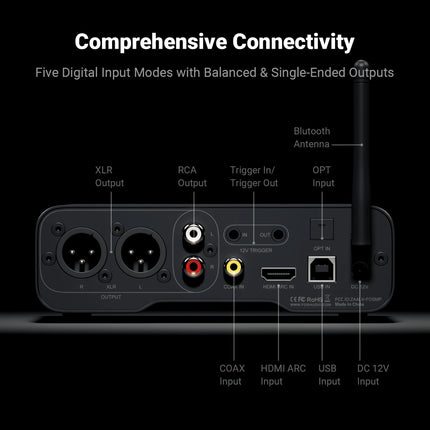

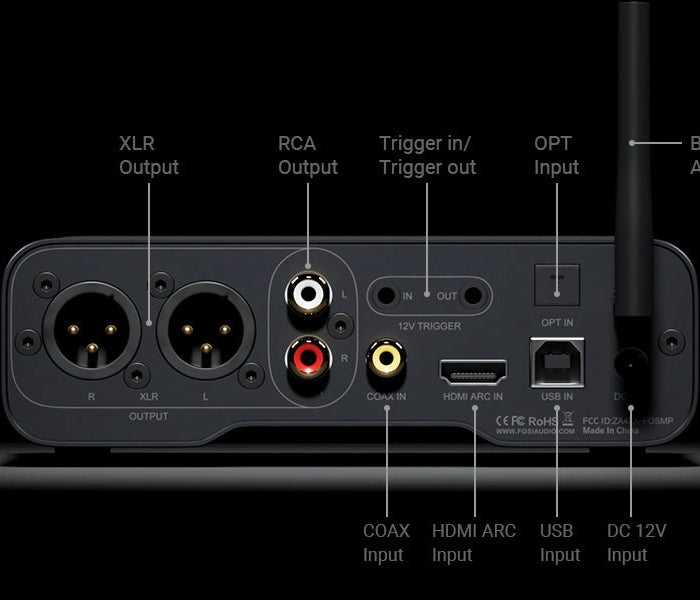

      • Input: USB, HDMI ARC, Optical, Coaxial, Bluetooth; Output: XLR,RCA
      • SNR≥126dB; THD+N<0.00008%
      • Bluetooth Codecs: SBC, AAC, aptX, aptX HD

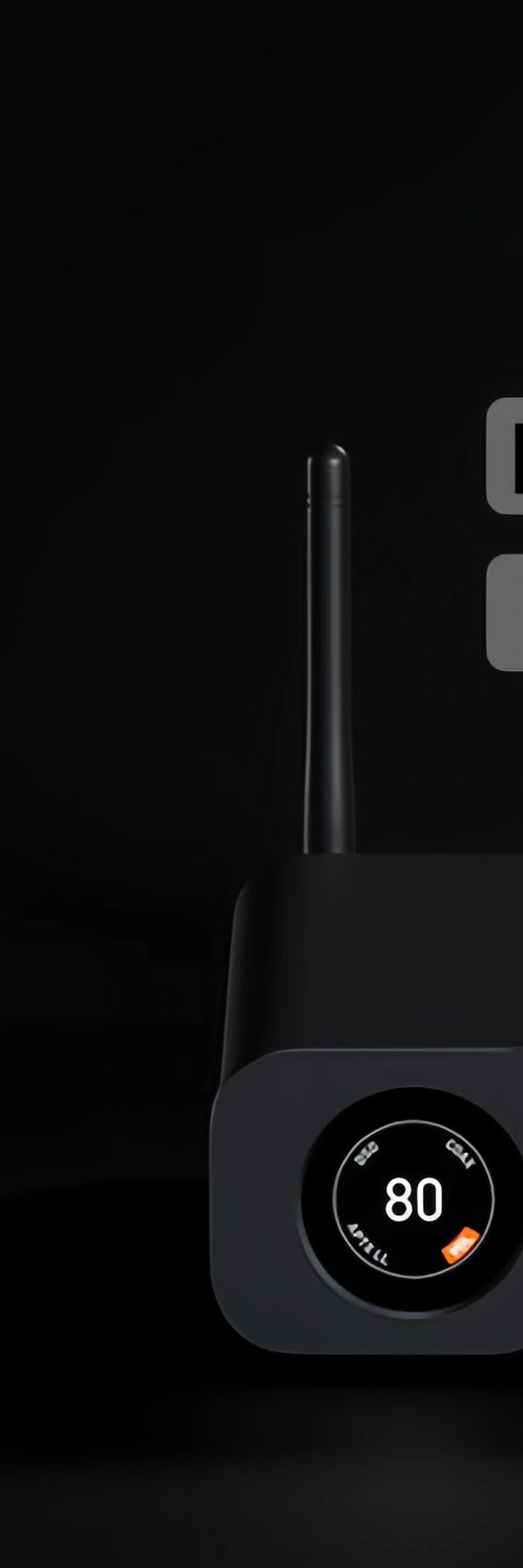

      <h1><strong>Lossless wireless </strong></h1><h1><strong>streaming </strong></h1>

      Lossless wireless

      streaming

      bluetooth transmission audio

      format:SBC/AAC/aptx/aptx HD

      <h2>High -End </h2><h2>Components</h2>

      High -End

      Components

      Delivers unparalleled audio and depth to enhance your listening experience

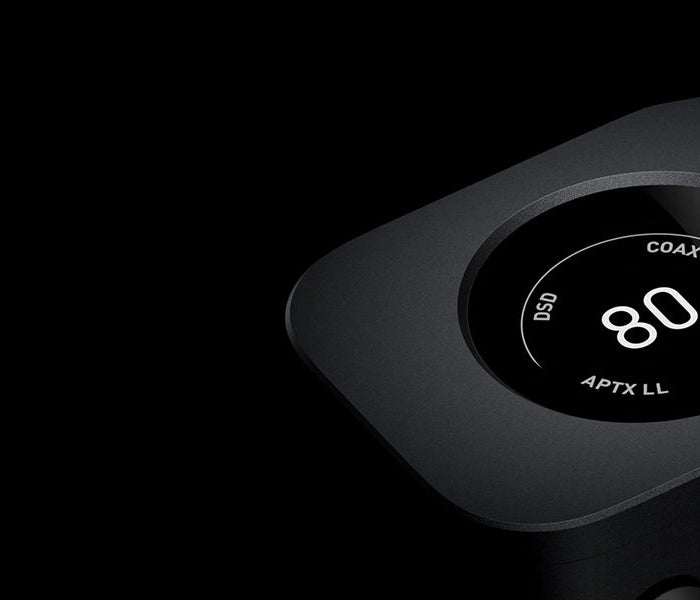

      <h1>1.5-inch LED Display</h1>

      1.5-inch LED Display

      Offers real-time feedback on

      audio sttings for effortless control

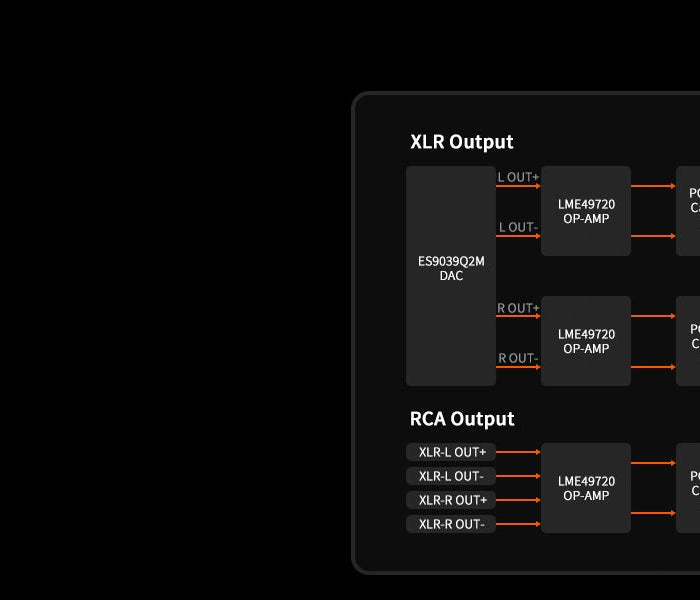

      <h1>Fully Balanced </h1><h1>Output Design</h1>

      Fully Balanced

      Output Design

      Engineered for inpeccable noise reduction and purity

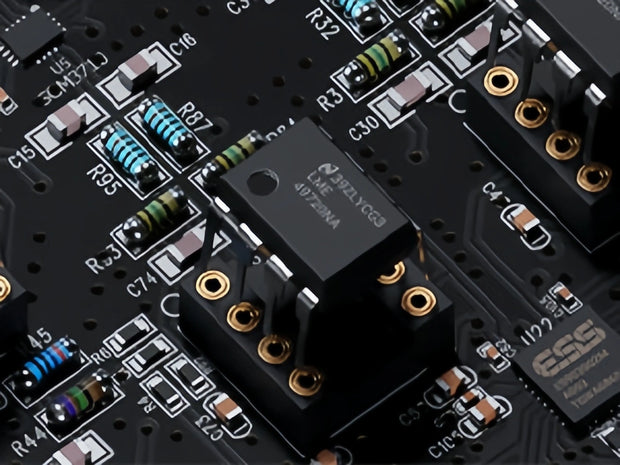

      • Swappable Op-Amp DesignEasily

        Swappable Op-Amp DesignEasily

        replaceable DIP8 dual discrete op-amps, meeting your pursuit of a personalized audio experience, such as LME49720, NE5532, MUSES02, SS3602.

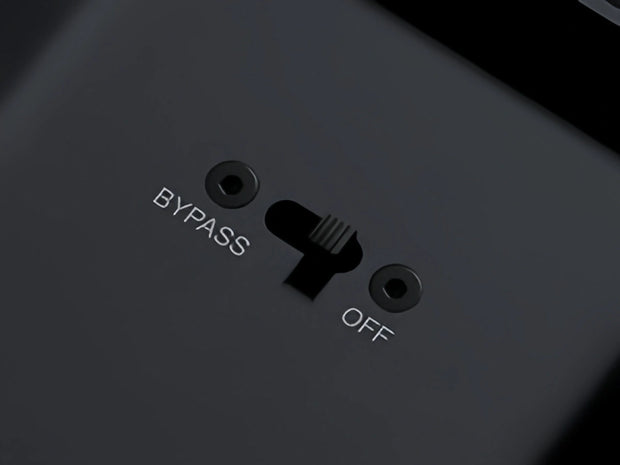

      • Bypass Mode

        Bypass Mode

        The signal bypasses the internal preamp section, providing a fixed output level for direct signal transmission.

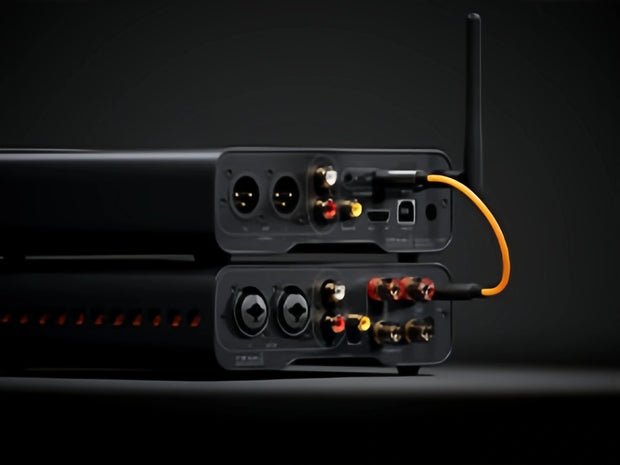

      • Trigger In/Out

        Trigger In/Out

        Enables synchronized on/off across your audio setup, automating system control for seamless operation.

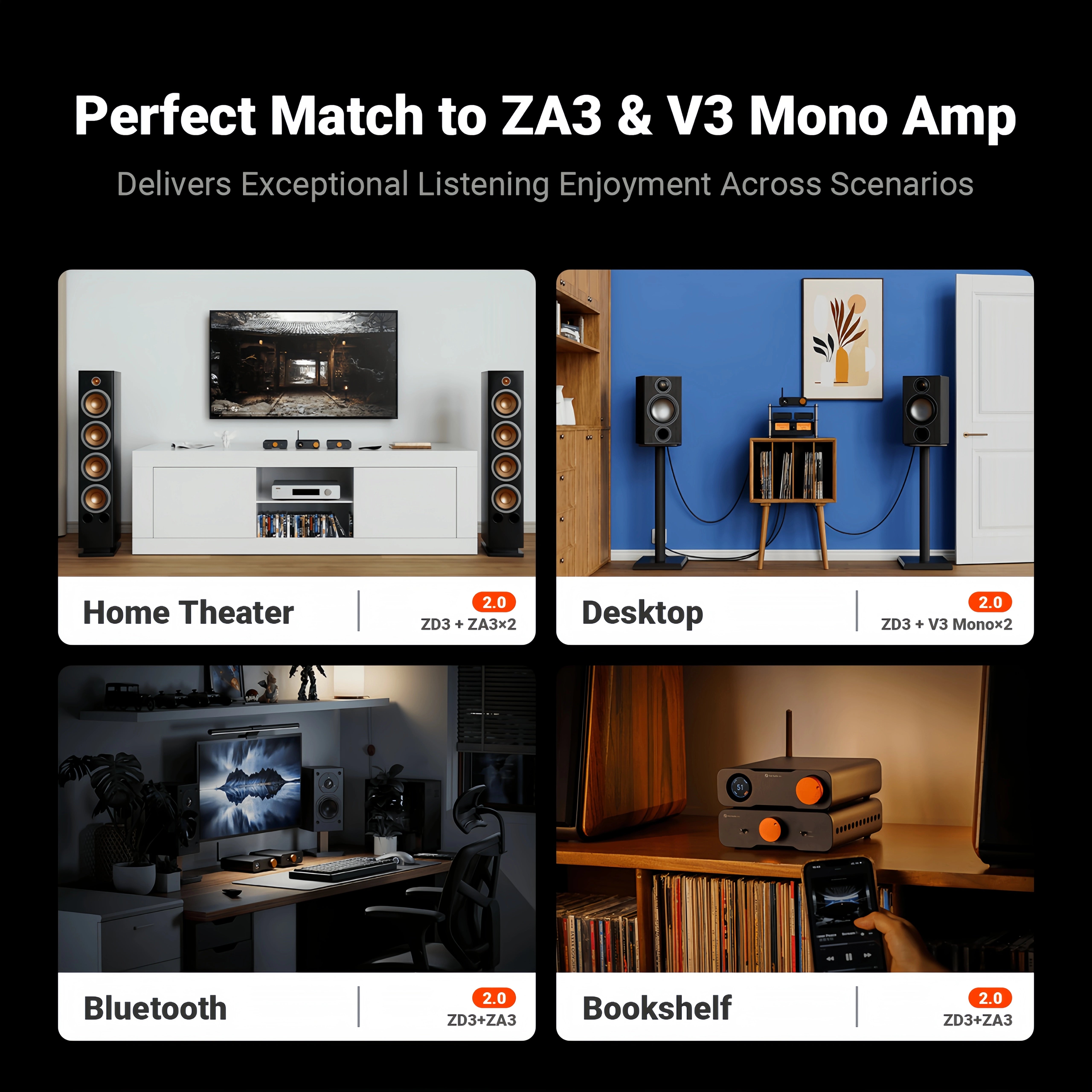

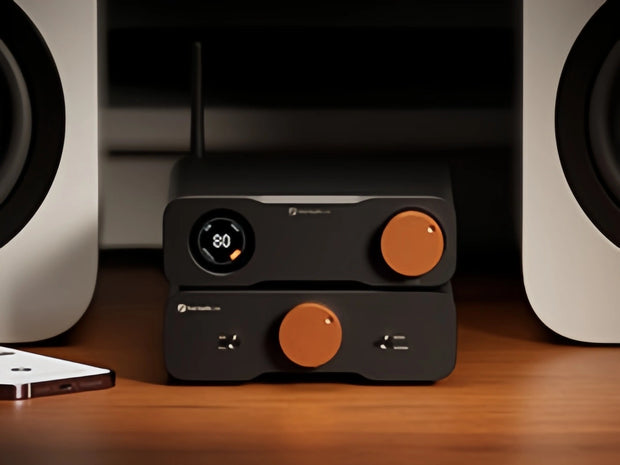

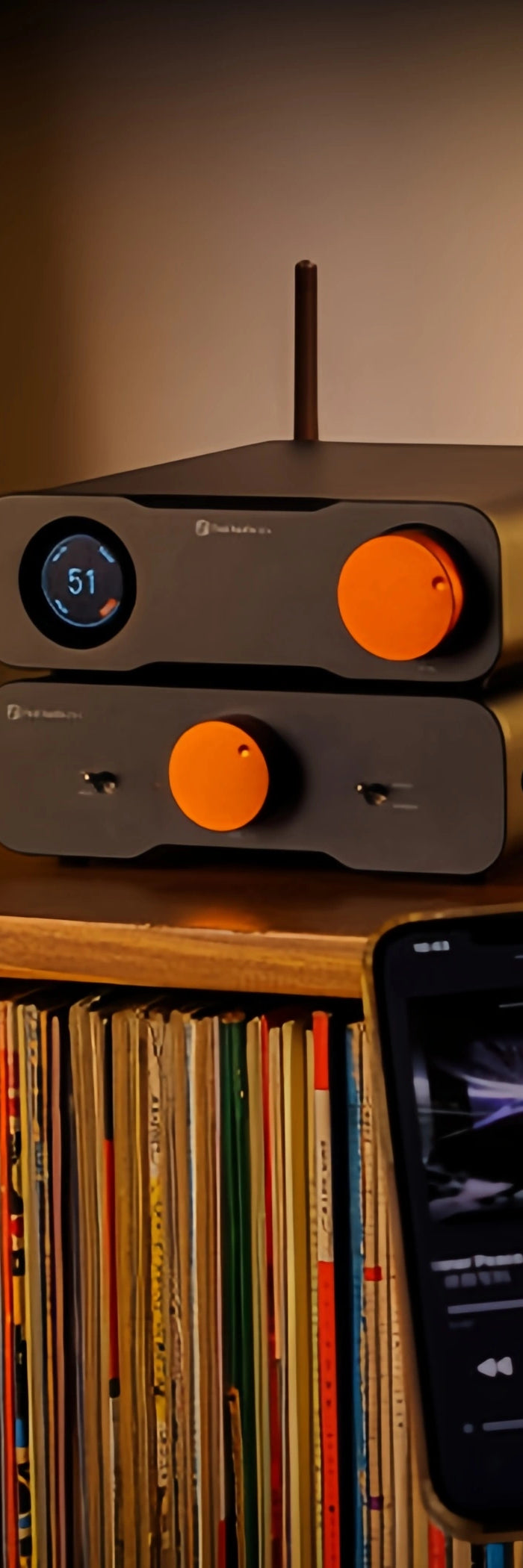

      • Perfect Match to ZA3 AmpIn

        Perfect Match to ZA3 AmpIn

        the same series and form factor, the ZD3 provides seamless integration with the ZA3, unlocking audio details and clarity.

      Product Details

      Description

      Flagship Desktop DAC: A fully balanced digital-to-analog converter preamp with multiple inputs and outputs. Fosi Audio's first DAC to support HDMI ARC input and comes equipped with a high-performance ES9039Q2M chip to deliver rich and superior sound.

      Premium Chipset: The ZD3 features the chipset consisting of XMOS XU316+ES9039Q2M+QCC3031+LME49720. It supports high audio resolution, with a maximum capability of DSD512 and PCM 32bit/768kHz sampling rates, providing unparalleled clarity and depth.

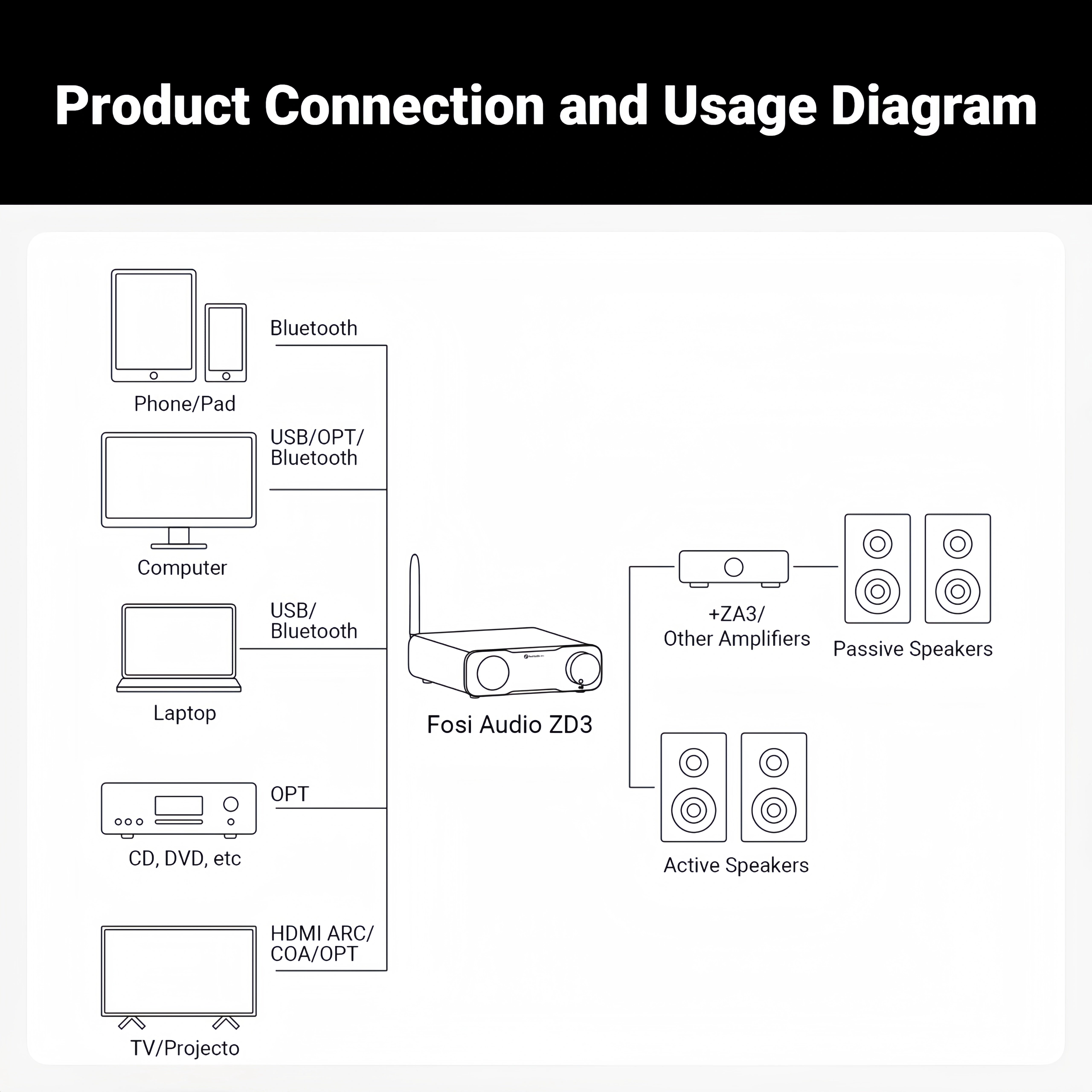

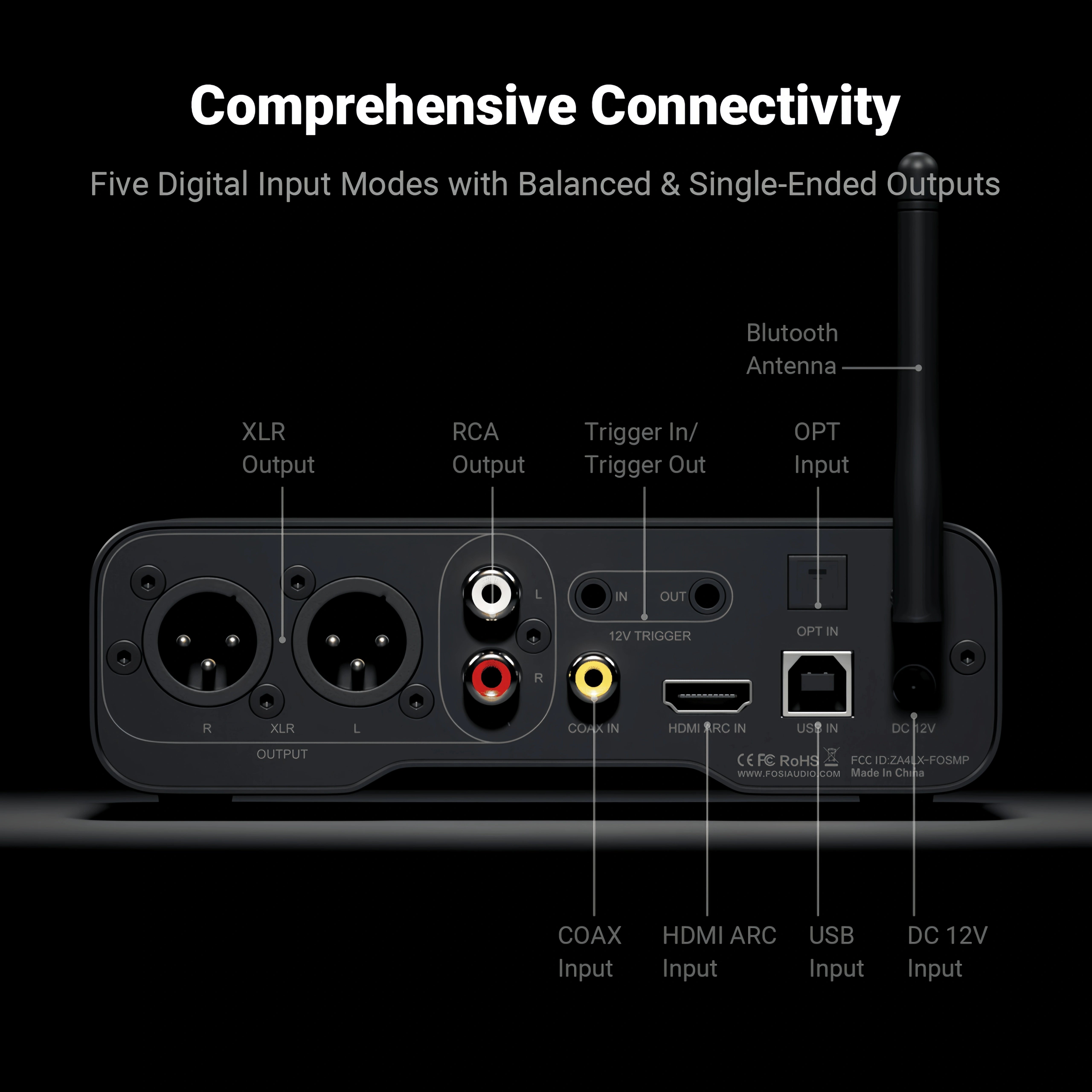

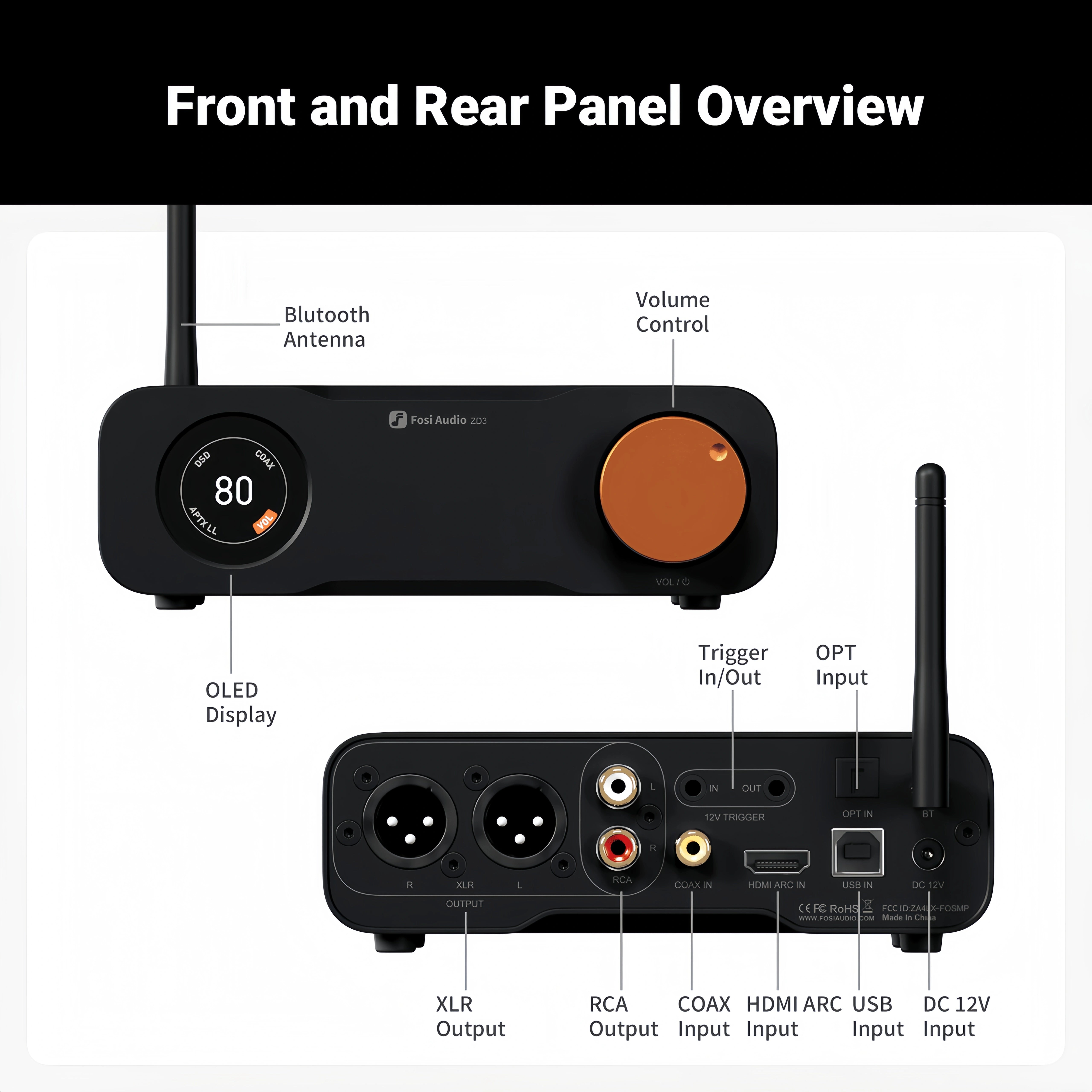

      Versatile & Flexible: The ZD3 offers comprehensive connectivity, supporting inputs like Bluetooth, USB, OPT, COAX, HDMI ARC, and balanced XLR/RCA outputs. This flexibility allows you to customize your audio system to suit various setups and scenarios

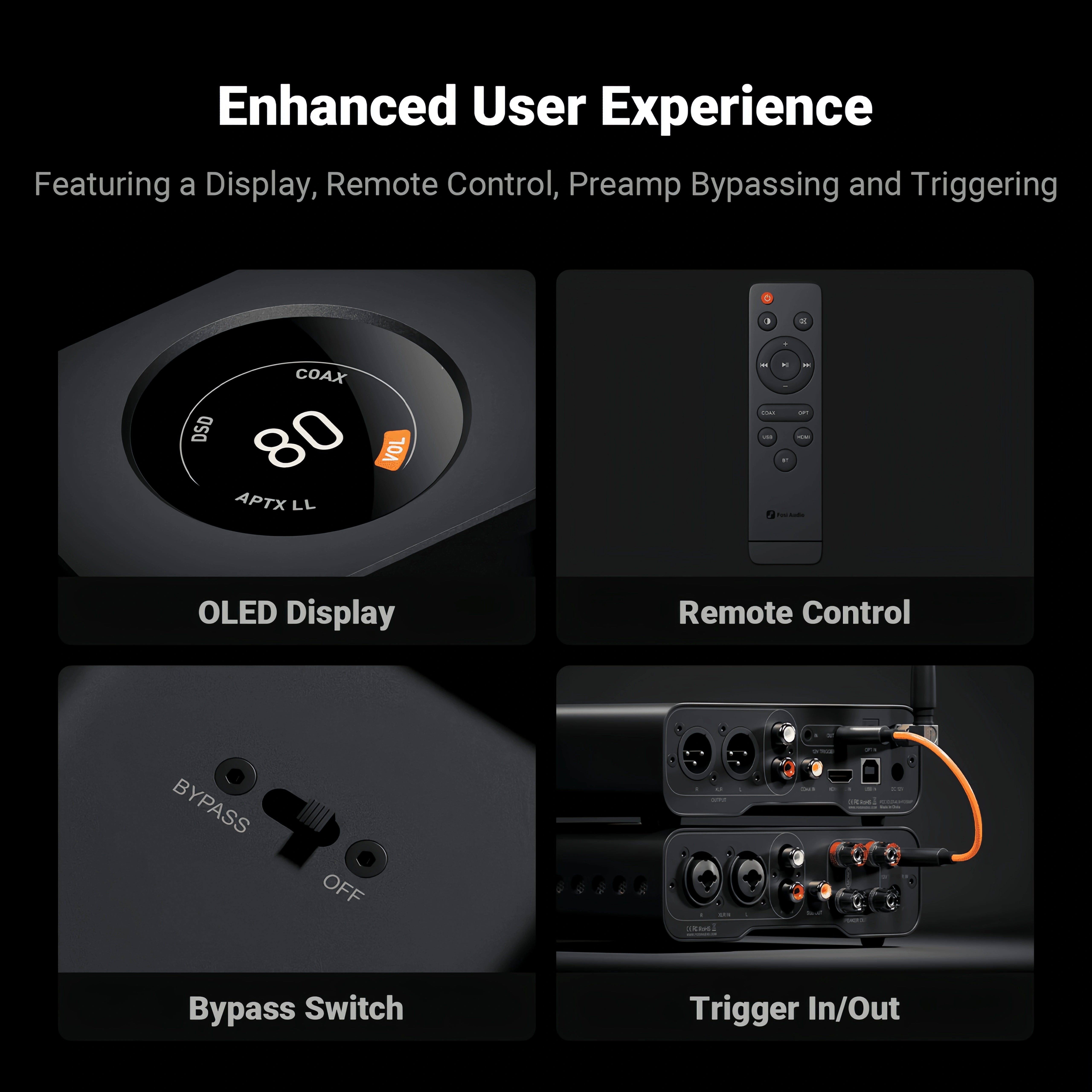

      Ease of Use: The ZD3 adopts a 1.5-inch OLED display, remote control, preamp bypass switch, and 12V trigger in/out interfaces, allowing synchronized power on/off with other home audio devices, all for a good user experience.

      Family Design: Featuring the same design language as the ZA3 amplifier: compact and exquisite appearance and audiophile-grade components for high performance and excellent sound quality. Pair it with the ZA3 to create a robust home audio system.

      Specifications

      • Chip Set: XMOS XU316 + ESS 9039Q2M + QCC3031 + LME49720
      • Maximum Sampling Rate:
        USB: PCM 32bit/768kHz; DSD512
        OPT/COAX: PCM 24bit/192kHz
        Bluetooth: PCM 24bit/48kHz
      • Output Level:
        XLR: 5Vrms RCA: 2.5Vrms
      • Input Mode:USB, HDMI (ARC), Coaxial, Optical, Bluetooth
      • Output Mode: XLR, RCA
      • SINAD: 126dB
      • THD: ≥120dB
      • THD+N: <0.00008%
      • Dynamic Range: ≥123dB
      • Noise Floor: ≤2μV
      • Bluetooth Version: 5.0
      • Bluetooth Connection Distance: ≥13m
      • Bluetooth Transmission Audio Format: aptX HD, aptX, AAC, SBC
      • Power Supply: DC 12V 1.5A
      • USB Compatible Devices: Windows 7, 8, 8.1, 10, 11 (Some require drivers; please refer to the user manual)Mac OS X, Linux (No driver required)

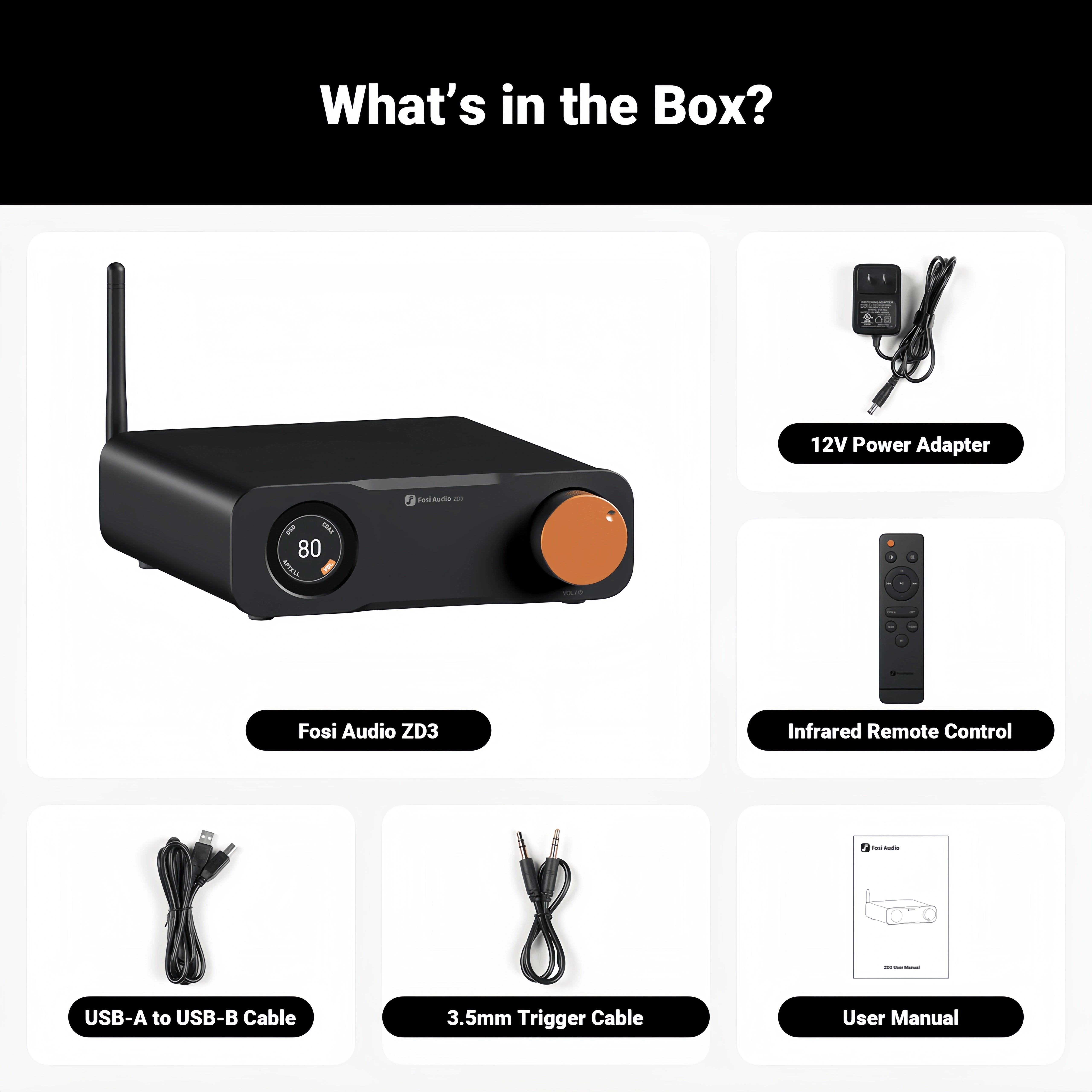

      What‘s in the box？

      DAC ZD3 *1

      12V Power Adapter *1

      Infrared Remote Control *1

      USB-A to USB-B Cable *13.5mm Trigger Cable *1

      USER MANUAL *1

      Which Product is right for you?

      Compare products to find the best one for your needs.

      • Fosi Audio ZD3 Fully Balanced Desktop DAC

        Fosi Audio ZD3 Fully Balanced Desktop DAC

        Type：DAC Preamp

        MAX Power Output：—

        Input：USB, HDMI (ARC), Coaxial, Optical, Bluetooth

        Output：XLR, RCA

        Treble &BassControl：No

        THD+N：<0.00008%

        SNR：≥126dB

        Chipset：XMOS XU316+ESS 9039Q2M+QCC3031

        Terminating Impedance：—

        Power Supply：DC 12V/1.5A

      • Fosi Audio GR40 Tube DAC Headphone Amp Preamp

        Fosi Audio GR40 Tube DAC Headphone Amp Preamp

        Type：DAC+Headphone Amp

        MAX Power Output：250mw@32Ω

        Input：Bluetooth, USB, Optical, Coaxial

        Output：RCA, 3.5mm Headphone Jack

        Treble & Bass Control：Yes

        THD+N：<0.003%

        SNR：>103dB

        Chipset：—

        Terminating Impedance：16-300Ω

        Power Supply：DC 12V/1.5A

      • Fosi Audio K7 Desktop DAC Headphone Amplifier

        Fosi Audio K7 Desktop DAC Headphone Amplifier

        Type：DAC+Headphone

        AmpMAX Power Output：2x 2.1W@32Ω

        Input：Bluetooth, USB, Optical, Coaxial

        Output：RCA, 3.5mm/4.4mm Headphone Jack

        Treble & Bass Control：Yes

        THD+N：≤ 0.0002%

        SNR：≥121dB

        Chipset：XMOS XU208+AKM4493S+QCC3031+TPA6120

        Terminating Impedance：16-300Ω

        Power Supply：DC 12V/2A

      • Fosi Audio SK02 Desktop DAC Headphone Amplifier

        Fosi Audio SK02 Desktop DAC Headphone Amplifier

        Type：DAC+Headphone

        AmpMAX Power Output：1.1W@32Ω

        Input：USB-C, Optical

        Output：3.5mm/4.4mm Headphone Jack, 3.5mm AUX/Optical

        Treble & Bass Control：No

        THD+N：≤0.001%

        SNR：≥120dB

        Chipset：—

        Terminating Impedance：16-300Ω

        Power Supply：—

      FAQs

      How many Sparkos SS3602 op-amps do I need for the ZD3?


      For RCA output, replace one op-amp. For XLR balanced output, replace two op-amps corresponding to the left and right channels.

      How to replace the op-amps?

      Tools required: needle-nose pliers, tweezers, and an H2.0 hex screwdriver.

      1.Use the hex screwdriver to remove the two screws on either side of the rear panel.

      2.Remove the front panel knob, and with needle-nose pliers, unscrew the nut and washer from the potentiometer, then slide out the front panel.

      3.Disconnect the components near the notch of the circuit board by the front panel, which is connected to the Bypass mode switch.

      4.Carefully pull out the mainboard, and you will find three interchangeable op-amp chips.

      5.Replace one op-amp for RCA output and two for XLR output, corresponding to the left and right channels.

      6.Use tweezers to gently pry out the op-amp chip(s) from the side pin gap.

      7.Install the new op-amp chip(s) into the sockets. Ensure correct orientation by matching the '1' marking or the groove on the chip cover with the 'O1' position on the PCB. Incorrect installation may damage the op-amp.

      8.After installing the new op-amp(s), connect the amplifier, power, and speakers to test if the sound is working. If all is fine, reassemble the device.

      If you need more guidance, please scan the QR code or watch the video starting at 10:02. (https://www.youtube.com/watch?v=w7L_jZyh90Q)

      Does the ZD3 have HDMI CEC?

      The ZD3 does have HDMI CEC. In HDMl ARc input mode, you can control the ZD3's volume with yourTV remote, but it does not support HDMI EARC.

      Can I get a video on op-amp swapping for the ZD3 DAC/Preamp?

      Please refer to the tutorial video for guidance on swapping op-amps: Watch Video.

      Can I use the Trigger Out from the ZD3 to control two ZA3 amplifiers?

      Yes, you can use a dual 3.5mm male splitter cable to control two ZA3 amplifiers synchronously.
