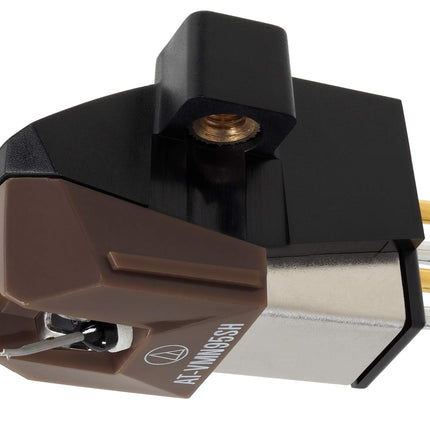

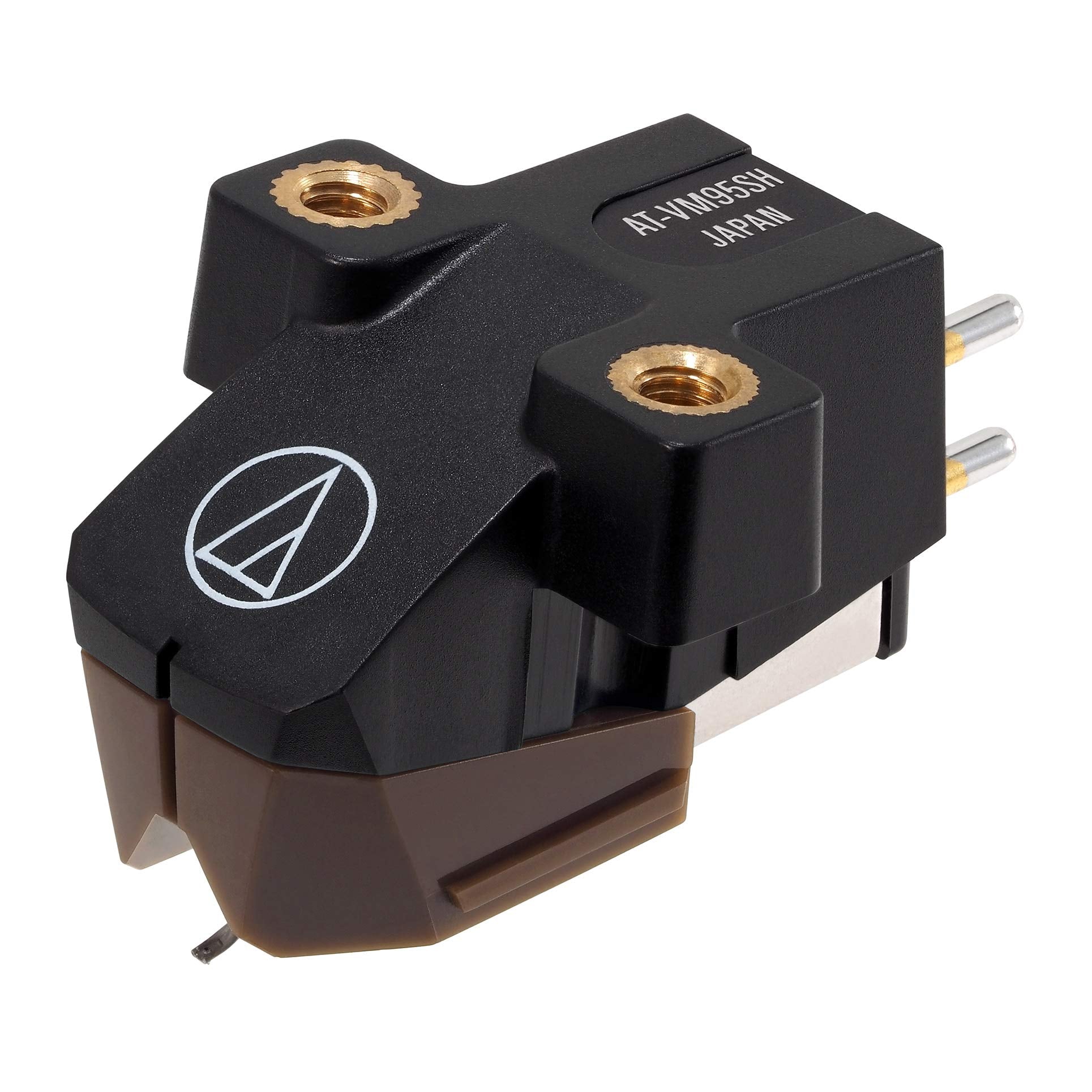

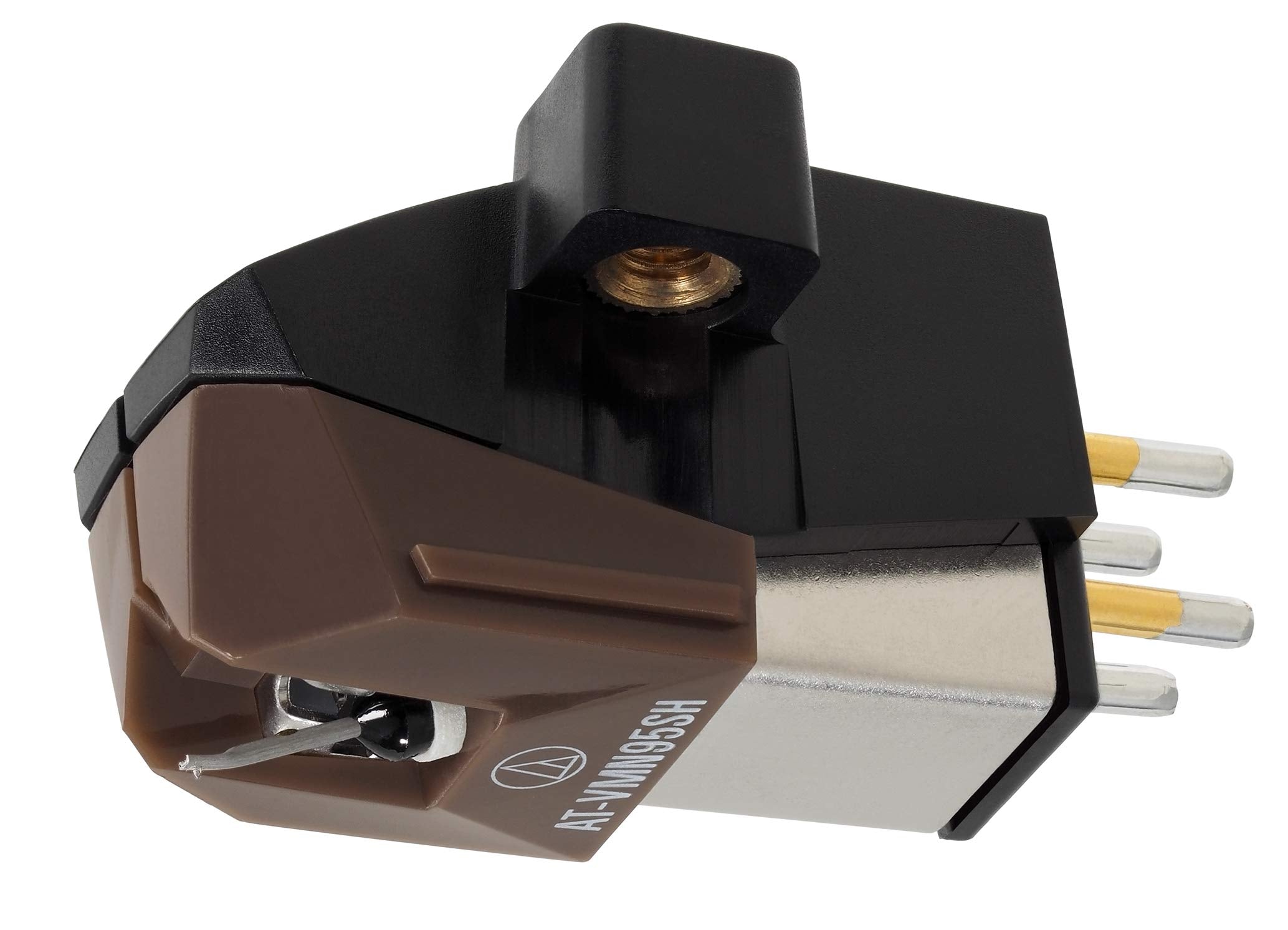

Audio-Technica AT-VM95SH is a VM95-series dual moving magnet cartridge with a nude Shibata stylus.

Its broad groove contact retrieves rich detail and extended high-frequency information for a refined vinyl upgrade.

Why it stands out

Nude Shibata

Rich, detailed vinyl playback through a profile selected for accurate groove contact.

VM95 Interchangeable Stylus Platform

Supports all six VM95-series replacement stylus assemblies for maintenance or future upgrades.

Threaded Cartridge Body

Simplifies installation on compatible 1/2-inch-mount headshells.

Dual Moving Magnet Design

Mirrors the cutter-head geometry for stable stereo separation and dependable playback.

Best for

• Rich, detailed vinyl playback
• Compatible 1/2-inch-mount turntables
• Users comfortable with cartridge alignment
• MM phono systems

Not ideal for

• P-mount turntables
• Users wanting a pre-mounted headshell assembly
• Systems without an MM phono input or external MM phono stage

EMiUZEK Buying Notes

• AT-VM95SH is a cartridge only; a headshell is not included.
• It requires installation and alignment on a compatible 1/2-inch mounting system.
• Use an MM phono input and set tracking force to 1.8–2.2 g, with 2.0 g standard.

FAQ

Does it include a headshell?

No. A compatible headshell or tonearm mount is required.

Will it fit every turntable?

No. Verify 1/2-inch mounting and tonearm compatibility; it is not a P-mount product.

What phono stage does it require?

Use an MM-compatible phono input with 47 kΩ load impedance and 100–200 pF load capacitance.

What is the tracking force?

1.8–2.2 g, with 2.0 g standard.

Can the stylus be replaced?

Yes. The VM95 body accepts all six VM95-series replacement stylus assemblies.

Is final setup still required?

Yes. Cartridge alignment, overhang, tracking force, and anti-skate must be set correctly.

HOW TO CONNECT

Standard Turntable Setup

Source icon: device
Source: Vinyl Record
Connection: Stylus / Groove
Output connection: Cartridge Pins
Target icon: device
Output: MM Phono Input

Note: Install and align the cartridge on a compatible 1/2-inch mount, then verify overhang, tracking force, and anti-skate.

Technical Specifications

Cartridge and Stylus

• Type: VM dual moving magnet stereo cartridge
• Frequency Response: 20–25,000 Hz
• Output Voltage: 3.5 mV at 1 kHz, 5 cm/s
• Channel Separation: 23 dB at 1 kHz
• Output Balance: 1.5 dB at 1 kHz
• Stylus: Nude Shibata
• Cantilever: Aluminum pipe
• Tracking Force: 1.8–2.2 g; 2.0 g standard

Electrical and Physical

• Recommended Load: 47 kΩ / 100–200 pF
• Cartridge Weight: 6.1 g
• Cartridge Dimensions: 17.2 × 18.9 × 28.3 mm
• Mounting: 1/2-inch compatible

Recommended System Setup

What's in the box

• AT-VM95SH cartridge
