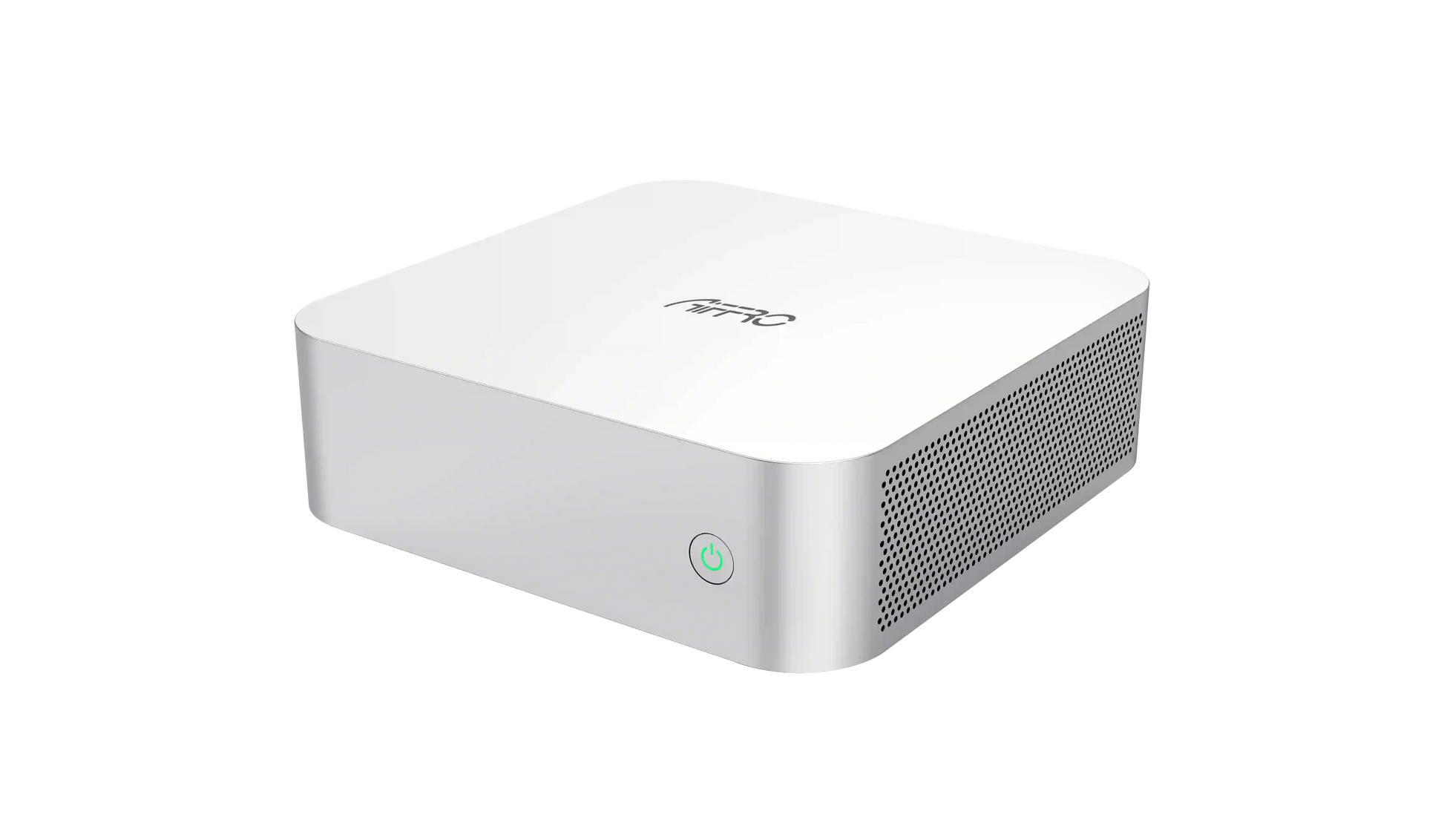

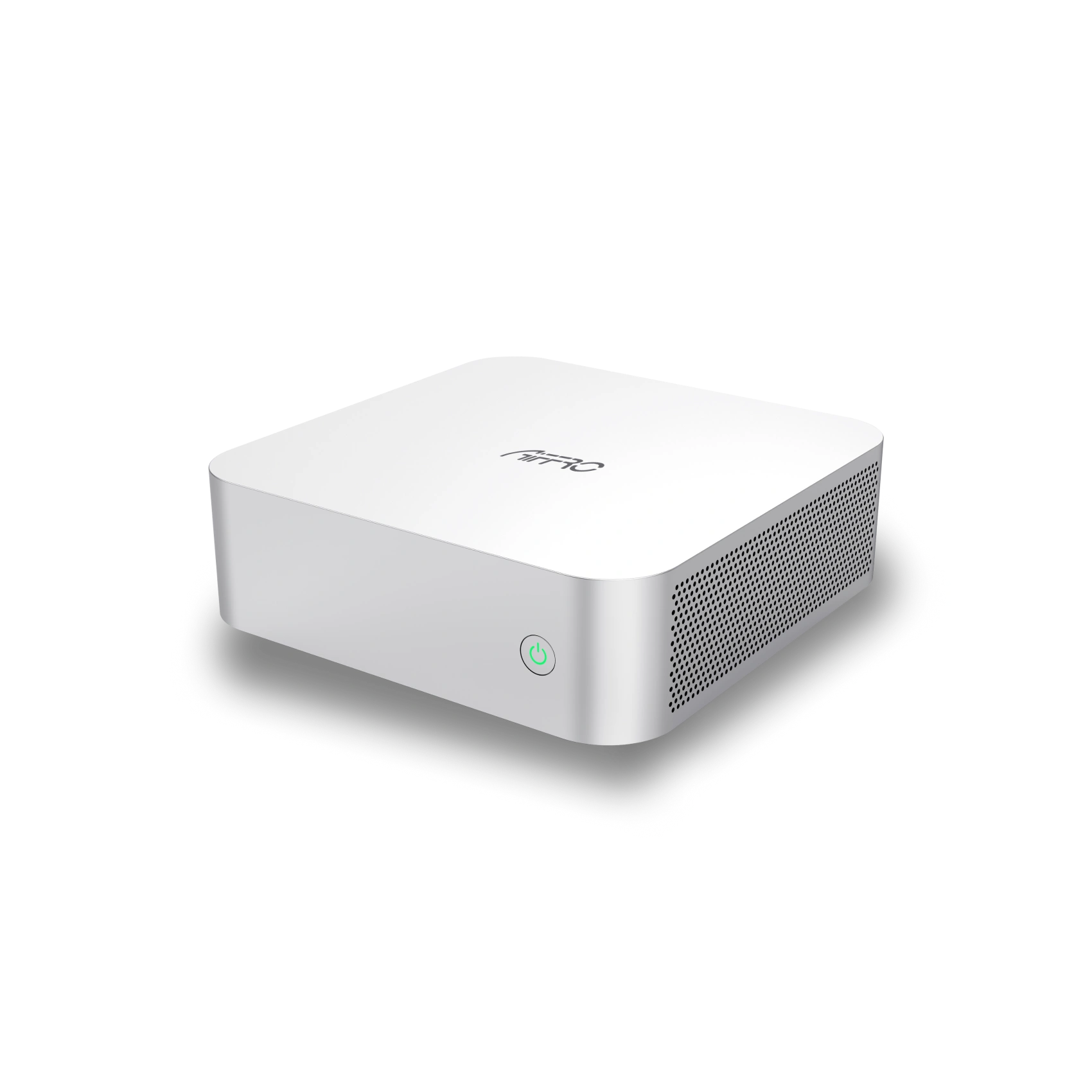

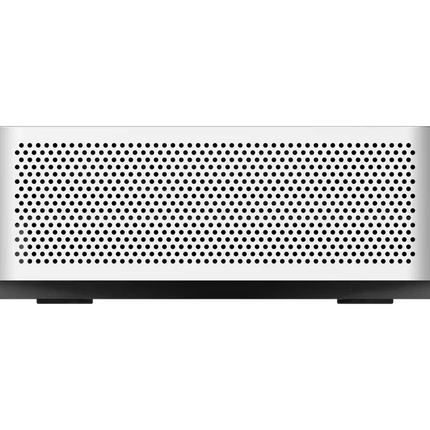

Aiffro K100 is a compact all-flash NAS platform for users who want to build a quiet, low-power network storage server. Its Intel N100 processor, 8GB LPDDR5 memory, four M.2 NVMe slots and 2.5GbE port suit backup, media and homelab workloads.

Why it stands out

Four-drive all-flash design

Four M.2 2280 PCIe Gen3 x2 slots provide flexible solid-state storage without 3.5-inch hard drives.

Compact x86 platform

Intel N100 and 8GB LPDDR5 support NAS operating systems, file services and light applications.

2.5GbE networking

A Realtek RTL8125 interface supports 10/100/1000/2500Mbps Ethernet.

Useful local I/O

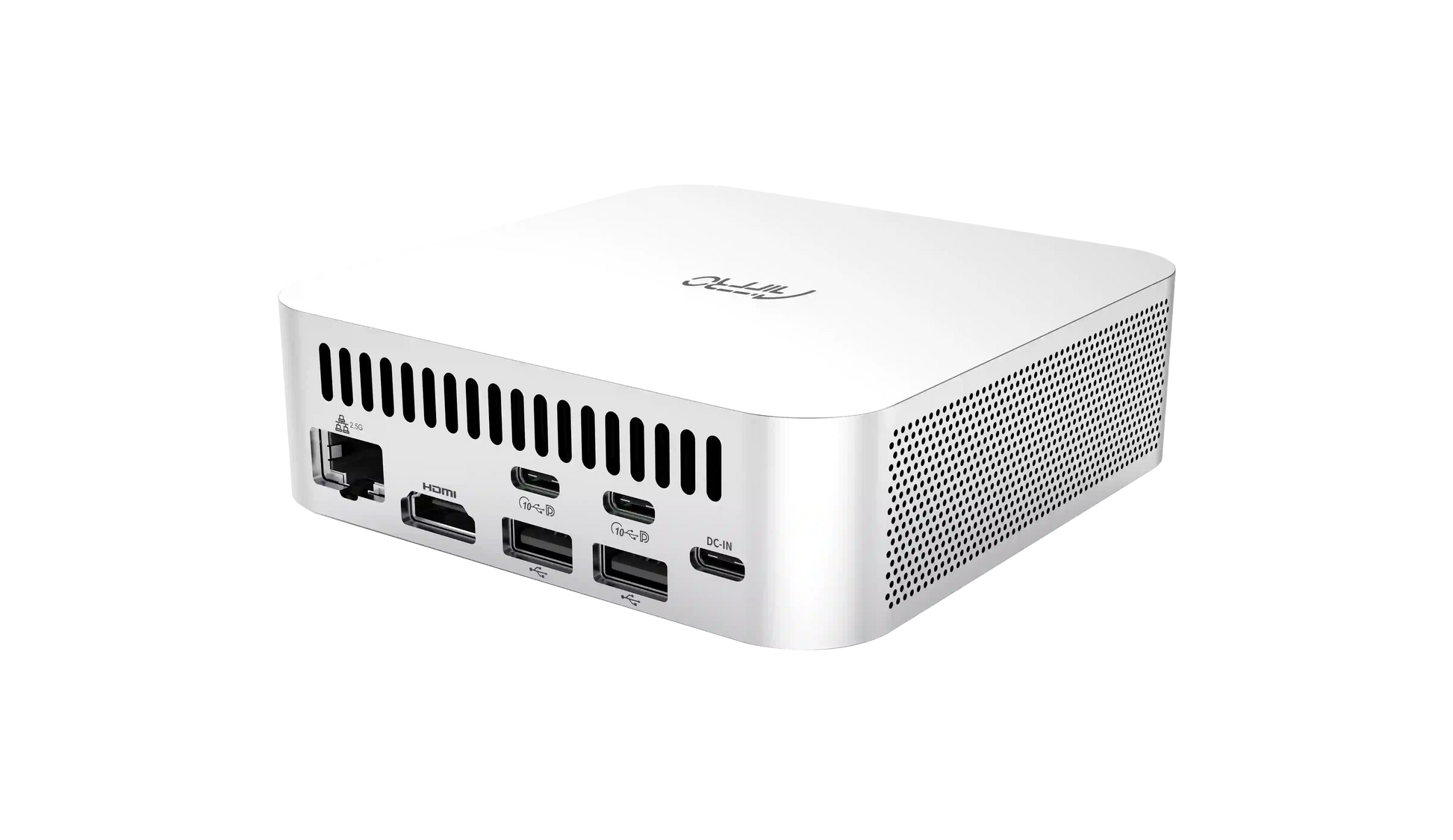

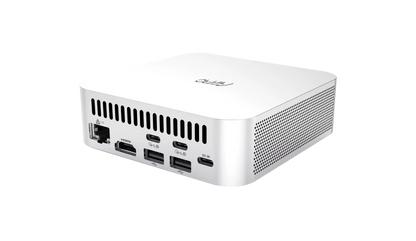

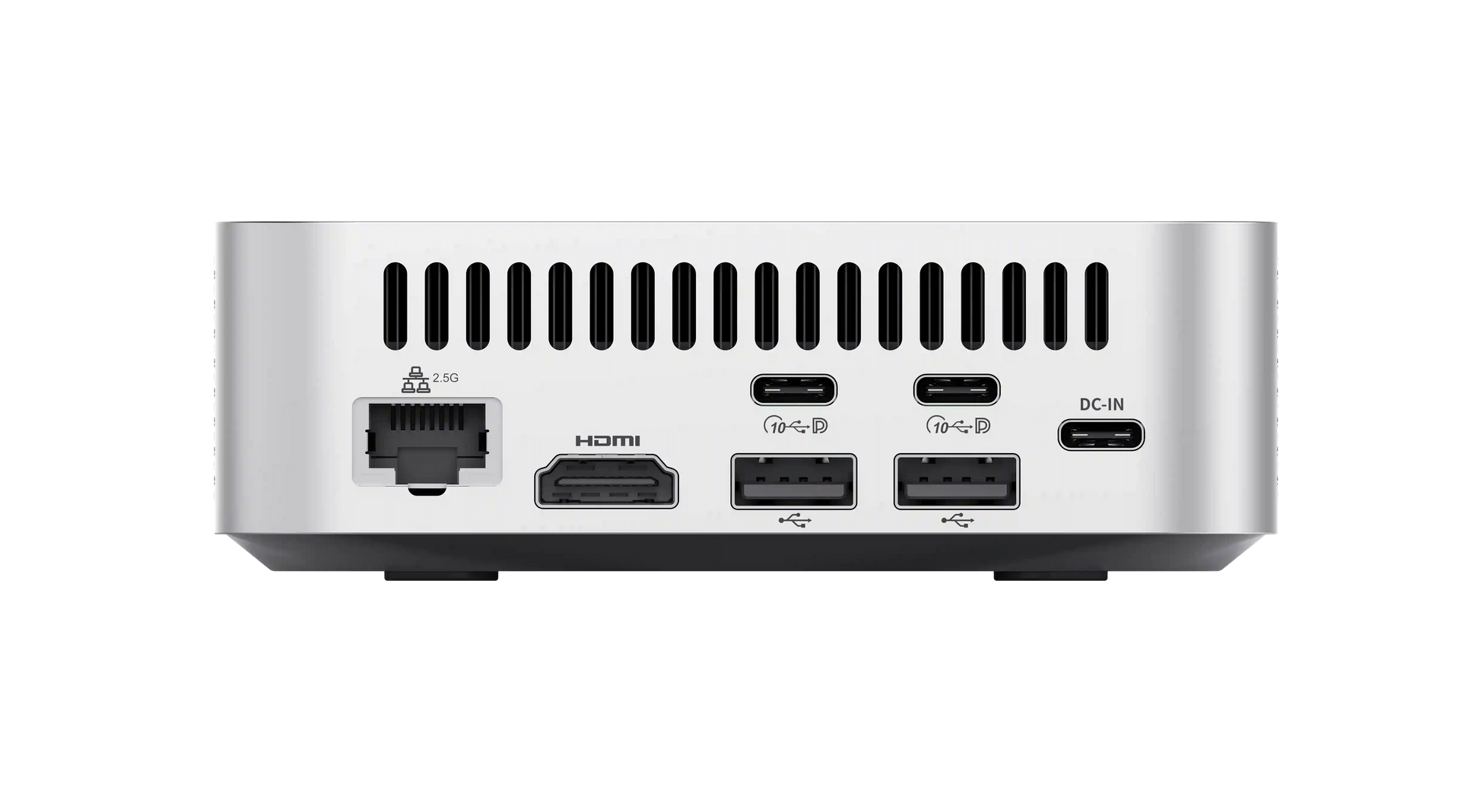

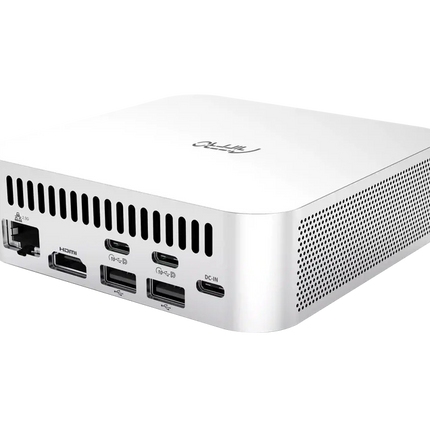

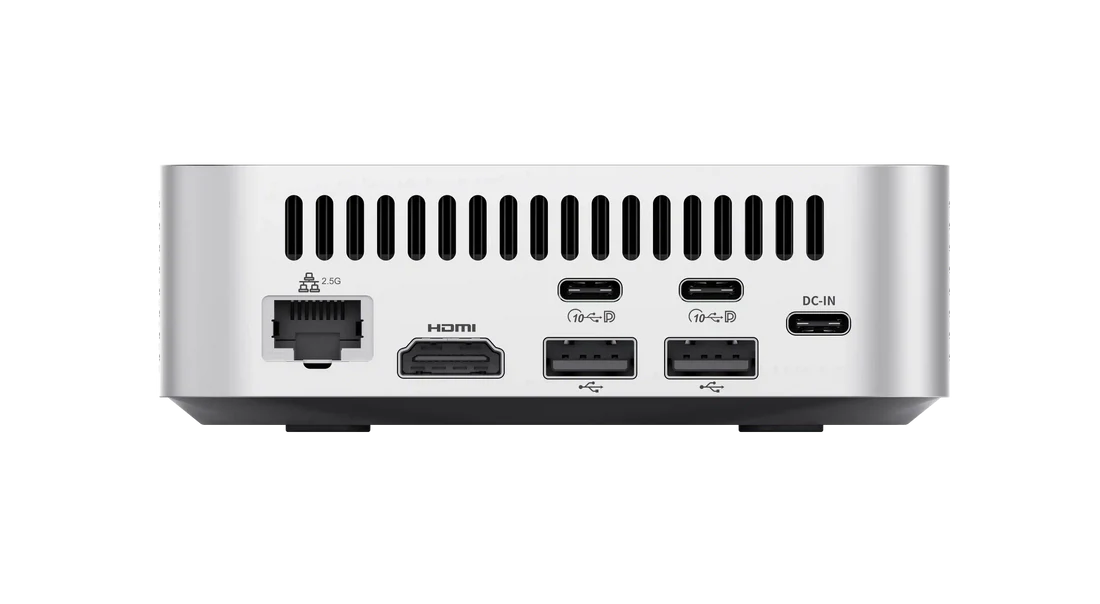

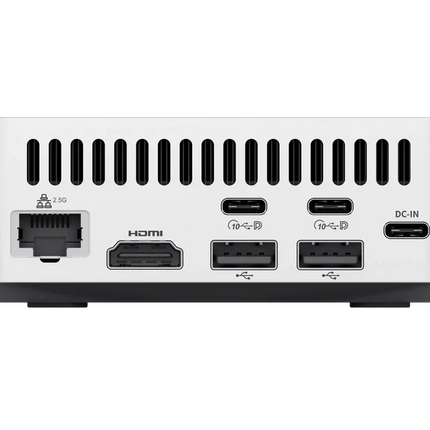

HDMI, data-only USB-C and USB 2.0 ports support installation and maintenance.

Best for

• DIY NAS and homelab users
• Quiet home file servers
• Photo and video backup
• Compact media servers

Not ideal for

• Buyers expecting a ready-configured cloud appliance
• 3.5-inch SATA hard drives
• Workloads needing expandable RAM
• 10GbE networks

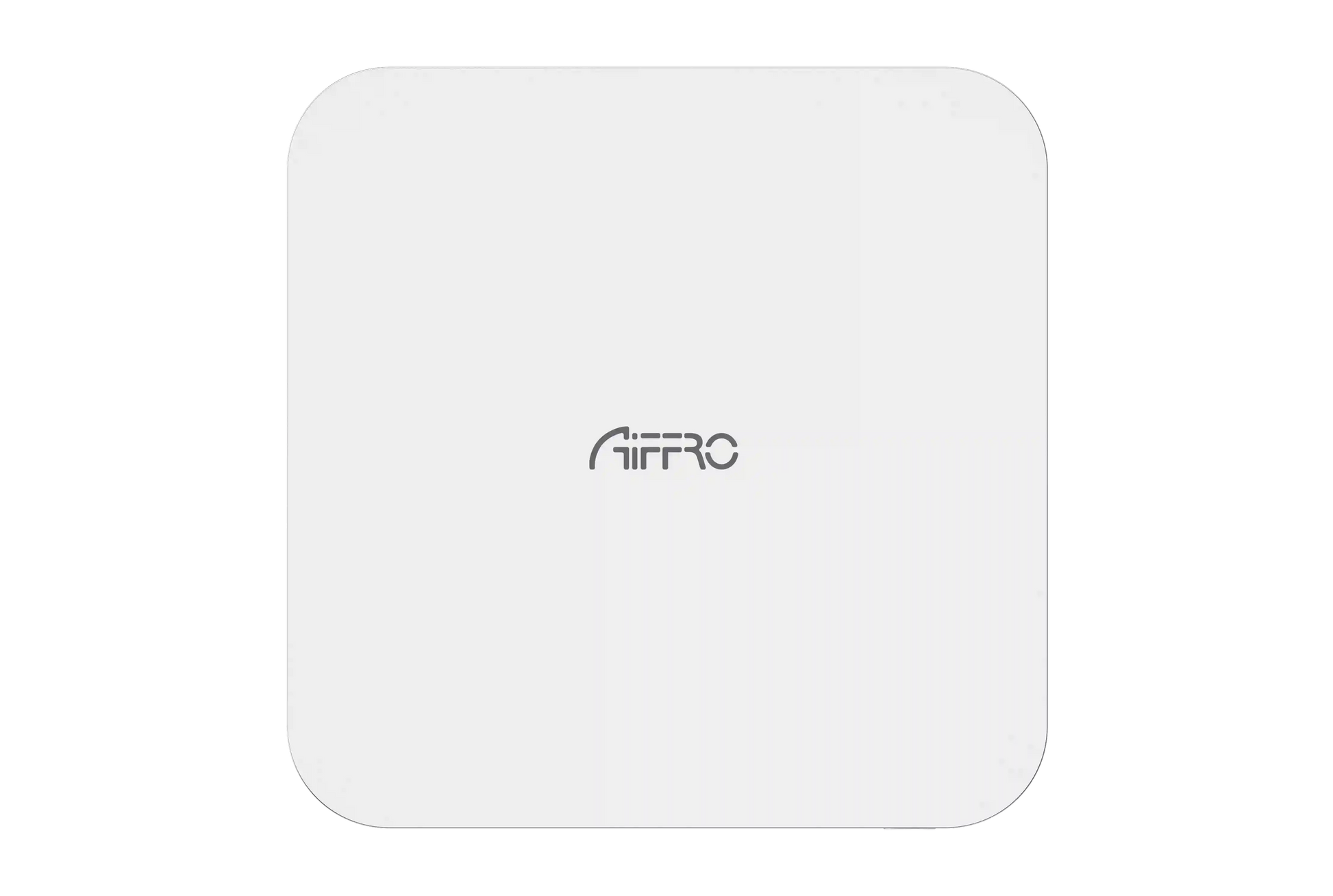

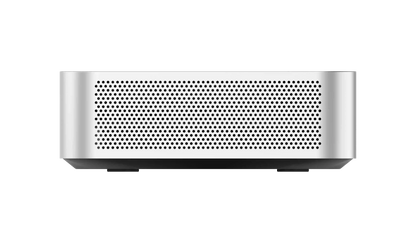

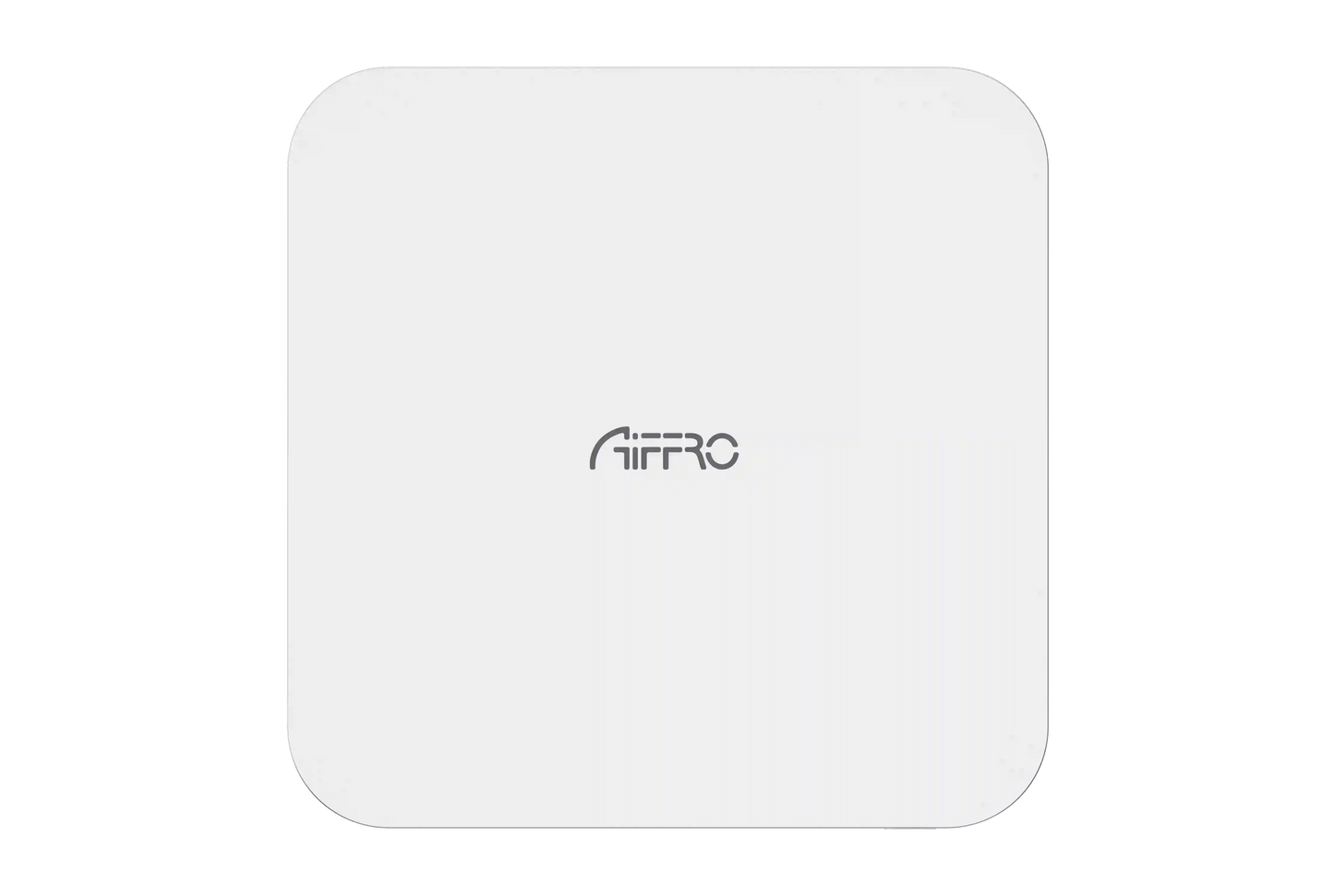

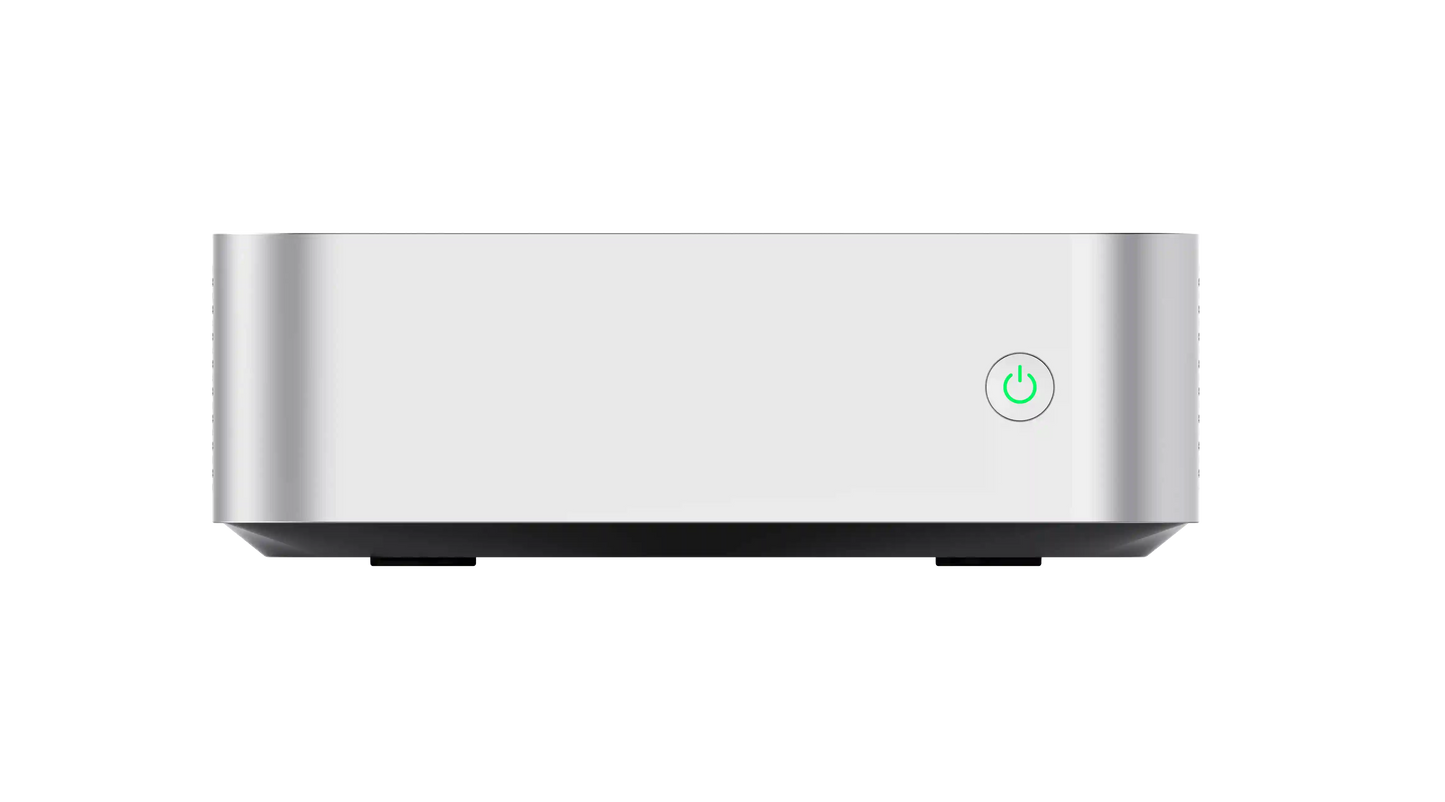

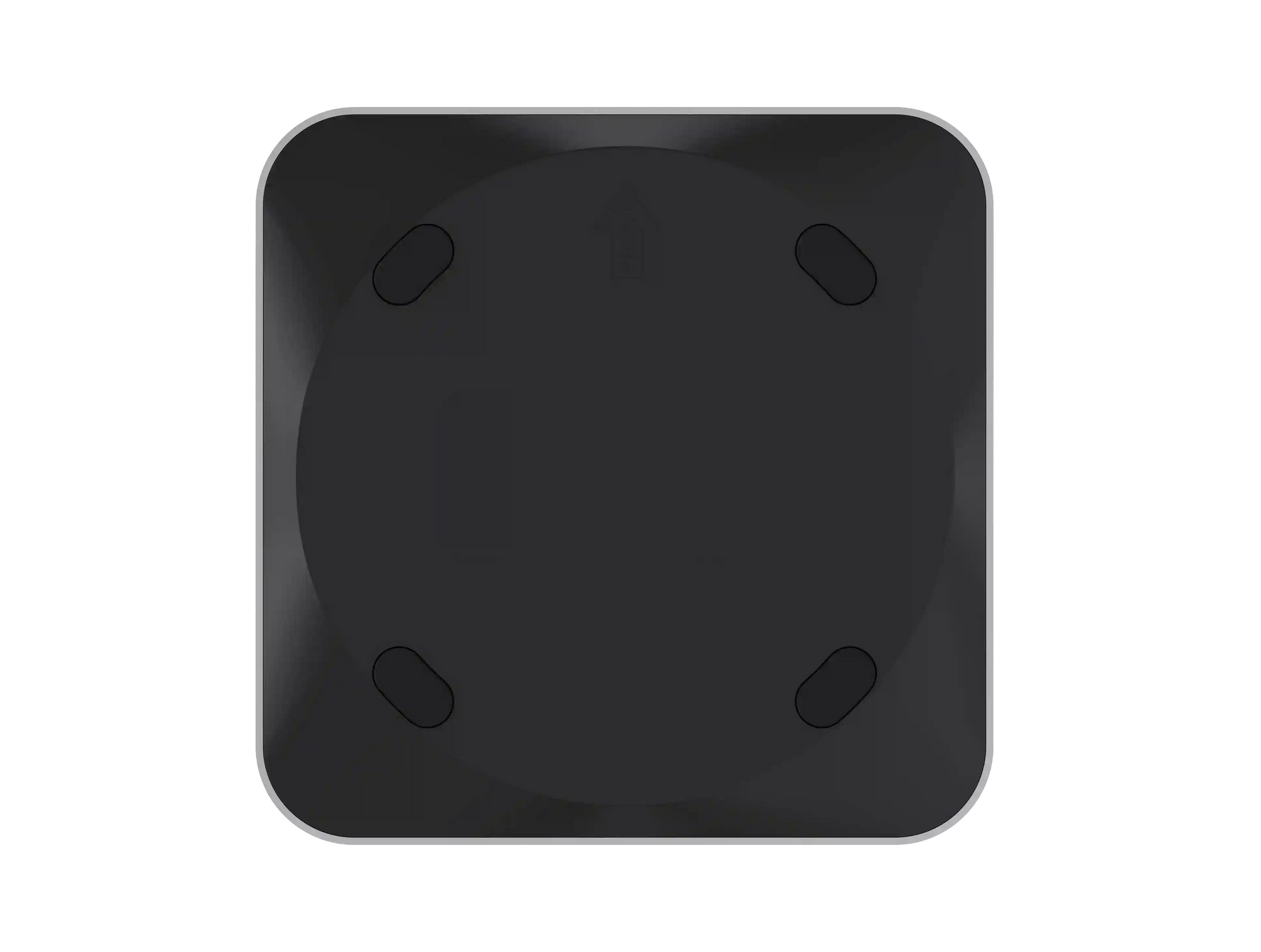

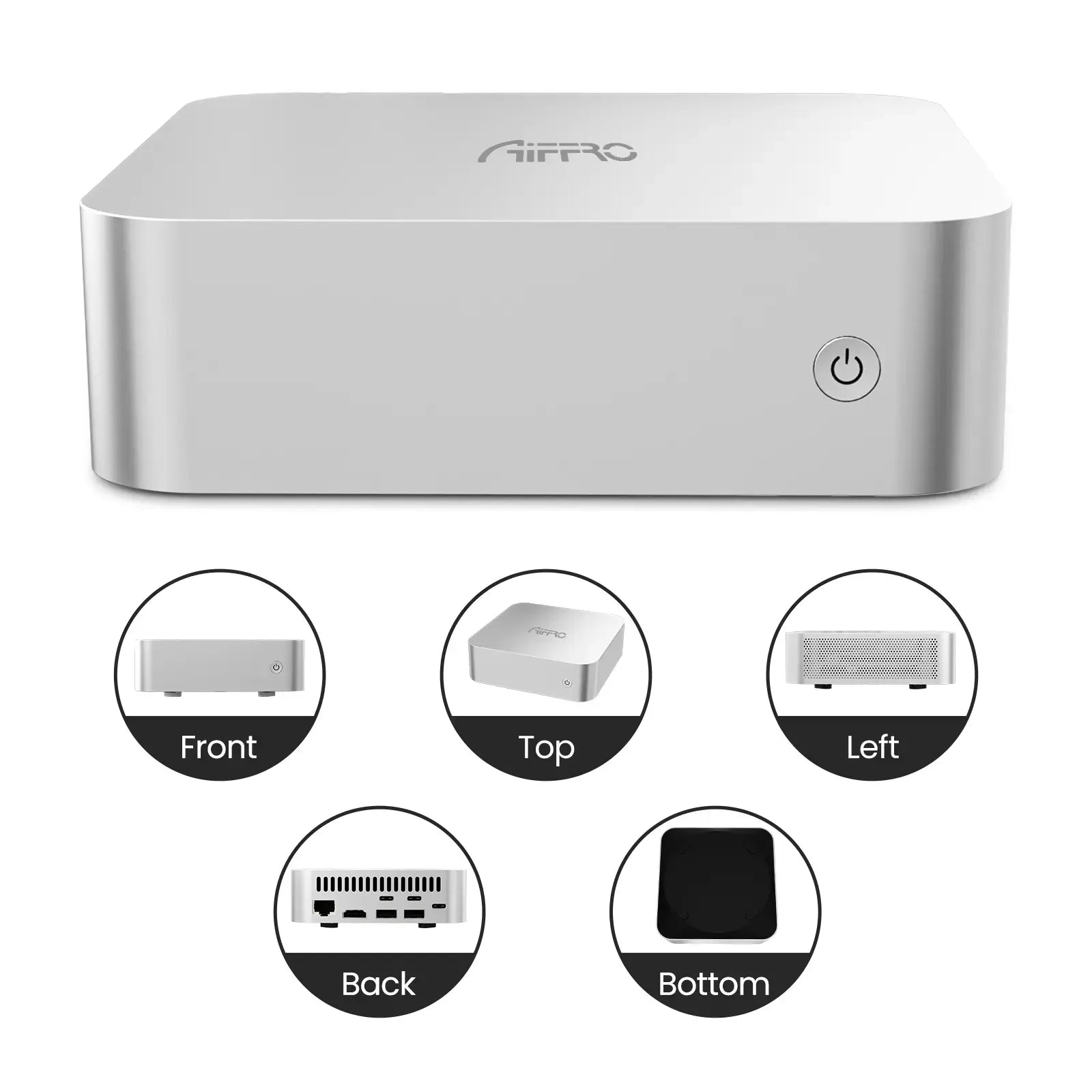

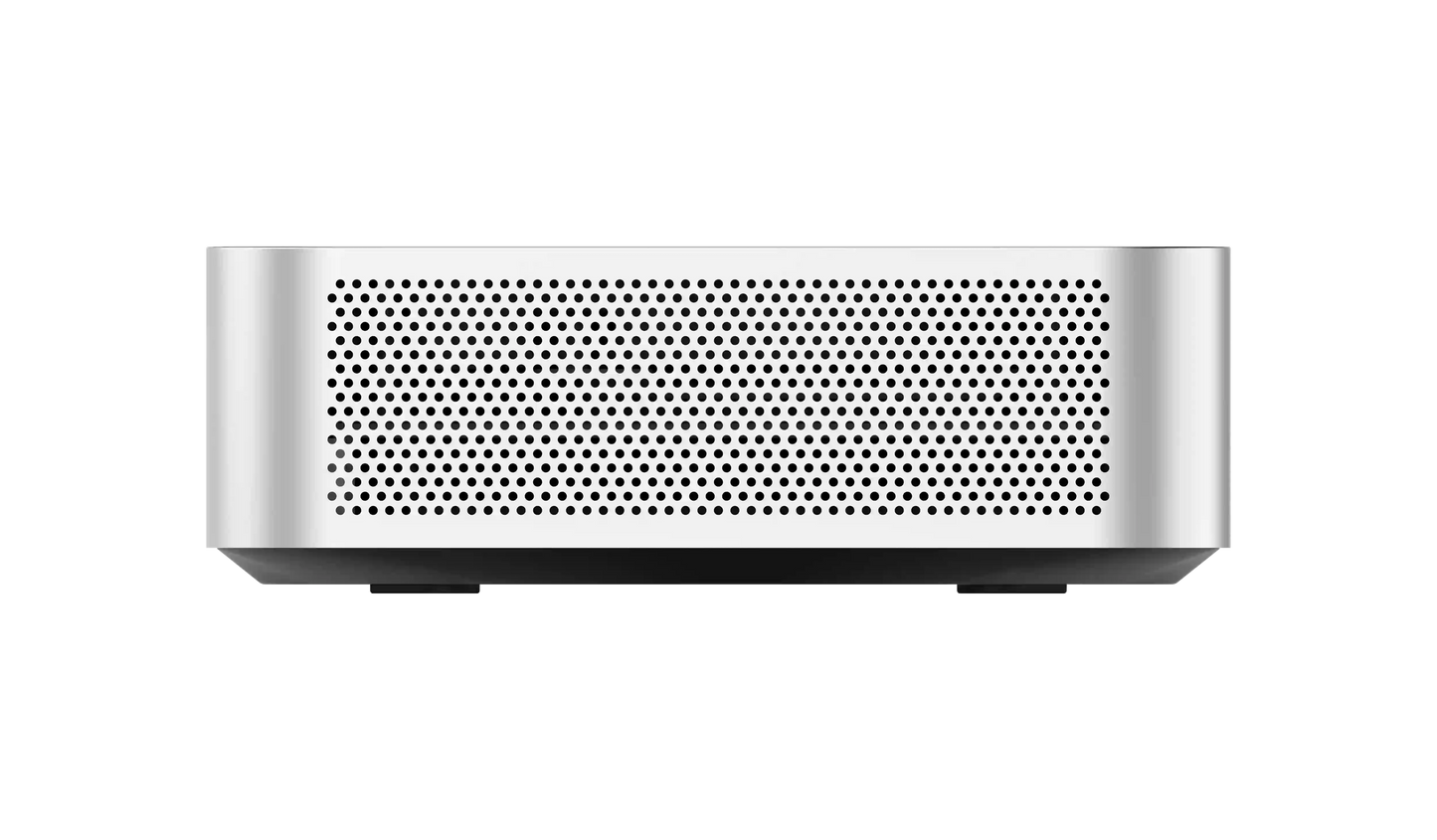

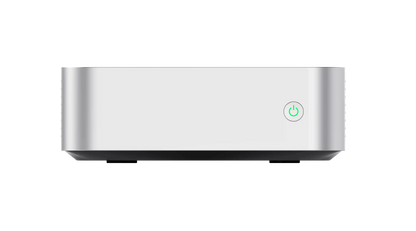

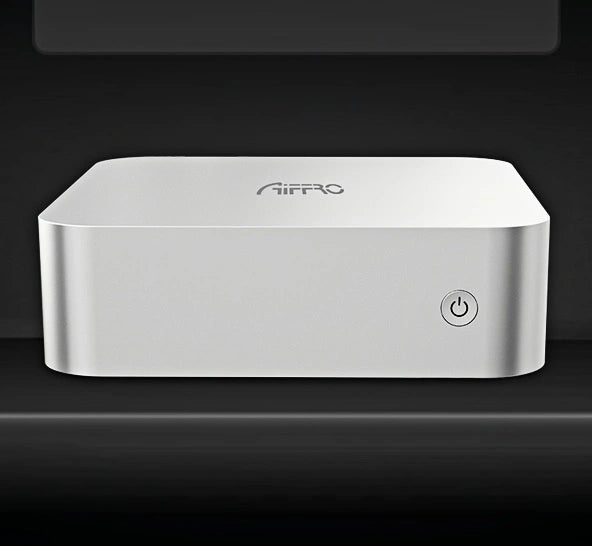

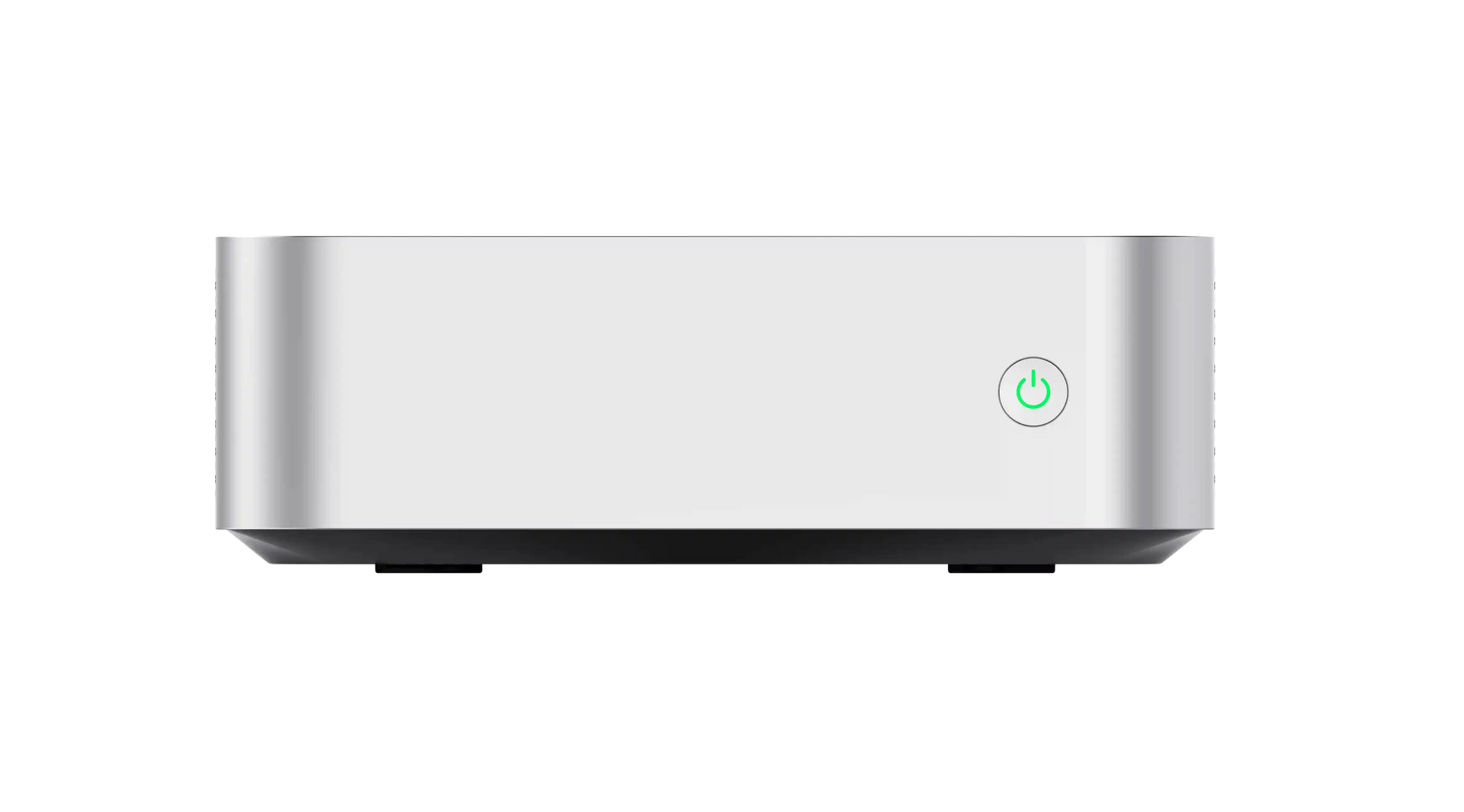

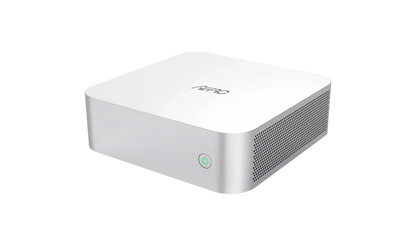

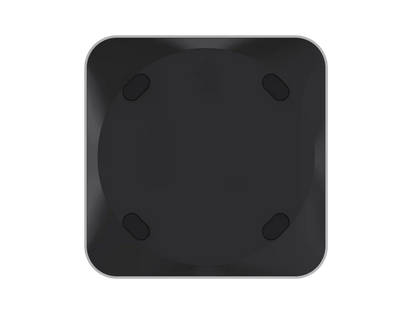

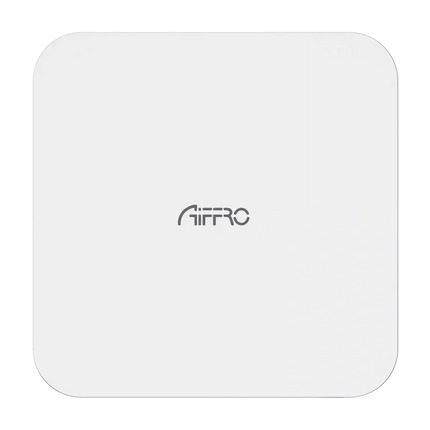

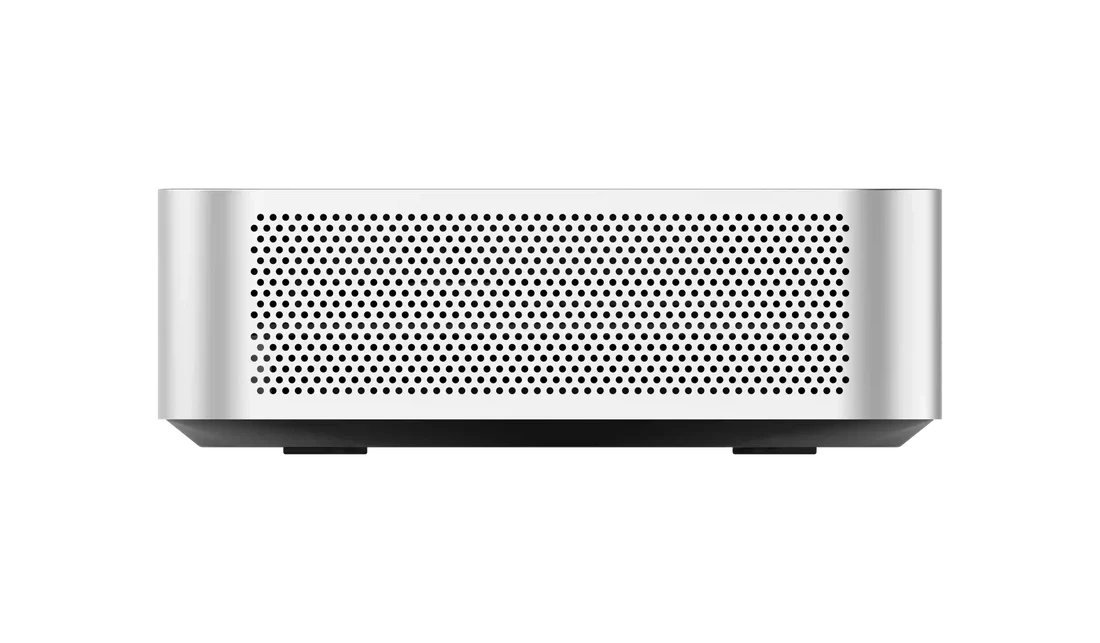

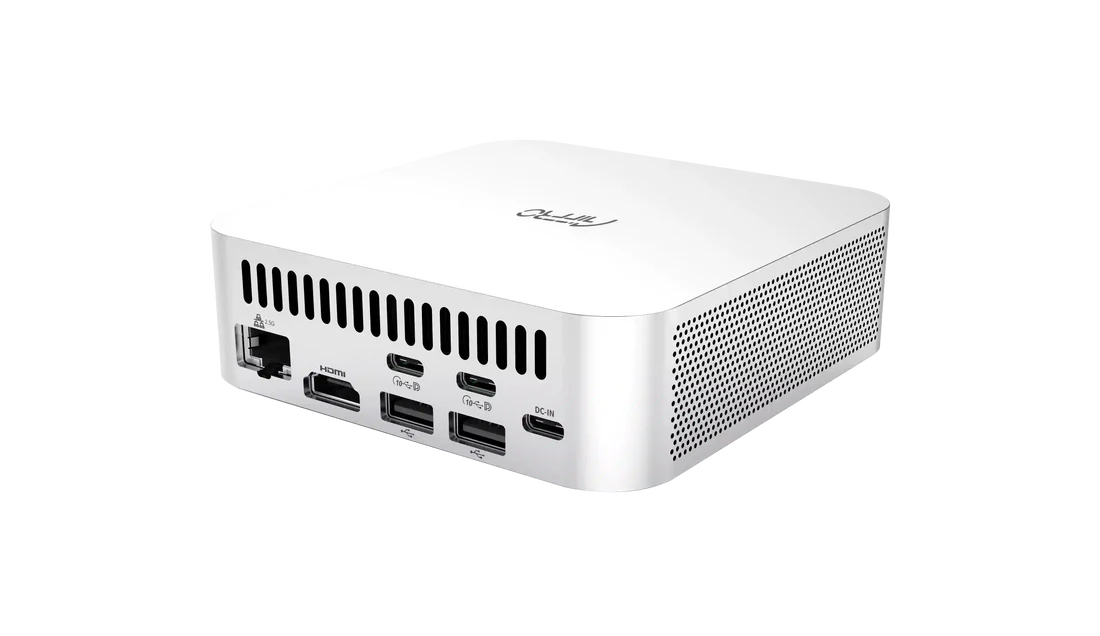

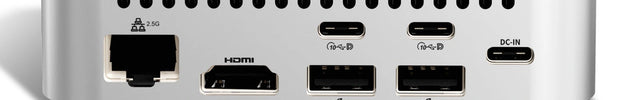

Product Details and Connection Views

EMiUZEK Buying Notes

• This is an x86 NAS platform; confirm whether the selected listing includes only the 256GB system drive or any preinstalled NAS software.
• The four storage bays accept M.2 2280 NVMe SSDs, not SATA 2.5-inch or 3.5-inch drives.
• The two USB-C data ports do not supply the unit; use the dedicated USB-C DC input and supplied 65W adapter.

Frequently asked questions

Does it include storage?

The listed variant includes 256GB; plan separate compatible M.2 NVMe SSDs for the four storage slots unless your order states otherwise.

Which NAS systems are supported?

Aiffro lists TrueNAS, FreeNAS, Ubuntu, CentOS, Euler and Windows 11 among supported systems.

Does it have 10GbE?

No. The built-in Ethernet port supports up to 2.5Gbps.

Can it use SATA hard drives?

No. Storage expansion is through four M.2 2280 NVMe slots.

Can RAM be upgraded?

The 8GB LPDDR5 memory is integrated and should be treated as non-upgradeable.

Does HDMI support a monitor?

Yes. HDMI is provided for local display during setup or maintenance.

HOW TO CONNECT

Home NAS

Source: Router or switch
Connection: 2.5GbE Ethernet
Output connection: Computers and mobile devices over the local network

Initial OS setup

Source: Monitor, keyboard and installer USB
Connection: HDMI and USB
Output connection: Install the chosen NAS operating system

Storage expansion

Source: Up to four compatible M.2 2280 NVMe SSDs
Connection: Internal PCIe Gen3 x2 slots
Output connection: Create storage pools in the installed OS
